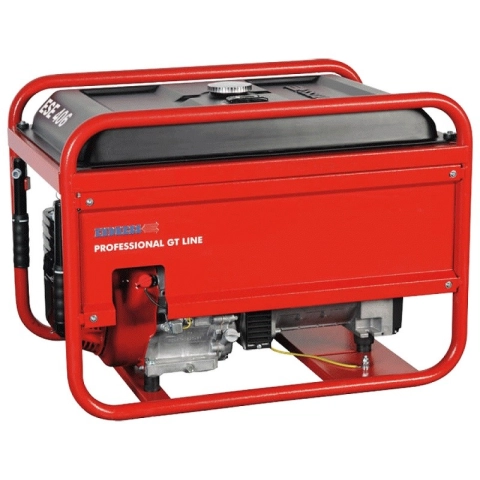

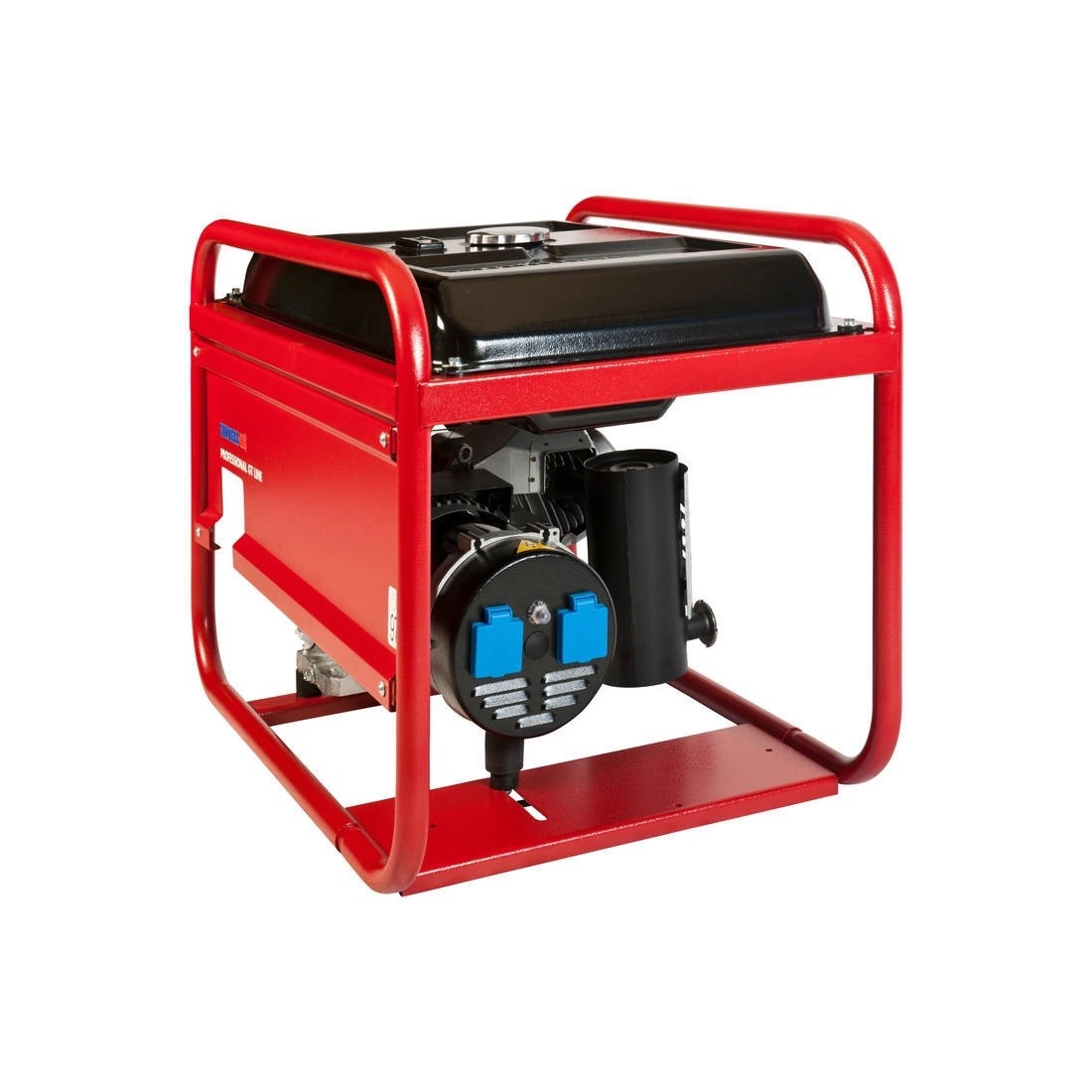

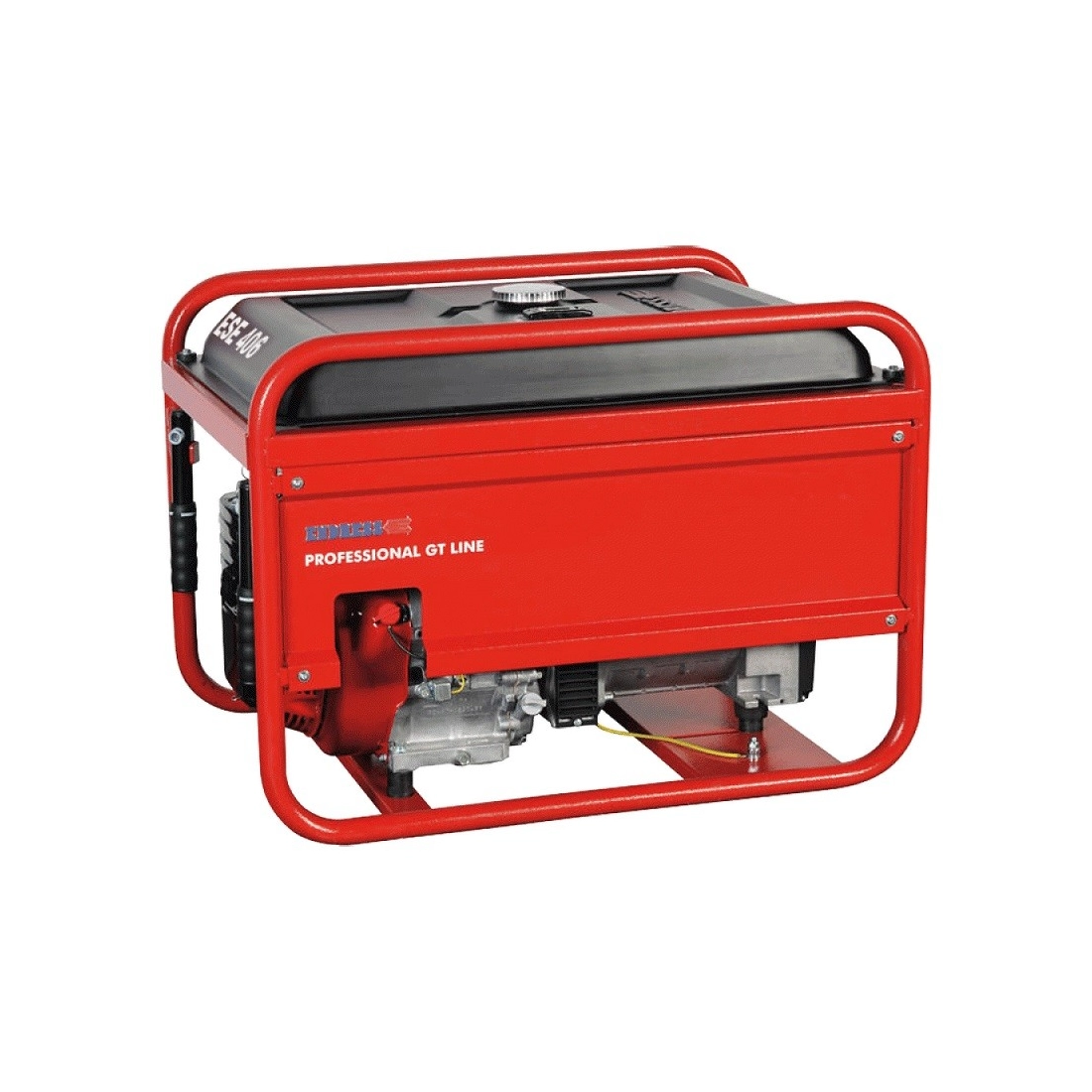

ENDRESS ESE 406 HS-GT ES Synchronous 5.1 kVA petrol generator

Name: ENDRESS ESE 406 HS-GT ES Synchronous 5.1 kVA petrol generator
Brand: Manelservice
SKU: ENDRESS ESE 406 HS-GT ES

Reference 112306

Phase Type: Single-phase
Power supply: Petrol
Maximum single-phase power: 5.1 kVA
Maximum single-phase power: 4.6 kW
Continuous single-phase power: 4.2 kVA
Continuous single-phase power: 3.9 kW
Frequency: 50 Hz
Voltage: 230 V
Voltage Regulator: AVR
Starting: electric
3000 rpm
Sockets: 2x 230V 16 A
Engine: HONDA GX270
Cubic Capacity: 270 cc.
Sound pressure at 7 meters: 72 db(A)
Length: 800 mm
Width: 538 mm
Height: 576 mm
Weight: 65 Kg

Download Technical Data ESE 406 HS-GT ES

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 4.6
Continuous power single phase (KW): 3.9
Maximum power single phase (KVA): 5.1
Continuous power single phase (KVA): 4.2
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 2 x 230V 16A CE
Engine: Honda GX270
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 270
Alternator: Synchronous
Poles: 2
Nominal current (A): 18.3
Fuel tank capacity (L): 30
Consumption (L/h): 1.6 at 75% of the load
Running time (h): 18 at 75% of the load / 13.5 at 100% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 800
Width (mm): 538
Height (mm): 576
Dry weight (Kg): 65
Silenced: No
Super silenced: No
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

Synchronous current generator with a compact 270 cc. Honda petrol engine, tear-off starter and a large 30 litre tank, which guarantees an autonomy of 18 hours!
ENDRESS ESE 406 HS-GT ES is equipped with an automatic stop system in case of lack of oil, overload protection, AVR.
Suitable for supplying energy to :
- Power tools up to 3800 W
- Gardening tools up to 2600 W
- Compressors or pumps up to 2000 W

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
