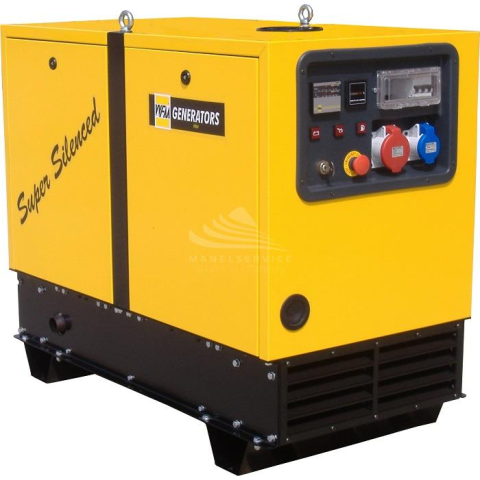

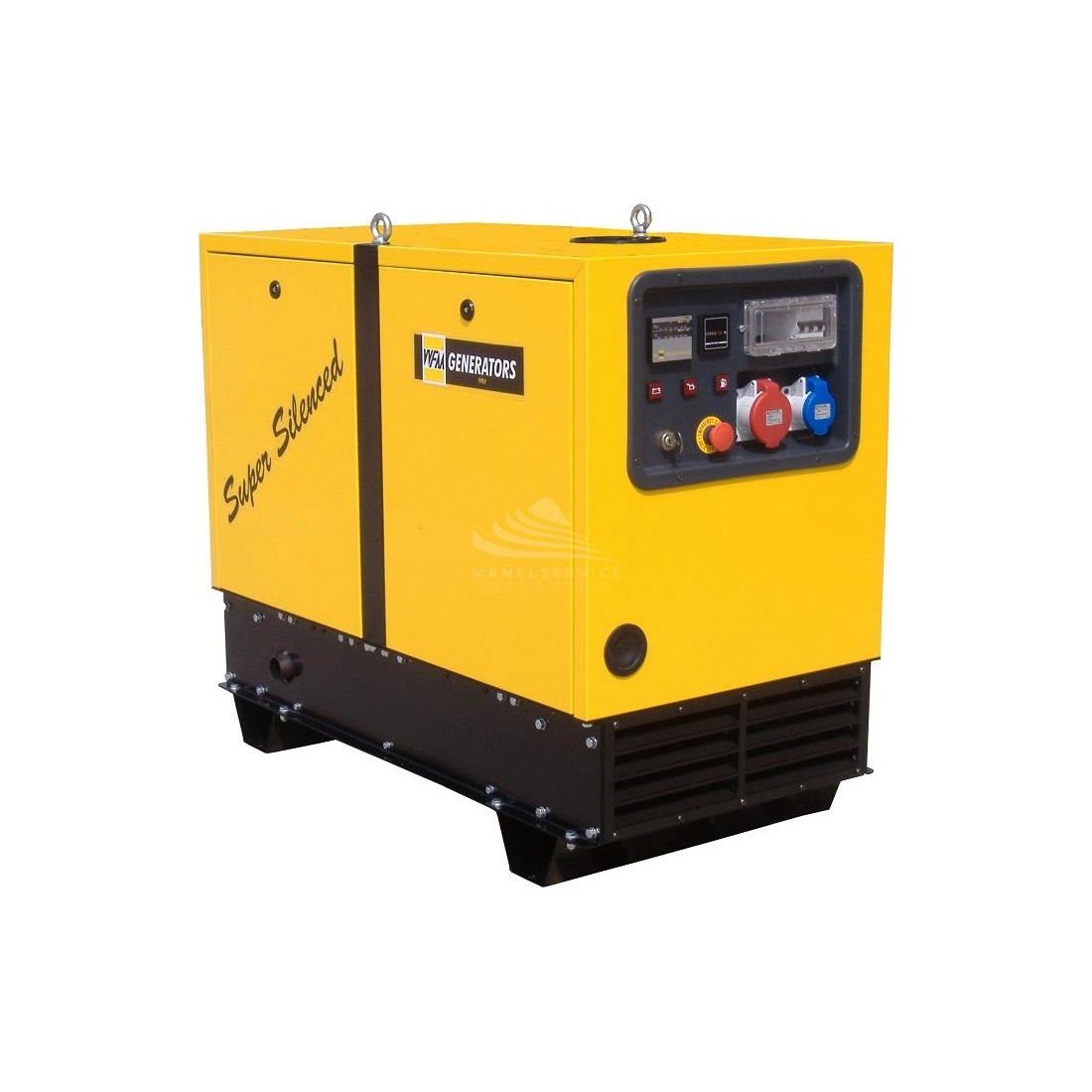

WFM SE12000-MTHE AVR
09317
- Phase
- Single phase / Three phase
- Height (mm)
- 921
- Length (mm)
- 1070
- Starting system
- Electric
- Width (mm)
- 563
- Engine manufacturer
- Honda
- Engine
- Honda GX690R
- Sockets configuration
- 1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE
- Cooling
- Air
- Maximum power single phase (KW)
- 3.2
- Maximum power single phase (KVA)
- 4
- Maximum power three phase (KW)
- 9.6
- Maximum power three phase (KVA)
- 12
- Fuel
- Gasoline
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 3000
- Engine capacity (cm³)
- 688
- Number cylinders
- 2
- Oil capacity (L)
- 1.9
- Fuel tank capacity (L)
- 20
- Consumption (L/h)
- 4.6 at 100% of the load
- Running time (h)
- 4.34 at 100% of the load
- Acoustic power
- 92 dB(A)
- Acoustic pressure
- 67 dB(A) at 7 m
- Dry weight (Kg)
- 210
- Silenced
- Yes
- Super silenced
- Yes
- ATS Switch device
- Optional ATS
- Voltage regulator
- No
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
