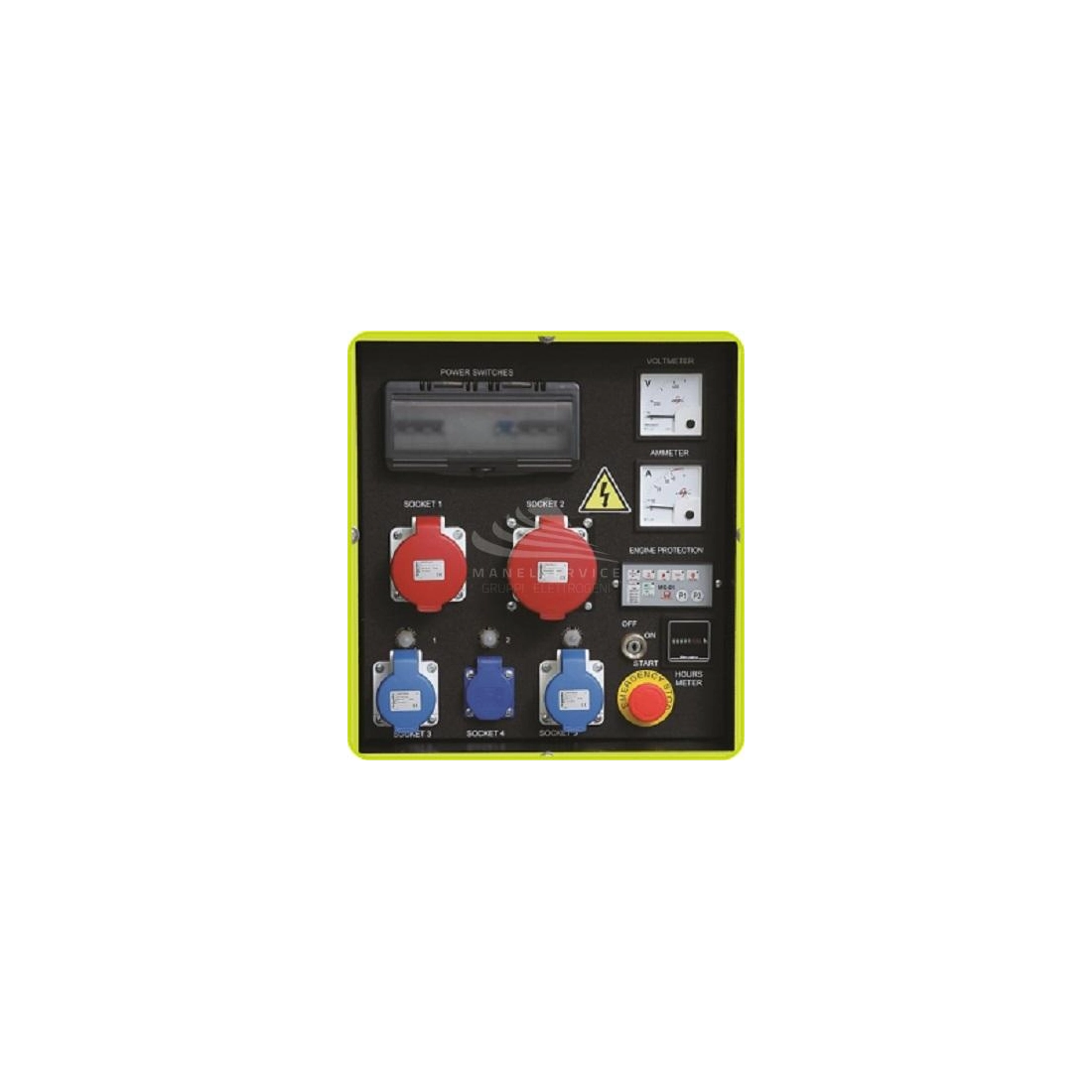

PRAMAC GBW35Y APERTO CON QUADRO COMANDO MANUALE (MCP)

Reference SH260TYAQ00 /

OUT OF PRODUCTION

Maximum power Three-phase: 26 KW
Three-phase continuous use power: 24.4 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98-IGPGE
STAGE IIIA
Starting: Electric
Consumption: 7.7 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1100 mm
Weight: 558 Kg
AVR

Download

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 29.87
Continuous power three phase (KW): 28.38
Maximum power three phase (KVA): 37.34
Continuous power three phase (KVA): 35.48
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Yanmar 4TNV98-IGPGE, naturally aspirated
Emissions Regulations: Stage 3A
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10.5
Cooling: Water
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 5.8 at 75% of the load / 7.7 at 100% of the load
Running time (h): 8.8 at 75% of the load / 6.6 at 100% of the load
Length (mm): 2000
Width (mm): 920
Height (mm): 1100
Dry weight (Kg): 558
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Yanmar

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
