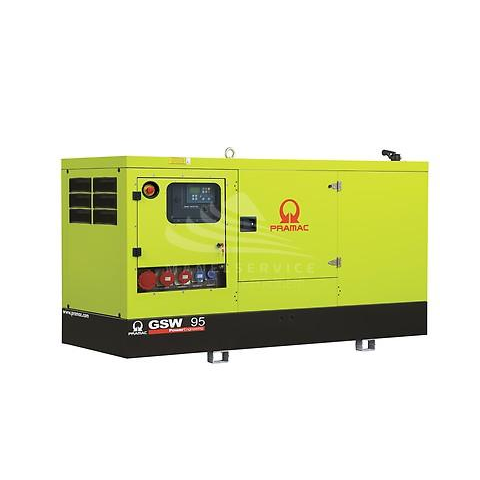

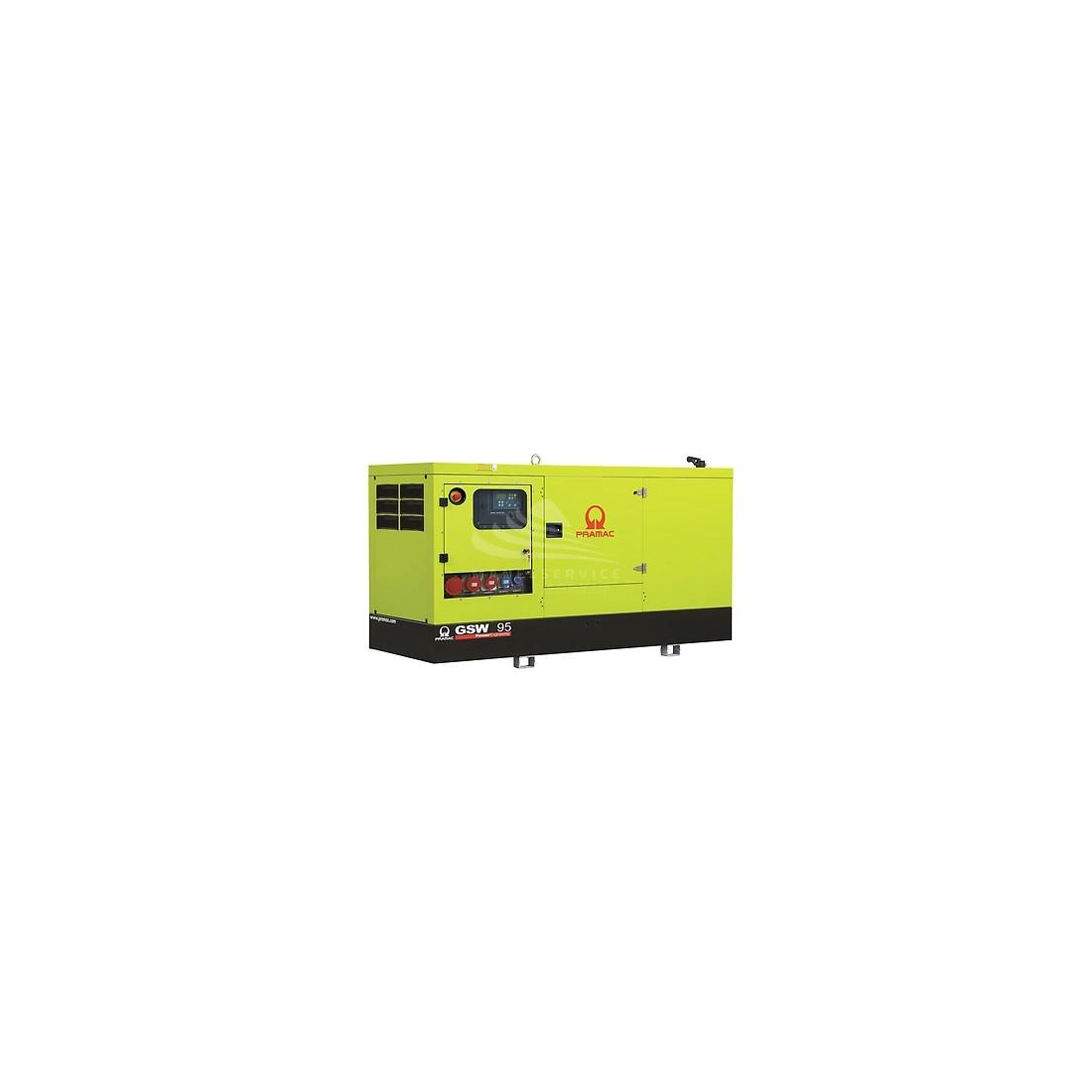

PRAMAC GSW95P COFANATO CON QUADRO COMANDO AUTOMATICO


Phase
Three phase
Height (mm)
1685
Length (mm)
2400
Starting system
Electric
Width (mm)
1000
Engine manufacturer
Perkins
Engine
PERKINS 1104D-E44TAG1, turbocharged
Poles
4
Cooling
Water
Maximum power three phase (KW)
73.93
Continuous power three phase (KW)
66.98
Maximum power three phase (KVA)
92.41
Continuous power three phase (KVA)
83.72
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Emissions Regulations
Stage 3A
Speed governor
Electronic
Engine capacity (cm³)
4400
Number cylinders
4
Cylinders' position
In line
Oil capacity (L)
8
Alternator
Mecc Alte ECP34-1S/4, brushless
Fuel tank capacity (L)
209
Consumption (L/h)
16.9 at 75% of the load / 20.4 at 100% of the load
Running time (h)
12.4 at 75% of the load / 10.2 at 100% of the load
Acoustic power
96 dB(A)
Acoustic pressure
67 dB(A) at 7 m
Dry weight (Kg)
1490
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
