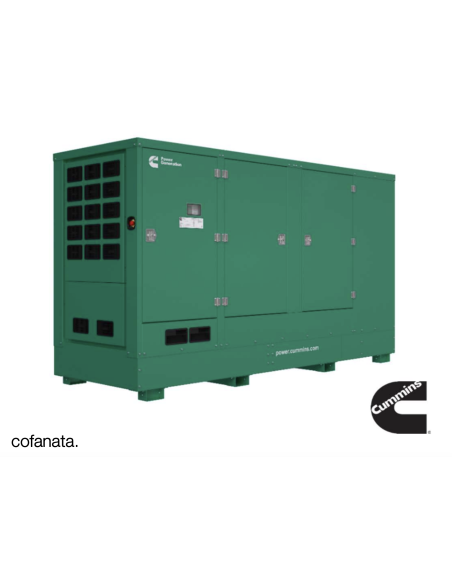

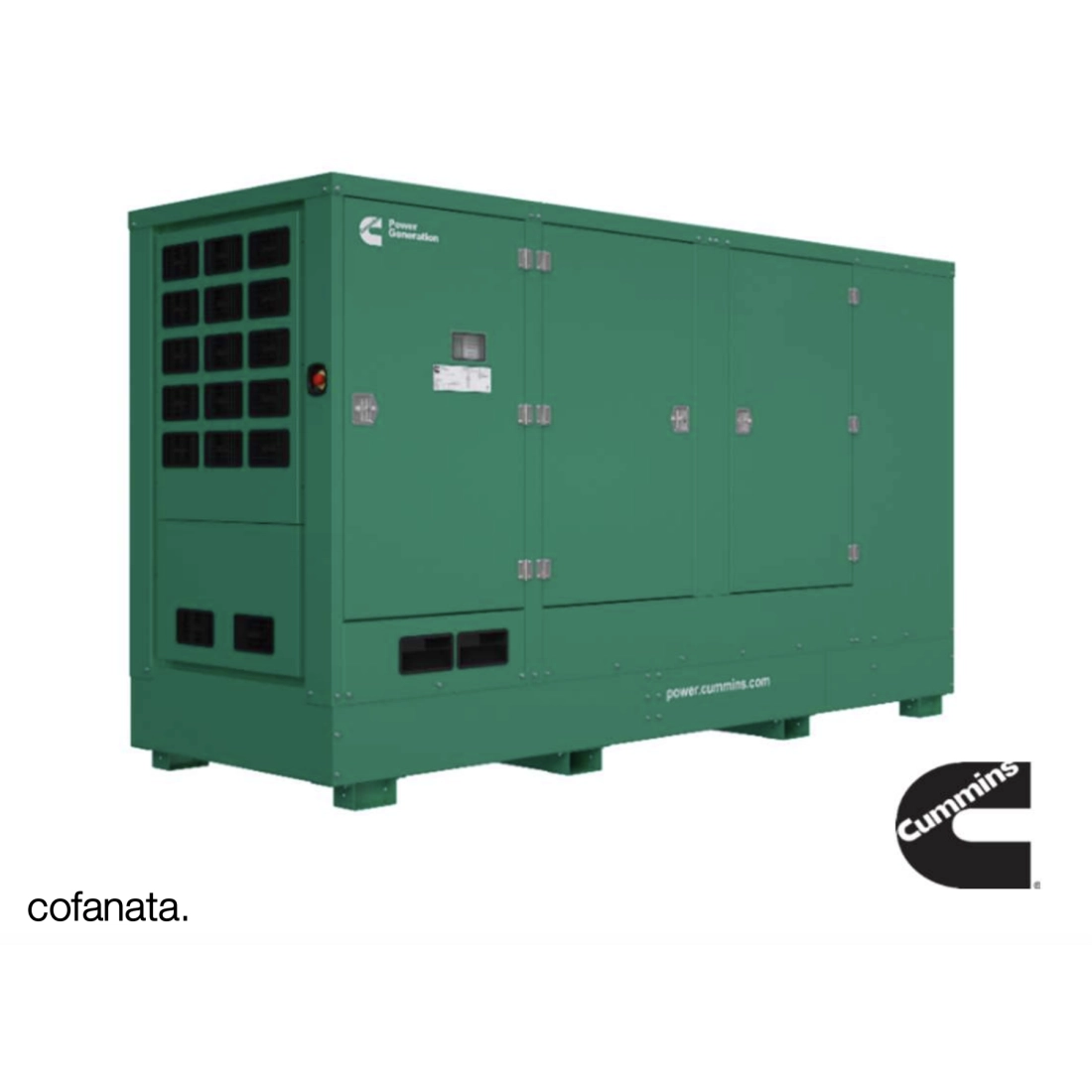

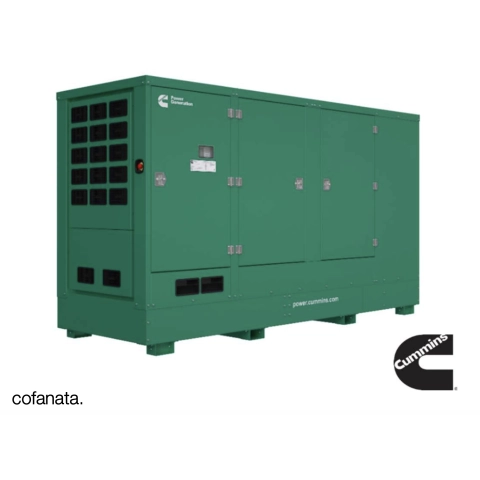

CUMMINS Generator Set C330D5EQ 330 kVA STATIONARY USE

CUMMINS C330D5EQ GENERATOR SET 330KVA STATIONARY USE

The CUMMINS C330D5EQ 330kVA generator set is a diesel generator designed to provide electrical power for professional and industrial applications.

Its 330 kVA rated power makes it suitable as a primary or emergency power source for facilities and operations requiring a reliable supply.

The Cummins QSL9-G7 diesel engine and brushless Stamford alternator make the CUMMINS C330D5EQ 330kVA generator set ideal for professional power continuity needs.

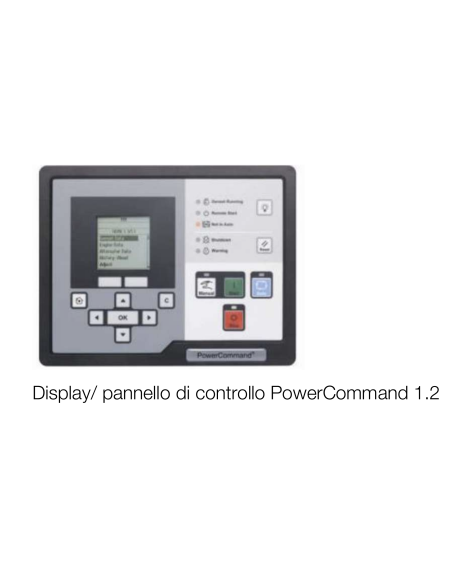

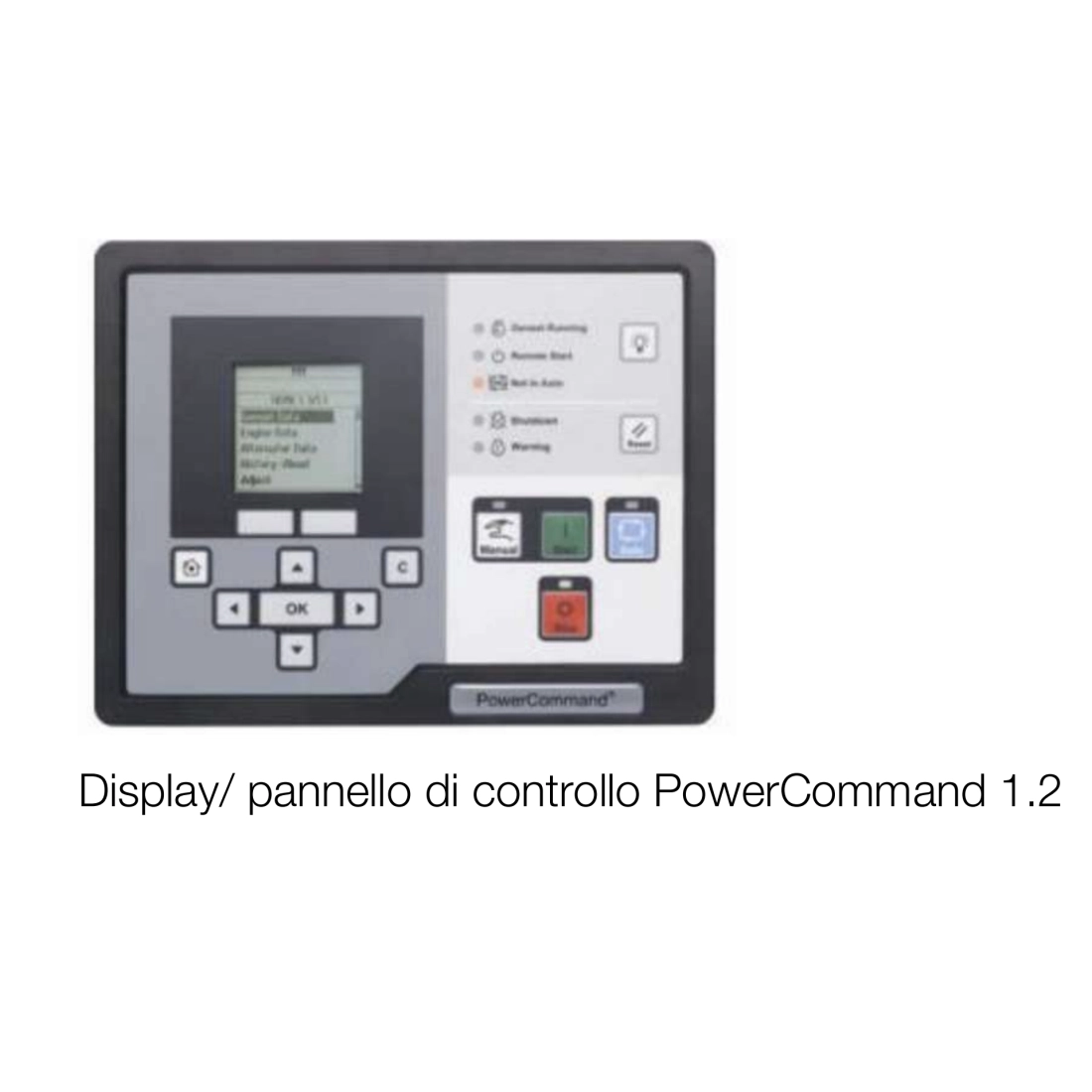

Equipped with the Cummins PowerCommand 1.2 control system, the CUMMINS C330D5EQ 330kVA generator set allows for the control and monitoring of key operating parameters.

The CUMMINS C330D5EQ 330kVA generator set combines high performance with a three-phase configuration for applications requiring efficient emergency power.

Technical Specifications:

Phase type: Three-phase
Maximum three-phase power (LTP): 330 kVA
Maximum three-phase power (LTP): 264 kW
Continuous three-phase power (PRP): 300 kVA
Continuous three-phase power (PRP): 240 kW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 400/230 V
Engine: Cummins
Engine speed: 1500 rpm
Cooling: Air
Maximum fuel flow: 159 l/h
Configuration: 4-stroke, 6-cylinder in-line, turbocharged with charge-air cooling
Displacement: 8.8 l
Bore: 114 mm
Stroke: 145 mm
Prime power consumption at 25% / 50% / 75% / 100% load: 19 / 39 / 56 / 70 l/h
Declared autonomy at 75% PRP load (usable): 17 h
Standby power consumption at 25% / 50% / 75% / 100% load: 23 / 41 / 59 / 75 l/hFuel tank: 995 l
Alternator: StamfordInsulation: Class H
Length: 4030 mm
Width: 1425 mm
Height: 2495 mm
Dry weight: 3520 kg
