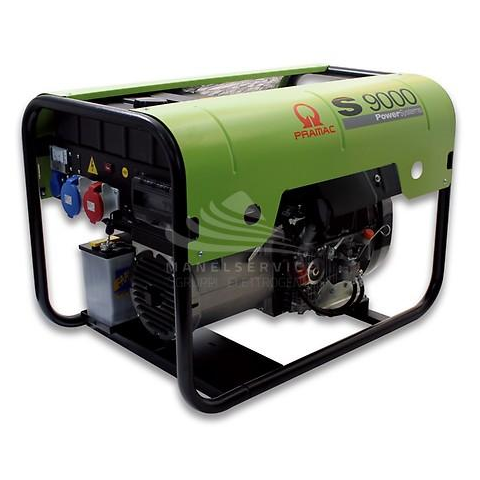

PRAMAC S9000 THREE PHASE

PRAMAC S12000 MONOFASE
PRAMAC S12000 MONOFASE
PD882TRAZ0K


Potenza Consumo uso continuativo: 10 kva
Tipo carburante: Benzina
Capacità serbatoio carburante: 24 LT
Autonomia: 6.1 h al 75% del carico
Dimensioni: L 96 cm x L 64.1 cm x A 66.7 cm
Peso a secco: 162 Kg
Potenza acustica LpA: 96 LWA dB(A)
Configurazione delle prese: 1 x Schuko ,1 x 230V 16A ,1 x 230V 32A

Download Scheda tecnica S9000 Trifase Download Technical data S9000 Threephase

Phase
Single phase
Height (mm)
667
Length (mm)
960
Starting system
Electric
Width (mm)
641
Engine manufacturer
Lombardini
Engine
Lombardini 25LD330, naturally aspirated
Poles
2
Sockets configuration
1 x 230V 32A 2P+T CEE - 1 x 230V 16A SCHUKO
Cooling
Air
Maximum power single phase (KW)
3.04
Continuous power single phase (KW)
2.64
Maximum power single phase (KVA)
3.8
Continuous power single phase (KVA)
3.3
Maximum power three phase (KW)
8.2
Continuous power three phase (KW)
7
Maximum power three phase (KVA)
10.3
Continuous power three phase (KVA)
8.8
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Speed governor
Mechanical
Engine capacity (cm³)
654
Oil capacity (L)
1.8
Fuel tank capacity (L)
24
Consumption (L/h)
2.16 at 75% of the load / 2.90 at 100% of the load
Running time (h)
11.06 at 75% of the load / 8.25 at 100% of the load
Dry weight (Kg)
160
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
Optional ATS
Voltage regulator
Compound
Brand

Motore Honda Serie GX. Raffreddamento ad aria. Batteria fornita di serie. Protezione Oil Guard. Tubazioni telaio maggiorate. Serbatoio maggiorato. Bandelle laterali di protezione

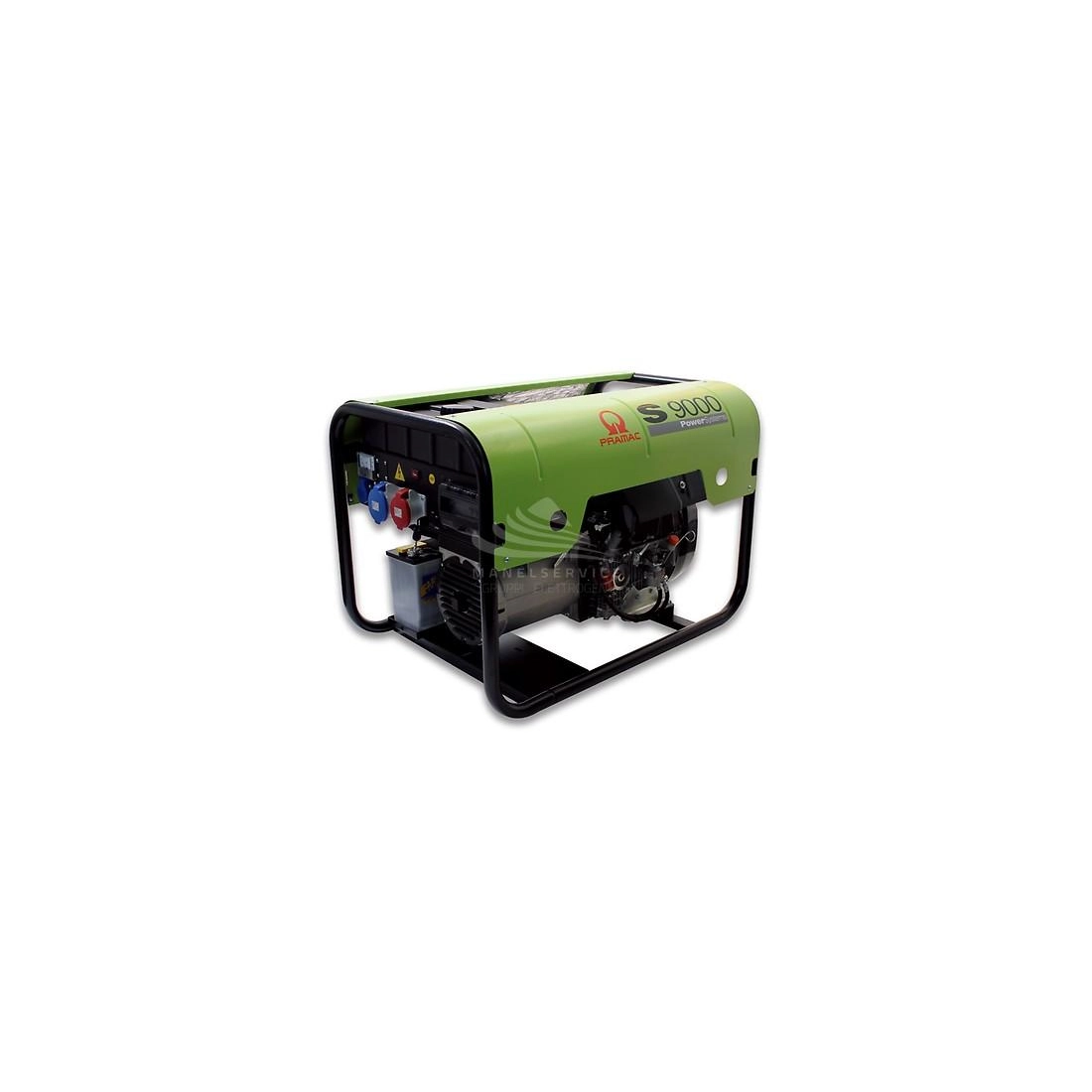

L'immagine è puramente indicativa

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
