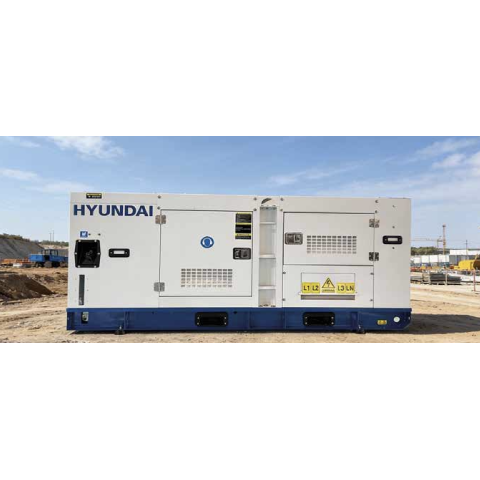

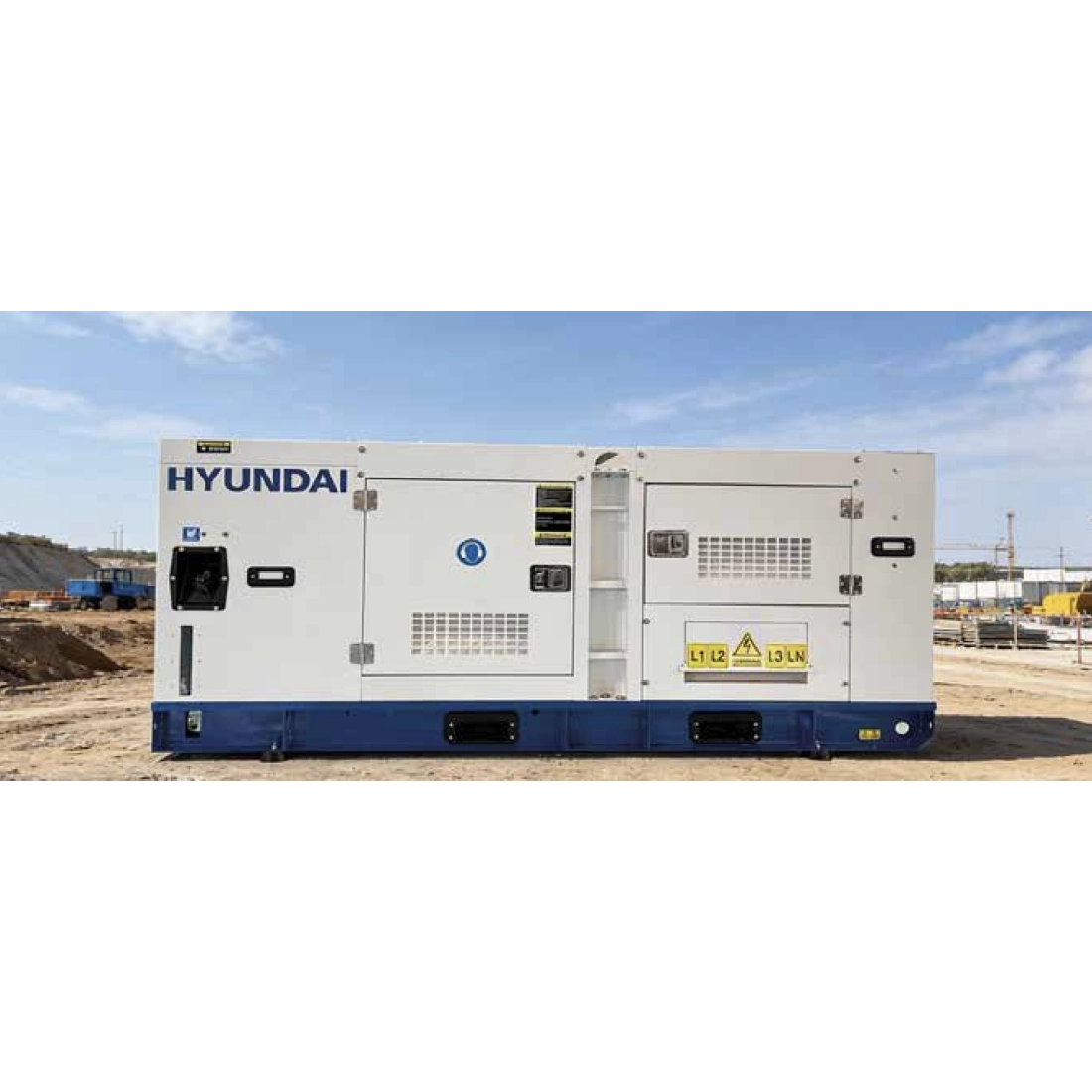

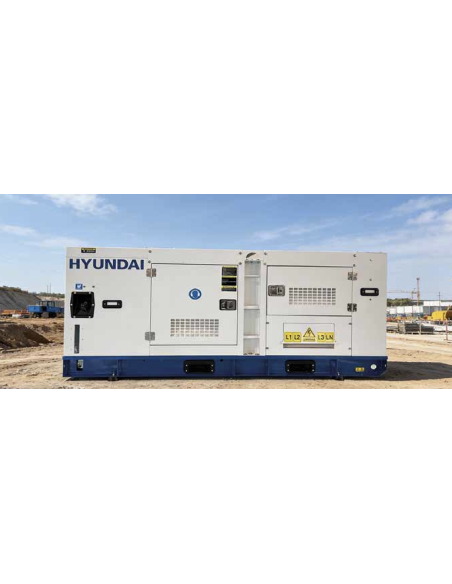

HYUNDAI 65564 1500 RPM THREE-PHASE SILENT GENERATOR 125 kVA

HYUNDAI DPK-DDE-125S 1500 RPM THREE-PHASE SILENT GENERATOR 125 kVA

The HYUNDAI DPK-DDE-125S 1500 RPM Three-Phase Silenced Generator 125 kVA is the ideal professional solution for those who need reliable, powerful, and silent electricity. With a maximum power of 100 kW/125 kVA and a nominal power of 90 kW/113 kVA,
this three-phase generator (also designed for single-phase use) guarantees constant performance even in the most demanding contexts, with a voltage of 230/400 V at 50 Hz.
Thanks to the soundproofing casing, the perceived noise is only 72 dB(A) at a distance of 7 meters, making this generator perfect for construction sites,
events, accommodation facilities and environments where compliance with acoustic limits is essential.
The IP23 protection rating and H/H insulation ensure resistance to dust, humidity, and external agents.

Technical Features:

Model DPK-DDE-125S
Phase Single-phase/Three-phase
Nominal power TF 90 kW/113 kVA
Maximum power TF 100 kW/125 kVA
Voltage 230/400 V - 50 Hz
Amperage 162 A
Noise level 72 dB(A) measured at 7 m
IP protection rating IP23
Insulation degree H/H
Altitude < 1000 m above sea level
Power factor cosφ = 0.8
Frequency tolerance ±1%
Alternator model LEROY SOMER TAL-A44-E
Brushless exciter, self-excitation
AVR regulation: R120
Control unit DSE6120MKIII
ATS 65547 ready
Low oil pressure protection
High engine temperature protection
Overspeed protection
Emergency stop management
Alarm and fault signalling system
1x16 A socket
2x32 A sockets - Single phase
1x32 A socket - Three phase
Three-phase output via terminal block
Motor brand DEUTZ
Engine model BF4M1013EC G1
Displacement 4760 cc
Injection type Direct
Nr. 4 cylinders
Engine rpm 1500/min
Consumption at 100/75/50% load 16.4/12.3/8.2 L/h
Fuel Diesel
Tank capacity 230 L
Total lubrication capacity 20 L
Liquid coolant cooling
Total cooling capacity 9.8 L
Fan air flow 180 m³/min
Dimensions 285x105x165 cm
Weight 1576 kg
Liquid coolant cooling
Soundproof canopy
Emergency safety button
Waterproof control panel
Miniaturized and waterproof automatic switch
