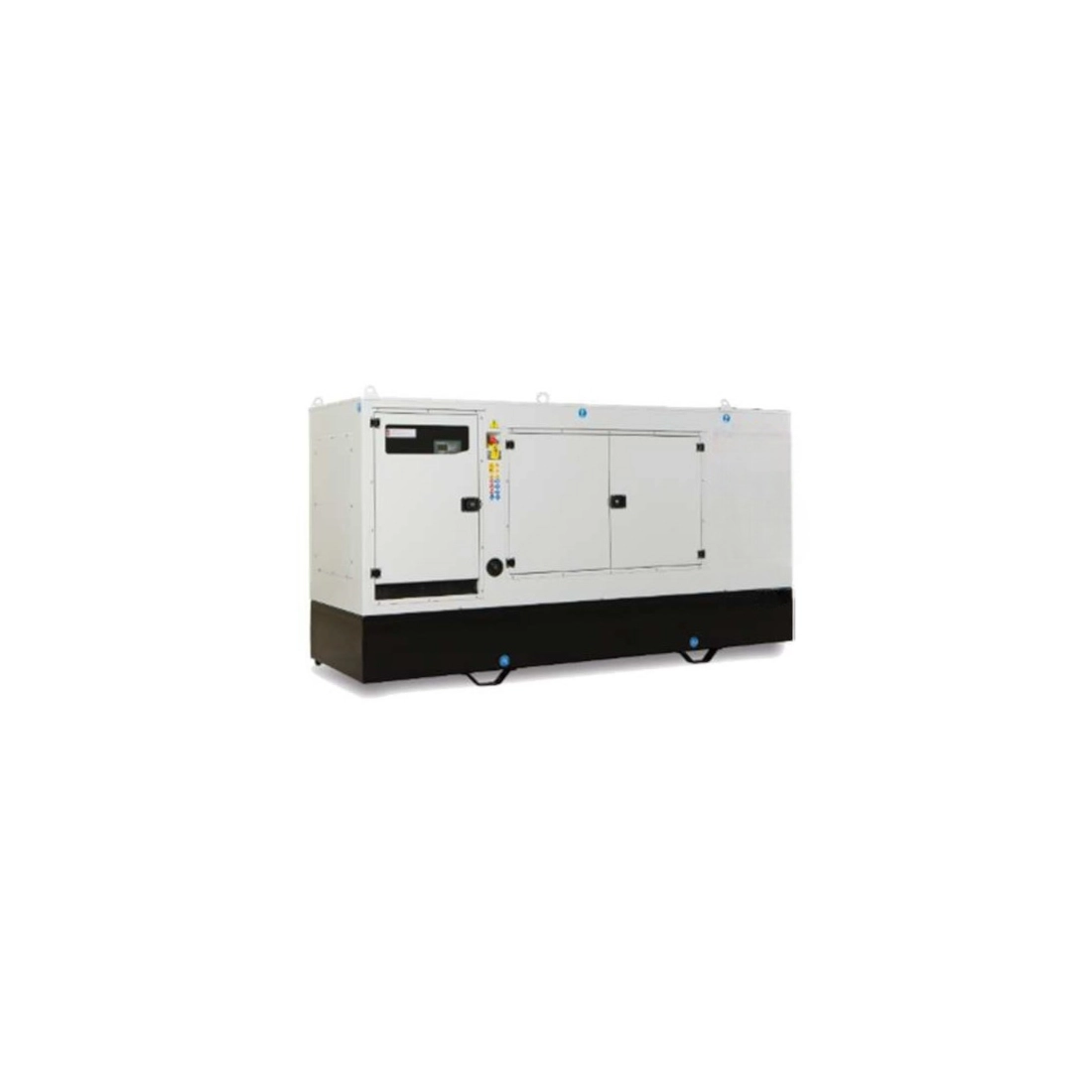

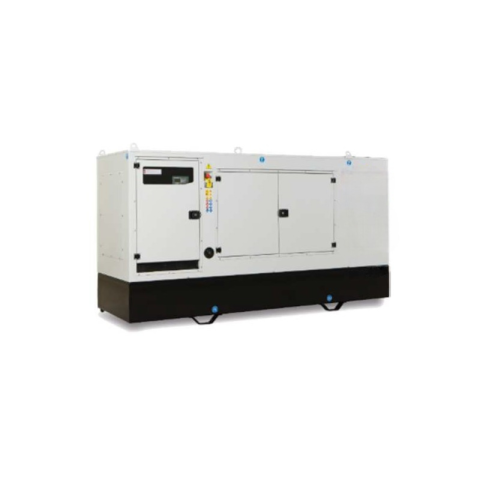

Generator Set Silenced Non-Emission 250KVA

Generator Set Silenced Non-Emission 250KVA
Generator Set Silenced Non-Emission 250KVA
GESSNE250

Maximum three-phase power: 250 KVA
Maximum three-phase power: 200 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Perkins 1206A-E70TTAG2
Start: Electric
Length: 3300 mm
Width: 1100 mm
Height: 1770 mm
Weight: 2450 Kg


Phase
Three phase
Maximum power three phase (KW)
200
Continuous power three phase (KW)
180
Maximum power three phase (KVA)
250
Continuous power three phase (KVA)
225
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine
Perkins 1206A-E70TTAG2
Engine rpm (rpm)
1500
Speed governor
Electronic
Starting system
Elettrico
Engine capacity (cm³)
7010
Number cylinders
6
Cylinders' position
In line
Cooling
Water
Alternator
LEROY SOMER
Poles
4
Protection degree
IP23
Fuel tank capacity (L)
170
Consumption (L/h)
35.7 Lt/h al 75% del carico
Acoustic pressure
70 dB(A)
Width (mm)
1100
Height (mm)
1770
Dry weight (Kg)
2450
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

Silent, Non-Emitting Generator Set  250KVA

This generator delivers a maximum three-phase power of 200 kW (250 kVA) and a continuous power of 180 kW (225 kVA).
It operates at a frequency of 50 Hz and provides a standard voltage of 230 / 400 V, suitable for most industrial and commercial applications.
Voltage stability is ensured by an AVR voltage regulator, which protects sensitive connected electronic equipment.

The generator is equipped with a Perkins 1206A-E70TTAG2 engine, a 6-cylinder in-line diesel unit with a displacement of 7035 cm³ and water cooling.
The engine operates at 1500 rpm, a feature that ensures greater durability and lower noise during use. extended.
The alternator is a LEROY SOMER TAL046C model, known for its reliability. The starter is electric and the engine speed is managed electronically for greater precision.


Technical Features:

Maximum three-phase power: 250 KVA
Maximum three-phase power: 200 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Perkins 1206A-E70TTAG2
Starter: Electric
Length: 3300 mm
Width: 1100 mm
Height: 1770 mm
Weight: 2450 kg


If you are looking for a similar product but with different characteristics CLICK HERE.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
