MOSA GE SX-7000 HBM

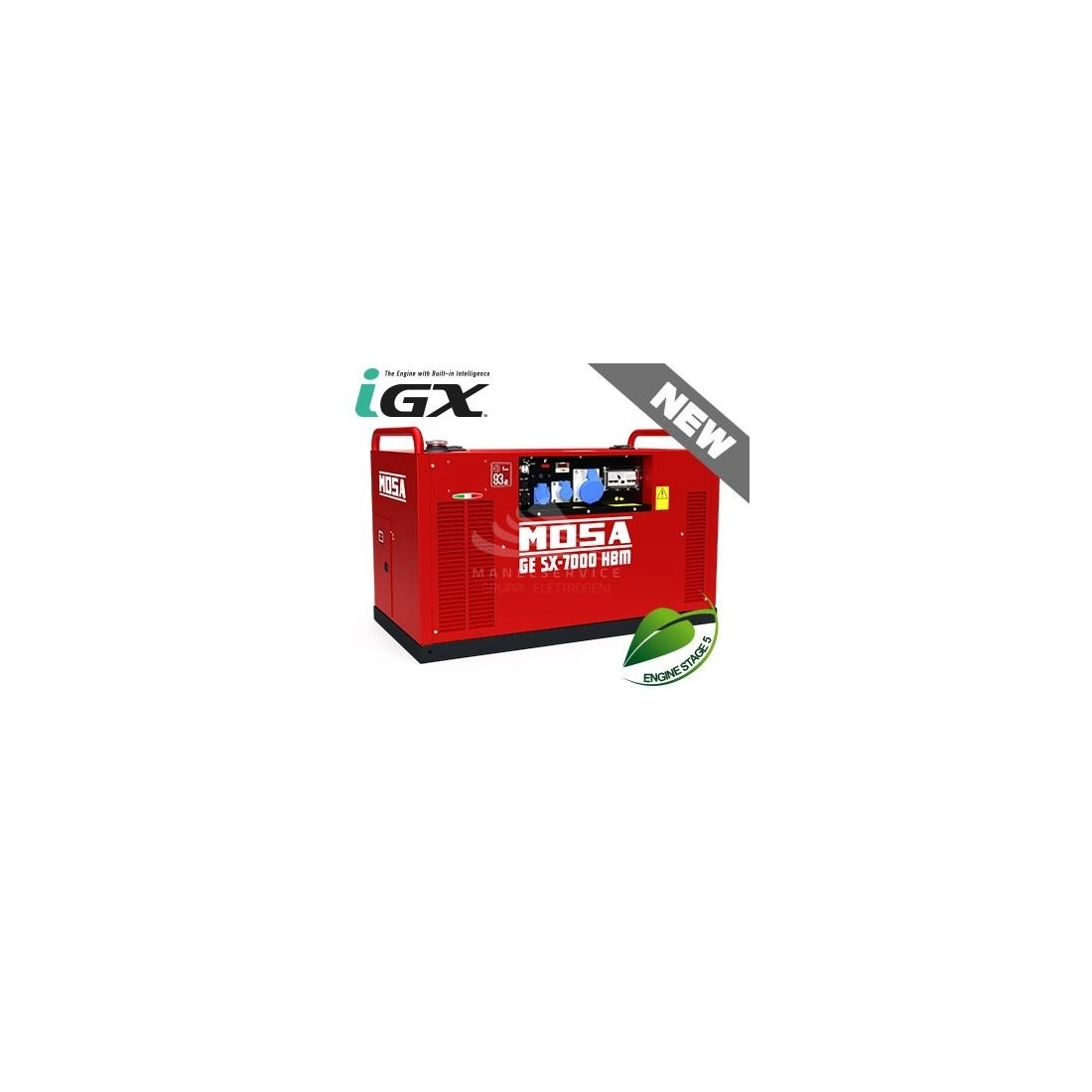

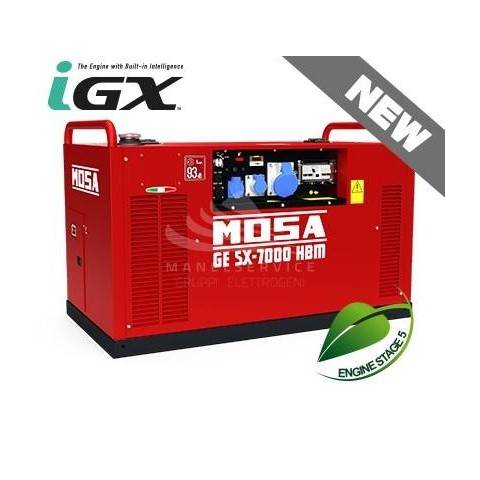

MOSA GE SX-7000 HBM 6 KW super-silenced AVR generating set

MOSA GE SX-7000 HBM is a 6 KW single-phase gasoline-powered generator set with Honda engine, super-silenced and voltage regulator with AVR technology. The MOSA GE SX-7000 HBM is easily transportable, using the special side handles and thanks to its weight of 159 kg.
Even quieter and more efficient than traditional models, the MOSA GE SX-7000 HBM generator set delivers a stable and precise single-phase power of 6 KW suitable for powering sophisticated electronic equipment that is sensitive to voltage and frequency variations.
So you can quietly and easily enjoy all the little comforts of home wherever you are: lights, fans, a coffee maker, laptops, radios or TVs.

The GE SX-7000 HBM generator provides a stable and precise single-phase power supply of 6 KW.

AVR voltage regulator

The automatic voltage regulator AVR is an electronic device that realizes voltage regulation. The voltage error resulting from the comparison between the voltage to be regulated and a stable reference is virtually cancelled by acting on the rotor excitation current.
The regulation characteristics are much better than those of self-regulated alternators.

The MOSA GE SX-7000 HBM generator set is equipped with an 18-liter capacity tank for more than 7 hours of continuous operation at 75% load.
It features a steel frame with engine and alternator mounted on vibration dampers to reduce noise and increase service life. The flush-mounted front panel protects the outlets, controls and instruments from accidental damage while the cowling provides protection for the entire machine.
The MOSA GE SX-7000 HBM generator set is prepared to be connected to the EAS automatic start panel, allowing the machine to be used as an emergency unit in the event of a main power failure from the commercial electrical grid.
The MOSA GE SX-7000 HBM control panel houses the machine's outlets and controls, including the residual current circuit breaker, circuit breaker and thermal protection.
A TCM remote control is also available for the MOSA GE SX-7000 HBM generator set, allowing engine start/stop up to 10 meters away from the machine.
The MOSA generator set is suitable for a wide range of uses such as construction, equipment rental, and events.

Technical Features of the MOSA GE SX-7000 HBM:

Single-phase Stand-by Output (LTP): 6.7 kVA (6 kW) /230V/ 29.1A
Single-phase PRP Output: 6 kVA (5.4 kW) /230V/26 A
Frequency: 50 Hz
Cos ?: 0.9

ENGINE TECHNICAL DATA
Model: HONDA iGX 390
Net standby output: 8.2 kWm (11.1 hp)
Net PRP output: 6.4 kWm (8.7 hp )
Cylinders / Displacement: 1 / 389 cm³ (0.39 lt.
Bore / Stroke: 88 / 64 (mm)
Compression ratio: 8. 2 : 1
RPM controller: Electronic
110 % (Stand-by power): 3.5 lt./h
100 % PRP: 3.2 lt./h
75 % PRP: 2.4 lt./h
50 % PRP: 1.6 lt. /h
Oil capacity in sump: 1.1 lt.
Maximum back pressure: 4.3 kPa
Electrical system: 12 Vdc (AE)
Battery charge alternating capacity: 1 A

TECHNICAL DATA ALTERNATOR
Continuous power: 6 kVA
Standby power: 6. 6 kVA
Single-phase voltage: 230 /115 Vac
Frequency: 50 Hz
Cos ?: 1
Voltage regulation accuracy: ± 2 %
Sustained short-circuit current: 3 In
Transient Cdt (100 % of load): < 10 %
Efficiency at 100 % of load: 77 % (230V - Cos ? 1)
Isolation: Class H
Connection - Terminals: Series - No. 4
Harmonic Distortion - THD: < 6 %
Protection Class: IP 23
Coupling - Bearings: Direct J609b - No. 1
A. Model. V.R. Model: AVR-d

GENERAL SPECIFICATIONS
Tank capacity: 18 lt.
Range of autonomy (75% of PRP): 7.5 h
Starting battery 12 Vdc -18Ah (AE)
Measured acoustic power LwA: 91.5 dB(A) (66. 5 dB(A) @ 7m)
Guaranteed acoustic power LwA: 93 dB(A) (68 dB(A) @ 7m)
Performance class: G2
Length: 1060 mm
Width: 565 mm
Height: 663.5 mm
Weight: 159 Kg

If you are looking for another product such as MOSA GE SX-7000 HBM  then you can browse our catalog for more overland generator sets.

Images and technical data are not binding.
