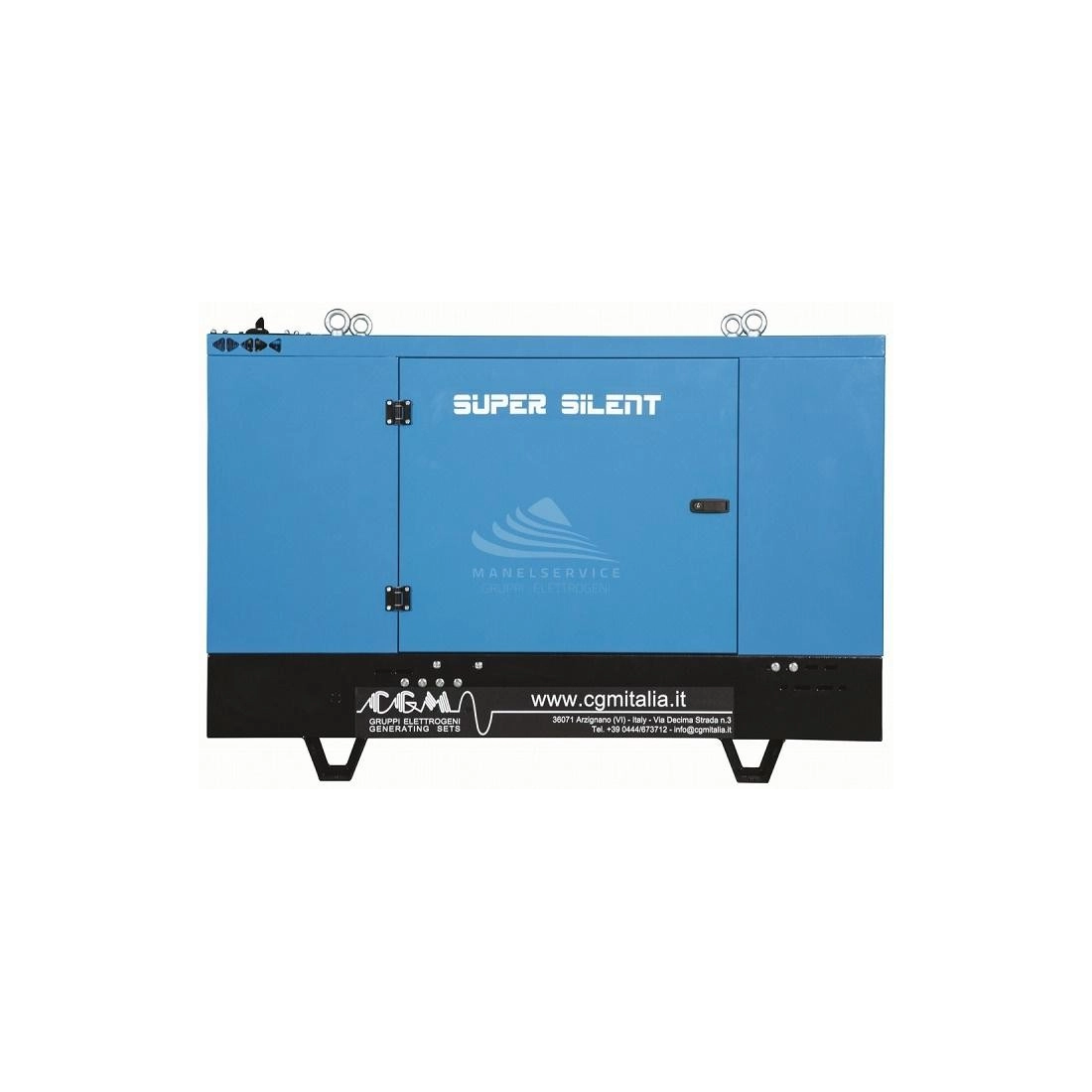

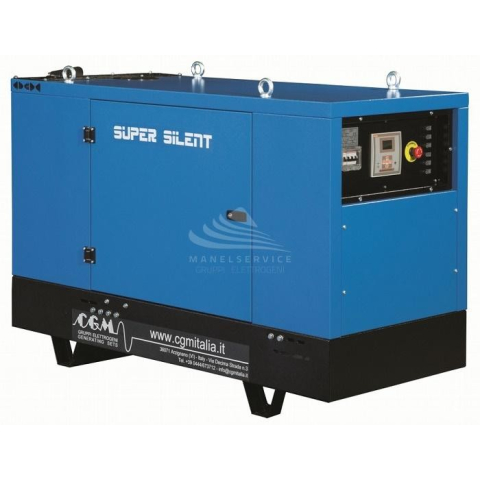

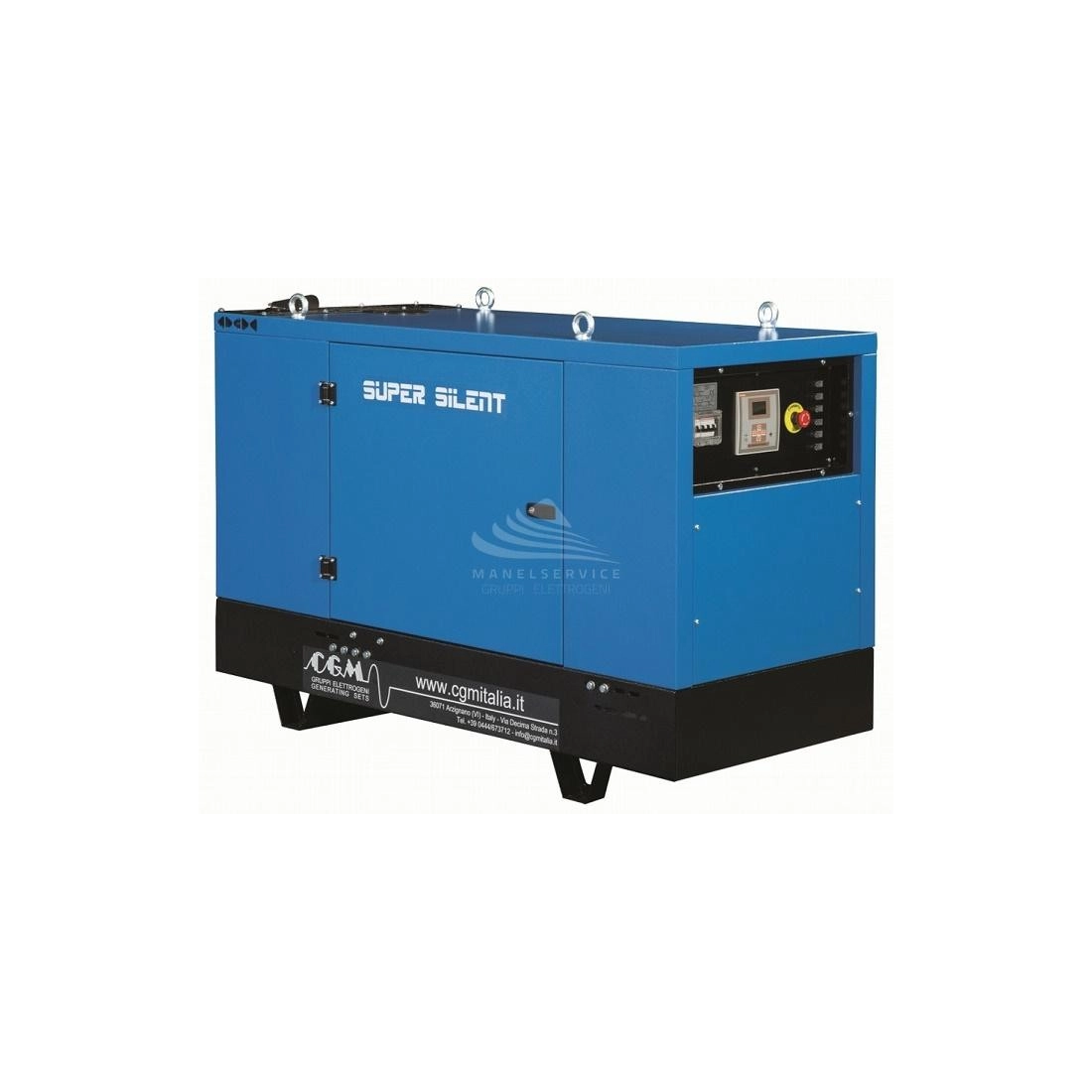

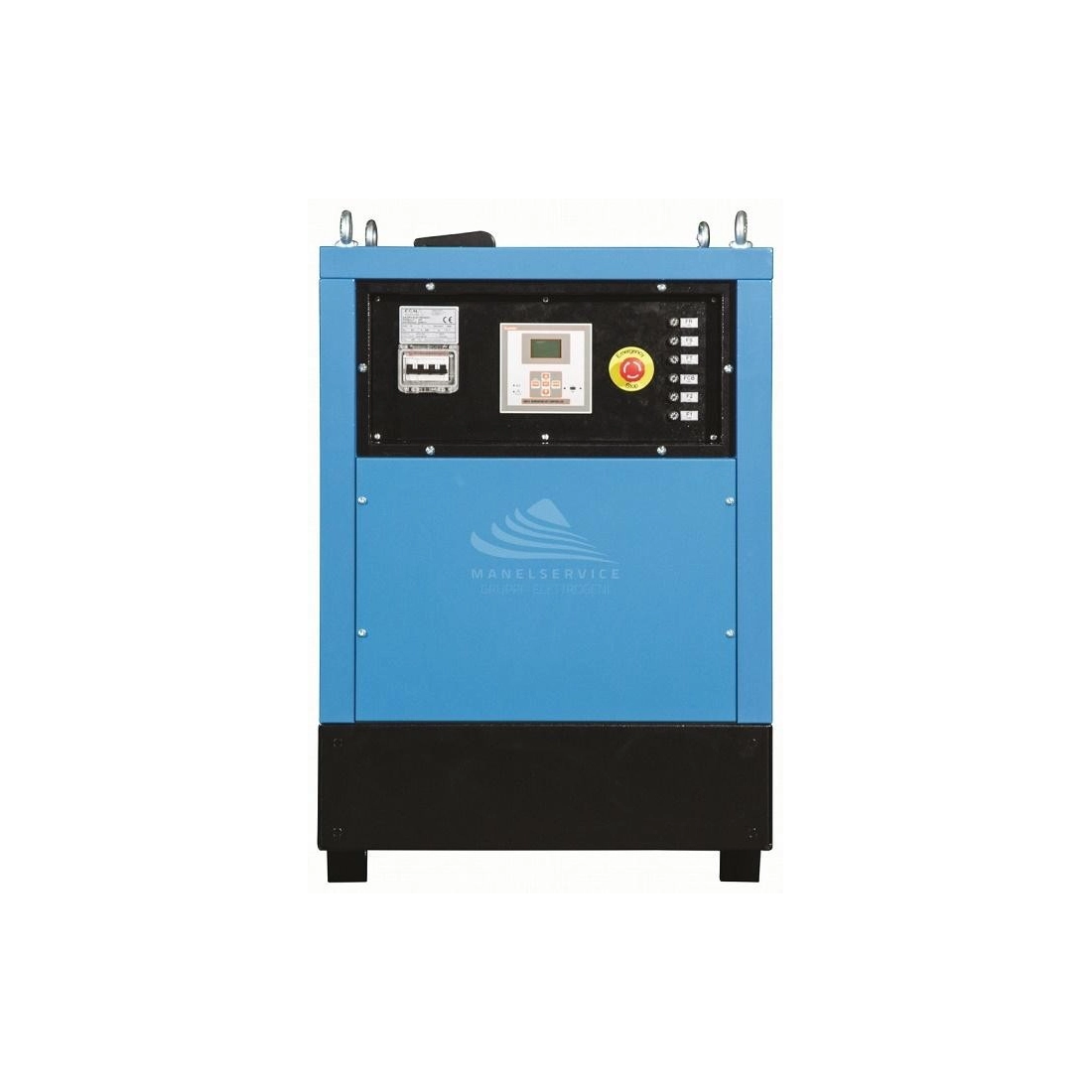

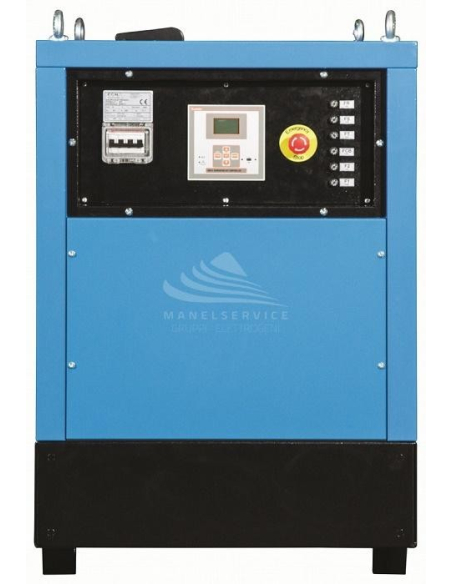

CGM 30DW COFANATO AUTOMATICA /

OUT OF PRODUCTION

Maximum three-phase power: 26.4 KW
Continuous three-phase power: 24 KW
Maximum three-phase power: 33 KVA
Continuous three-phase power: 30 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Lombardini LDW 2204
Start-up: Electric
Consumption: 8 L/h at 75% load
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight: 500 kg
Compound

Download Technical data CGM 30DW

Phase
Single phase / Three phase
Height (mm)
1050
Length (mm)
1600
Starting system
Electric
Width (mm)
700
Engine manufacturer
Lombardini
Engine
Lombardini LDW2204
Poles
2
Sockets configuration
Terminal box
Cooling
Water
Maximum power three phase (KW)
26.4
Continuous power three phase (KW)
24
Maximum power three phase (KVA)
33
Continuous power three phase (KVA)
30
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stationary Use
Engine rpm (rpm)
3000
Speed governor
Electronic
Engine capacity (cm³)
2199
Number cylinders
4
Cylinders' position
In line
Alternator
Linz, with brushes
Bore x stroke (mm)
88 x 90.4
Fuel tank capacity (L)
50
Consumption (L/h)
8
Running time (h)
6.3
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
500
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
Compound
Brand

These generating sets are equipped with Lombardini/Kohler diesel engines with electric start (with key and battery).

Alternator with 400 Volt Three-phase voltage with accessible neutral or 230 Volt Single-phase – 50 Hz, mounted on base frame. Manual control electrical panel fixed on the unit.

Main applications: isolated houses, campsites, alpine refuges, small construction sites, restaurants, farms, craft industries, sports centers, service stations, etc.

The 3000 rpm sets are suitable for emergency use only and not for continuous operation. Use is not recommended for more than 6 consecutive hours and more than 500 hours per year.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
