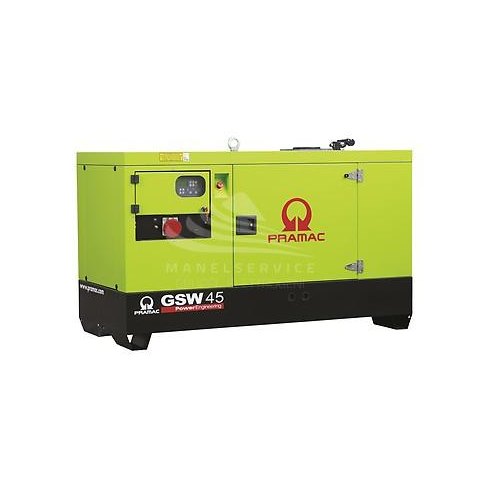

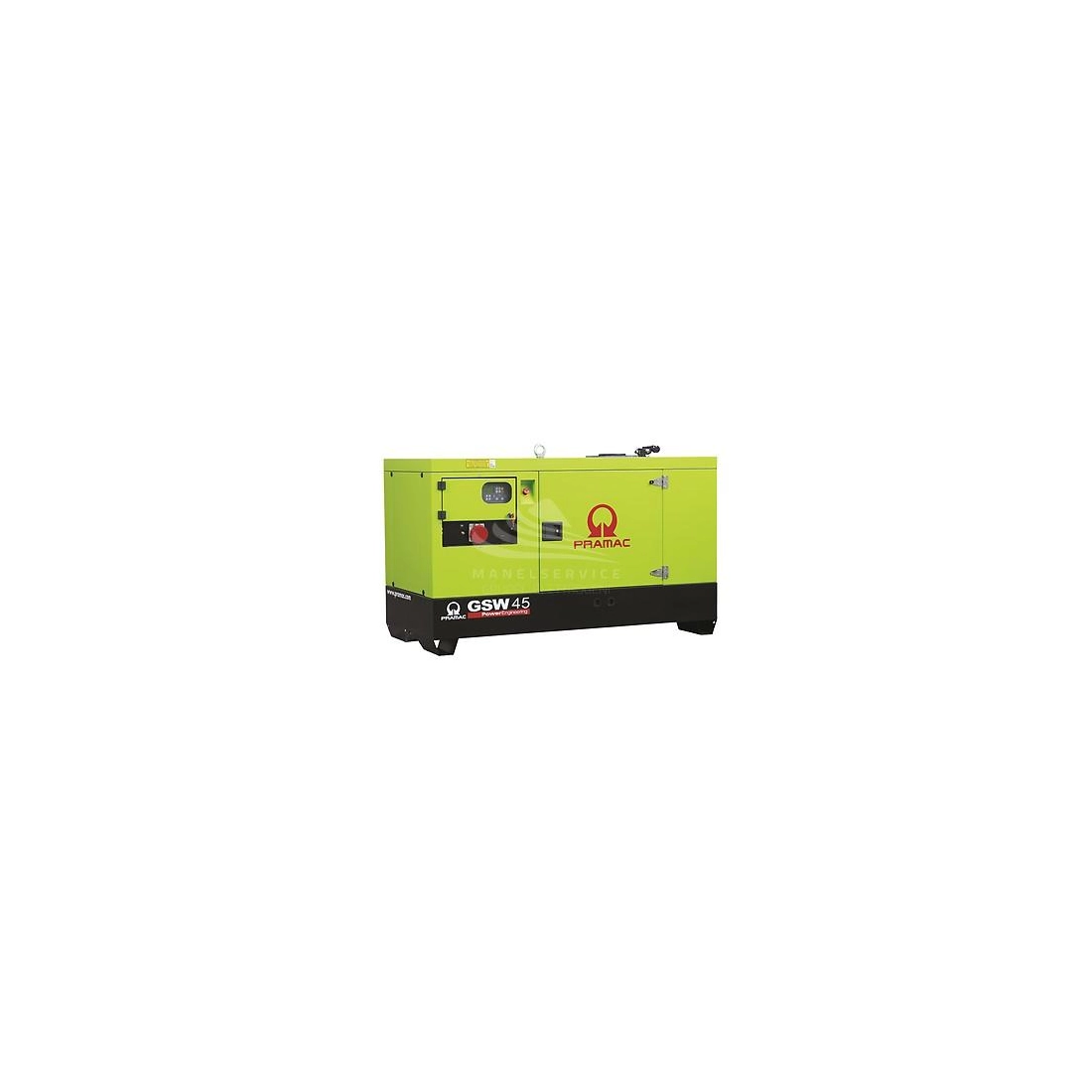

PRAMAC GSW45P COFANATO CON QUADRO COMANDO AUTOMATICO


Phase
Three phase
Height (mm)
1310
Length (mm)
2000
Starting system
Electric
Width (mm)
920
Engine manufacturer
Perkins
Engine
PERKINS 1103A-33TG1, turbocharged
Poles
4
Sockets configuration
1 x 400V 63A 3P+N+T
Cooling
Water
Maximum power three phase (KW)
38.4
Continuous power three phase (KW)
36.59
Maximum power three phase (KVA)
48
Continuous power three phase (KVA)
45.74
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Speed governor
Mechanical
Engine capacity (cm³)
3300
Number cylinders
3
Cylinders' position
In line
Oil capacity (L)
7.9
Alternator
Mecc Alte ECO/P32-3S/4, brushless
Fuel tank capacity (L)
68
Consumption (L/h)
8.2 at 75% of the load / 10.7 at 100% of the load
Running time (h)
8.3 at 75% of the load / 6.4 at 100% of the load
Acoustic power
95 dB(A)
Acoustic pressure
66 dB(A) at 7 m
Dry weight (Kg)
958
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
