PRAMAC GSL30D COFANATO CON QUADRO COMANDO MANUALE

Reference SU290TDAT00 /

OUT OF PRODUCTION

Maximum power Three-phase: 25.55 KW
Three-phase continuous use power: 24.31 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG F4M2011
Starting: Electric
Consumption: 8 Lt/h at 100% of the load
Length: 2005 mm
Width: 948 mm
Height: 1308 mm
Weight: 760 Kg
AVR

Download Scheda tecnica GSL30D COFANATO Download Technical data GSL30D COVERED Download Disegno installazione GSL30D Download Disegno installazione GSL30D EFT

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 25.55
Continuous power three phase (KW): 24.31
Maximum power three phase (KVA): 31.94
Continuous power three phase (KVA): 30.39
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

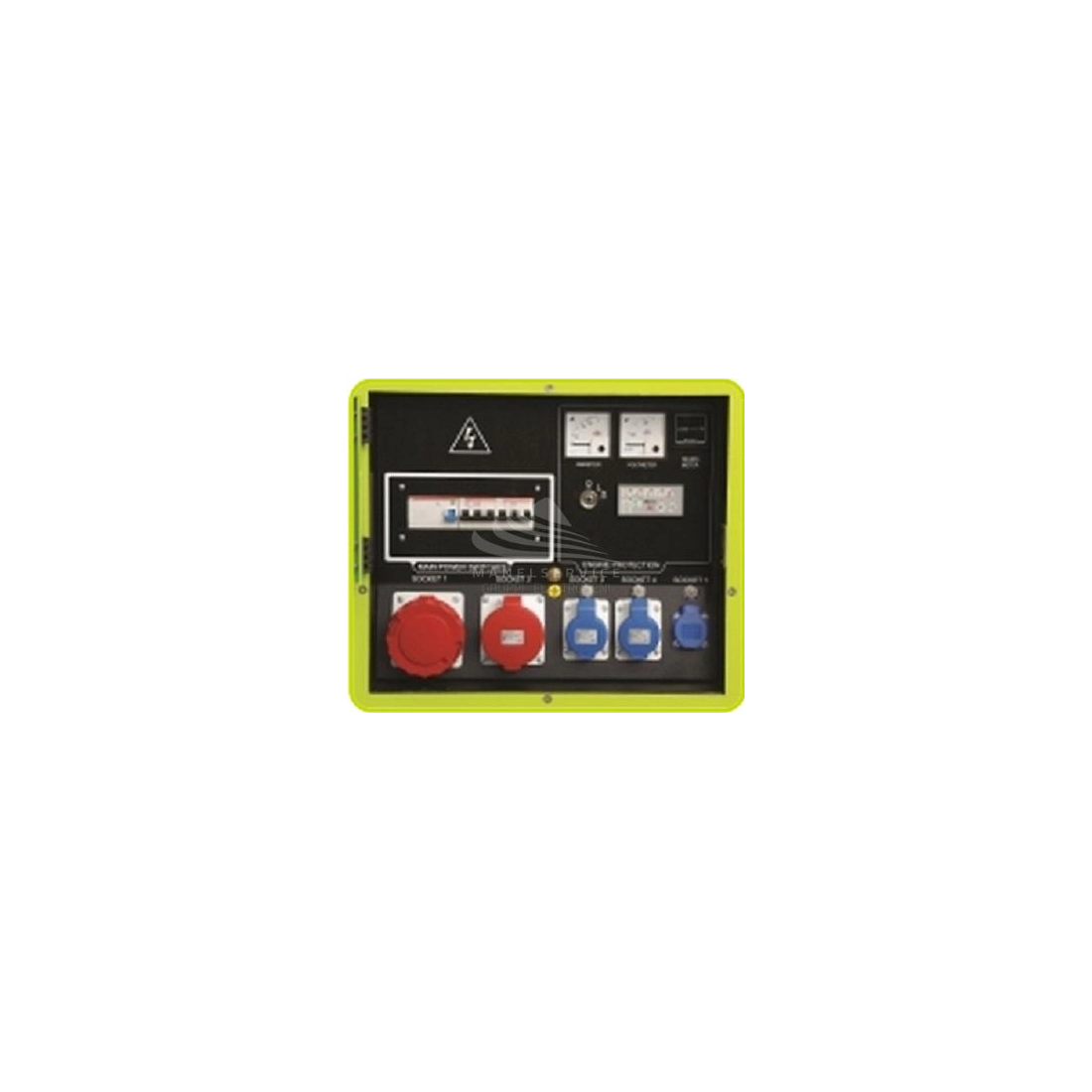

Sockets configuration: 1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Deutz AG F4M2011, naturally aspirated
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10
Cooling: Oil
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 68
Consumption (L/h): 5.7 at 75% of the load / 8 at 100% of the load
Running time (h): 11.9 at 75% of the load / 8.4 at 100% of the load
Acoustic power: 89 dB(A)
Acoustic pressure: 60 dB(A) at 7 m
Length (mm): 2005
Width (mm): 948
Height (mm): 1308
Dry weight (Kg): 760
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Deutz

Brand

Motore Diesel. Predisposto per Biodiesel. Raffreddamento ad olio con radiatore. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
