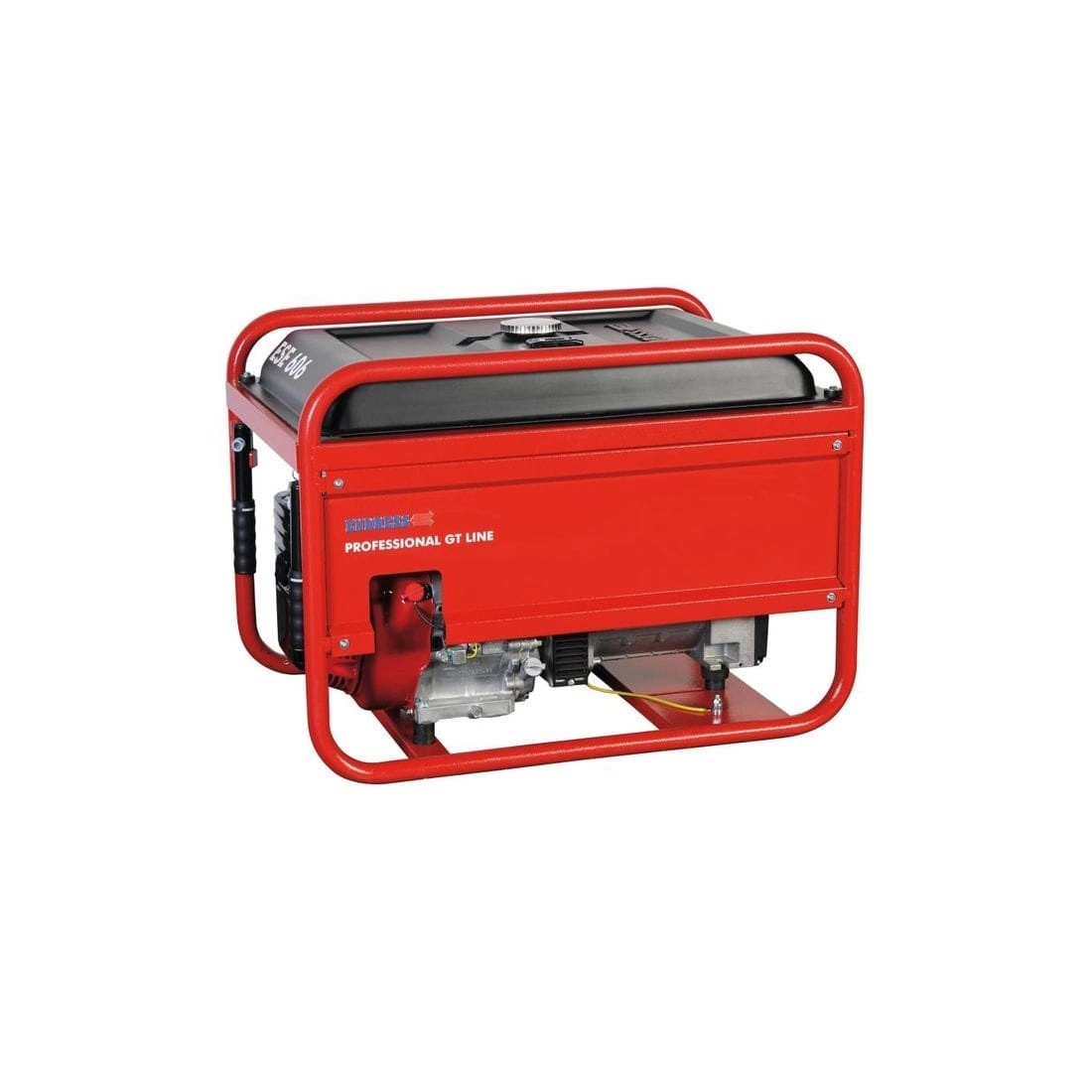

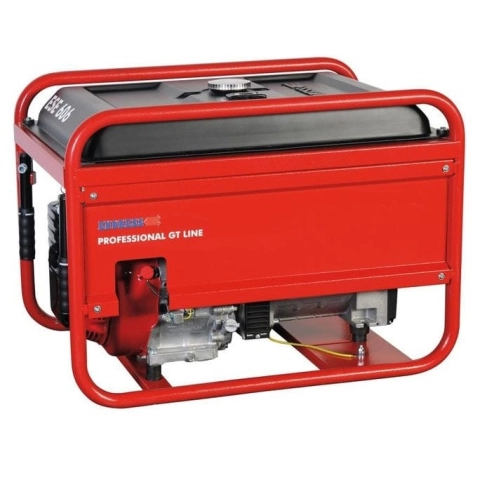

ENDRESS ESE 606 DHS-GT Single-Phase AVR petrol generator

Name: ENDRESS ESE 606 DHS-GT | Single-phase Generator AVR | Manelservice
Brand: Manelservice
SKU: ENDRESS ESE 606 DHS-GT

ENDRESS ESE 606 DHS-GT Single-Phase AVR petrol generator

Reference 112303

Phase Type: Single-phase
Power supply: Petrol
Maximum single-phase power: 7.2 kVA
Maximum single-phase power: 6.4 kW
Continuous single-phase power: 6 kVA
Continuous single-phase power: 5.5 kW
Frequency: 50 Hz
Voltage: 230 V
IP23
Voltage Regulator: AVR
Starting: manual
3000 rpm
Sockets: 1x 230V 16A, 1 x 230V 32A
Engine: HONDA GX390
Cubic Capacity: 389 cc.
Sound pressure at 7 meters: 72 db(A)
Length: 800 mm
Width: 538 mm
Height: 576 mm
Weight: 73 Kg

Download Technical Data ESE 606 HS-GT

Product Details
Description

Phase: Single phase
Maximum power single phase (KW): 7.2
Continuous power single phase (KW): 6.4
Maximum power single phase (KVA): 6
Continuous power single phase (KVA): 5.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A 2P+T CE - 1 x 230V 32A 2P+T CE
Engine: Honda GX390
Engine rpm (rpm): 3000
Starting system: Manual
Engine capacity (cm³): 389
Alternator: Synchronous
Poles: 2
Nominal current (A): 26.1
Fuel tank capacity (L): 30
Consumption (L/h): 2.2 at 75% of the load
Running time (h): 13 at 75% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 800
Width (mm): 538
Height (mm): 576
Dry weight (Kg): 73
Silenced: No
Super silenced: No
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

Synchronous current generator with a compact 389 cc. Honda petrol engine, tear-off starter and a large 30 litre tank, which guarantees an autonomy of 13 hours!
ENDRESS ESE 606 HS-GT is equipped with an automatic stop system in case of lack of oil, overload protection, compound.
Suitable for supplying energy to :
- Power tools up to 5400 W
- Gardening tools up to 3600 W
- Compressors or pumps up to 2800 W

Images and technical data are not binding.
