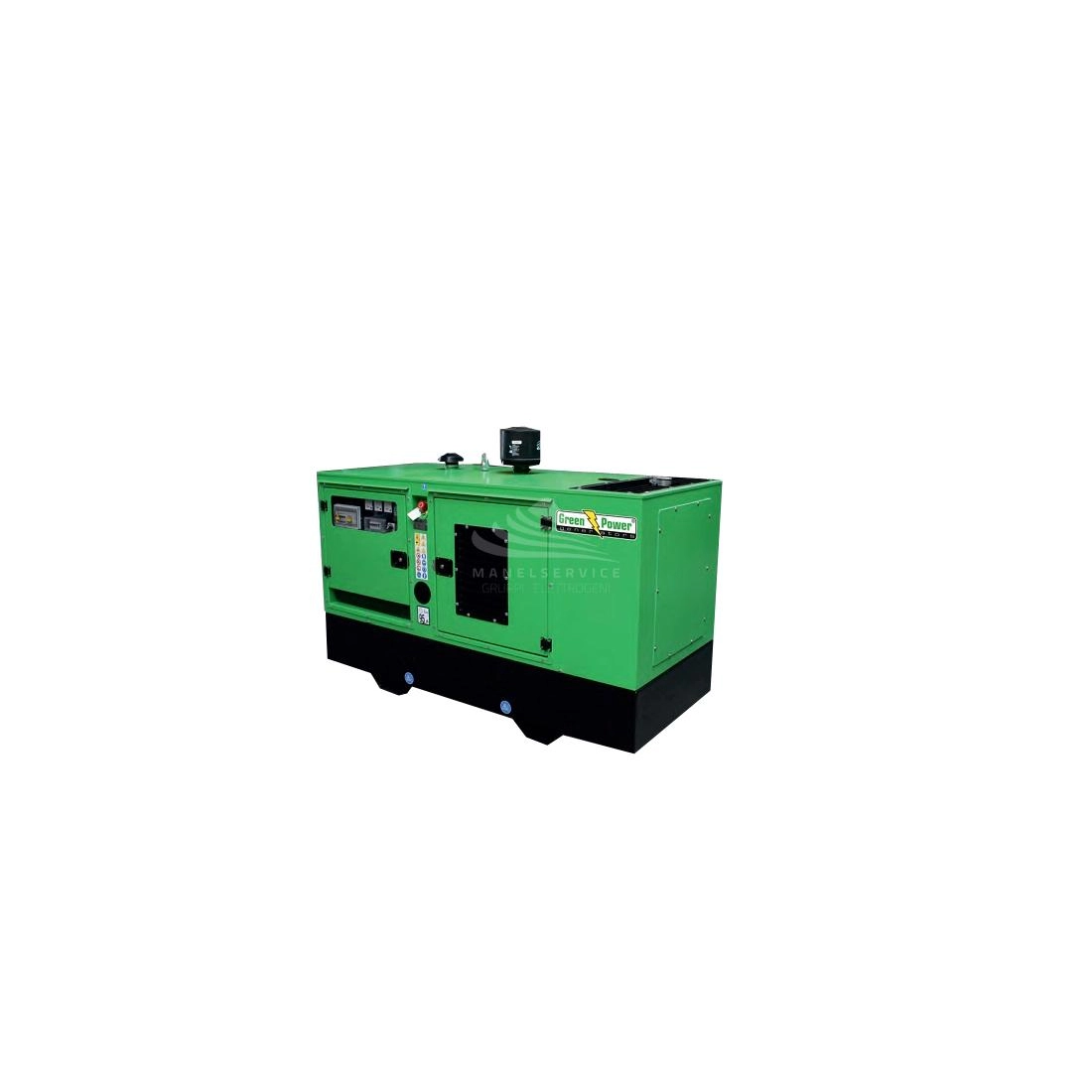

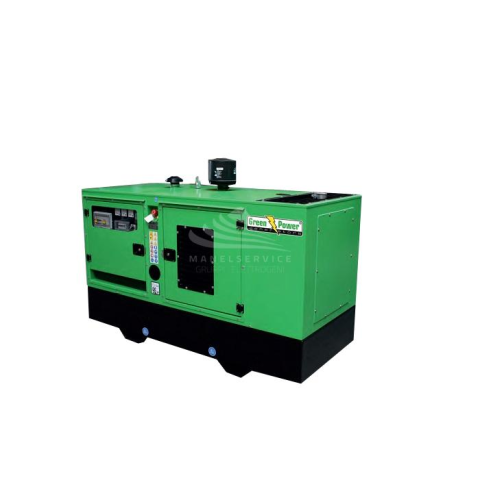

GREEN POWER GP 210 S/G-A Generating Set 210 KVA Automatic Supersilenced

Name: GREEN POWER GP 210 S/G-A Generating Set 210 KVA Automatic Supersilenced
Brand: GREEN POWER

Reference GP 210 S/G-A MA

Fuel: Natural Gas / LPG
Standby power at cosfì 0.8: 210 KVA
Prime power at cosfì 0.8: 198 KVA
Standby power at cosfì 0.8: 174 KW
Prime power at cosfì 0.8: 158 KW
Voltage available to the terminals: 230/400 V
Dimensions (mm): 3800x1100x2100 mm
Weight: 2700 Kg approx.
1500 rpm
Electronic governor: ISO 3046
Alternator: MECC ALTE ECO 38-2 SN

Download Technical Data GP 210 S/G-A

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 4.4
Continuous power three phase (KW): 4
Maximum power three phase (KVA): 5.5
Continuous power three phase (KVA): 5
Fuel: LPG / Natural Gas
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminals
Engine: KOHLER KDW702
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Automatico
Engine capacity (cm³): 686
Number cylinders: 3
Cooling: Water
Alternator: LINZ E1S13SA/4
Poles: 4
Protection degree: IP23
Motor insulation class: H
Mechanical power (hp): 262
Battery type: Lead acid
Consumption (L/h): 4 al 75% del carico
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 1300
Width (mm): 700
Height (mm): 1000
Dry weight (Kg): 350
Silenced: Yes
Super silenced: Yes
Brushes: No
ATS Switch device: Optional ATS
Type of alternator: Constant Speed
Voltage regulator: AVR
Engine manufacturer: Doosan

Brand

Model: supersilenced 70dB(A)±3 at 7mt
Engine/alternator monoblock unit coupled through flexi-disc couplings, installed on a welded steel baseframe,complete with antivibration mountings.
Soundproof enclosure with doors made of 20/10 sheet steel, soundproof material, internal silencer,steel handles and hinges, internal fuel tank cap, lifting hook, powder painting.

Electronic control unit and a programmable microprocessor, LCD display with backlight Off/Auto/test controls, Display of all parameters of the engine and alternator.
Diagnostic information of the gen set, Automatic and manual control of the contactors, Mains voltage (on 3 phases), gen set voltage (on 3 phases), 3 gen set current, mains and gen set frequency, RPM counter, Vdc Battery, D+Voltage, KW-KVA-KWh – cosfi average.25 alarm messages and 9 pre alarm.
Alarm history, Overvoltage / under voltage shutdown, overfrequency shutdown, overload shutdown, Short circuit shutdown.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
