      Maximum rated power: 30 KW
      Maximum rated thermal power: 25818 - 102455 kcal/h - BTU/h
      Minimum rated power: 20 KW
      Minimum rated thermal power: 17212 - 68304 kcal/h - BTU/h
      Efficiency: 100 %
      Air flow rate: 3900 m3/h
      Thermal rise: 56 - 38 at 20°C
      Maximum current: 43 - 28 A
      Voltage: 400 V
      Phase type: Three-phase
      Frequency: 50/60 Hz
      Quantity per pellet: 6 pcs
      Width: 795 mm
      Length: 540 mm
      Height: 706 mm
      Dry weight: 38 Kg

      List price
      1,877.58 € tax incl.
      1,539.00 € tax excl.
      Discounted Price
      1,877.58 € tax incl.
      1,539.00 € tax excl.
      Shipping from 30.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: BM2 FORCED AIR SPACE HEATERS EK 30 C

      PERSONAL DATA


      Ask a question
      Product: BM2 FORCED AIR SPACE HEATERS EK 30 C
      Offer on letterhead
      Product: BM2 FORCED AIR SPACE HEATERS EK 30 C
      BIEMMEDUE
      06EK106

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      400
      Max rated heat power
      30 KW - 25818 Kcal/h - 102455 BTU/h
      Min rated heat power
      20 KW - 17212 Kcal/h - 68304 BTU/h
      Heat efficiency (%)
      100
      Air flow (m³/h)
      3900
      Termperature rise at 20°C (°C)
      56 - 38
      Current max (A)
      43 - 28
      Length (mm)
      795
      Width (mm)
      540
      Height (mm)
      706
      Dry weight (Kg)
      38

      Specific References

      New

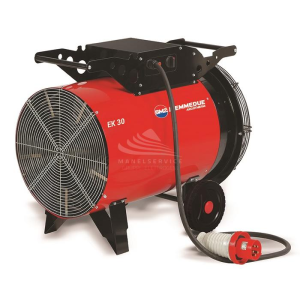

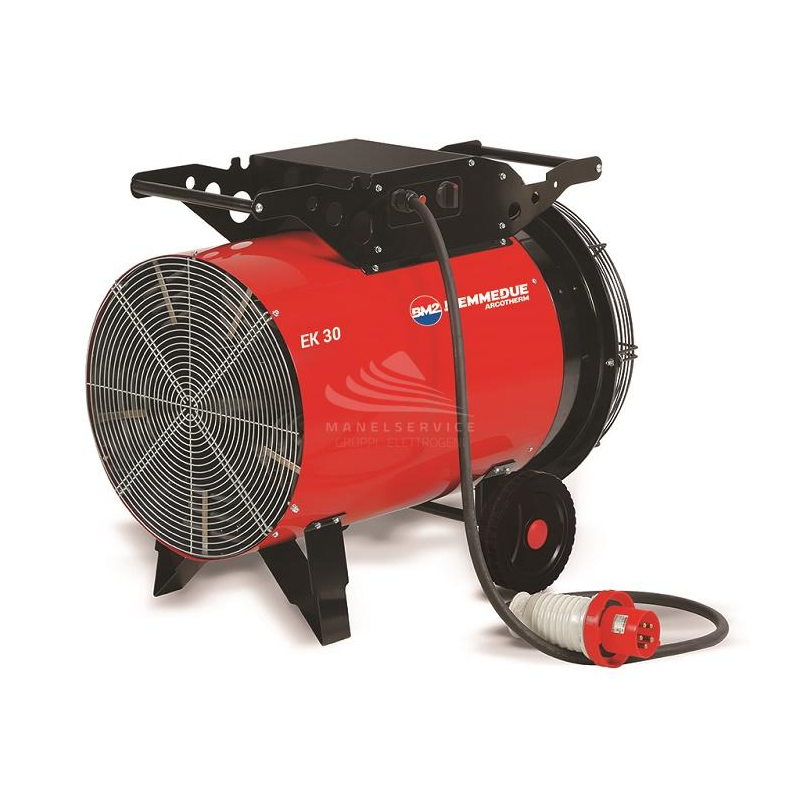

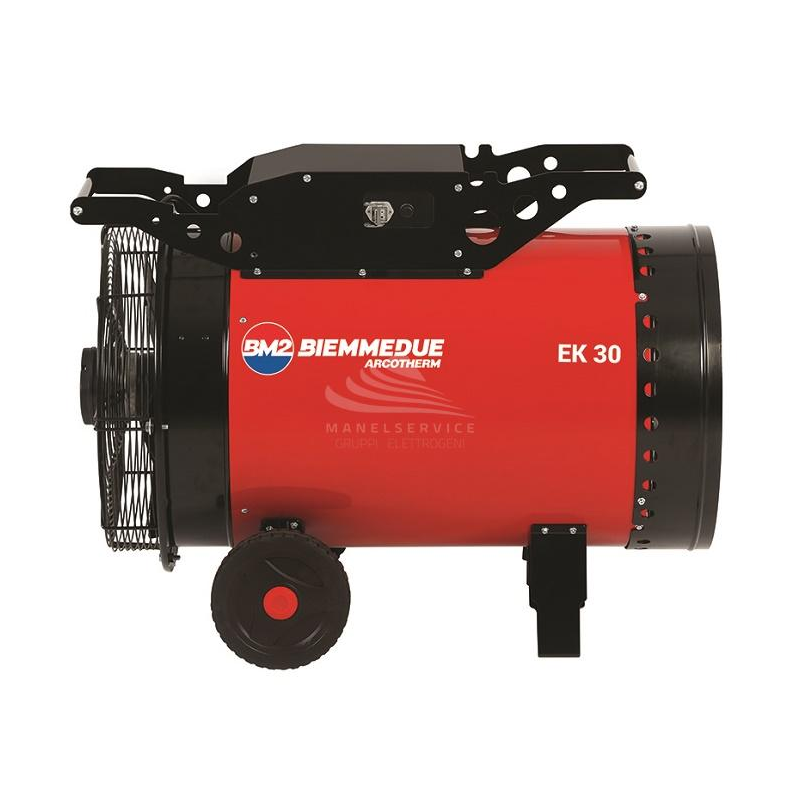

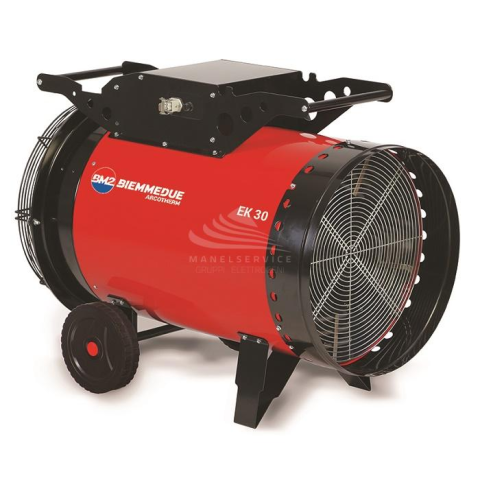

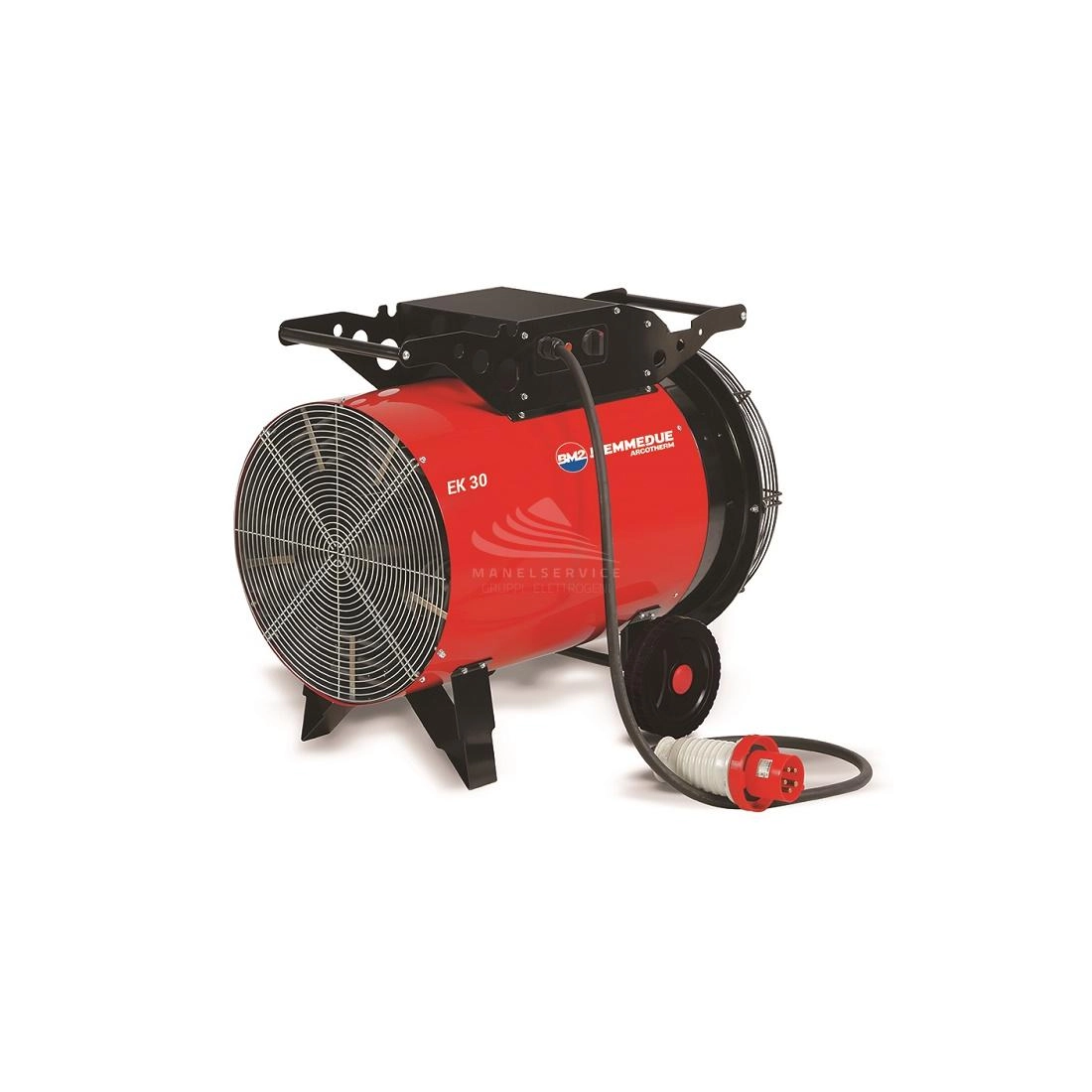

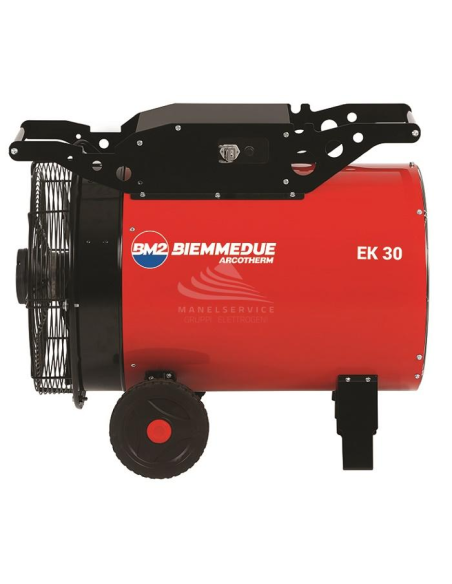

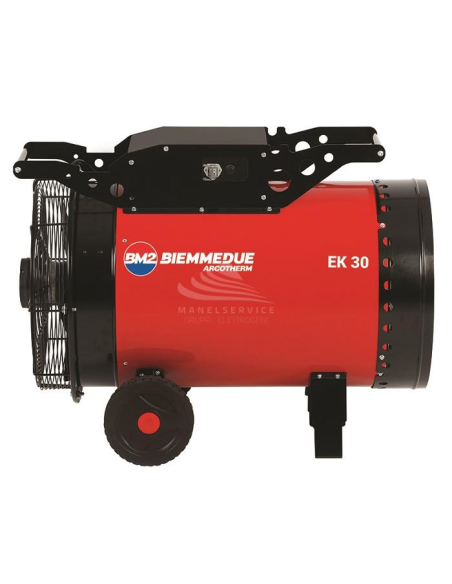

      BM2 FORCED SPACE HEATERS EK 30 C

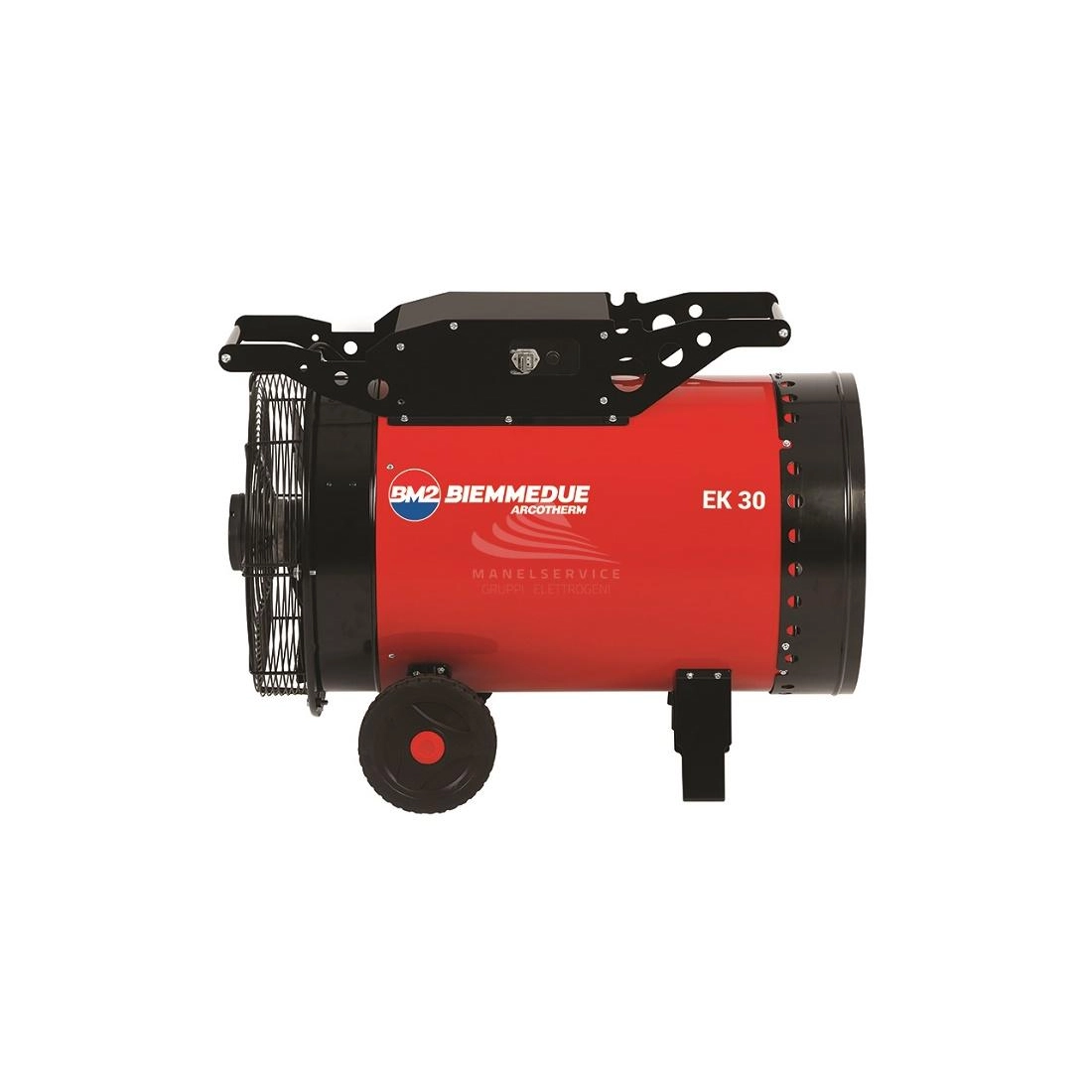

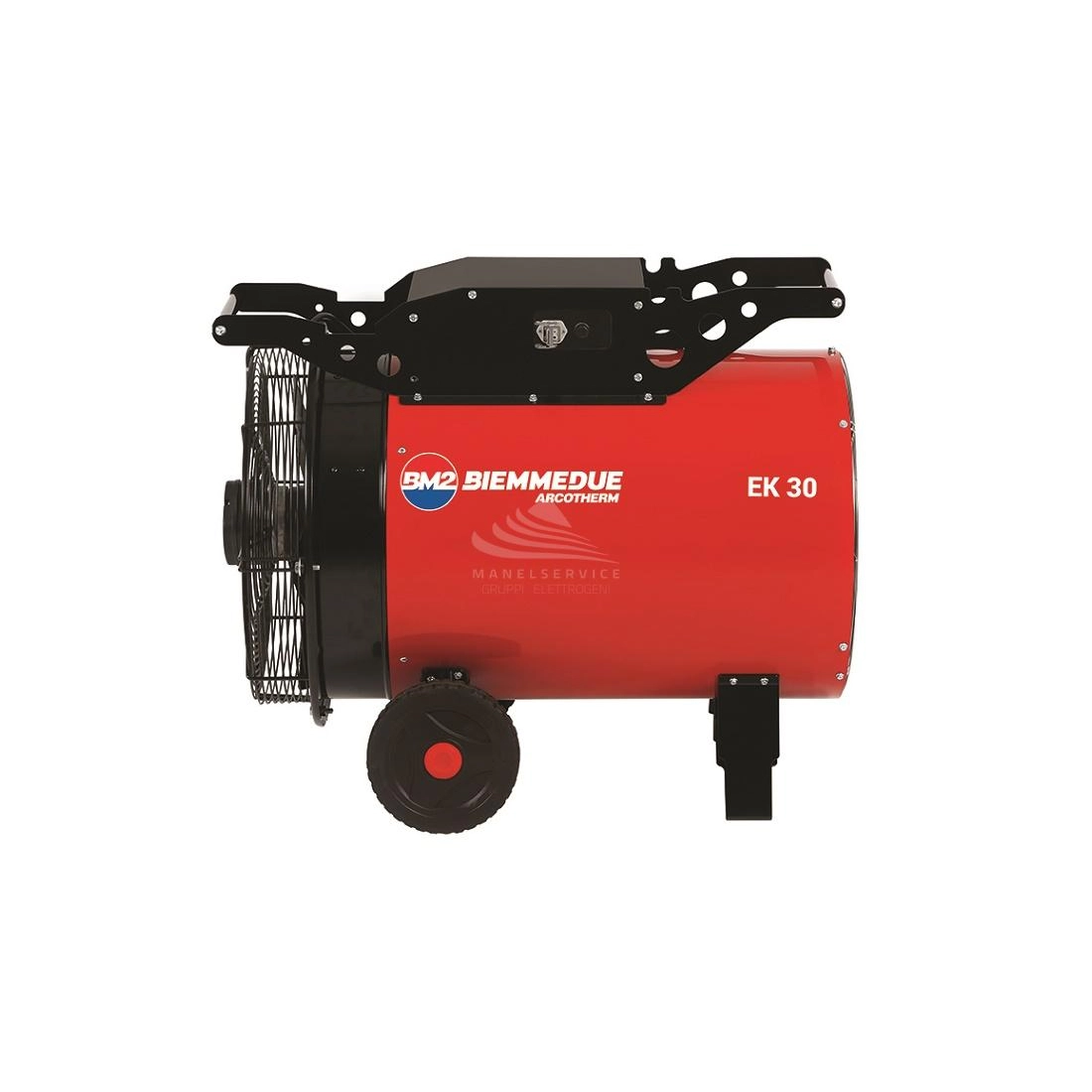

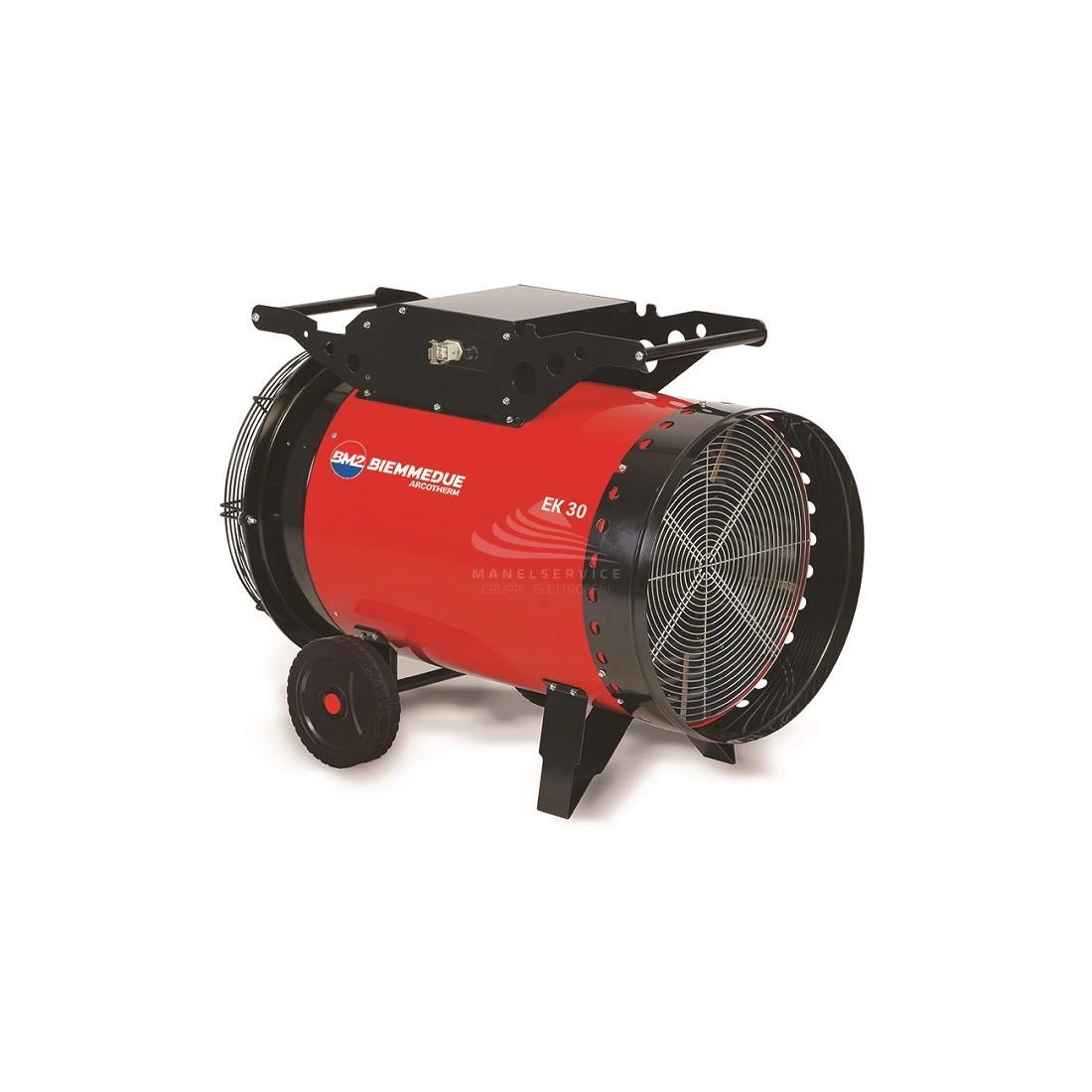

      BM2 EK30C is a professional/industrial electric hot air generator, replacing the burner with electric resistances which guarantee the heating of the air conveyed by the fan.

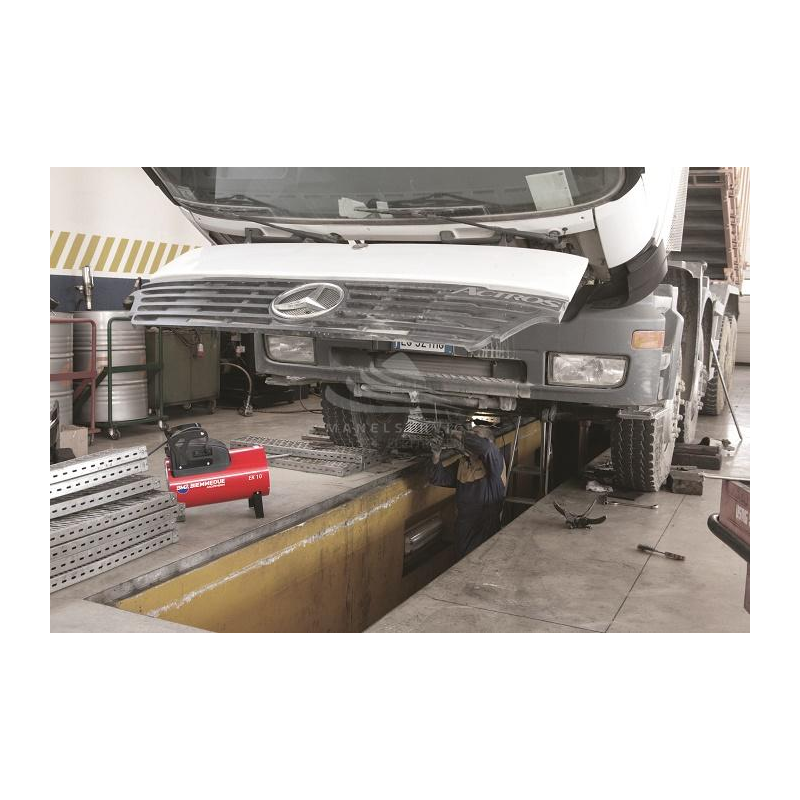

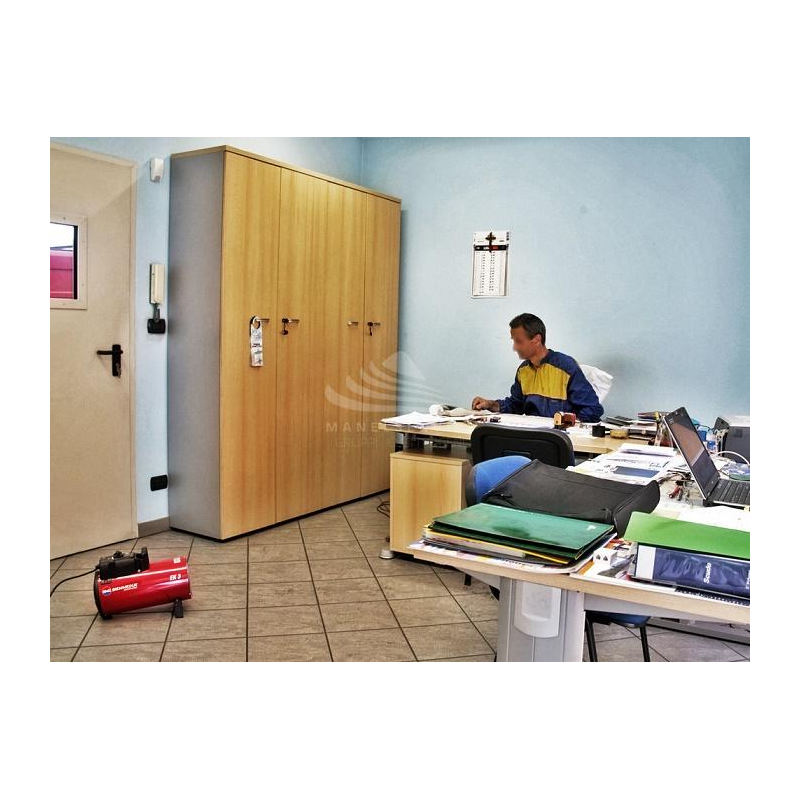

      BM2 EK30C thanks to its electric generator, you can use it in any environment, professional or residential. Its professional armored heating elements allow the BM2 EK30C generator to work for a long time without creating any problem. It can stay on for days without overheating.

      - AISI 321 profile-wound armored heating elements with high heat exchange
      - Built-in room thermostat
      - Selector switch
      - Safety thermostat with manual reset
      - Front stainless steel grid

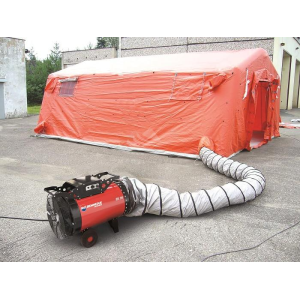

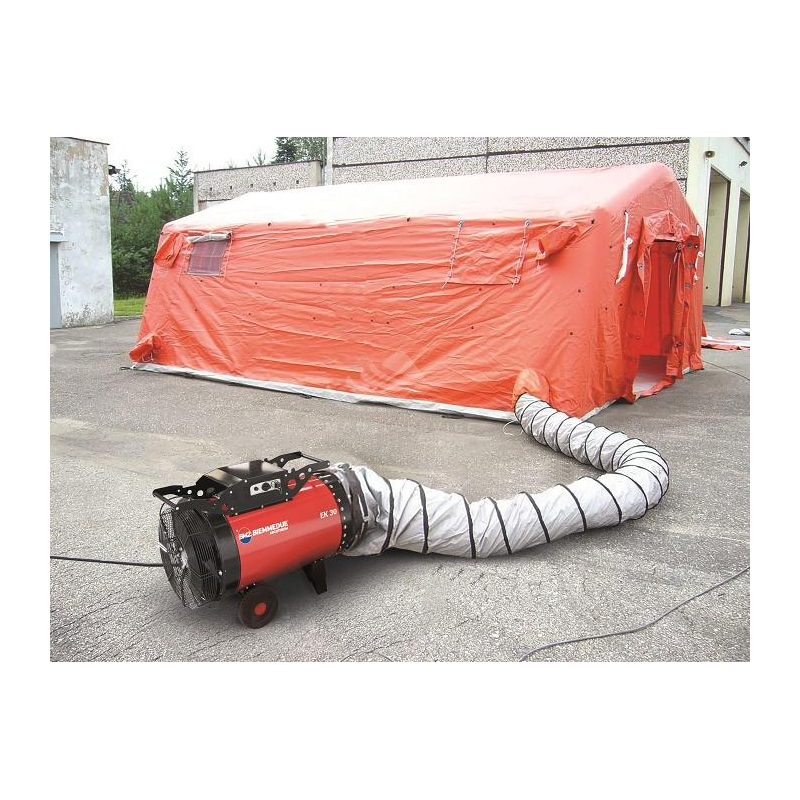

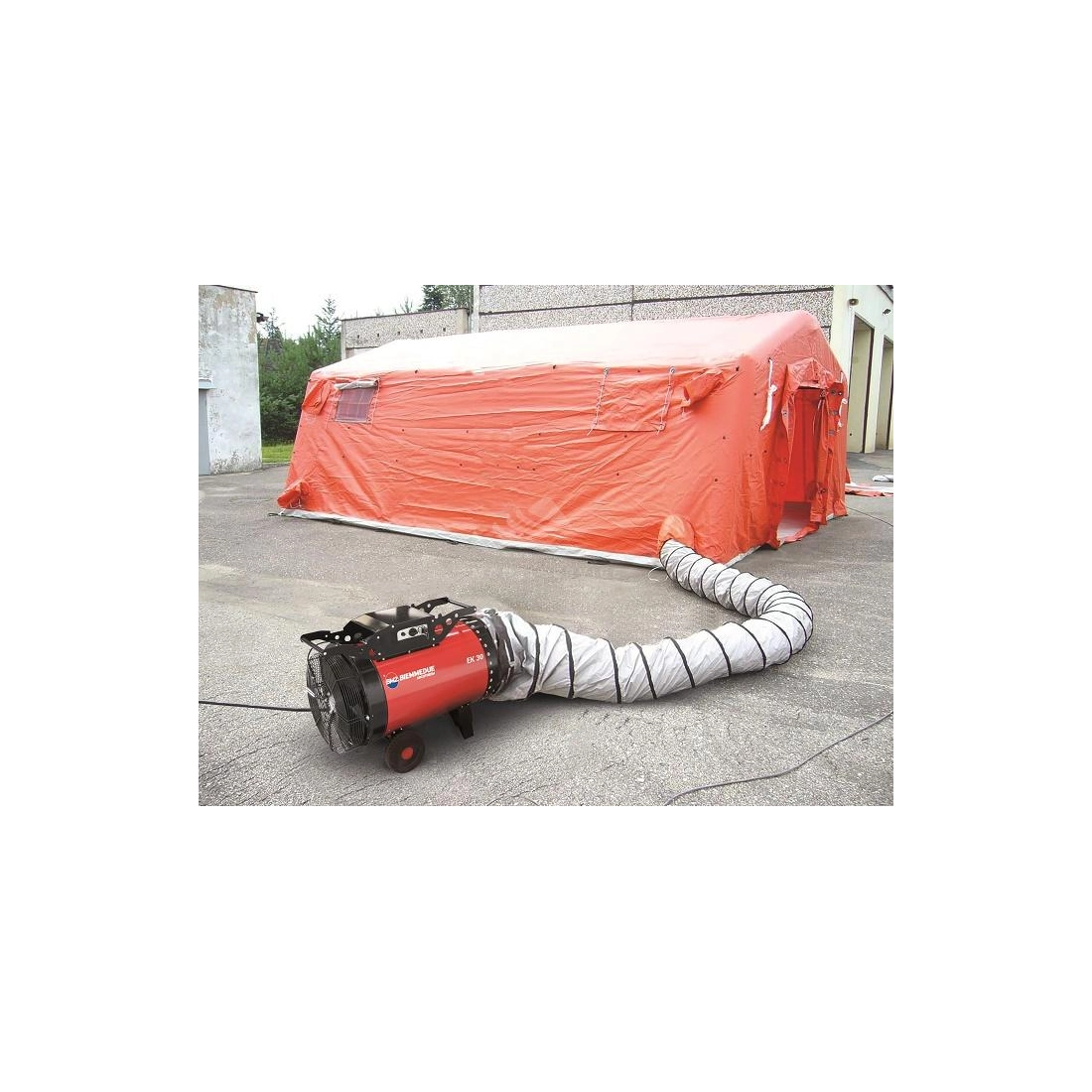

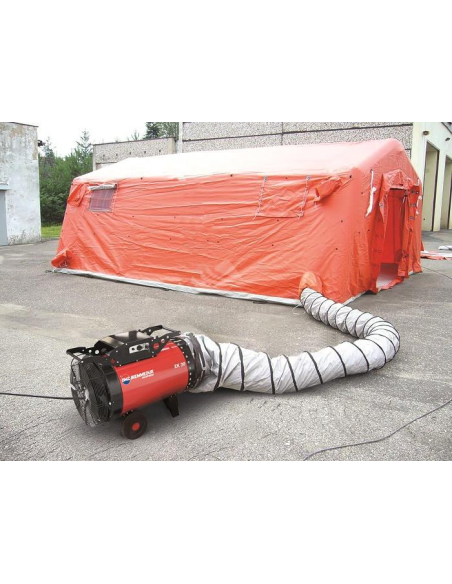

      - Can be canalized up to 6 m
      - Possibility of stacking
      - External thermostat socket

      TECHNICAL FEATURES BM2 EK30C

      Maximum power: 30 KW
      Maximum rated thermal power: 25818 - 102455 kcal/h - BTU/h
      Minimum power: 20 KW
      Minimum rated thermal power: 17212 - 68304 kcal/h - BTU/h
      Efficiency: 100 %
      Air flow rate: 3900 m3/h
      Thermal rise: 56 - 38 at 20°C
      Maximum current: 43 - 28 A
      Voltage: 400 V
      Phase type: Three-phase
      Frequency: 50/60 Hz
      Quantity per pellet: 6 pcs
      Width: 795 mm
      Length: 540 mm
      Height: 706 mm
      Dry weight: 38 Kg

      Looking for a hot air generator with different characteristics? Here you can find the full range of BM2 heaters or other specialized brands

      Images and technical data are not binding and may be subject to revision by the manufacturer

      ipsum nec interdum. Nam viverra augue quis libero ullamcorper, et eleifend tortor gravida. Sed congue augue id dolor tempus, eu dictum diam malesuada. Proin interdum auctor urna, eget scelerisque lectus volutpat in. Aenean lobortis ipsum arcu, vitae feugiat nunc porttitor vitae. Etiam id pretium urna, a rutrum elit. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Nulla rhoncus porta elit et tempor. Quisque neque nisl, ornare eget ligula non, pretium ornare nisl. Nulla ut elit id nisl accumsan ultrices

      BM2 ROOM THERMOSTAT WITH CABLE AND PLUG
          57.40 €Price
          BM2 HEAVY DUTY THERMOSTAT WITH CABLE AND PLUG
              110.70 €Price

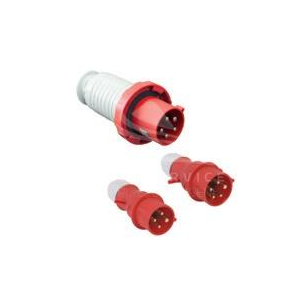

              BM2 4-5 PIN PLUG
                  FOR HEAT GENERATORS
                  107.50 €Price

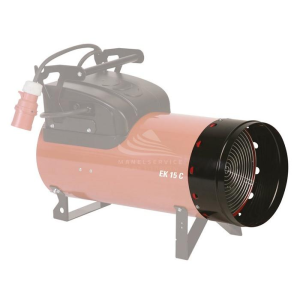

                  BM2 DUCT ADAPTER
