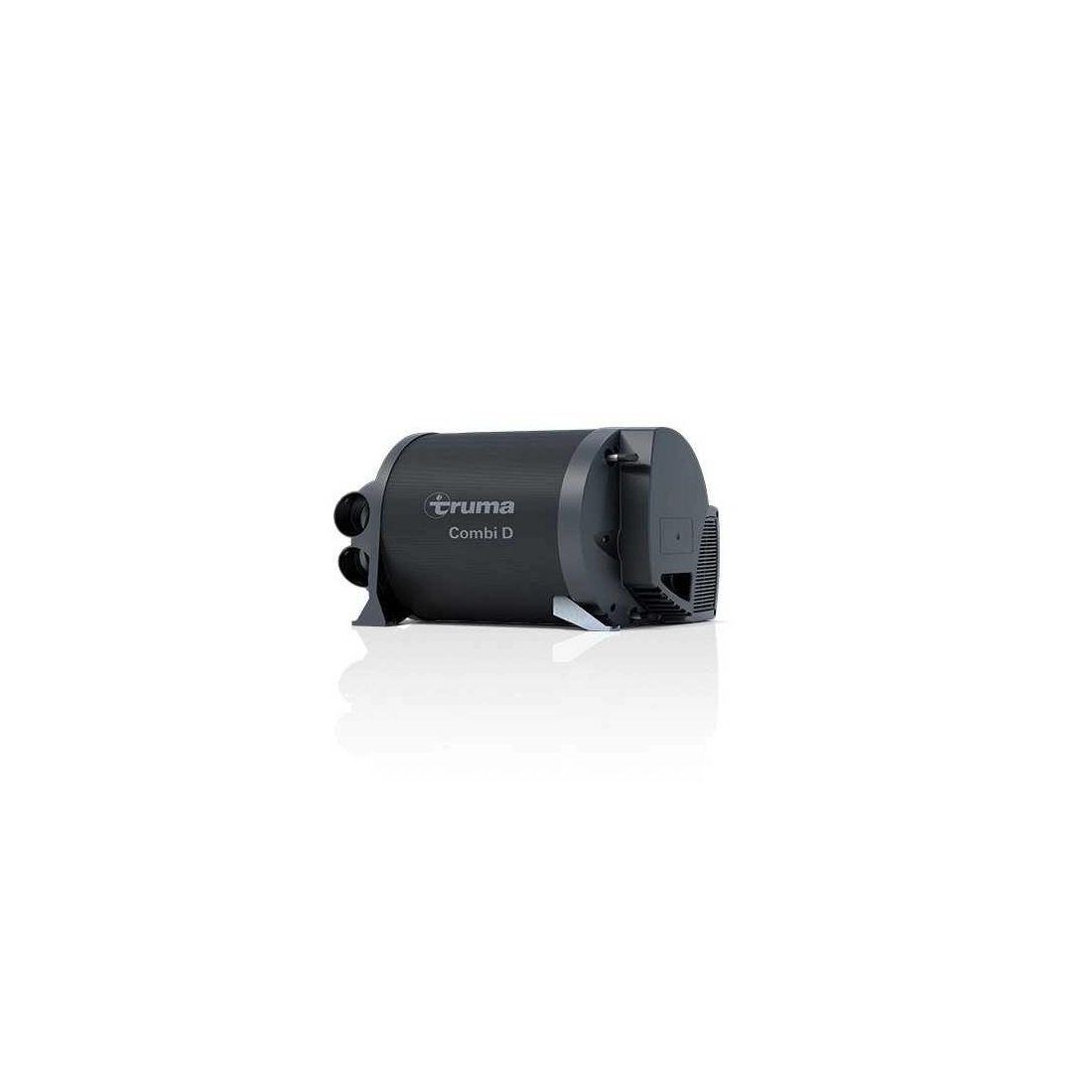

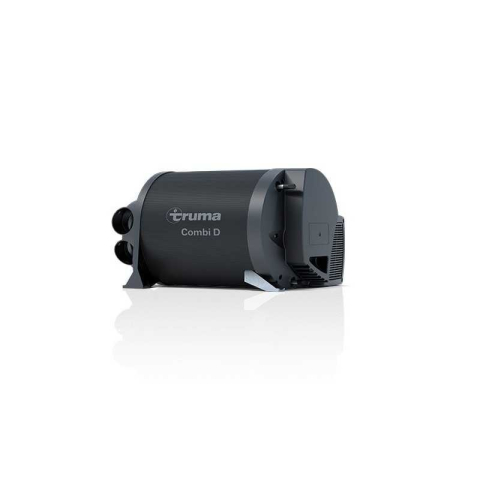

TRUMA COMBI D6 6KW DIESEL HEATER FOR MOTOR HOMES AND CARAVANS

The TRUMA COMBI D6 heater  is a powerful diesel stove for motor homes and caravans with a small footprint and top performance in its class.
Advantages of the TRUMA COMBI D6 stove heater
Optimum hot air distribution thanks to the quiet and powerful fan
Truma Combi D6 heater Stove is compact and space-saving for flexible installation
Low power consumption
Truma Combi D6 heater Stove can also be operated with an empty water tank

Technical specifications TRUMA Combi D6 heater stove

Fuel type Diesel fuel in accordance with EN 590
Fuel consumption 220 - 630 ml/h (110 ml/h at 1000 W average heat output)
Current consumption (at 12 V): heating and tank operation 1.8 - 4 A (in normal operation between "off" and "minimum power" less than 1.8 A)
Current consumption (at 12 V): tank heating max. 1.8 A
Air flow rate (free discharge) with 4 hot air outlets max. 287 m³/h
Quiescent current approx. 1 mA
Quiescent current CP plus (optional) 3 mA
Electrical heating element for FrostControl (optional) max. 0.4 A
Capacity 10 litres
Pump pressure max. 2.8 bar
System pressure max. 4.5 bar
Heating time (from approx. 15 °C to approx. 60 °C): Water tank approx. 20 min.
Heating time (from approx. 15 °C to approx. 60 °C): Heating and water tank according to EN 15033 approx. 80 Min.
Weight approx. 15.8 kg
Dimensions (W x D x H) 525 x 450 x 300 mm§
Overall dimensions (minimum dimensions: depending on installation situation, additional space required for gas and water connection and drain valve) (W x D x H) 540 x 500 x 350 mm

More details on the Truma Combi D6 heater Stove:

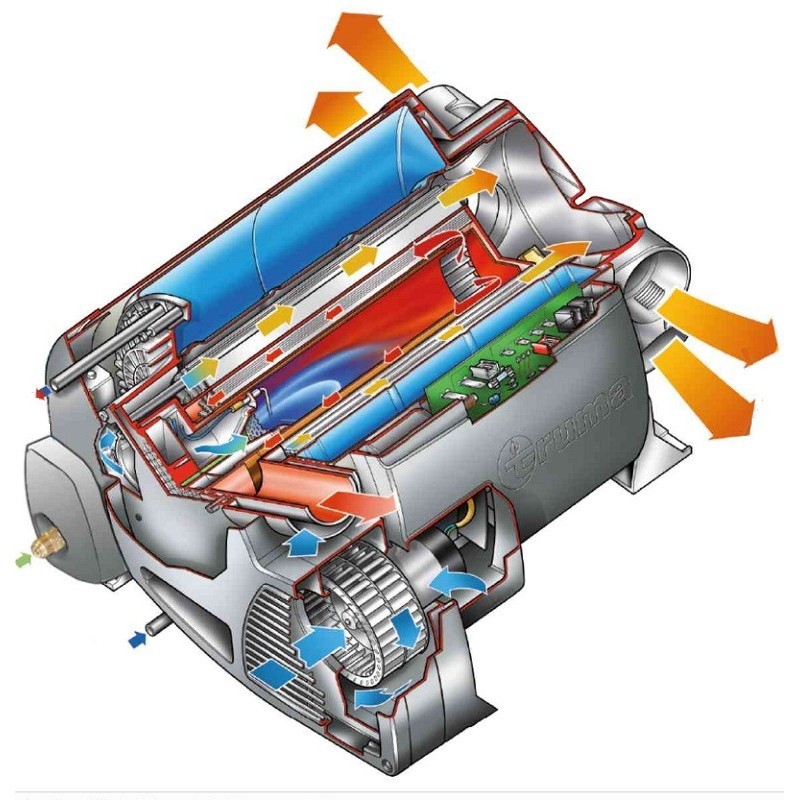

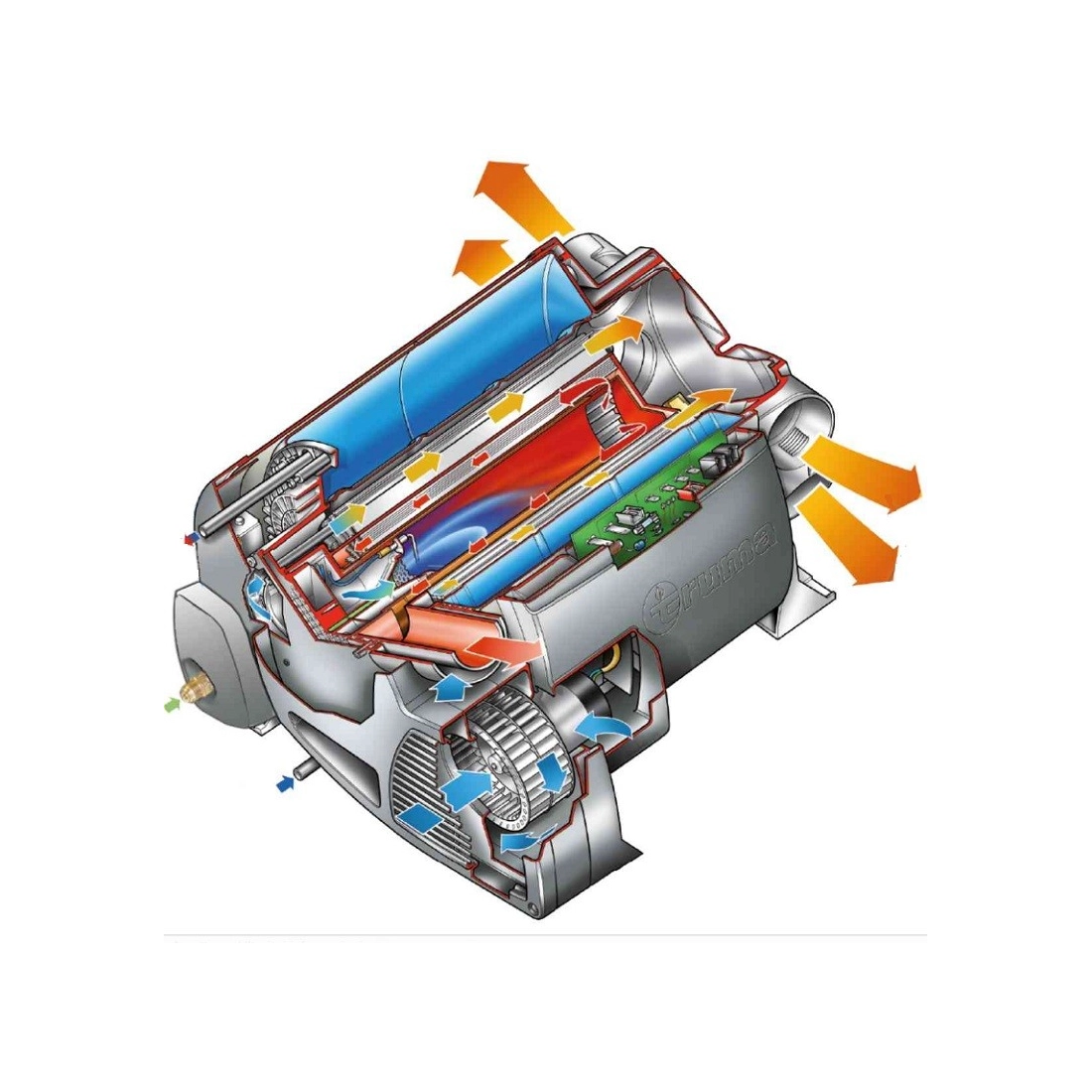

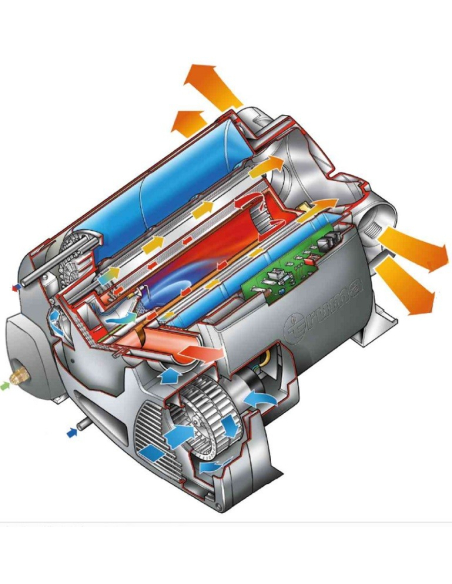

The Truma Combi D6 is a powerful diesel heater with which you can also heat water. The burner works with the support of a fan, so you can also heat your motorhome while travelling. In summer, you can also heat water only.

The Truma Combi D6 is extremely compact and also weighs much less than other heaters of similar power. To easily operate the Truma Combi D6 Stove, the digital control unit is used. In combination with a Truma air conditioner, the 'automatic air conditioning' function can also be selected on the control unit, which allows you to always have the right temperature in the vehicle.

The FrostControl exhaust valve is already fitted.

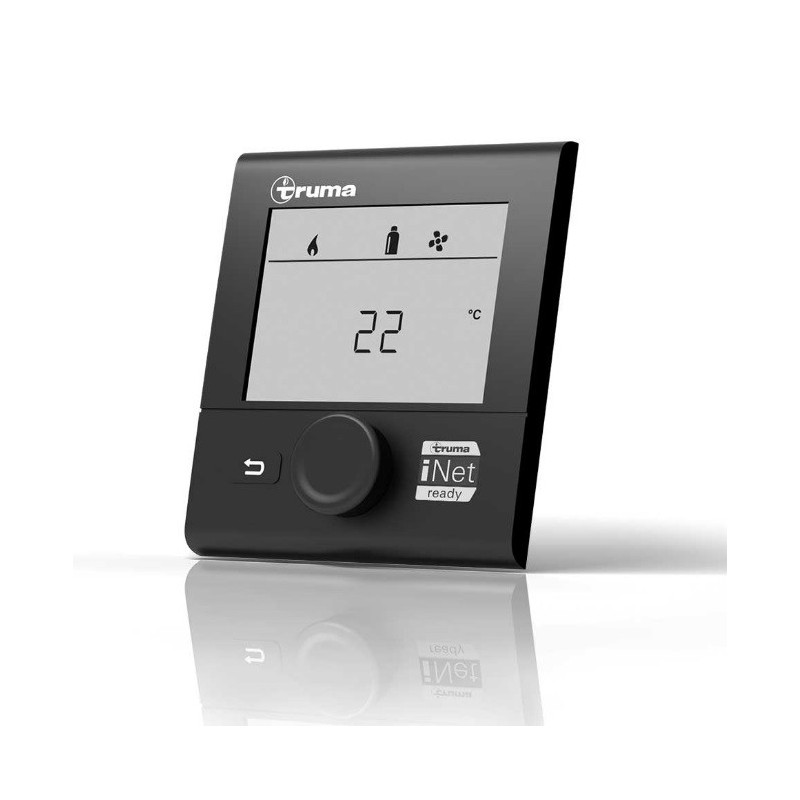

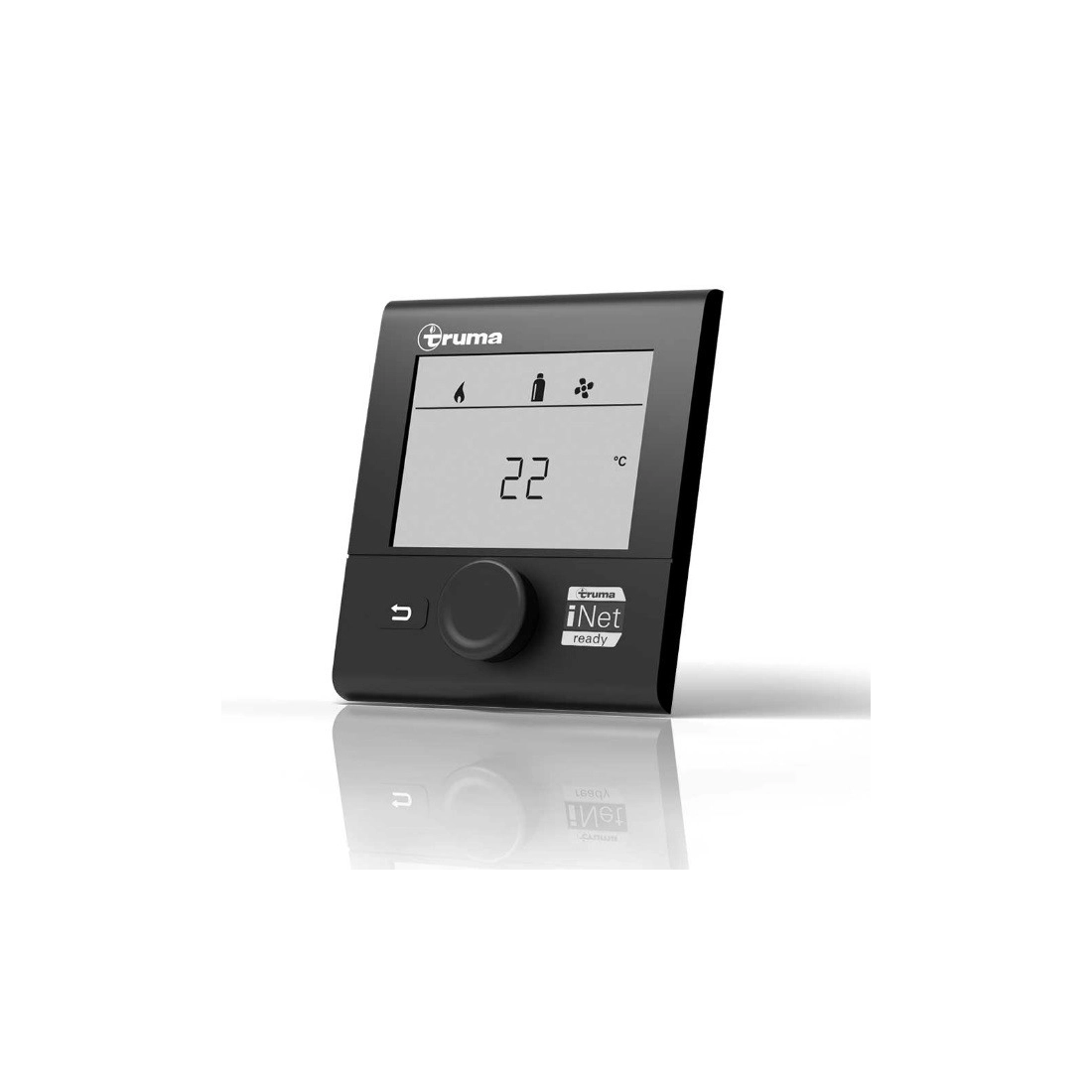

Continuous temperature control with the CP plus digital control unit

Automatic air conditioning available in combination with a Truma air conditioner

You can see other TRUMA motorhome heaters in the appropriate section.
