      Maximum heat output: 108.71 KW / 93590 kcal/h / 371390 BTU/h
      Minimum heat output: 48.81 KW / 41970 kcal/h / 166545 BTU/h
      Power supply: LPG
      Maximum gas consumption: 6.899 Kg/h
      Minimum gas consumption: 3.094 Kg/h
      Gas pressure: 1.5 - 0. 4 bar
      Efficiency: 100 %
      Air flow rate: 3700 m3/h
      Air temperature at 20°C : 71 °C
      Electrical power: 400 W
      Voltage: 230 V
      Phase: Single phase
      Frequency: 50 Hz
      Width: 835 mm
      Length: 438 mm
      Height: 606 mm
      Dry weight: 26 Kg

      List price
      1,049.20 € tax incl.
      860.00 € tax excl.
      Discounted Price
      1,049.20 € tax incl.
      860.00 € tax excl.
      Shipping from 20.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: BM2 HOT AIR GENERATOR GP 105A

      PERSONAL DATA


      Ask a question
      Product: BM2 HOT AIR GENERATOR GP 105A
      Offer on letterhead
      Product: BM2 HOT AIR GENERATOR GP 105A
      BIEMMEDUE
      03GP157GP105A

      Data sheet

      Phase
      Single phase
      Fuel
      LPG
      Frequency (Hz)
      50
      Voltage (V)
      230
      Max rated heat power
      108.71 KW - 93590 Kcal/h - 371390 BTU/h
      Min rated heat power
      48.81 KW - 41970 Kcal/h - 166545 BTU/h
      Max Gas consumption (Kg/h)
      6.899
      Min Gas consumption (Kg/h)
      3.094
      Gas pressure (bar)
      1.5÷0.4
      Heat efficiency (%)
      100
      Air flow (m³/h)
      3700
      Air temperature at 20°C (°C)
      71
      Power consumption (W)
      400
      Length (mm)
      835
      Width (mm)
      438
      Height (mm)
      606
      Dry weight (Kg)
      26

      Specific References

      New

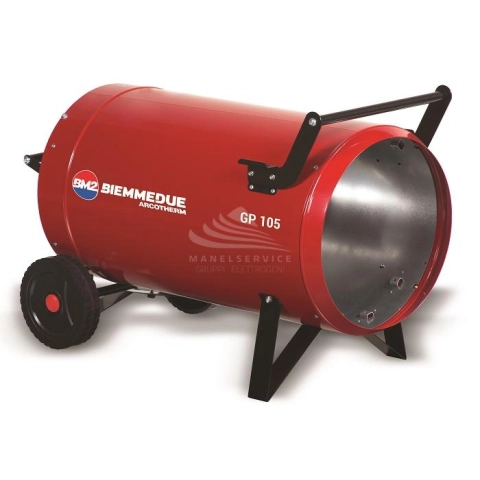

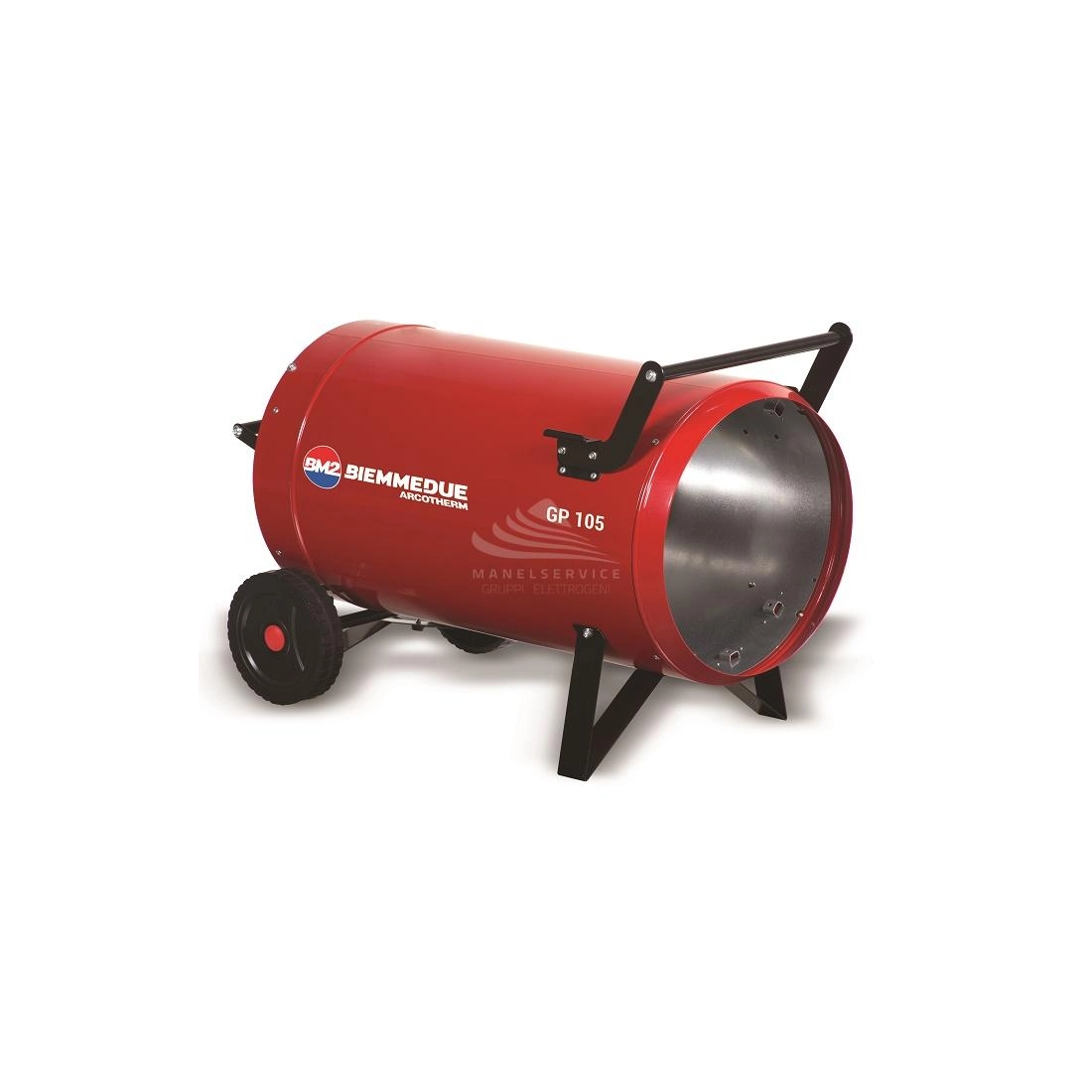

      BM2 HOT AIR GENERATOR GP105A

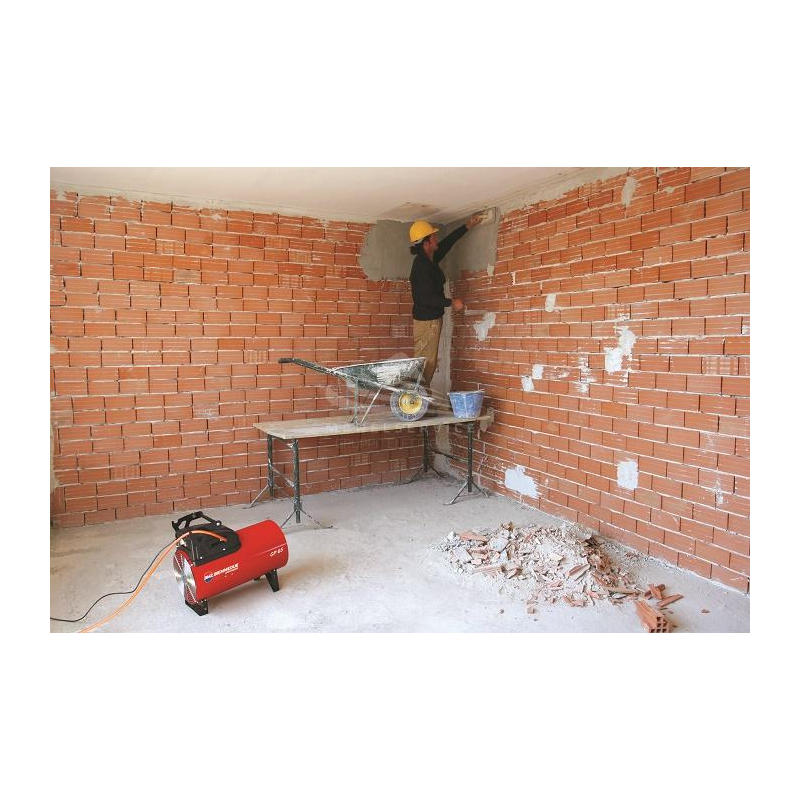

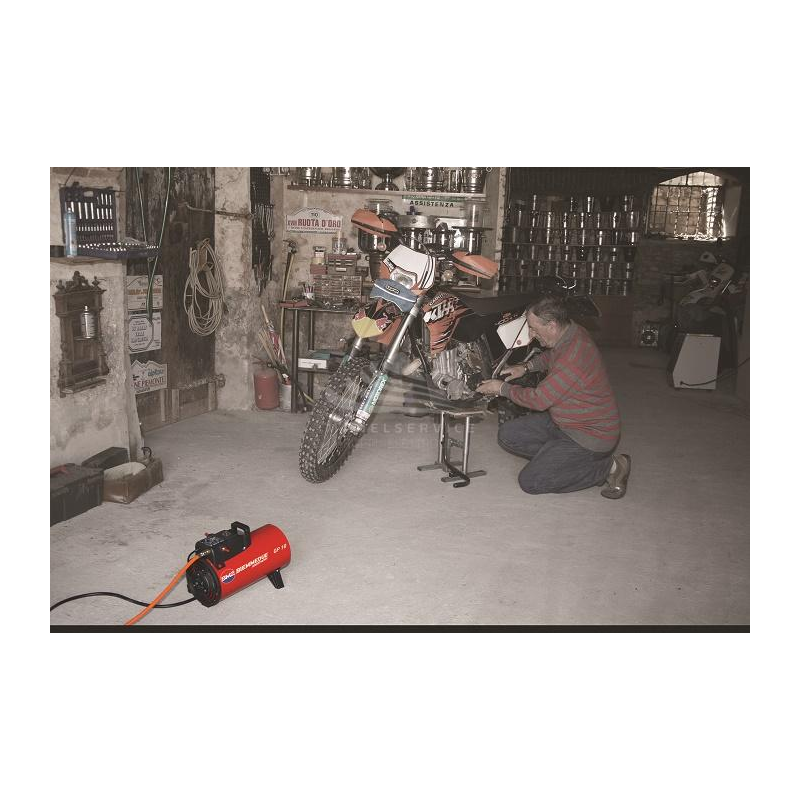

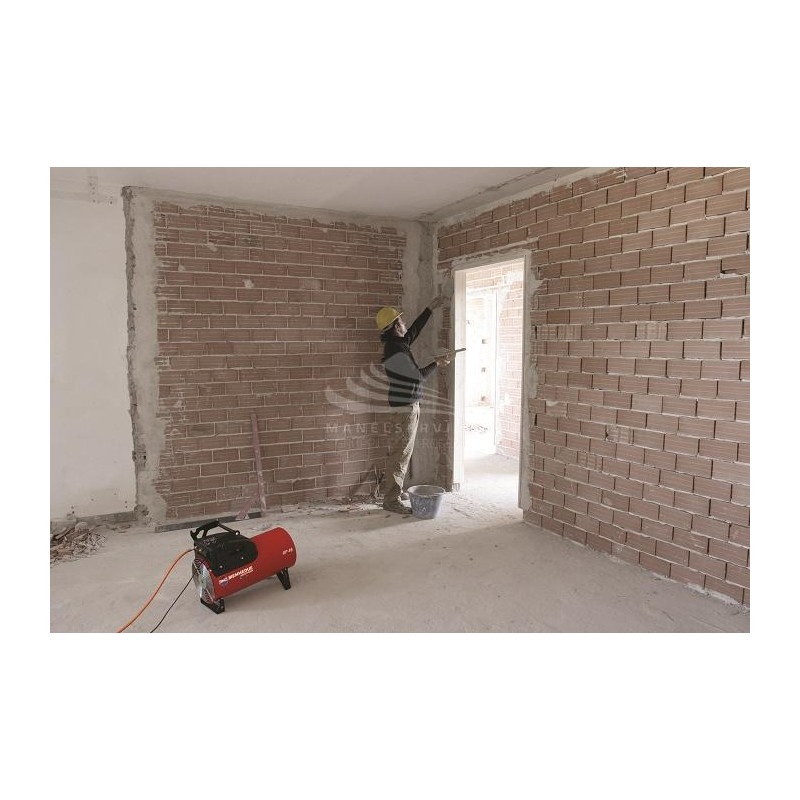

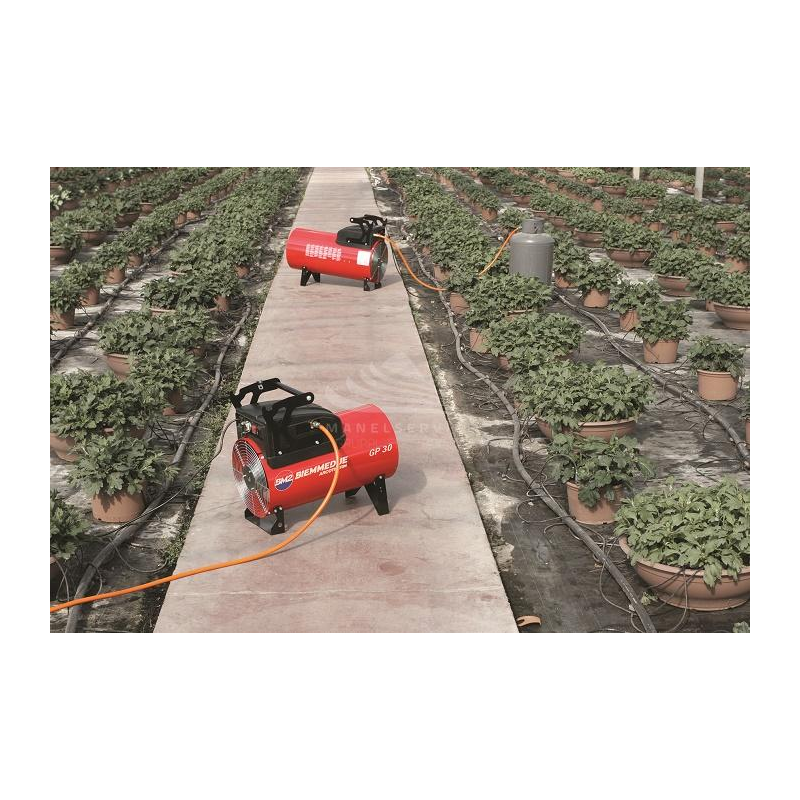

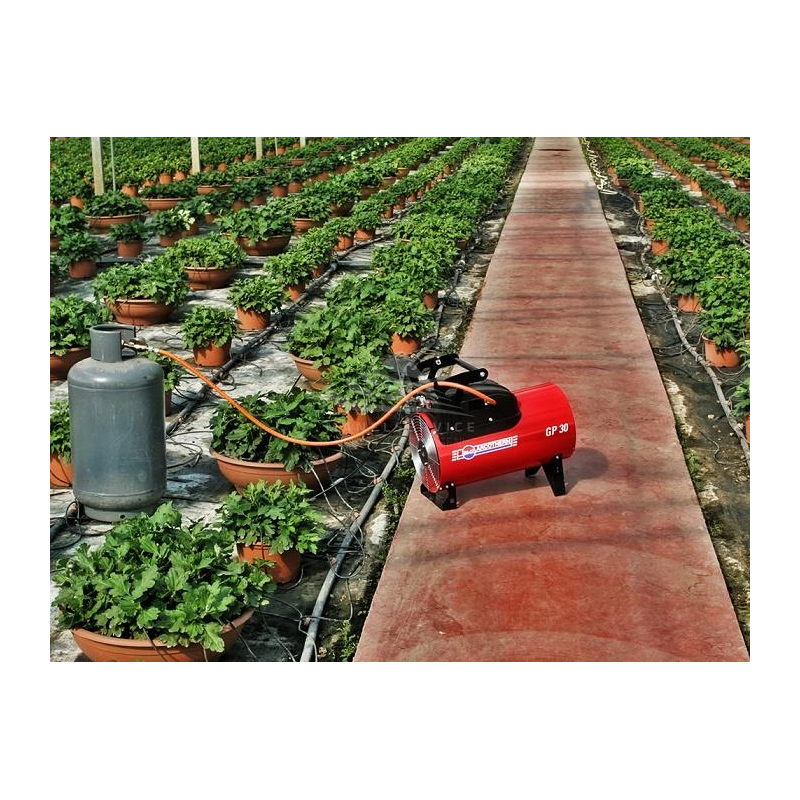

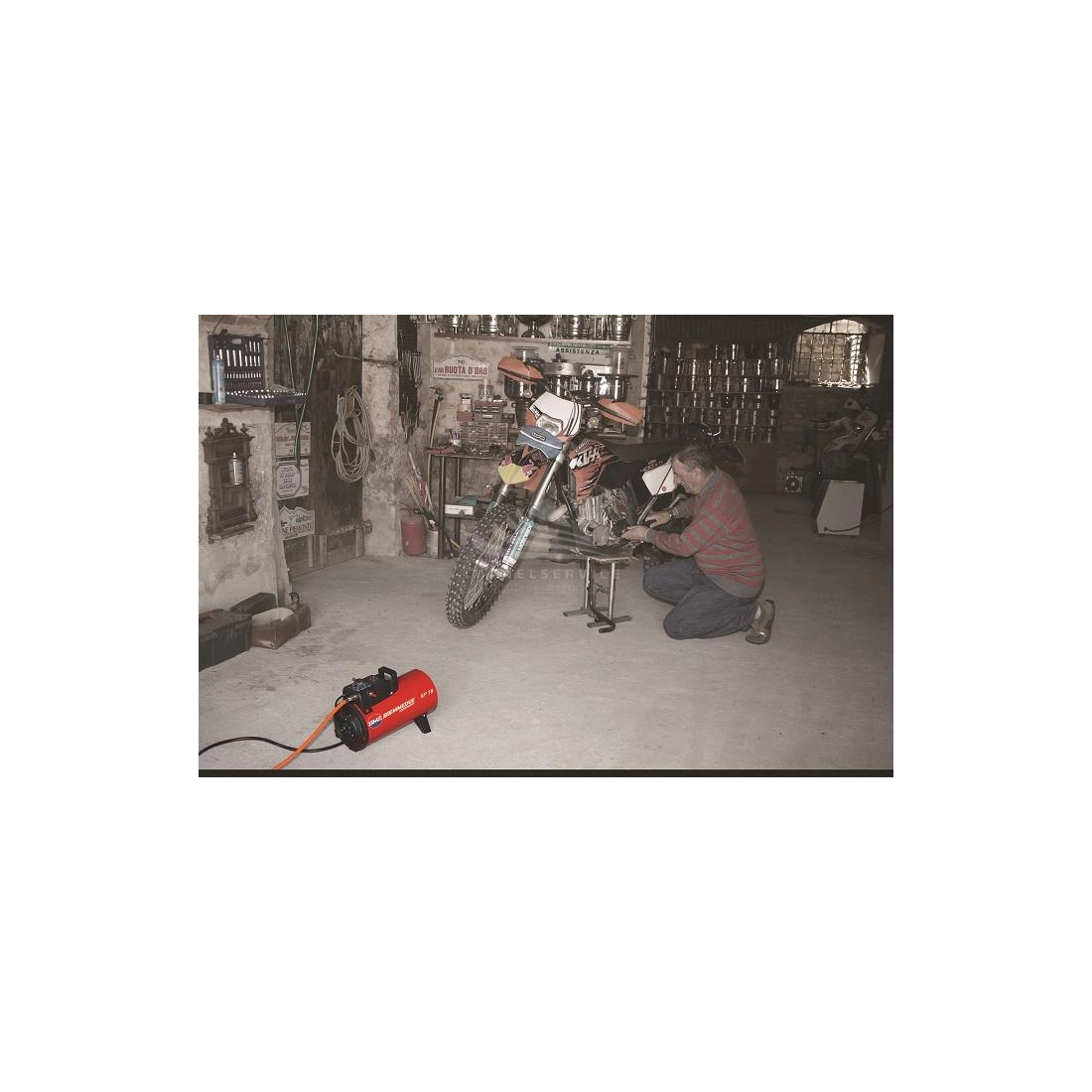

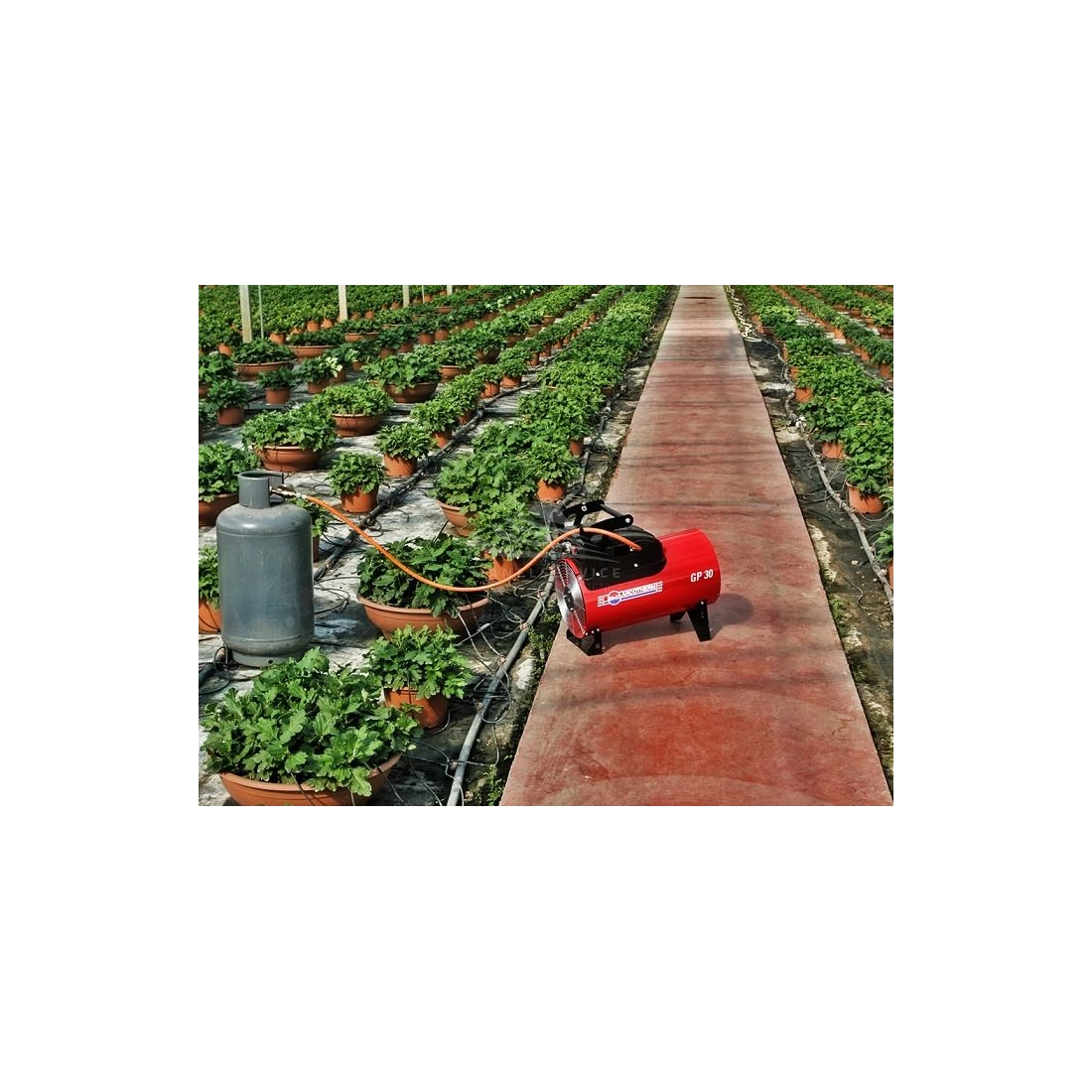

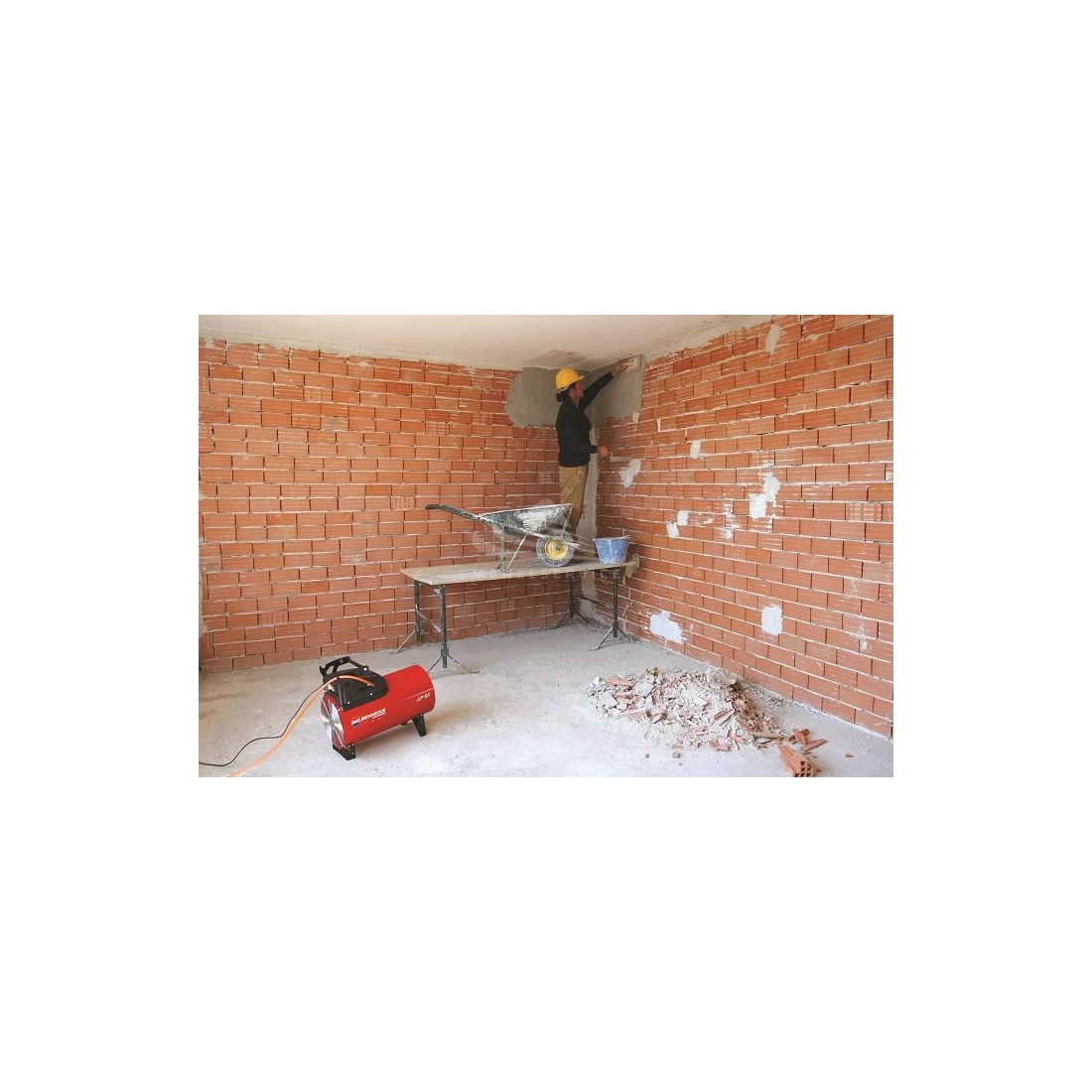

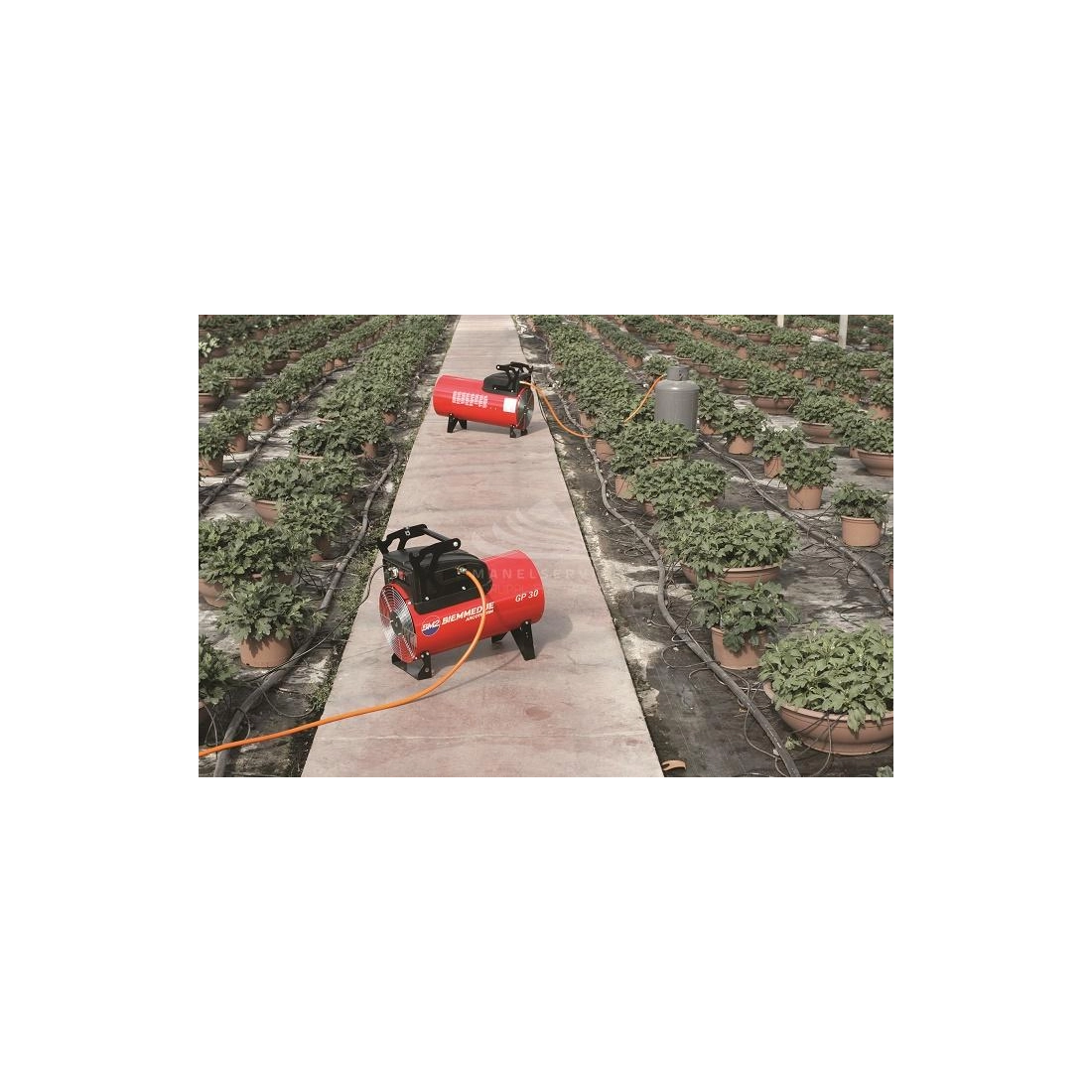

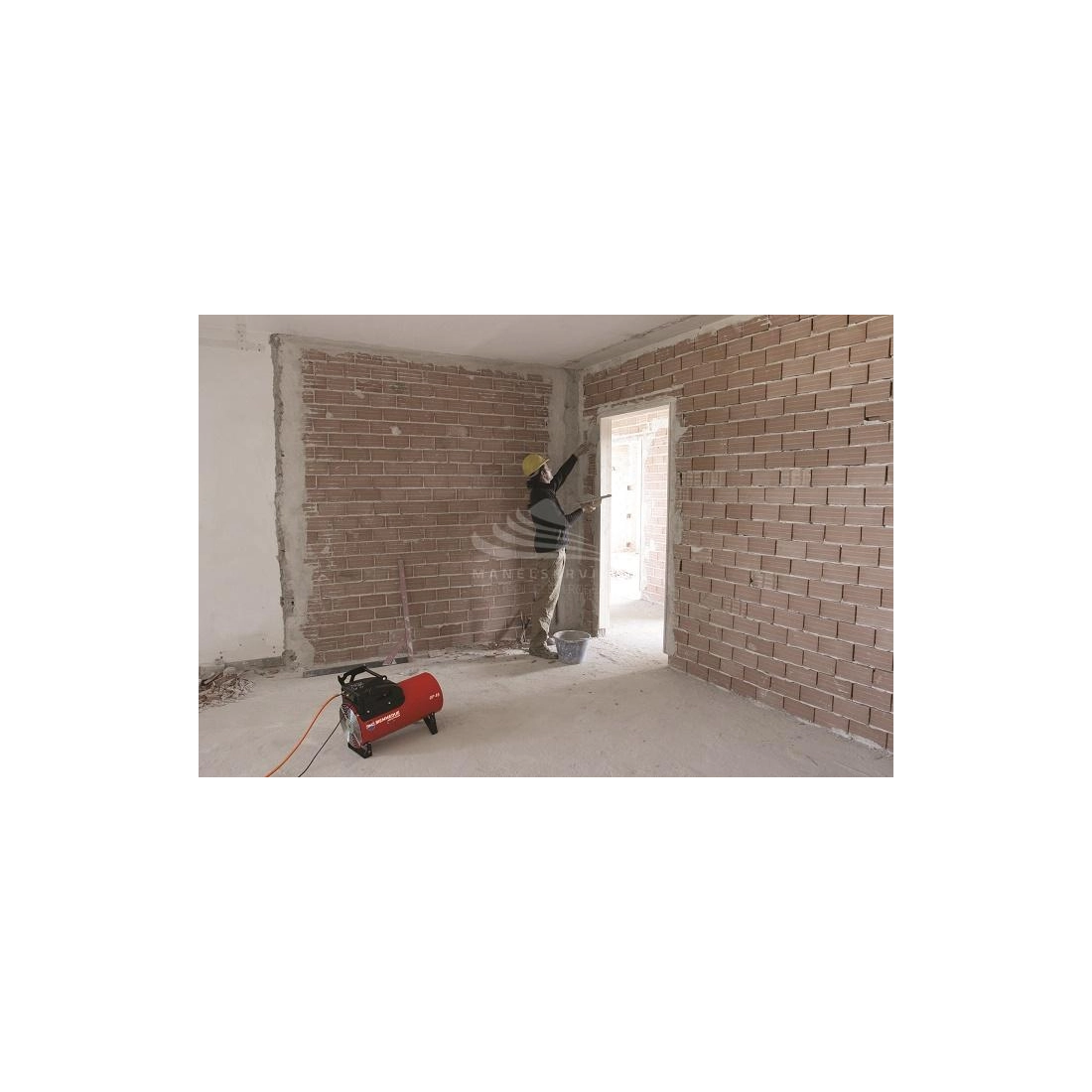

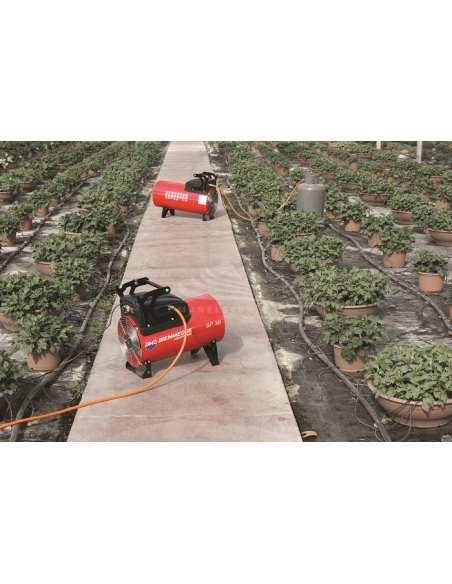

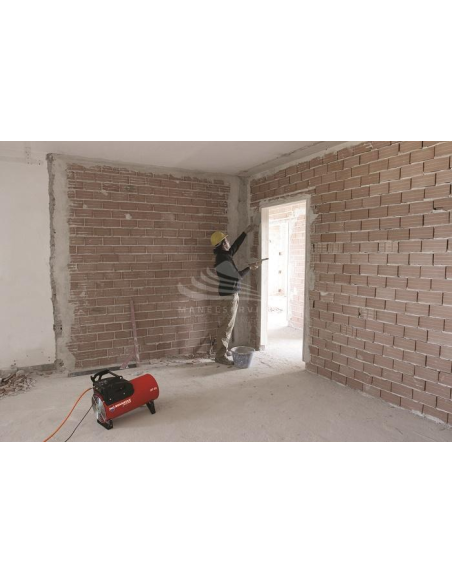

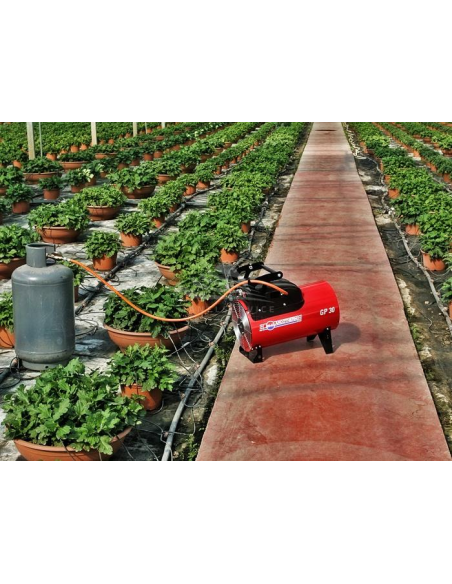

      BM2 GP105A is an automatic start LPG-fuelled hot air generator, perfect for heating closed but ventilated rooms such as construction sites, greenhouses and farms.

      BM2 GP105A is powered by high-pressure LPG, equipped with an integrated burner and direct combustion. The BM2 GP105A hot air generator is made with automatic ignition thanks to a flame control device, which allows the connection of a thermostat to control ignition and shutdown. For their power supply they are usually connected to LPG cylinders, which makes them handy and very economical.

      The BM2 GP105A hot air generator comes complete with:

      - Built-in LPG burner
      - Safety thermostat
      - Electronic flame control with ionization detection
      - Power supply cable with plug
      - Socket for connection to thermostat, humidistat or timer (A)
      - Low voltage control (GP105A)
      - Conforms to UNI EN 1596:2008

      TECHNICAL FEATURES BM2 GP105A

      Maximum heat output: 108.71 KW / 93590 kcal/h / 371390 BTU/h
      Minimum heat output: 48.81 KW / 41970 kcal/h / 166545 BTU/h
      Fuel: LPG
      Maximum gas consumption: 6.899 Kg/h
      Minimum gas consumption: 3.094 Kg/h
      Gas pressure: 1.5 - 0. 4 bar
      Efficiency: 100 %
      Flow rate: 3700 m3/h
      Temperature at 20°C : 71 °C
      Electrical power: 400 W
      Voltage: 230 V
      Phase: Single phase
      Frequency: 50 Hz
      Width: 835 mm
      Length: 438 mm
      Height: 606 mm
      Dry weight: 26 Kg

      Are you looking for a hot air generator with different technical characteristics? Here you can find the full range of BM2 hot air generators or other specialized brands.

      Images and technical data are not binding and may be subject to revisions by the manufacturer.
