      OUT OF PRODUCTION

      Power supply: Diesel + electric
      Working pressure: 30 mbar
      Nominal heat output gas operation: 2000 W / 4000 W / 6000 W
      Nominal heat output electrical operation: 900 W / 1800 W
      Nominal heat output of mixed operation max: 5800 W
      Fuel consumption: 220 - 630 ml/h (110 ml/h with average heat output of 1000 W)
      Length: 525 mm
      Width: 450 mm
      Height: 300 mm
      Weight: 16.9 Kg
      Minimum overall dimensions: 540 x 500 x 350 mm

      Custom Quote
      Product: TRUMA COMBI D 6E Diesel + Electric Heater 6 KW for Camper and Truck

      PERSONAL DATA


      Ask a question
      Product: TRUMA COMBI D 6E Diesel + Electric Heater 6 KW for Camper and Truck
      Offer on letterhead
      Product: TRUMA COMBI D 6E Diesel + Electric Heater 6 KW for Camper and Truck
      TRUMA
      010 C6DE-CPI /

      Data sheet

      Phase
      Single phase
      Fuel
      Diesel + Electric
      Frequency (Hz)
      50
      Voltage (V)
      230
      Tank capacity (L)
      10
      Max rated heat power
      6000 W
      Min rated heat power
      2000 W
      Max Gas consumption (Kg/h)
      0.46
      Min Gas consumption (Kg/h)
      0.16
      Air flow (m³/h)
      287
      Length (mm)
      525
      Width (mm)
      450
      Height (mm)
      300
      Type of climate control
      Stove for Campers
      Weight (Kg)
      16.8

      Specific References

      New

      TRUMA COMBI D6 AND 6 KW DIESEL/ELECTRIC HEATER FOR CAMPERS AND TRUCKS

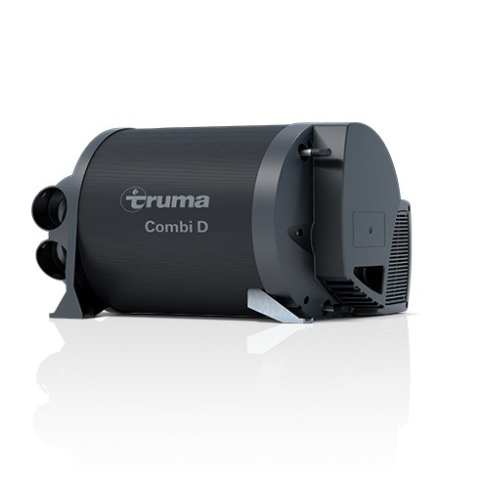

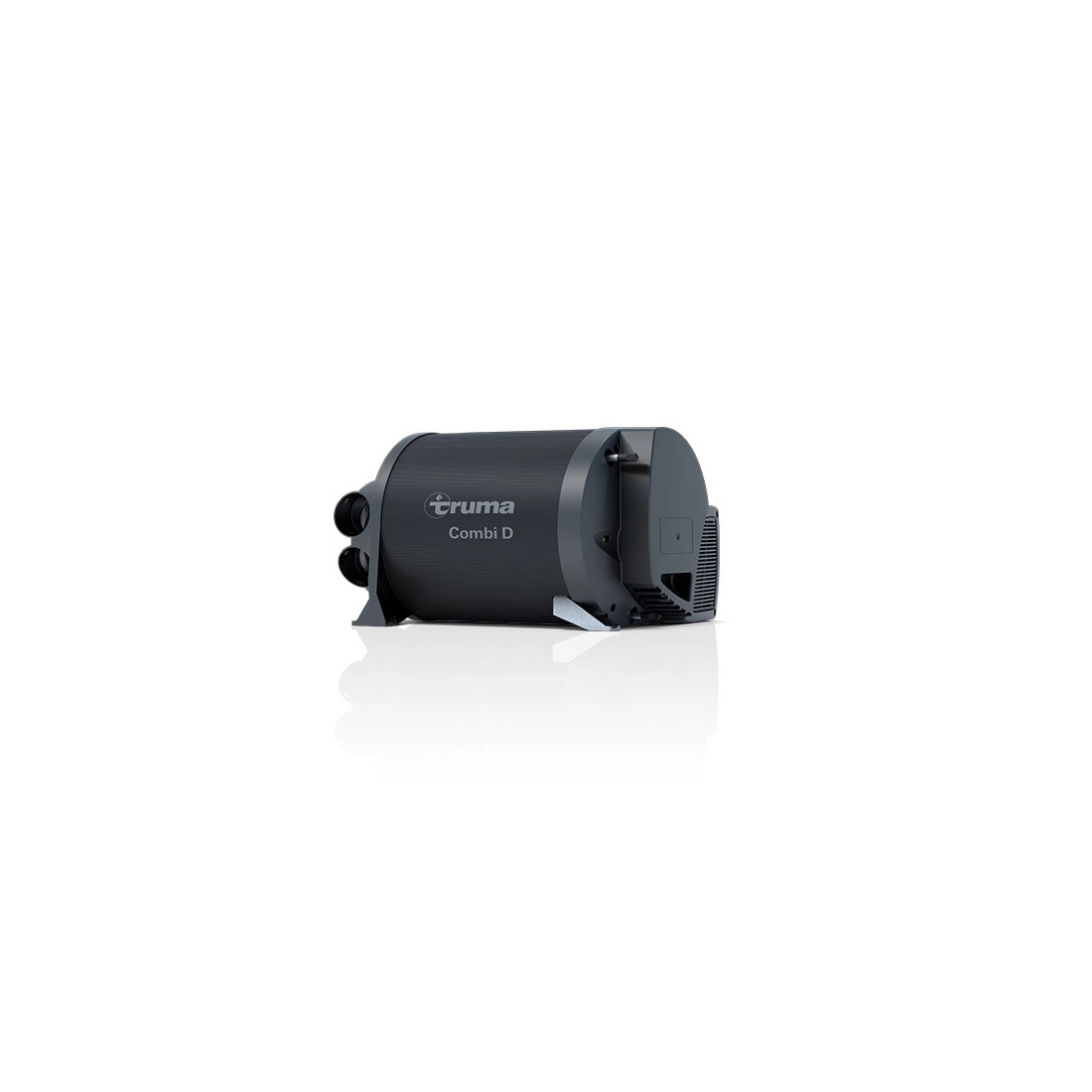

      TRUMA COMBI D 6E is a diesel and electric powered stove suitable for heating trucks and campers, capable of delivering a maximum heat output of 6KW.

      The powerful Truma Combi D 6E heats up even the largest motorhomes in no time. The device also has an integrated 10-liter water tank that can be heated if necessary.

      No additional boilers are needed, thus saving weight and space. The Truma Combi is also extremely compact and can therefore be installed in the vehicle with great flexibility.

      Depending on the required power requirement, you can choose between diesel, electric or mixed power, thanks to this incredible versatility you can set your TRUMA COMBI D 6E according to the season or the desired temperature.

      Technical characteristics TRUMA COMBI D 6E

      Type of power supply Light oil compliant with EN 590
      Nominal output for gas operation 2000 W / 4000 W / 6000 W
      Nominal output for electrical operation 900 W / 1800 W
      Nominal output for mixed operation max. 5800 W
      Fuel consumption 220 - 630 ml / h (110 ml / h with average heat output equal to 1000 W)
      Absorbed current (at 12 V): heating and water tank operation 1.8 - 4 A
      Current consumption (at 12 V): water tank heating max. 1.8 A
      Current consumption (at 230 V): 3.9 A / 7.8 A
      Air flow (free exhaust) with 4 hot air outlets max: 287 m³ / h
      Quiescent current: approx. 1 mA
      Capacity: 10 liters
      Max pump pressure: 2.8 bar
      Max system pressure: 4.5 bar
      Time warm up (approx. 15 ° C to approx. 60 ° C): Water tank approx. 20 Min / according to EN 15033 approx. 80 Min.
      Net weight: 16.9 kg
      Dimensions (L x W x H): 525 x 450 x 300 mm
      Overall dimensions (L x W x H): 540 x 500 x 350 mm

      Do you have a product with different characteristics? HERE you can find the full range of TRUMA or other specialized brands

      The images and technical data and technical data are not binding and may be subject to revisions by the manufacturer.
