      FEIHCD050S3

      Heating conditions: air DB20 ℃ / WB 15 ℃, water 15 ℃ to 55 ℃
      Heating capacity: 17.5 KW
      Input power: 3.85 KW
      Input current: 17.5 A
      COP: 4.55 W / W
      Cooling conditions: air DB 35 ℃ / -, water inlet: 12 ℃, water outlet: 7 ℃
      Cooling capacity: 12.5 KW
      Input power: 4.70 KW
      Input current: 21.36 A
      Maximum current: 27.80 A
      Power supply: 220/1/50 (V / PH / Hz)
      Controller: Inverter
      Compressor: DC compressor
      Fan motor: DC
      Refrigerant flow control: Electric expansion valve
      Heat exchanger: High efficiency tubular
      Liquid cooling: R32 / R410a
      Water inlet / outlet: 1 "
      Water flow: 2.15 m³ / h
      Length: 1150 mm
      Width: 470 mm
      Height: 1250 mm
      Net weight: 180 Kg

      Prezzo
      4,999.99 € tax incl.
      4,098.35 € tax excl.
      Shipping from 80.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: FANTASTIC AIR-WATER HEAT PUMP EVI DC R32 THREE-PHASE 17,5KW INVERTER

      PERSONAL DATA


      Ask a question
      Product: FANTASTIC AIR-WATER HEAT PUMP EVI DC R32 THREE-PHASE 17,5KW INVERTER
      Offer on letterhead
      Product: FANTASTIC AIR-WATER HEAT PUMP EVI DC R32 THREE-PHASE 17,5KW INVERTER
      NO BRAND
      FEIHCD050S3

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      380
      Operating temperature (°C)
      -15~43
      Refrigerating yield
      12.5 KW
      Heating power
      17.5 KW
      Acoustic pressure
      55 dB(A)
      Length (mm)
      1130
      Width (mm)
      515
      Height (mm)
      1415
      Dry weight (Kg)
      182
      Coolant
      R32/R410a

      Specific References

      EAN13
      4270002982673
      New

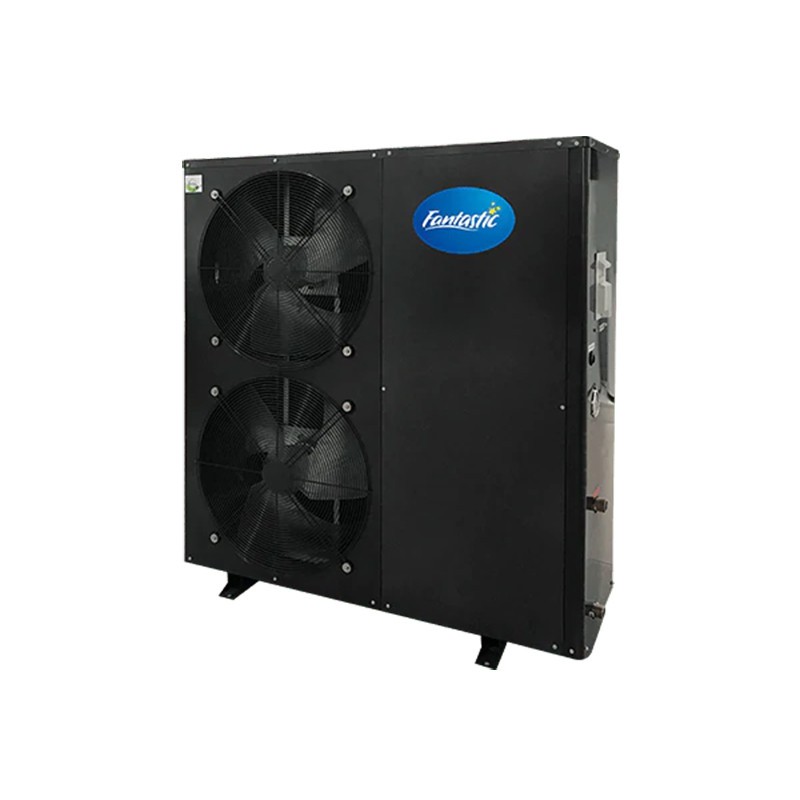

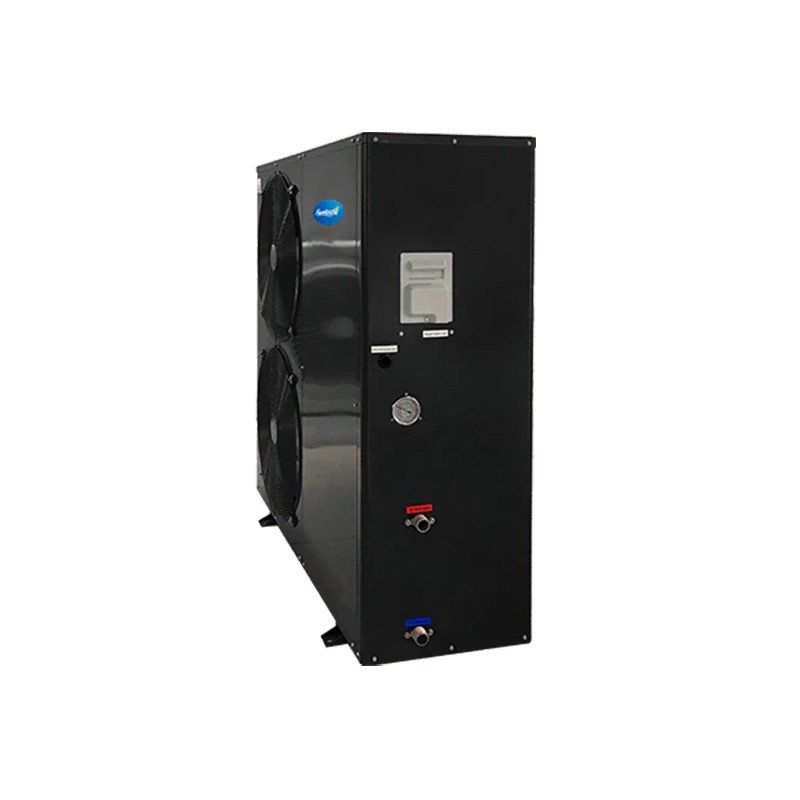

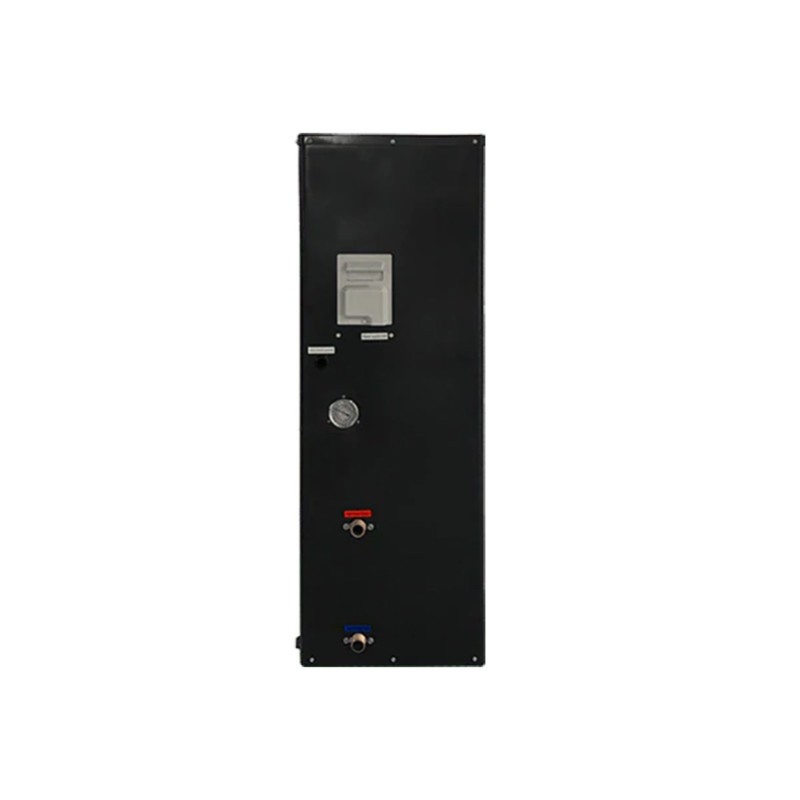

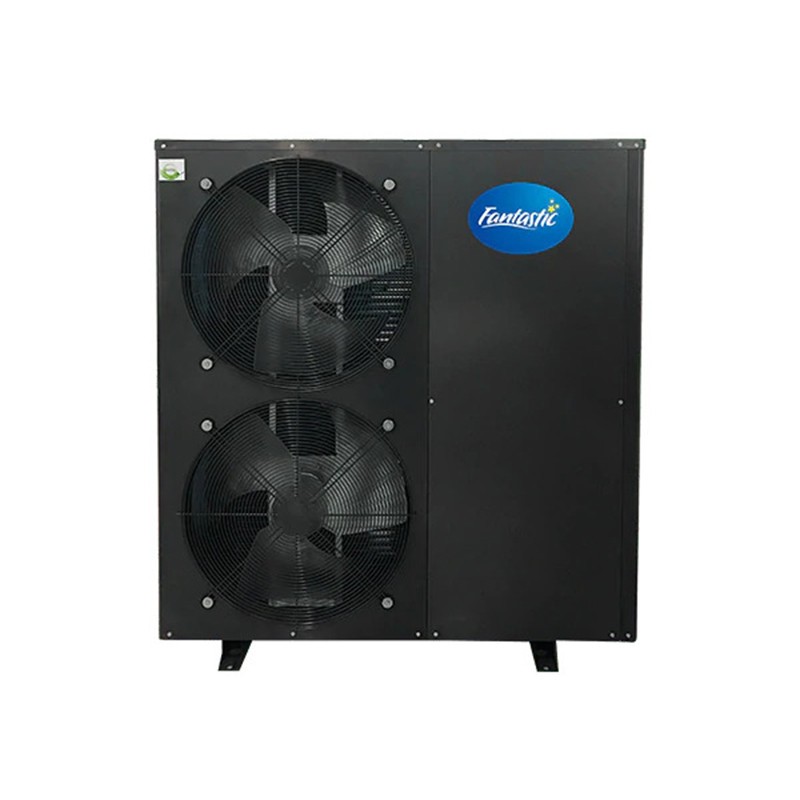

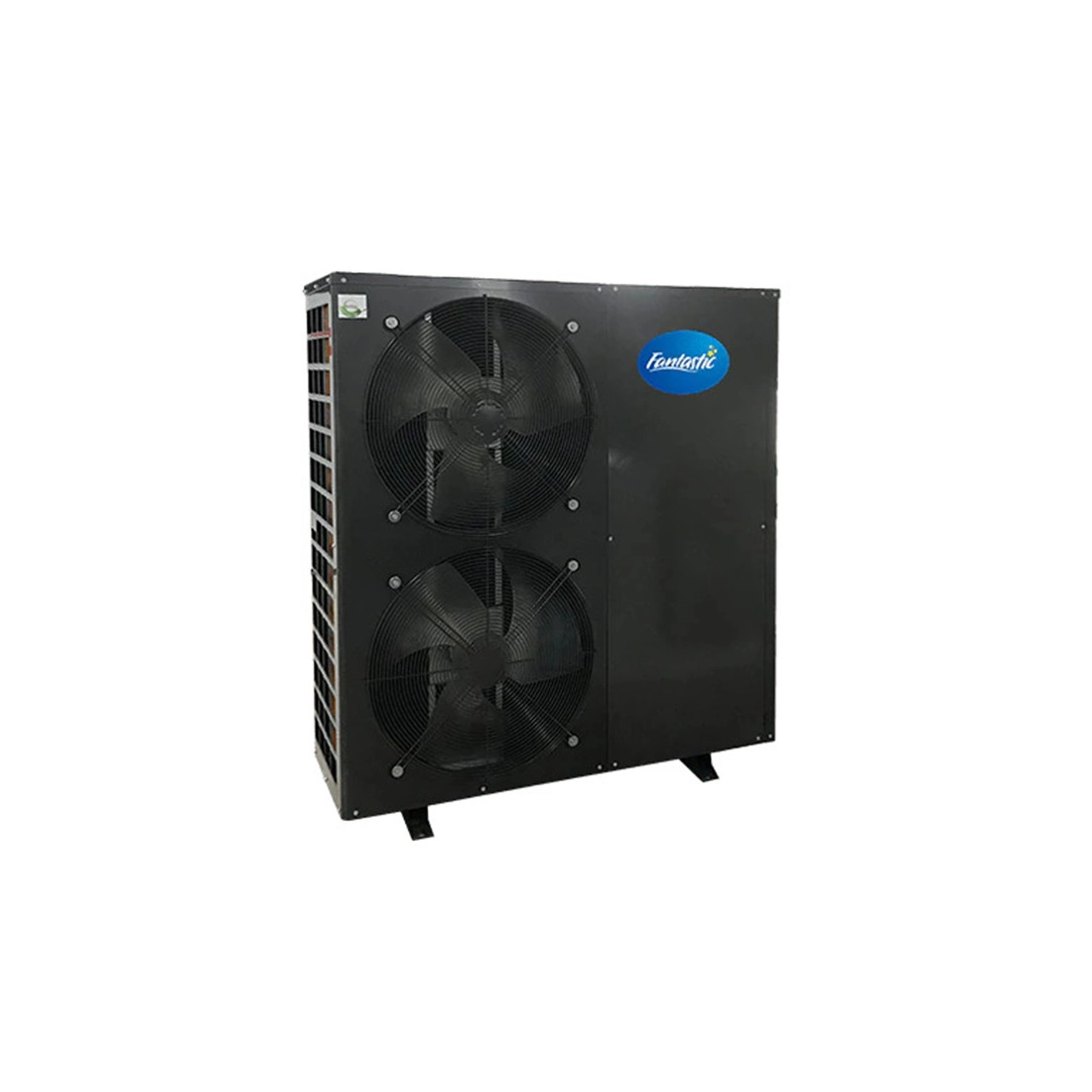

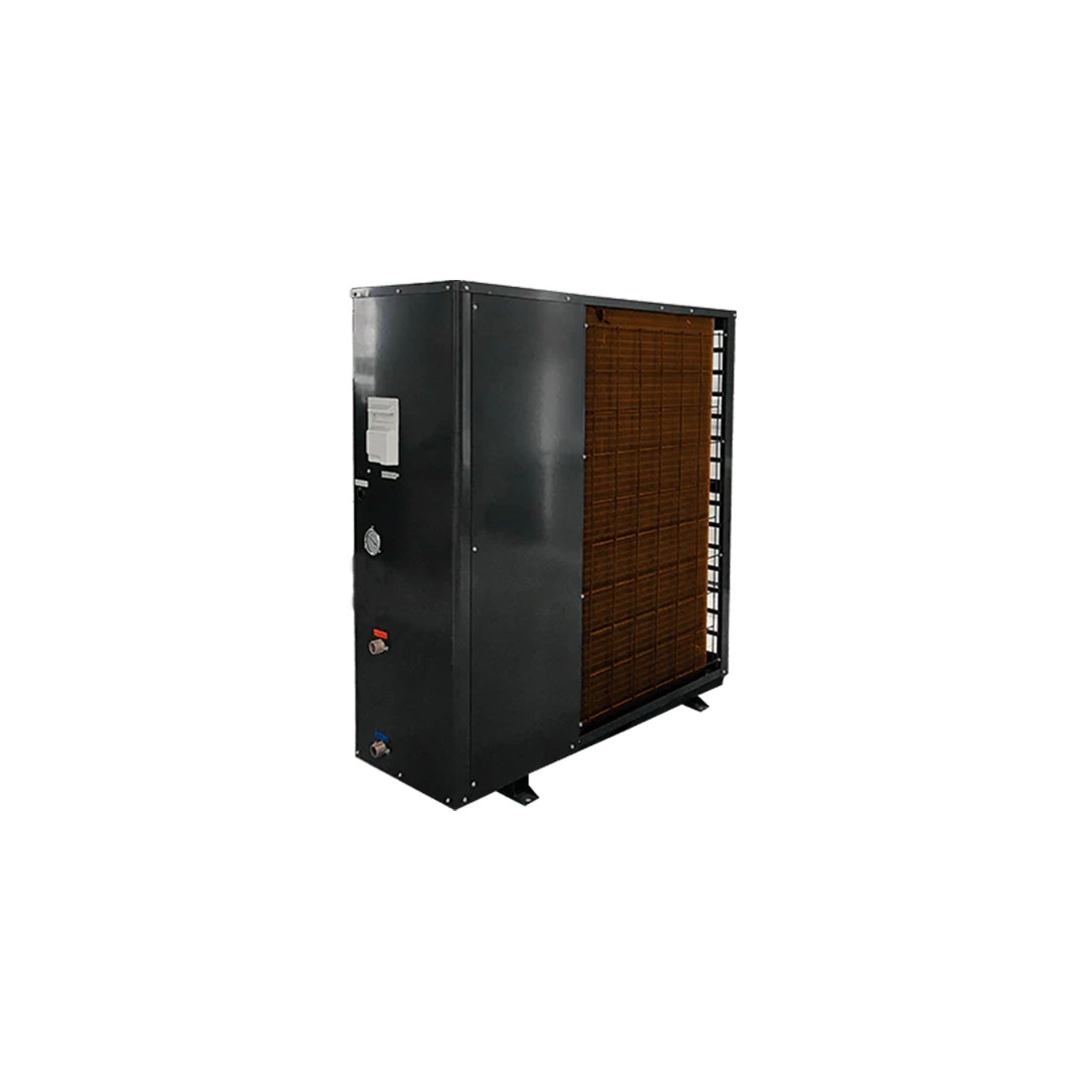

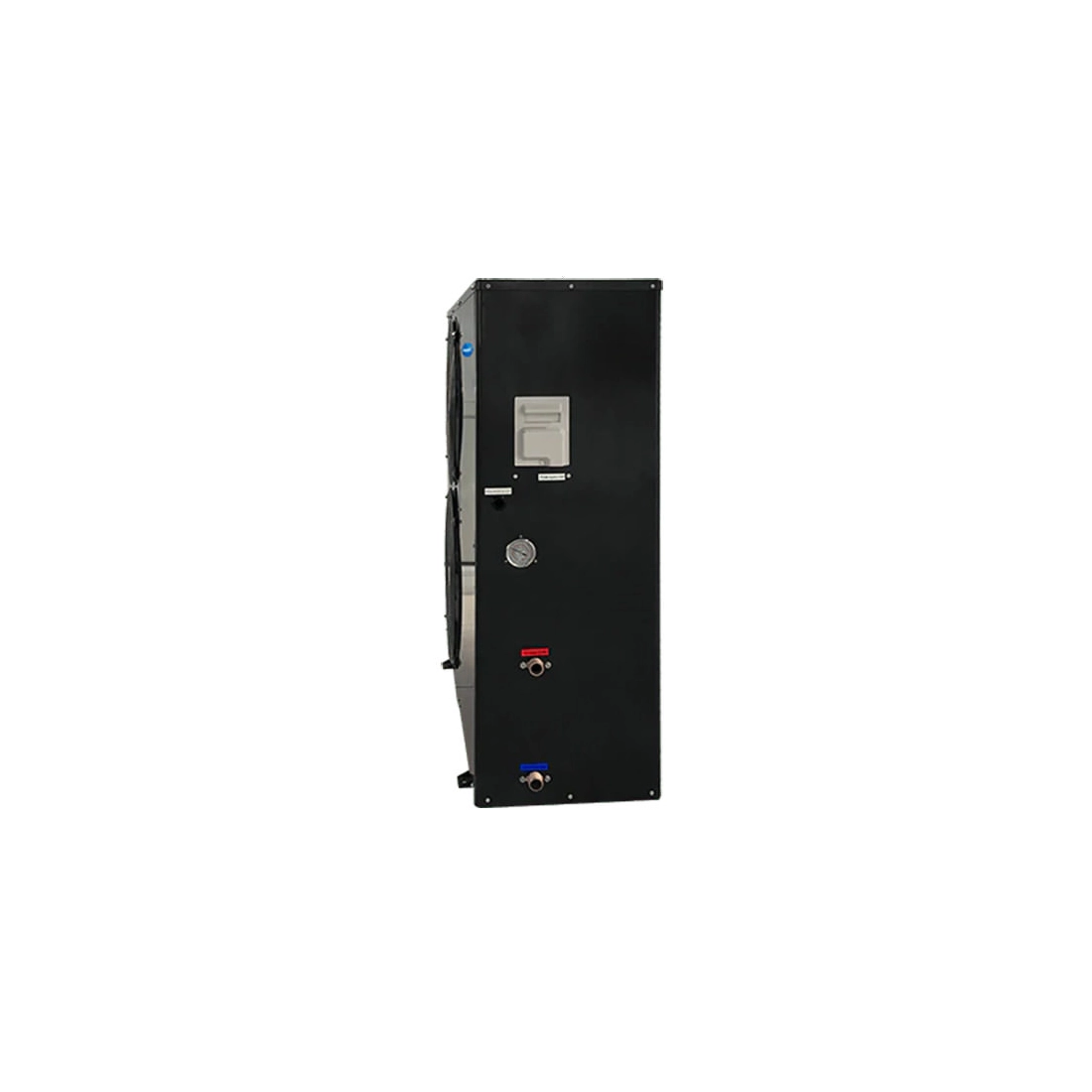

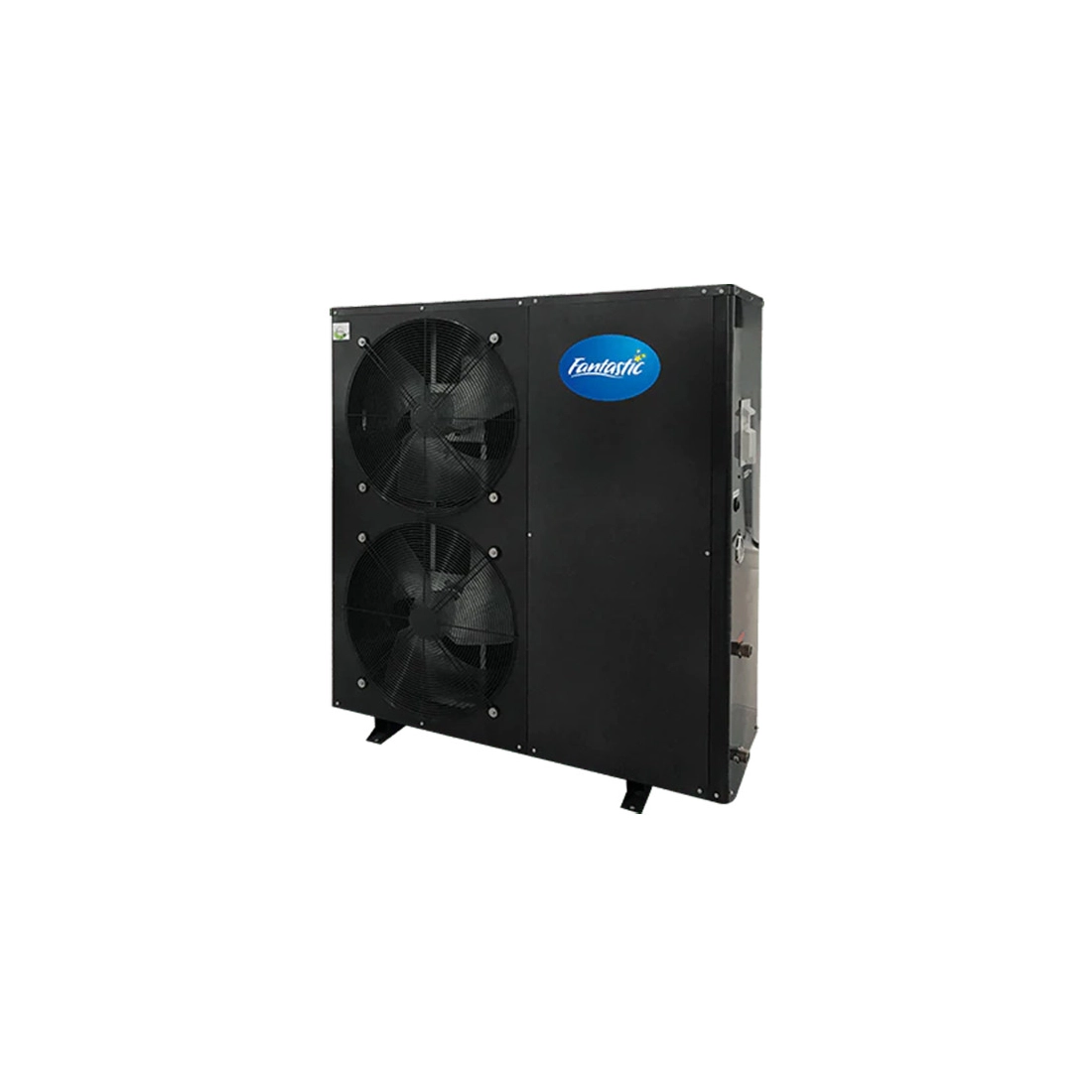

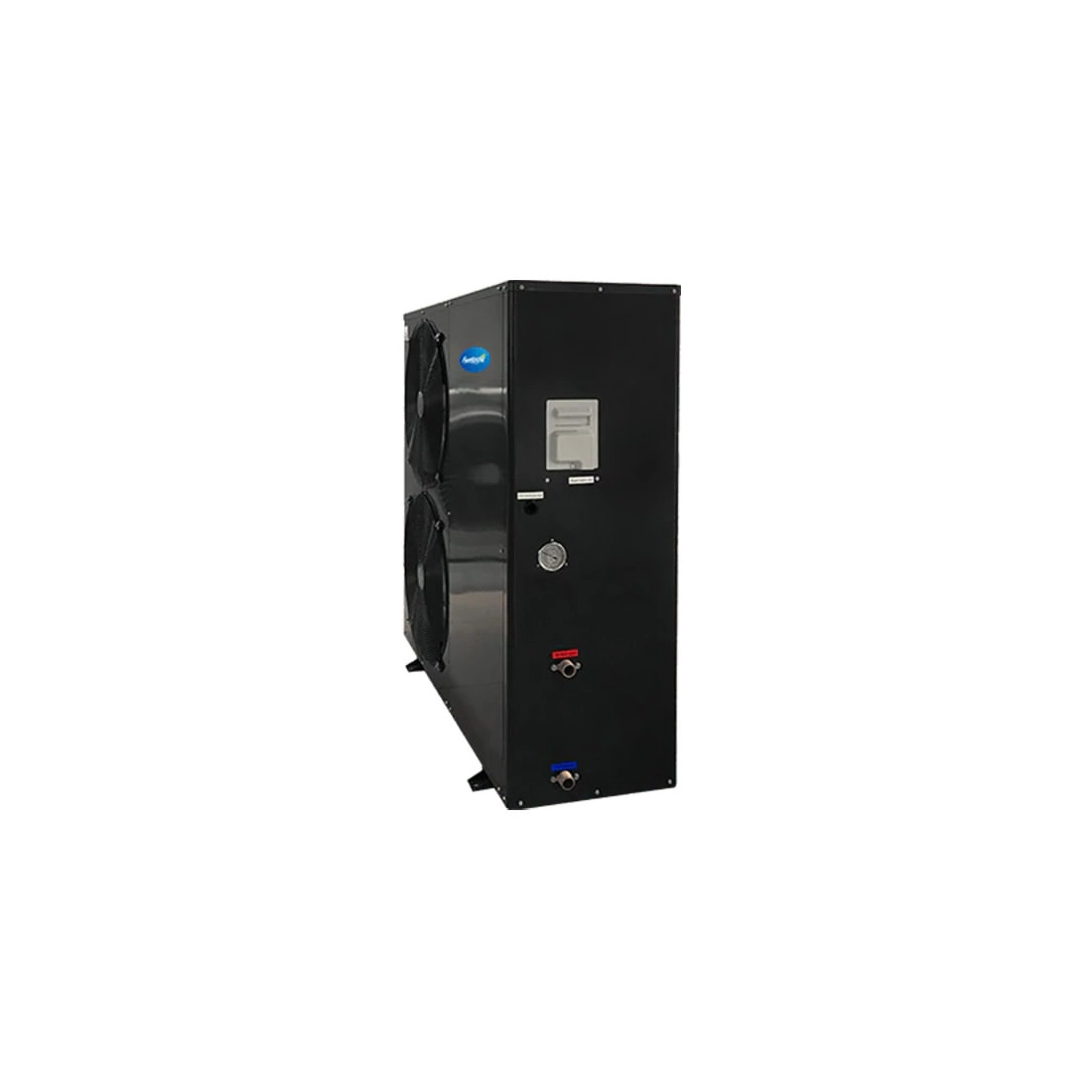

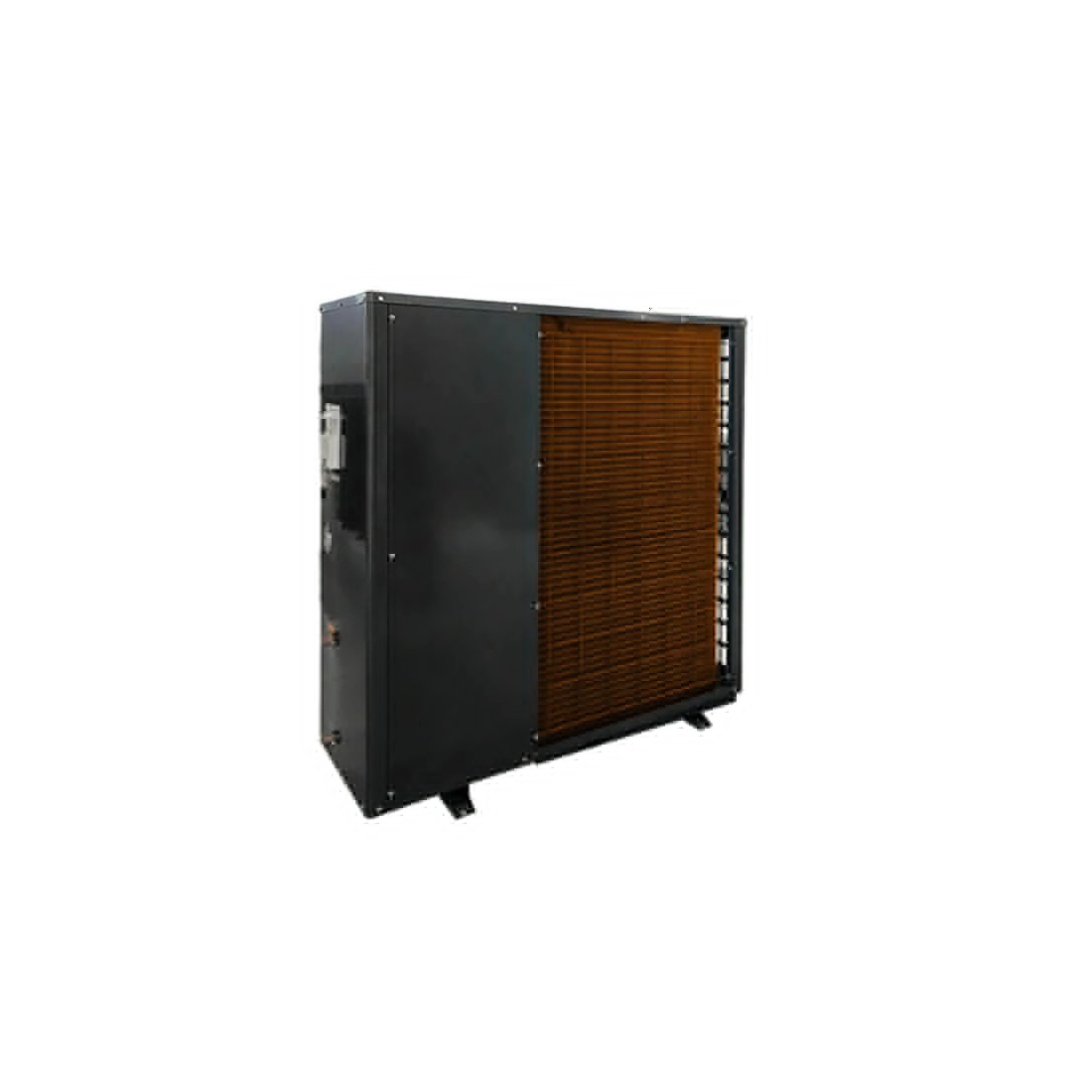

      FANTASTIC AIR-WATER HEAT PUMP EVI DC R32 THREE-PHASE 17,5KW INVERTER

      The heat pump FANTASTIC EVI DC R32, perfect for heating and cooling air and water, equipped with a 4 core inverter, which allows incredible energy savings and silence.

      Once switched on, the FANTASTIC unit can quickly select and choose the best operating frequencies, the EEV opens automatically according to the request for heating or cooling. Thanks to the intelligent inverter control technology, the environment can be heated in half the time compared to traditional heat pumps.

      The EVI + DC technology is able to optimize the frequency and EEV of the FANTASTIC EVI DC R32 heat pump based on the ambient temperature, the water temperature and the refrigerant volume of the main circuit of the refrigerant system.

      The inrush current to the inverter / heater is used to provide the desired temperature and control the power consumption of mechanical equipment. It can replace traditional liquid cooling systems, stoves or boilers. The FANTASTIC EVI DC R32 heat pump can be used to provide refrigeration services in sectors such as food, pharmaceutical, chemical, pharmaceutical, cleaning and other services.

      The RS485 intelligent controller is used to control the connection between the heat pump unit and the application to improve the operational efficiency. Through the APP you can check the status of the machine at any time you need it. By downloading the dedicated App, with a simple and accessible interface, you can control all the main functions via your smartphone.

      TECHNICAL FEATURES FANTASTIC EVI DC R32:

      Heating conditions: air DB20 ℃ / WB 15 ℃, water from 15 ℃ to 55 ℃
      Heating capacity: 17.5 KW
      Input power: 3.82 KW
      Input current: 5.81 A
      COP: 4.60 W / W
      Cooling conditions: air DB 35 ℃ / -, water inlet: 12 ℃, water outlet: 7 ℃
      Cooling capacity: 12.5 KW < br /> Input power: 4.70 KW
      Input current: 8.7 A
      Maximum current: 11.30 A
      Power supply: 380/3/50 (V / PH / Hz)
      Controller: Inverter
      Compressor: DC compressor
      Fan motor: DC
      Refrigerant flow control: Electric expansion valve
      Heat exchanger: High efficiency tubular
      Liquid cooling: R32 / R410a
      Water inlet / outlet: 1 "
      Water flow: 2.15 m³ / h
      Length: 1130 mm
      Width: 515 mm
      Height: 1415 mm
      Net weight: 182 Kg

      Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to pool heat pumps of specialized brands.

      Non-binding images and technical data.

      4 other products in the same category:

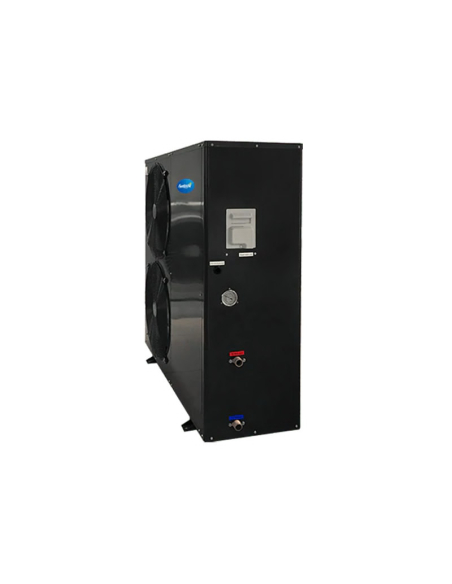

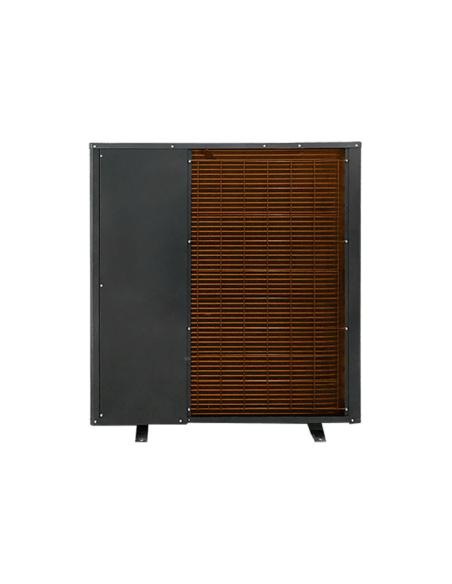

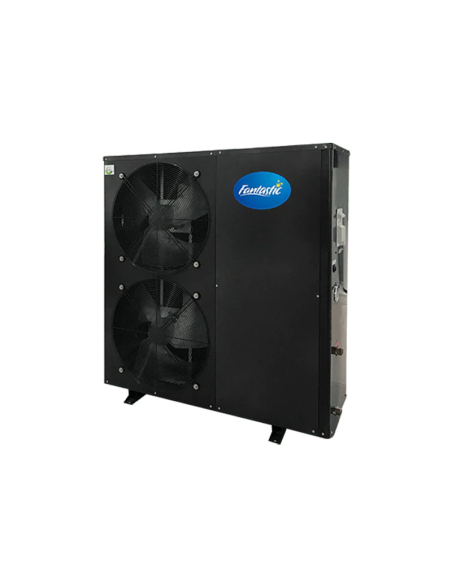

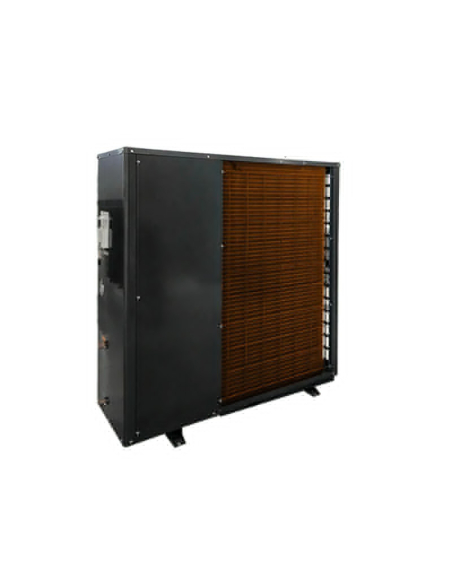

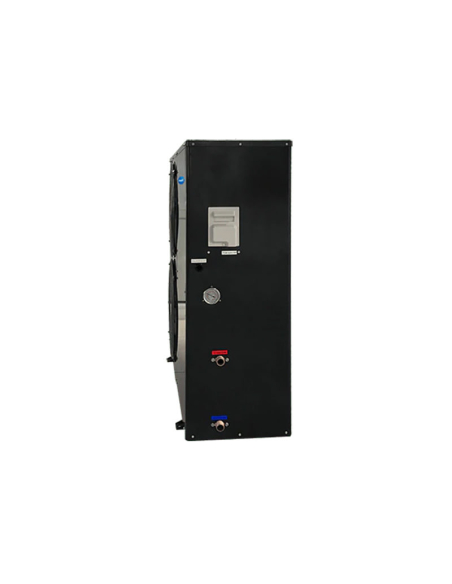

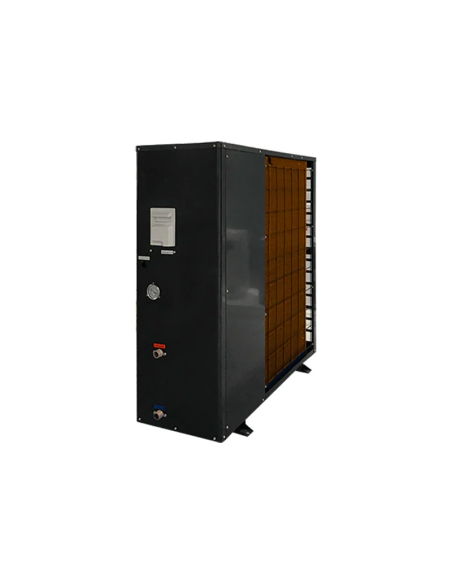

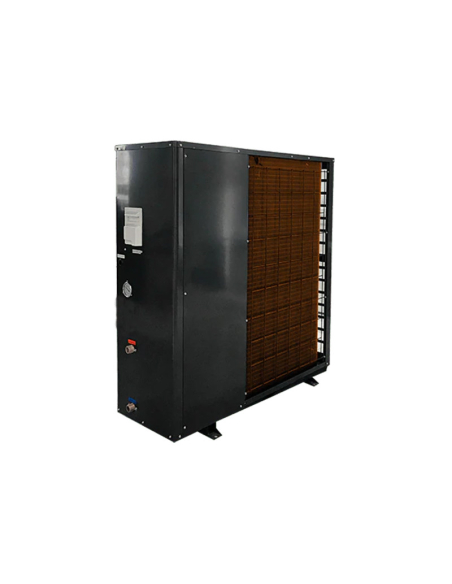

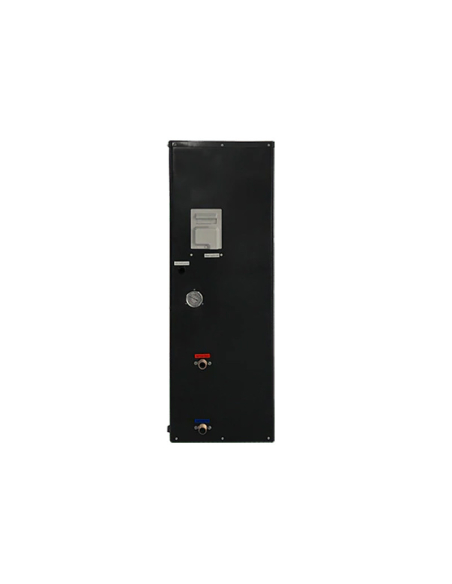

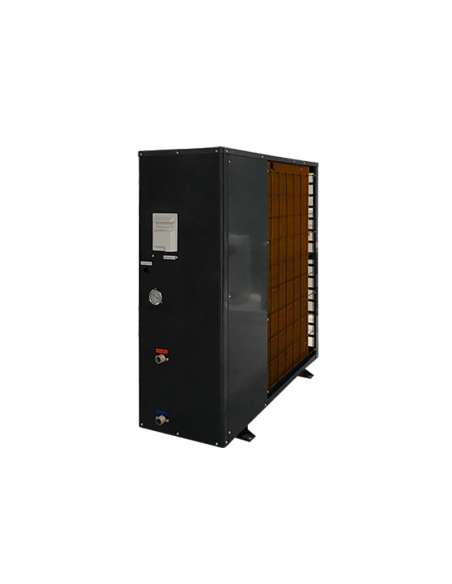

      Heat pump Fantastic EVI DC R32 17,5KW
