Data sheet

Phase

Single phase

Maximum power single phase (KW)

8

Maximum power single phase (KVA)

10

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230

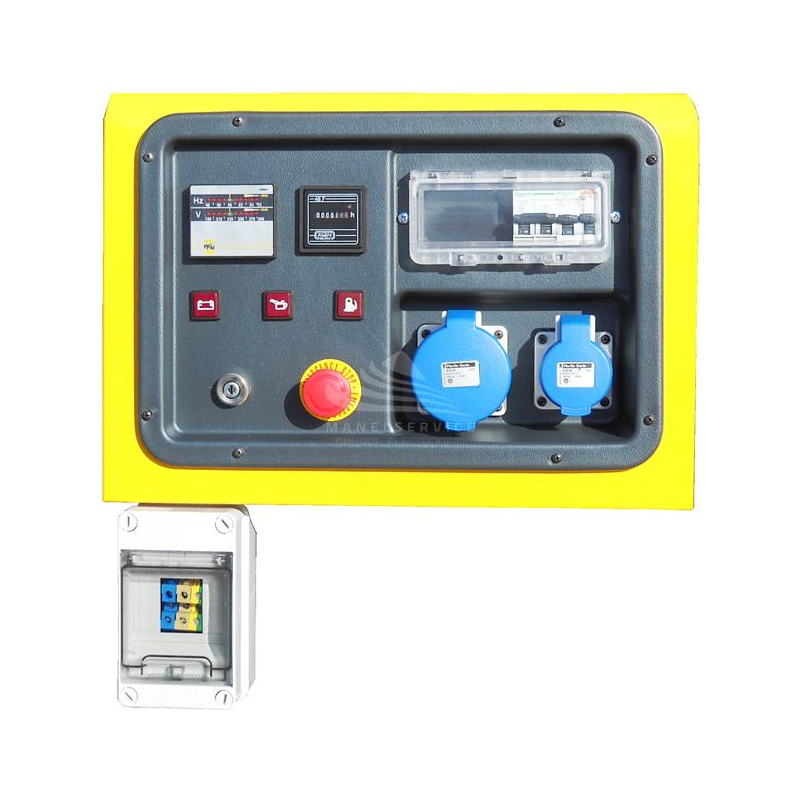

Sockets configuration

1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE

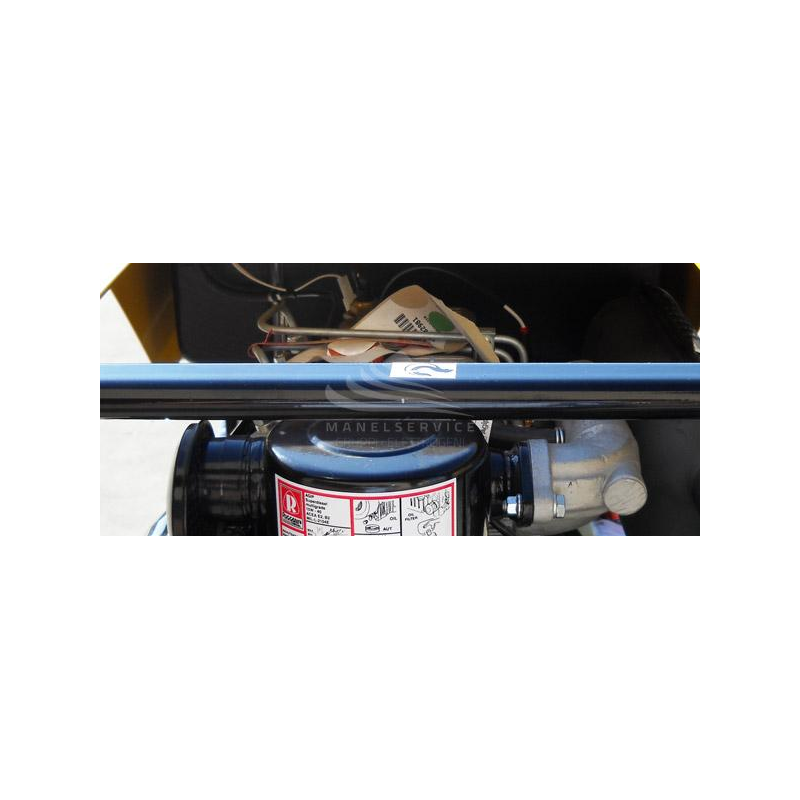

Engine

Lombardini 12LD477

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

954

Number cylinders

2

Oil capacity (L)

3

Cooling

Air

Fuel tank capacity (L)

20

Consumption (L/h)

5 at 100% of the load

Running time (h)

4 at 100% of the load

Acoustic power

110 dB(A)

Acoustic pressure

85 dB(A) at 7 m

Length (mm)

1000

Width (mm)

550

Height (mm)

670

Dry weight (Kg)

181

Silenced

No

Super silenced

No

ATS Switch device

Optional

Voltage regulator

AVR

Engine manufacturer

Lombardini
