WFM L85-MTHE Generator Set 6KW

WFM SE12000-MTHE AVR
search
  • WFM SE12000-MTHE AVR
  • WFM SE12000-MTHE AVR
  • WFM SE12000-MTHE AVR
  • WFM SE12000-MTHE AVR
WFM
06015
New product

Single-phase maximum power: 3 KW
Single-phase maximum power: 3.8 KVA
Three-phase maximum power: 6 KW
Three-phase maximum power: 7.5 KVA
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX390
Starting system: Electric
Fuel consumption: 3.1 L at 100% load
Length: 750 mm
Width: 560 mm
Height: 620 mm
Weight: 98 Kg

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
3
Maximum power single phase (KVA)
3.8
Maximum power three phase (KW)
6
Maximum power three phase (KVA)
7.5
Fuel
Gasoline
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE - 1 x 230V 16A 3P SCHUKO
Engine
Honda GX390
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
389
Number cylinders
1
Oil capacity (L)
1.1
Cooling
Air
Fuel tank capacity (L)
20
Consumption (L/h)
3.1 at 100% of the load
Running time (h)
6.45 at 100% of the load
Acoustic power
96 dB(A)
Acoustic pressure
71 dB(A) at 7 m
Length (mm)
750
Width (mm)
560
Height (mm)
620
Dry weight (Kg)
98
Silenced
No
Super silenced
No
ATS Switch device
Optional
Voltage regulator
No
Engine manufacturer
Honda
Details

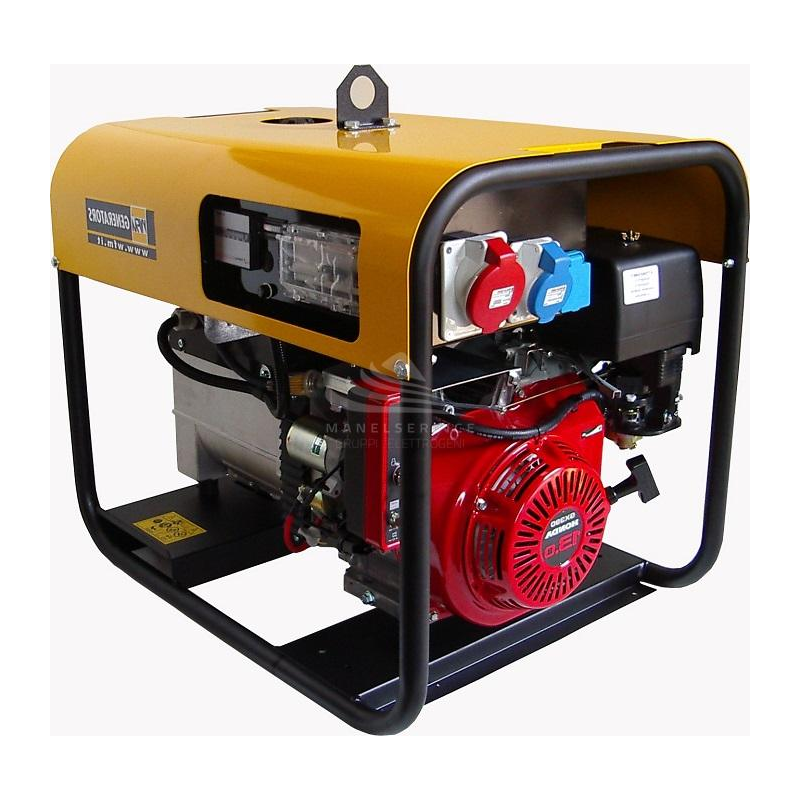

WFM L85-MTHE 6KW GENERATOR SET

LUX Series
Generator sets with original HONDA gasoline engine in a sturdy semi-soundproof frame, with power ranging from 4.5 to 7.5 KVA, single-phase or three-phase/single-phase, 3000 rpm, air-cooled, with key start including battery and electrical panel with sockets and standard protection.
Complete setup with an attractive design, they can be combined with various accessories such as the automatic transfer switch for operation in case of blackout.
Equipped with a 20 L fuel tank for extended operating autonomy.
All generators in this series comply with Directive 2000/14/EC of 01/01/2006.

Main Features of WFM L85-MTHE 6KW Generator Set:
- Protective frame with semi-enclosing top cover

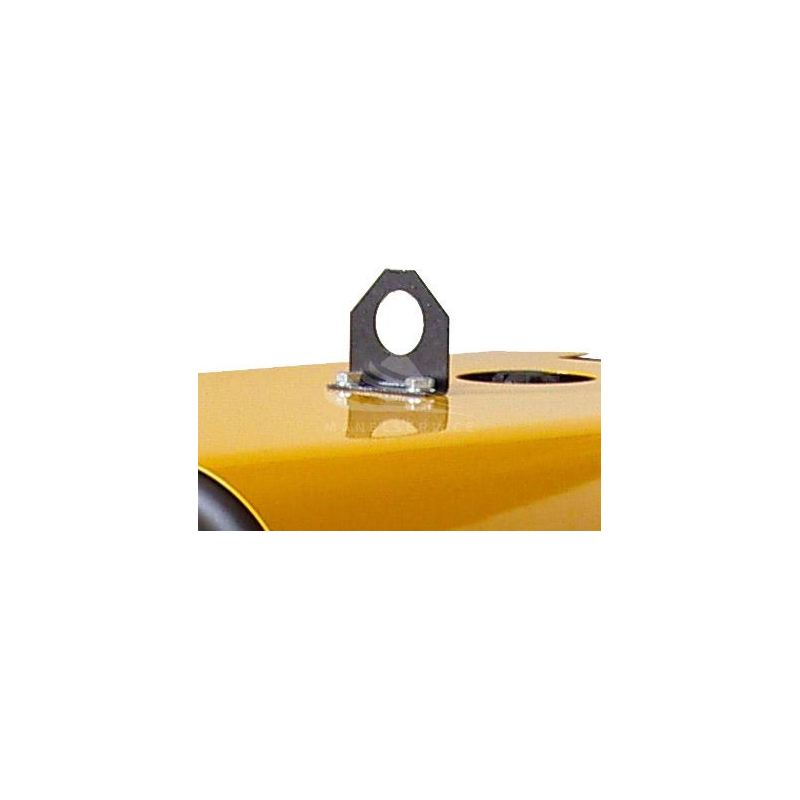

- Central lifting hook
- Original Honda engine compliant with low CO2 emissions
- Low oil level protection
- Silencer muffler
- Alternator from a leading Italian manufacturer
- Enlarged 20-liter gasoline tank for extended autonomy

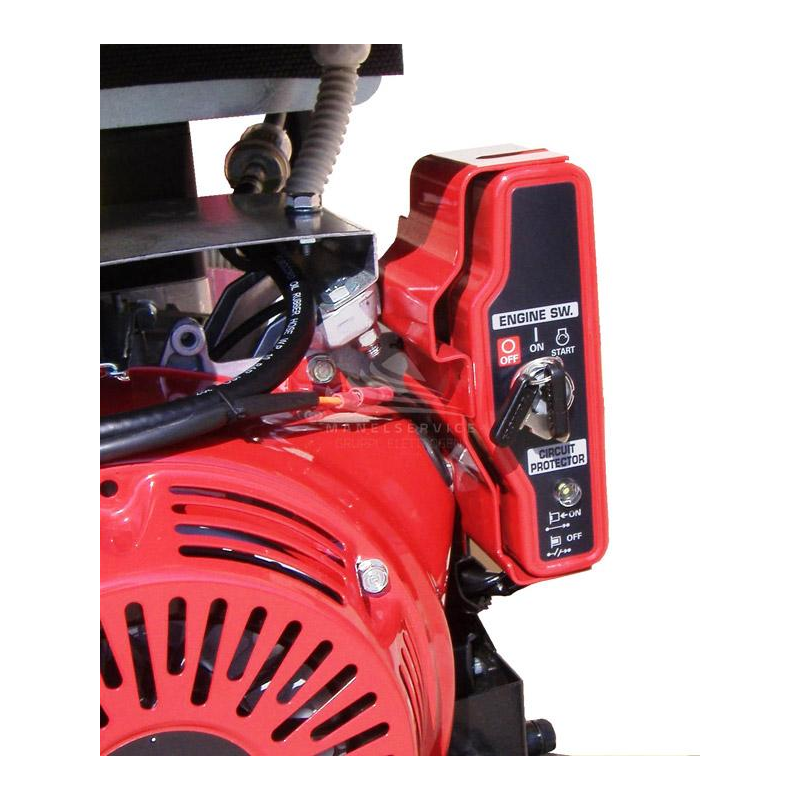

- Electric start with 12V battery supplied without acid
- Full load test with test certificate
- User manual compliant with safety standards

Looking for a generator set similar to the WFM L85-MTHE but with different features? CLICK HERE and discover our full range.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
