PRAMAC GBW35Y APERTO CON QUADRO COMANDO MANUALE (MCP)

Reference SH260TYAQ00 /

OUT OF PRODUCTION

Maximum power Three-phase: 26 KW
Three-phase continuous use power: 24.4 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98-IGPGE
STAGE IIIA
Starting: Electric
Consumption: 7.7 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1100 mm
Weight: 558 Kg
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SH260TYAQ00 /

Data sheet

Phase: Three phase
Maximum power three phase (KW): 29.87
Continuous power three phase (KW): 28.38
Maximum power three phase (KVA): 37.34
Continuous power three phase (KVA): 35.48
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400

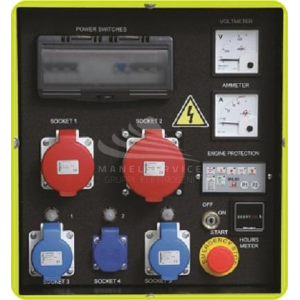

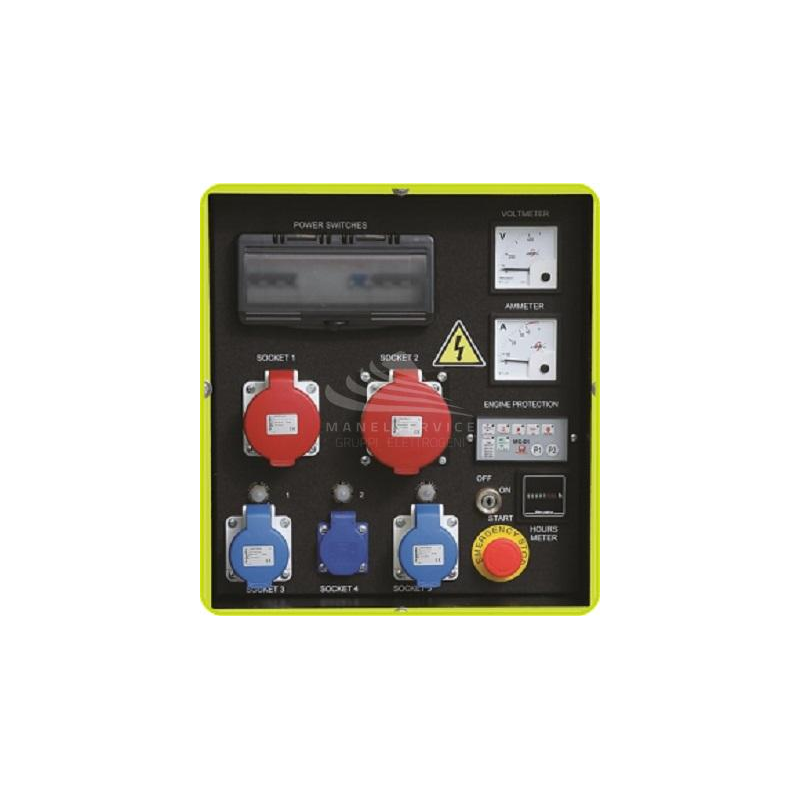

Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO
Engine: Yanmar 4TNV98-IGPGE, naturally aspirated
Emissions Regulations: Stage 3A
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10.5
Cooling: Water
Alternator: Mecc Alte ECP28-VL/4, brushless
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 5.8 at 75% of the load / 7.7 at 100% of the load
Running time (h): 8.8 at 75% of the load / 6.6 at 100% of the load
Length (mm): 2000
Width (mm): 920
Height (mm): 1100
Dry weight (Kg): 558
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: Yanmar

Specific References

Condition New

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
