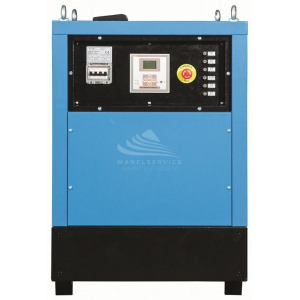

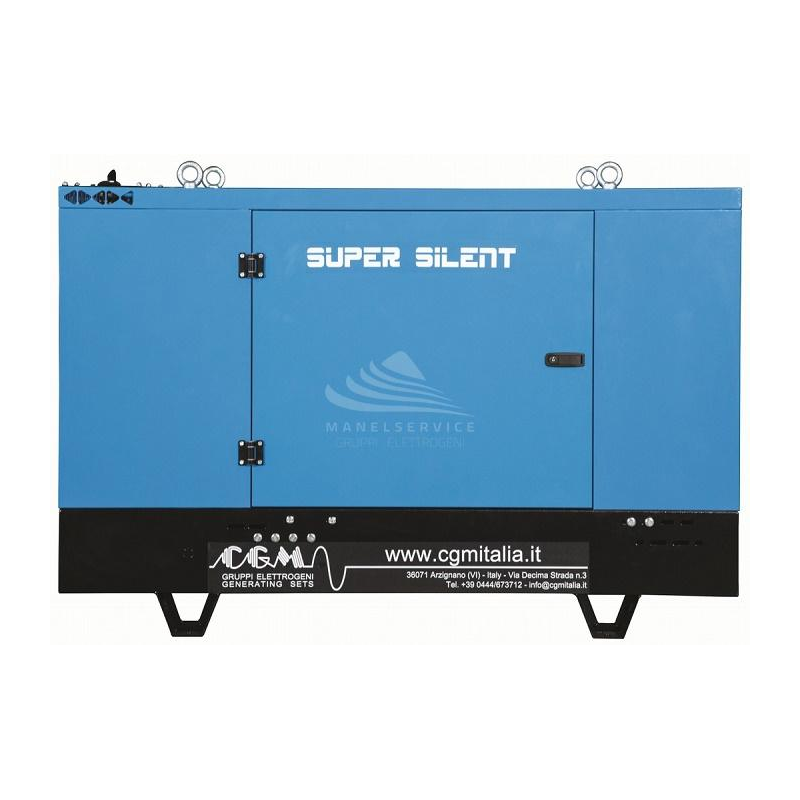

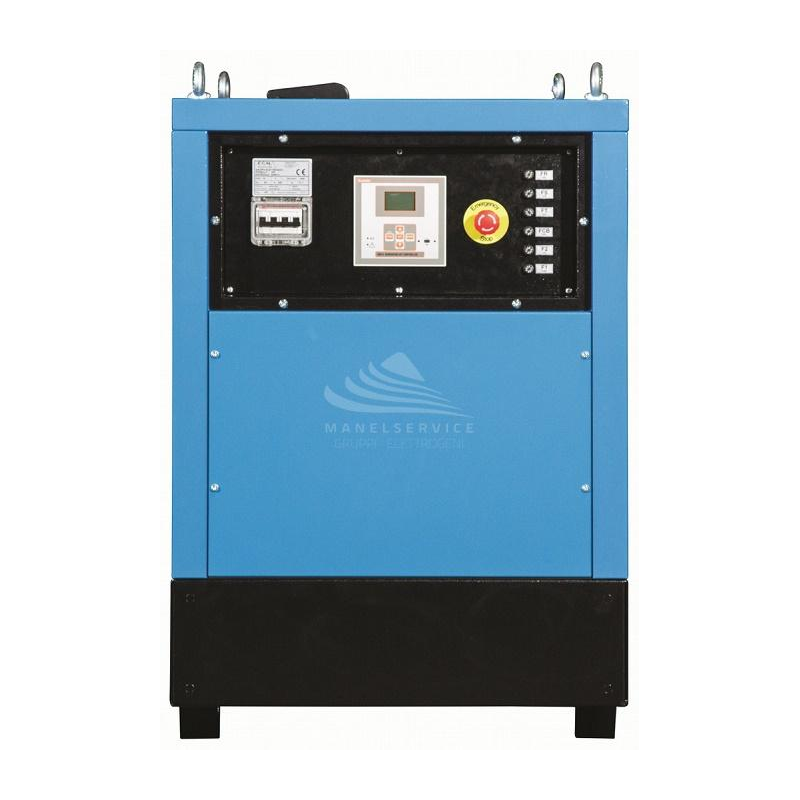

CGM 10DW - BOXED WITH AUTOMATIC CONTROL UNIT

Reference CGM 10DW COFANATO AUTOMATICO /

PRODUCT DISCONTINUED

Three-phase maximum power: 8.8 KW
Three-phase continuous power: 8 KW
Three-phase maximum power: 11 KVA
Three-phase continuous power: 10 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Electrical protection: IP44
Engine: LOMBARDINI LDW 702
Displacement: 686 cc
Engine speed: 3000 rpm
Bore x stroke: 75 x 77.6 mm
Aspiration: Natural
Speed governor: Mechanical
Number and arrangement of cylinders: 2 in-line
Cooling system: Water
Starting system: Electric
Alternator: Linz, with brushes
Poles: 2
Voltage regulator system: Compound
Fuel consumption: 2.9 L/h at 75% load
Tank capacity: 50 L
Autonomy: 17.2 h at 75% load
Sound pressure level: 70 dB(A) at 7 m
Length: 1600 mm
Width: 700 mm
Height: 1050 mm
Weight: 290 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 10DW COFANATO AUTOMATICO /

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 8.8
Continuous power three phase (KW): 8
Maximum power three phase (KVA): 11
Continuous power three phase (KVA): 10
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Lombardini LDW702
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 686
Number cylinders: 2
Cylinders' position: In line
Cooling: Water
Alternator: With brushes
Poles: 2
Bore x stroke (mm): 75 x 77.6
Fuel tank capacity (L): 50
Consumption (L/h): 2.9 at 75% of the load
Running time (h): 17.2
Length (mm): 1600
Width (mm): 700
Height (mm): 1050
Dry weight (Kg): 290
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: Compound
Engine manufacturer: Lombardini

Specific References

Condition New

These generator sets are equipped with Lombardini/Kohler diesel engines with electric start (key and battery).

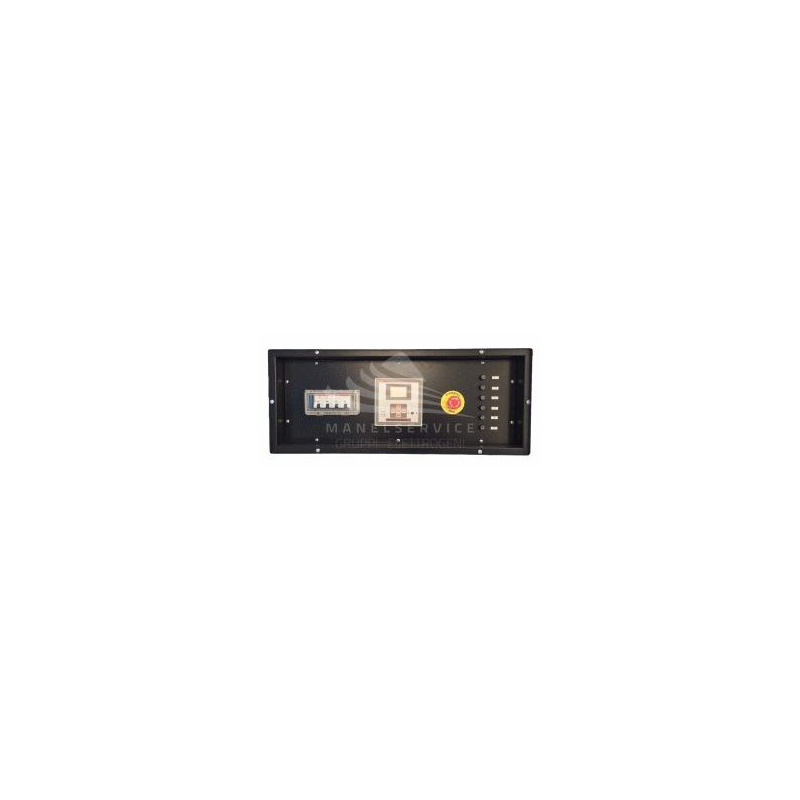

Alternator with 400 Volt three-phase output with accessible neutral or 230 Volt single-phase – 50 Hz, mounted on a base frame. Manual control panel mounted on the unit.

Main applications: isolated houses, campsites, alpine shelters, small construction sites, restaurants, farms, artisan industries, sports centers, service stations, etc.

The 3000 rpm sets are suitable for emergency, non-continuous use; operation for more than 6 consecutive hours and more than 500 hours/year is not recommended.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
