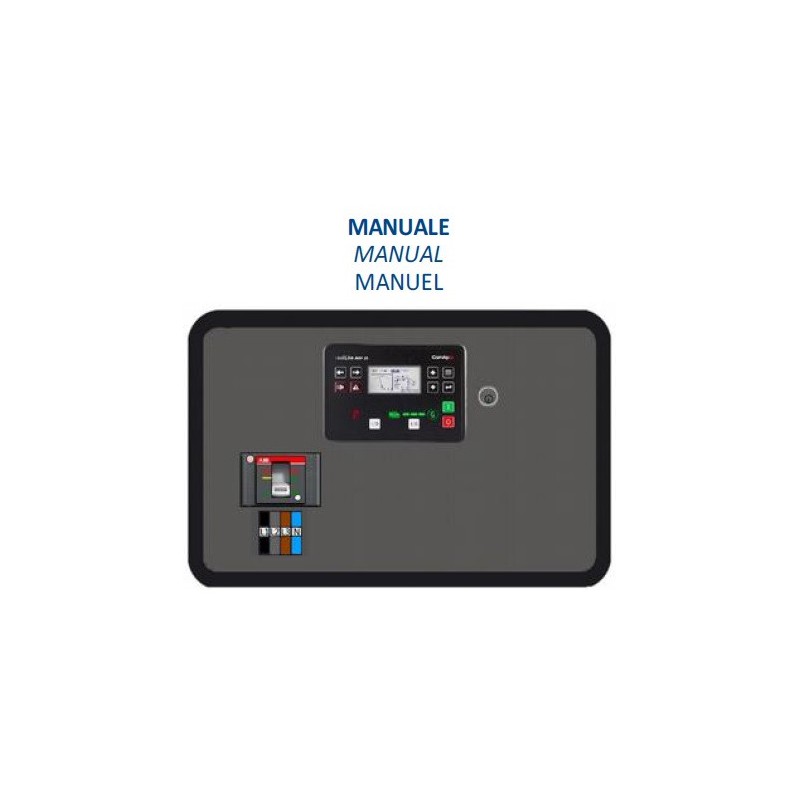

CGM V150F Generating Set Three-phase with Manual Panel 165KVA STAGEV

Name: CGM V150F Generating Set Three-phase with Manual Panel 165KVA STAGEV
Brand: CGM
SKU: v150F
Price: 53669.02 EUR
Availability: InStock

Reference v150F

Phase type: Three-phase
Three-phase maximum power: 132 KW / 165 KVA
Three-phase continuous power: 120 KW / 150 KVA
Fuel: Diesel
Voltage: 400V
Frequency: 50Hz
Engine: FPT NEF N67TEVP06.00
Engine rpm: 1500 rpm
Starting: Electric
Consumption: 50-75-100% load – 17 – 24.6 – 32.8 l/h
Length: 3600 mm
Width: 1200 mm
Height: 2300 mm
Weight: 3070 kg
Supersilenced
AVR
Stage V

List price

90,963.20 € tax incl.

74,560.00 € tax excl.

Discounted Price

53,669.02 € tax incl.

43,991.00 € tax excl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference v150F

Data sheet

Phase: Three phase
Maximum power three phase (KW): 132
Continuous power three phase (KW): 120
Maximum power three phase (KVA): 165
Continuous power three phase (KVA): 150
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: Terminal box
Engine: FPT NEF N67TEVP06.00
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 6728
Number cylinders: 6
Cooling: Water
Alternator: Stamford-Mecc Alte-Marelli Motors Self-excited, brushless
Poles: 4
Protection degree: IP44
Fuel tank capacity (L): 43
Consumption (L/h): 32.8 lt at 100% load
Running time (h): 10.2
Acoustic pressure: 69 dB(A) at 7 m
Length (mm): 3600
Width (mm): 1200
Height (mm): 2300
Silenced: Yes
Product type: Generator
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: FPT Iveco
Weight (Kg): 3070

Specific References

Condition New

CGM V150F Generating Set Three-phase with Manual Panel 165KVA STAGEV

CGM V150F Three-Phase Generator Set with Manual Panel 165KVA STAGEV is the ideal solution for those who need a powerful, reliable and silent power source. With its maximum three-phase power of 132 KW / 165 KVA and three-phase continuous power of 120 KW / 150 KVA, this generator is capable of powering a wide range of devices, from construction sites to events, from farms to homes and offices.

Powered by diesel, the CGM V150F guarantees efficient and low-consumption operation, with a consumption of 17 l/h at 50% load, 24.6 l/h at 75% load and 32.8 l/h at 100% load of load.

The super-silent design makes it ideal for use in noise-sensitive environments, while the AVR (Automatic Voltage Regulator) guarantees a constant output voltage to protect connected devices. Compliant with European exhaust emission regulations for diesel engines (Stage V), the CGM V150F is an environmentally friendly and responsible choice.

Technical Characteristics CGM V150F Three Phase with Manual Panel 165KVA STAGEV

If you are looking for a product like the CGM then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
