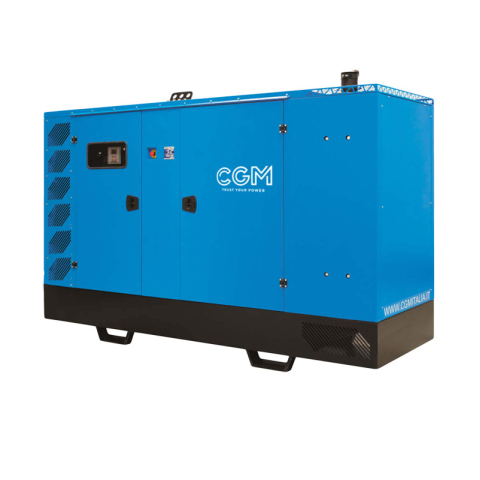

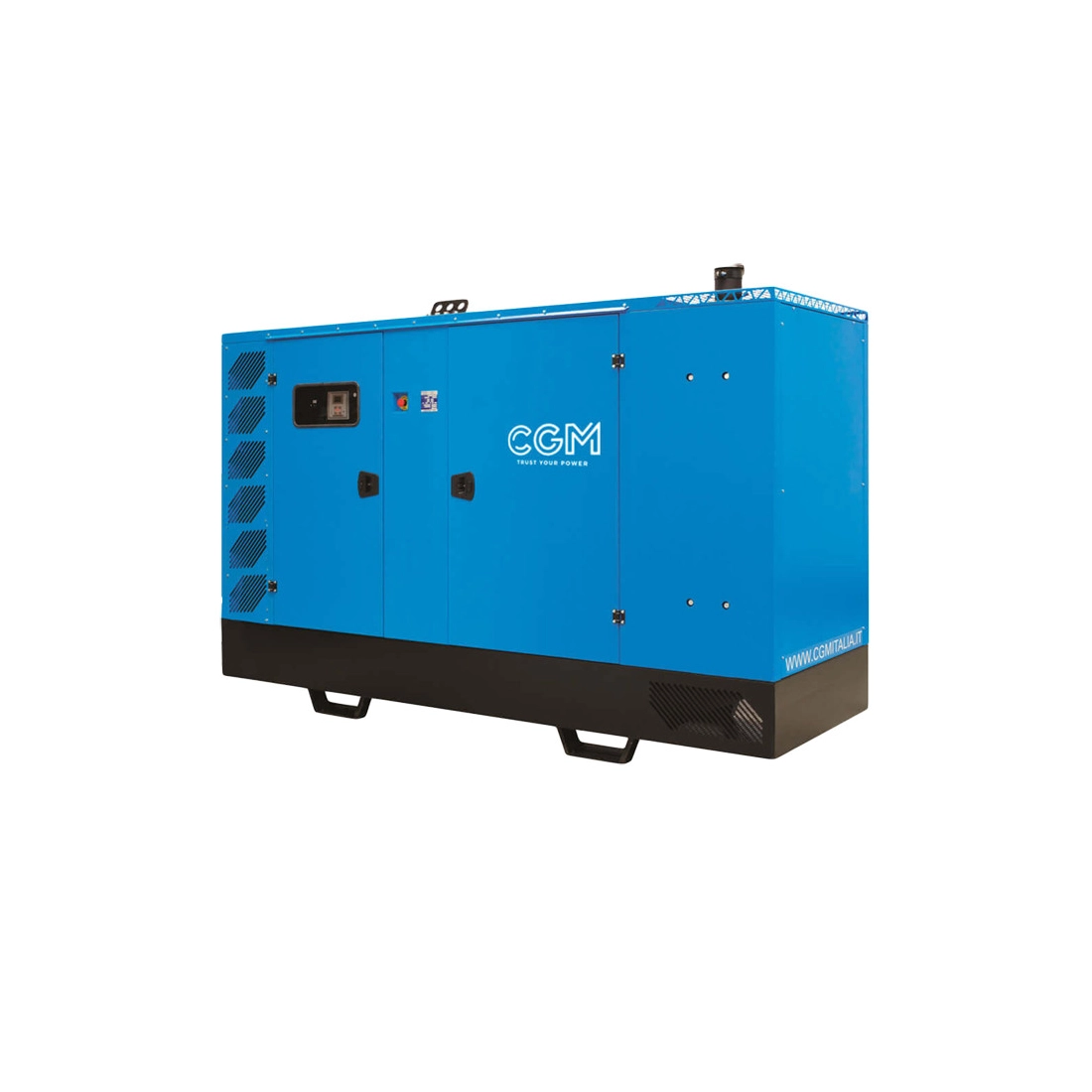

CGM V150F Generating Set Three-phase with Manual Panel 165KVA STAGEV

CGM 150P-C200 WITH MANUAL CONTROL PANEL

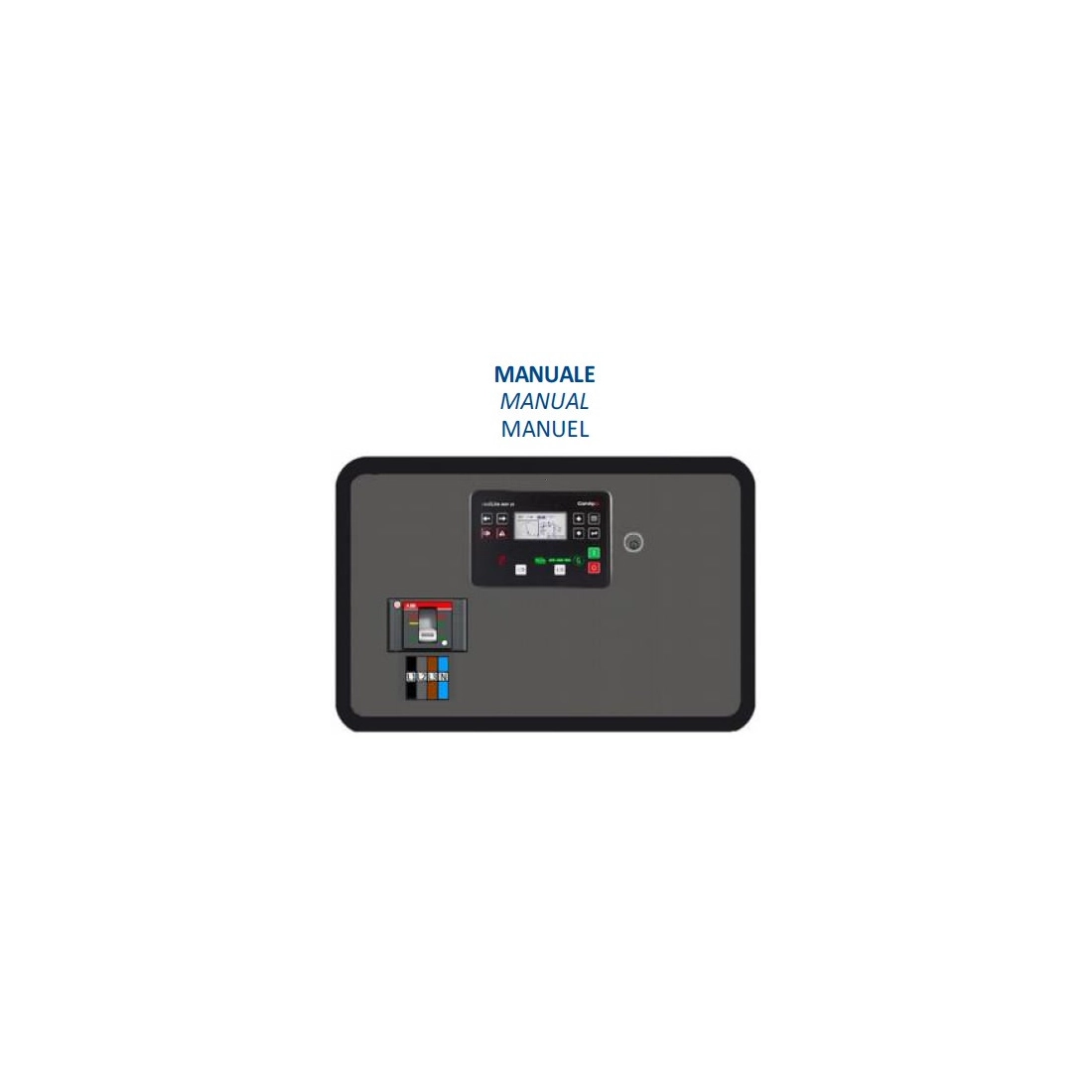

MANUAL CONTROL PANEL
CGM 150P-C200 WITH MANUAL CONTROL PANEL
MANUAL CONTROL PANEL
v150F

Phase type: Three-phase
Three-phase maximum power: 132 KW / 165 KVA
Three-phase continuous power: 120 KW / 150 KVA
Fuel: Diesel
Voltage: 400V
Frequency: 50Hz
Engine: FPT NEF N67TEVP06.00
Engine rpm: 1500 rpm
Starting: Electric
Consumption: 50-75-100% load – 17 – 24.6 – 32.8 l/h
Length: 3600 mm
Width: 1200 mm
Height: 2300 mm
Weight: 3070 kg
Supersilenced
AVR
Stage V

Download Scheda Tecnica CGM V150F

Phase
Three phase
Protection degree
IP44
Height (mm)
2300
Length (mm)
3600
Starting system
Electric
Width (mm)
1200
Engine manufacturer
FPT Iveco
Engine
FPT NEF N67TEVP06.00
Poles
4
Sockets configuration
Terminal box
Cooling
Water
Maximum power three phase (KW)
132
Continuous power three phase (KW)
120
Maximum power three phase (KVA)
165
Continuous power three phase (KVA)
150
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Emissions Regulations
Stage 5
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
6728
Number cylinders
6
Alternator
Stamford-Mecc Alte-Marelli Motors Self-excited, brushless
Fuel tank capacity (L)
43
Consumption (L/h)
32.8 lt at 100% load
Running time (h)
10.2
Acoustic pressure
69 dB(A) at 7 m
Silenced
Yes
Product type
Generator
ATS Switch device
No ATS
Voltage regulator
AVR
Weight (Kg)
3070
Brand

CGM V150F Generating Set Three-phase with Manual Panel 165KVA STAGEV

CGM V150F Three-Phase Generator Set with Manual Panel 165KVA STAGEV is the ideal solution for those who need a powerful, reliable and silent power source. With its maximum three-phase power of 132 KW / 165 KVA and three-phase continuous power of 120 KW / 150 KVA, this generator is capable of powering a wide range of devices, from construction sites to events, from farms to homes and offices.

Powered by diesel, the CGM V150F guarantees efficient and low-consumption operation, with a consumption of 17 l/h at 50% load, 24.6 l/h at 75% load and 32.8 l/h at 100% load of load.

The super-silent design makes it ideal for use in noise-sensitive environments, while the AVR (Automatic Voltage Regulator) guarantees a constant output voltage to protect connected devices. Compliant with European exhaust emission regulations for diesel engines (Stage V), the CGM V150F is an environmentally friendly and responsible choice.

Technical Characteristics CGM V150F Three Phase with Manual Panel 165KVA STAGEV

Phase type: Three-phase
Three-phase maximum power: 132 KW / 165 KVA
Three-phase continuous power: 120 KW / 150 KVA
Fuel: Diesel
Voltage: 400V
Frequency: 50Hz
Engine: FPT NEF N67TEVP06.00
Engine rpm: 1500 rpm
Starting: Electric
Consumption: 50-75-100% load – 17 – 24.6 – 32.8 l/h
Length: 3600 mm
Width: 1200 mm
Height: 2300 m
Weight: 3070 kg
Supersilenced
AVR
Stage V


If you are looking for a product like the CGM then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
