Data sheet

Fuel

Gasoline

Engine

OHC ad albero orizzontale, 4 tempi, cilindro in ghisa

Ignition

A transistor contactless

Starting system

Manual

Engine capacity (cm³)

196

Number cylinders

1

Cylinders' position

Inclined to 25°

Oil capacity (L)

0.6

Cooling

Forced air

Bore x stroke (mm)

68 x 54

Compression ratio

8.5 : 1

Net power (kW)

4.1

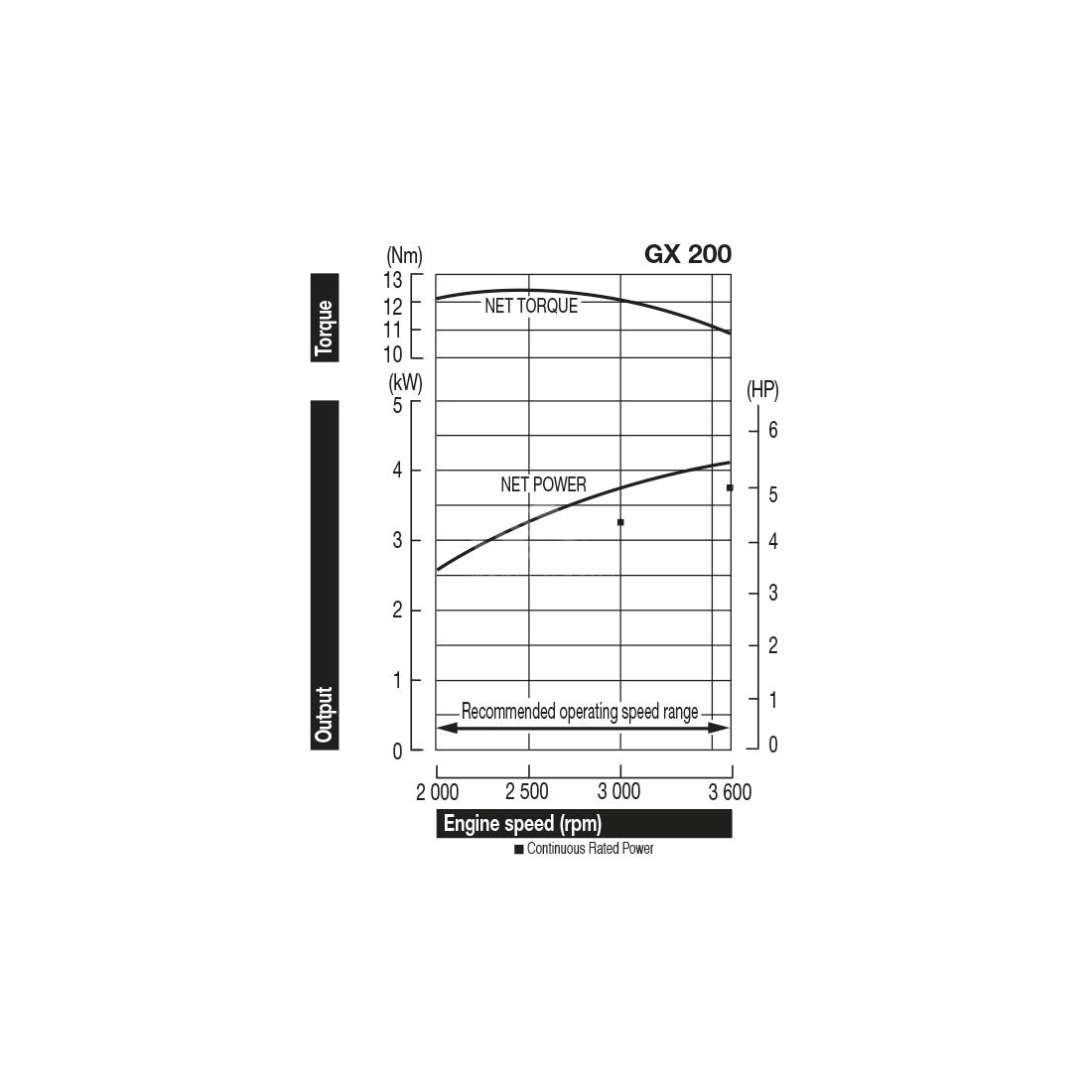

Nominal power continuous

3.3 KW (4.4 HP) / 3000 rpm - 3.7 KW (5.0 HP) / 3600 rpm

Maximum torque

12.4 Nm / 1.26 kgfm / 2500 rpm

Fuel tank capacity (L)

3.1

Consumption (L/h)

1.7

Running time (h)

1.82

Length (mm)

321

Width (mm)

376

Height (mm)

346

Dry weight (Kg)

16.1

Silenced

Yes

Engine manufacturer

Honda
