FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP
      FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP

      FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP

      BTTT905FNN326

      Voltage: 400 V
      Frequency: 50 Hz
      Pump: BK120
      Capacity cylinder: 500 l
      Revolutions: 1100 RPM
      Power: 7.5 KW - 10 HP
      Air output: 1080 Lt/min - 38. 1 cfm
      Pressure: 10 bar - 145 psi
      BSP: 2'
      Acoustic pressure: 64 dB(A)
      Length: 2005 mm
      Width: 970 mm
      Height: 1660 mm
      Weight: 412 Kg

      List price
      10,407.82 € tax incl.
      8,531.00 € tax excl.
      Discounted Price
      4,423.32 € tax incl.
      3,625.67 € tax excl.
      Shipping from 135.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP

      PERSONAL DATA


      Ask a question
      Product: FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP
      Offer on letterhead
      Product: FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP
      FINI
      BTTT905FNN326

      Data sheet

      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine rpm (rpm)
      1100
      Power (KW)
      7.5
      Pressure (bars)
      10
      Air output (L/min)
      1080
      Mechanical power (hp)
      10
      Acoustic pressure
      64 dB(A)
      Length (mm)
      2005
      Width (mm)
      970
      Height (mm)
      1660
      Dry weight (Kg)
      412

      Specific References

      New

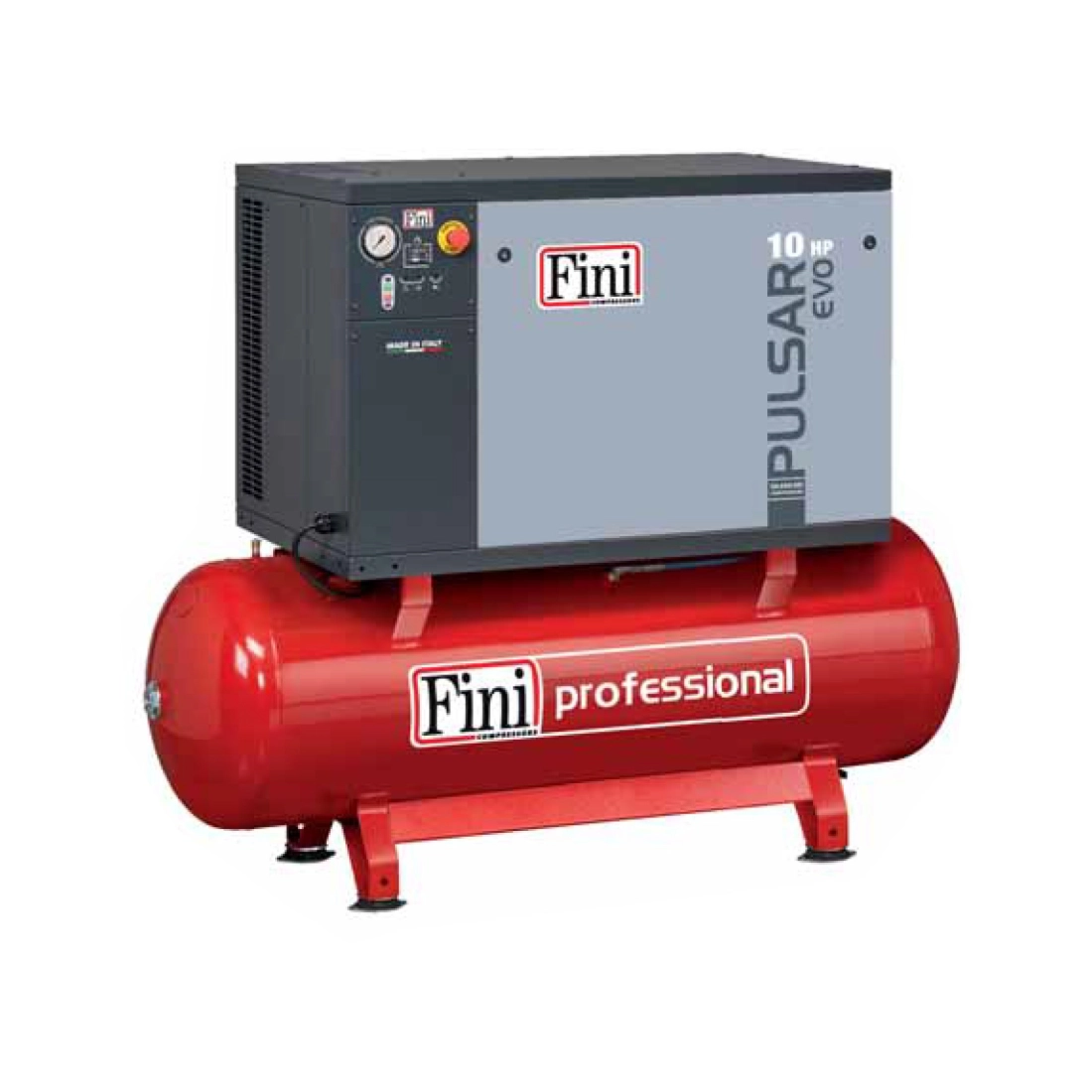

      FINI PULSAR EVO BK120-500-10-SD COMPRESSOR 10HP

      FINI PULSAR EVO BK120-500-10-SD is a silenced compressor with a capacity of 500 l and can deliver a maximum pressure of 10 bar by means of a BK120 pump with a power of 7.5KW.

      The life and efficiency of the compressor is largely determined by the number of revolutions per minute of the head. The lower the rpm, the longer the life of the compressor. The speed reduction is achieved by means of pulleys of different diameters applied to the motor and the head respectively.

      The induction motor is characterized by its long life and low maintenance requirements. In fact, this motor has no brushes, the main component subject to wear in electric motors. The motor of the FINI PULSAR EVO is covered with sound-absorbing panels that reduce the noise level, allowing the use of the compressor even in difficult rooms.

      The FINI PULSAR EVO is fsupplied complete with pressure regulator with double compressed air outlet, 500L tank. The FINI PULSAR EVO, thanks to its pumping group, can deliver a power of 10Hp - 7500W. Equipped with 2 cylinders, its maximum pressure is 10 bar, it is lubricated and its motor reaches a speed of 1100rpm.

      TECHNICAL FEATURES FINI PULSAR EVO BK120-500-10-SD

      Voltage: 400 V
      Frequency: 50 Hz
      Pump: BK120
      Capacity cylinder: 500 l
      Revolutions: 1100 RPM
      Power: 7.5 KW - 10 HP
      Air output: 1080 Lt/min - 38. 1 cfm
      Pressure: 10 bar - 145 psi
      BSP: 2'
      Acoustic pressure: 64 dB(A)
      Length: 2005 mm
      Width: 970 mm
      Height: 1660 mm
      Weight: 412 Kg

      If you are looking for another product then you can see on our catalog other compressors FINI or other specialized brands.

      Images and technical data are not binding and may be subject to revision by the manufacturer.
