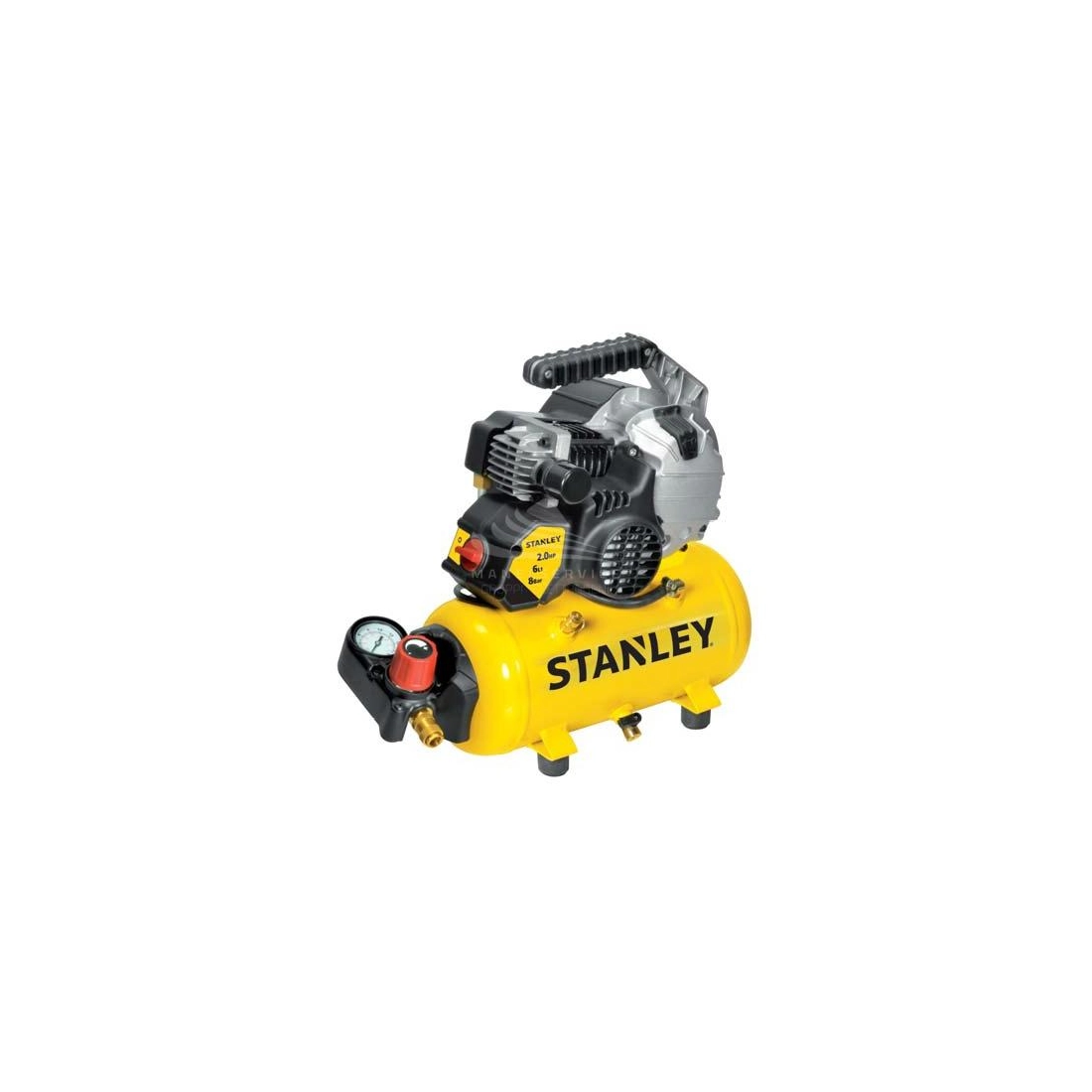

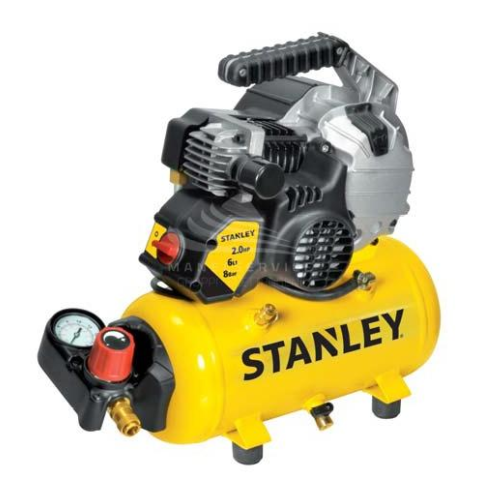

STANLEY COMPRESSORE DN 200/10/5

HYBE404STN645
      STANLEY COMPRESSORE DN 200/10/5
      STANLEY COMPRESSORE DN 200/10/5
      STANLEY COMPRESSORE DN 200/10/5
      STANLEY COMPRESSORE DN 200/10/5
      Ask a question
      Offer on letterhead
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      HYBE404STN645

      Data sheet

      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3400
      Number cylinders
      1
      Net power (kW)
      1.5
      Intake air (L/m)
      222
      Pressure (bars)
      8
      Tank capacity (L)
      6
      Group
      HY227
      Lubricated
      Yes
      Package dimensions (mm)
      440 x 230 x 425
      Gross weight (Kg)
      11.4

      Specific References

      New
      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
