FINI BK 119-500F-7,5-AP HIGH PRESSURE COMPRESSOR 7,5 HP
      FINI BK 119-500F-7,5-AP HIGH PRESSURE COMPRESSOR 7,5 HP

      FINI BK 119-500F-7,5-AP HIGH PRESSURE COMPRESSOR 7,5 HP

      BRTN801FNM875

      Power supply phase: Three phase
      Power supply voltage: 400 V
      Power supply frequency: 50 Hz
      Pump: BK119
      Tank capacity: 500 l
      RPM: 1045 RPM
      Power: 5,5 KW - 7,5 HP
      Air output: 705 Lt/min - 24.9 cfm
      Pressure: 14 bar - 203 psi
      BSP: 2'
      Length: 2010 mm
      Width: 650 mm
      Height: 1330 mm
      Dry weight: 266 Kg

      List price
      5,551.00 € tax incl.
      4,550.00 € tax excl.
      Discounted Price
      2,498.26 € tax incl.
      2,047.75 € tax excl.
      Shipping from 80.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      FINI
      BRTN801FNM875

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine rpm (rpm)
      1045
      Power (KW)
      5.5
      Pressure (bars)
      14
      Air output (L/min)
      705
      Mechanical power (hp)
      7.5
      Length (mm)
      2010
      Width (mm)
      650
      Height (mm)
      1330
      Dry weight (Kg)
      266
      Tank Capacity (l)
      500

      Specific References

      EAN13
      8017750193908
      New

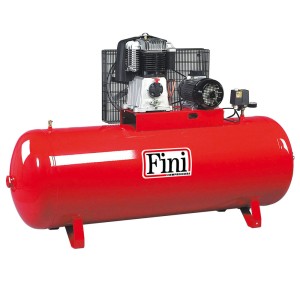

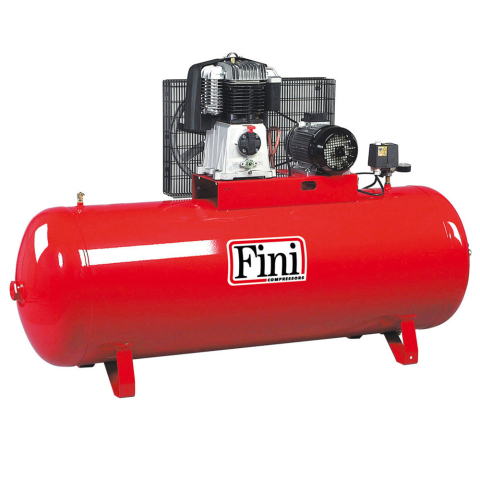

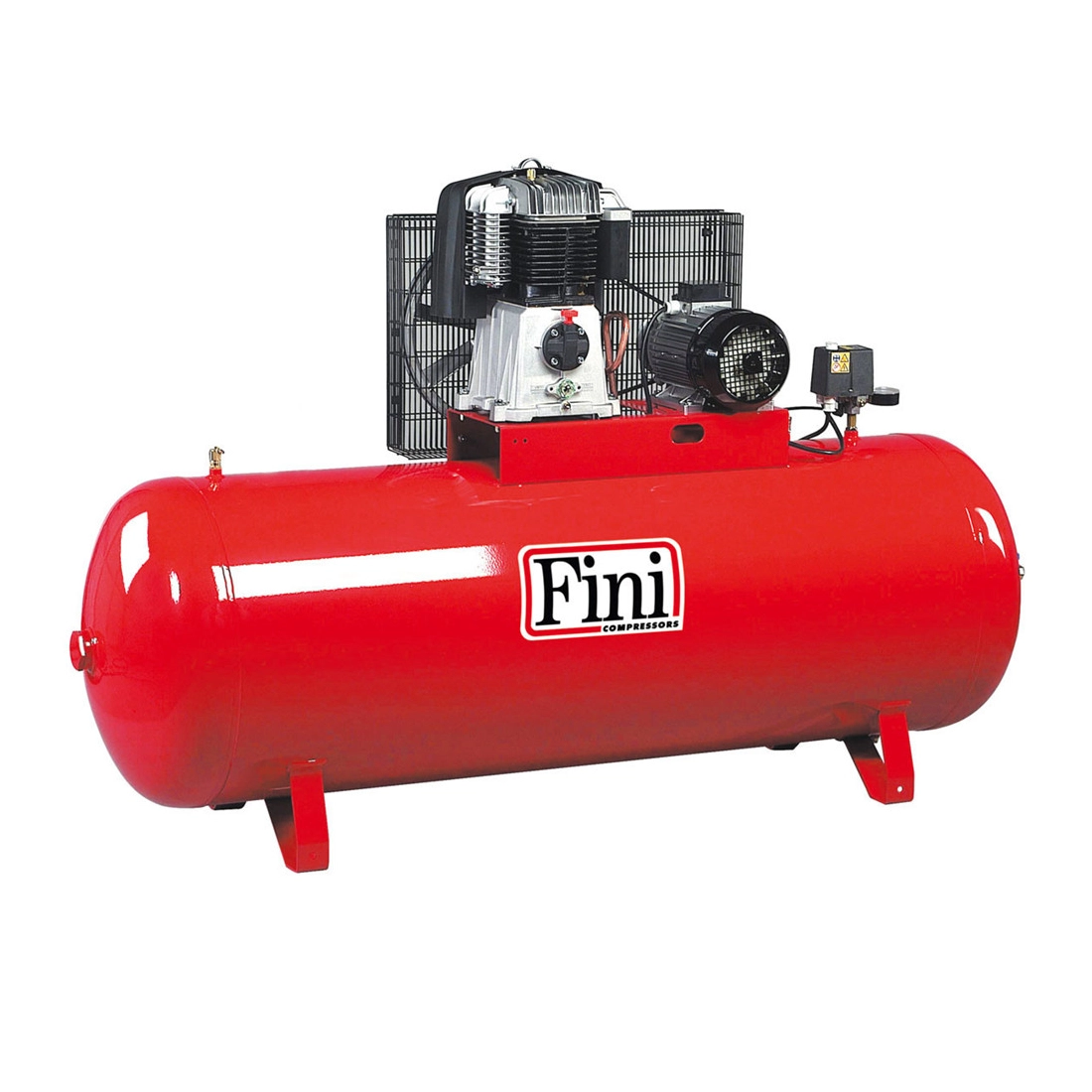

      FINI BK 119-500F-7,5-AP HIGH PRESSURE COMPRESSOR 7,5 HP

      FINI BK 119-500F-7,5-AP is a high pressure compressor, equipped with a three-phase BK119 pump, capable of delivering a mechanical power of 7,5 Hp.

      The Fini compressor is composed of powerful pumping groups that guarantee very high efficiency and reliability at the highest levels, capable of generating a pressure of 14 bar.

      The FINI BK 119-500F-7,5-AP compressor combines a powerful and reliable group with a large air reserve, with a tank cable to contain up to 500 l of air, this makes this compressor suitable for all pneumatic accessories that require a high air consumption.

      FINI BK 119-500F-7,5-AP is a two-cylinder lubricated belt-driven compressor, complete with electromechanical pressure switch with thermal relay protection.

      FINI BK 119-500F-7,5-AP pumping group is equipped with large manifolds for a better cooling, complete with large size anti-vibration feet for a better stability during operation.

      TECHNICAL SPECIFICATIONS FINI BK 119-500F-7,5-AP

      Power supply phase: Three phase
      Power supply voltage: 400 V
      Power supply frequency: 50 Hz
      Pump: BK119
      Tank capacity: 500 l
      RPM: 1045 RPM
      Power: 5,5 KW - 7,5 HP
      Air output: 705 Lt/min - 24.9 cfm
      Pressure: 14 bar - 203 psi
      BSP: 2'
      Length: 2010 mm
      Width: 650 mm
      Height: 1330 mm
      Dry weight: 266 Kg

      Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to FINI compressors or other specialized brands.

      Images and technical data are not binding.

      Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nunc ac turpis massa. Etiam vestibulum leo nec turpis maximus, vel maximus neque elementum. Nullam ultricies ipsum vitae velit elementum pulvinar. Integer semper aliquet elit, vitae porta augue accumsan a. Vestibulum non gravida mauris. Morbi vehicula est non sem dapibus congue. Sed at mi ut metus pulvinar egestas ut a dui. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia curae; Nulla quis tortor at nibh ultrices vehicula. Fusce hendrerit enim ipsum, nec imperdiet ante tincidunt sed

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
