FINI BK 114-270V-5,5 COMPRESSOR
      FINI BK 114-270V-5,5 COMPRESSOR

      FINI BK 114-270V-5,5 COMPRESSOR

      BZNY701FNM886

      Phase Type: Single Phase
      Power supply voltage: 400 V
      Maximum pressure: 10 bar
      Tank volume: 270 l
      Sound emission level: 80dB(A)/7m
      Motor type: single-phase electric
      Nominal power: 5.5 Hp
      Air intake: 580 l/min
      Pump type: single stage
      Lubrication: oil
      Number of cylinders: 2
      Cooling collector: No
      Transmission type: belt
      Revolutions per minute head: 1370 RPM
      Length: 860 mm
      Width: 850 mm
      Height: 2120 mm
      Dry weight: 151 Kg

      List price
      3,834.46 € tax incl.
      3,143.00 € tax excl.
      Discounted Price
      1,612.84 € tax incl.
      1,322.00 € tax excl.
      Shipping from 80.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      FINI
      BZNY701FNM886

      Data sheet

      Engine rpm (rpm)
      1370
      Power (KW)
      5.5
      Pressure (bars)
      10
      Tank capacity (L)
      270
      Air output (L/min)
      582
      Mechanical power (hp)
      5.5
      Length (mm)
      860
      Width (mm)
      850
      Height (mm)
      2120
      Dry weight (Kg)
      151

      Specific References

      New

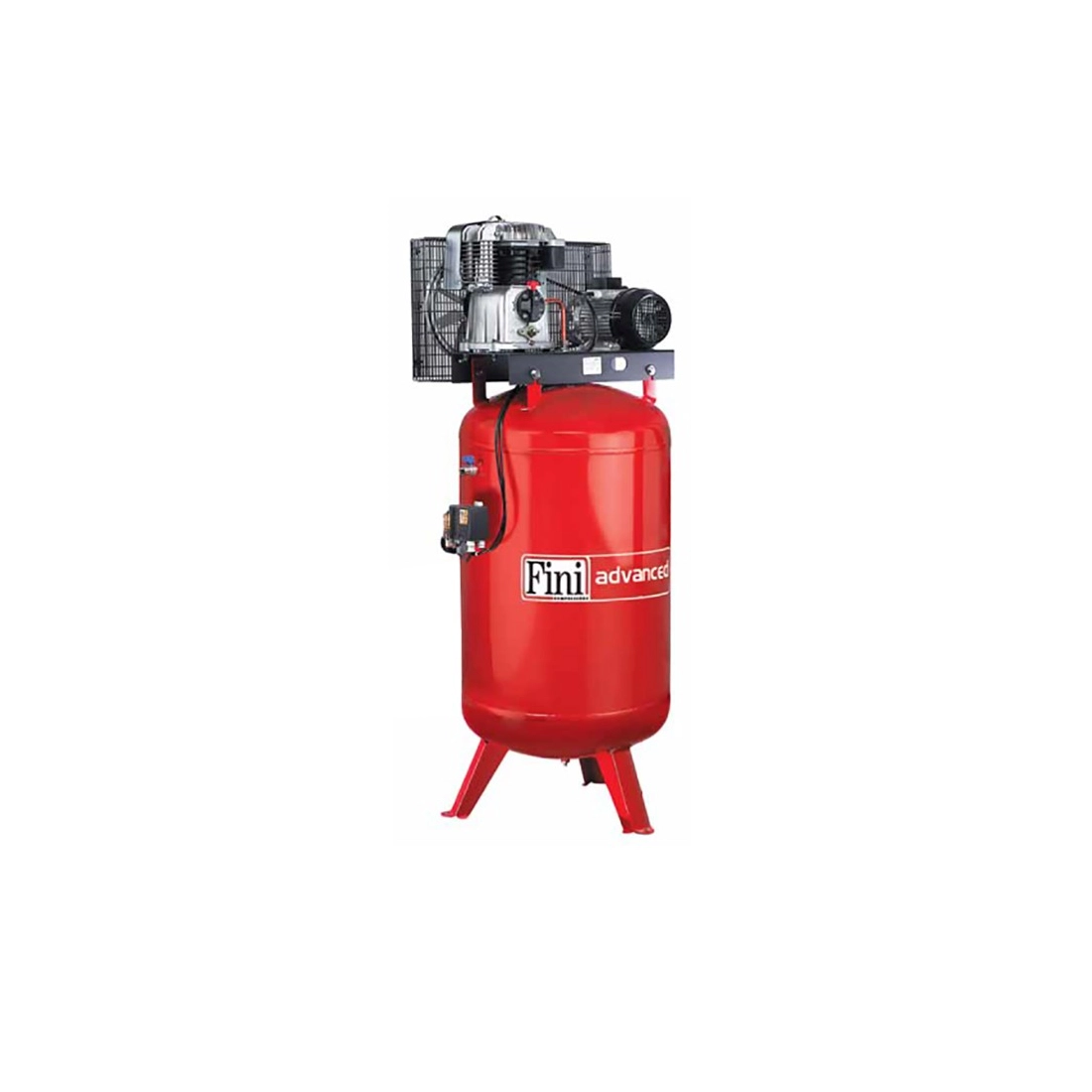

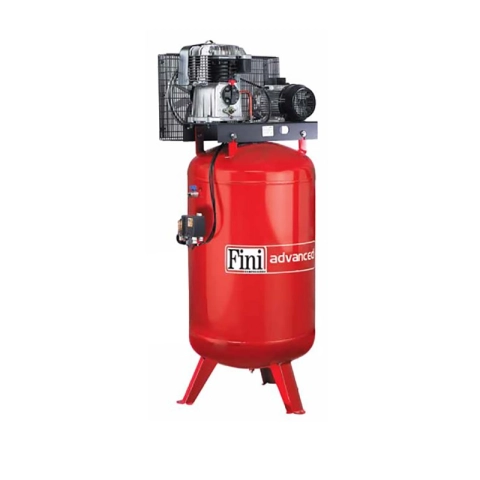

      FINI BK114-270V-5,5 COMPRESSOR

      Fini BK114-270V-5,5 is a compressor with a capacity of 270 l can deliver a maximum pressure of 10 bar by means of a BK114 pump with a power of 5.5 Hp.

      Fini BK114-270V-5.5 is equipped with front control systems to make it more convenient to use even in tight spaces. The FINI BK114 motor is brushless, the main component subject to wear in electric motors. It is the absence of this component that gives the motor its proverbial durability.

      Belt drive is a defining feature of these compressors. The use of the belt, combined with an induction motor, contributes to the durability of this compressor.

      The FINI BK114-270V-5.5 compressor combines a powerful and reliable electric motor with a large air reserve, this makes this compressor suitable for all pneumatic accessories that require medium to high air consumption.

      Fini BK114-270V-5.5 is equipped with large anti-vibration feet for extra stability during operation.

      The FINI compressor is an efficient way to solve the noise problem in working environments, these compressors are very quiet and have a sound emission level of 80dB at a distance of 7m.

      The key feature of the FINI BK114-270V-5.5 is its vertical conformation, in this way, the compressor has a small footprint volume and can be used by anyone who has space problems.

      TECHNICAL FEATURES OF THE FINI BK114-270V-5.5

      Phase Type: Single-phase
      Power Supply Voltage: 400 V
      Maximum Pressure: 10 bar
      Tank Volume: 270 l
      Sound Emission Level: 80dB(A)/7m
      Motor Type: single-phase electric
      Rated Power: 5. 5 Hp
      Air intake: 580 l/min
      Pump type: single stage
      Lubrication: oil
      Number of cylinders: 2
      Cooling manifold: No
      Transmission type: belt
      Heads rpm: 1370 RPM
      Length: 860 mm
      Width: 850 mm
      Height: 2120 mm
      Dry weight: 151 Kg

      If you are looking for another product then you can see on our catalog other compressors FINI or other specialized brand.

      Images and technical data are not binding and may be subject to revision by the supplier.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
