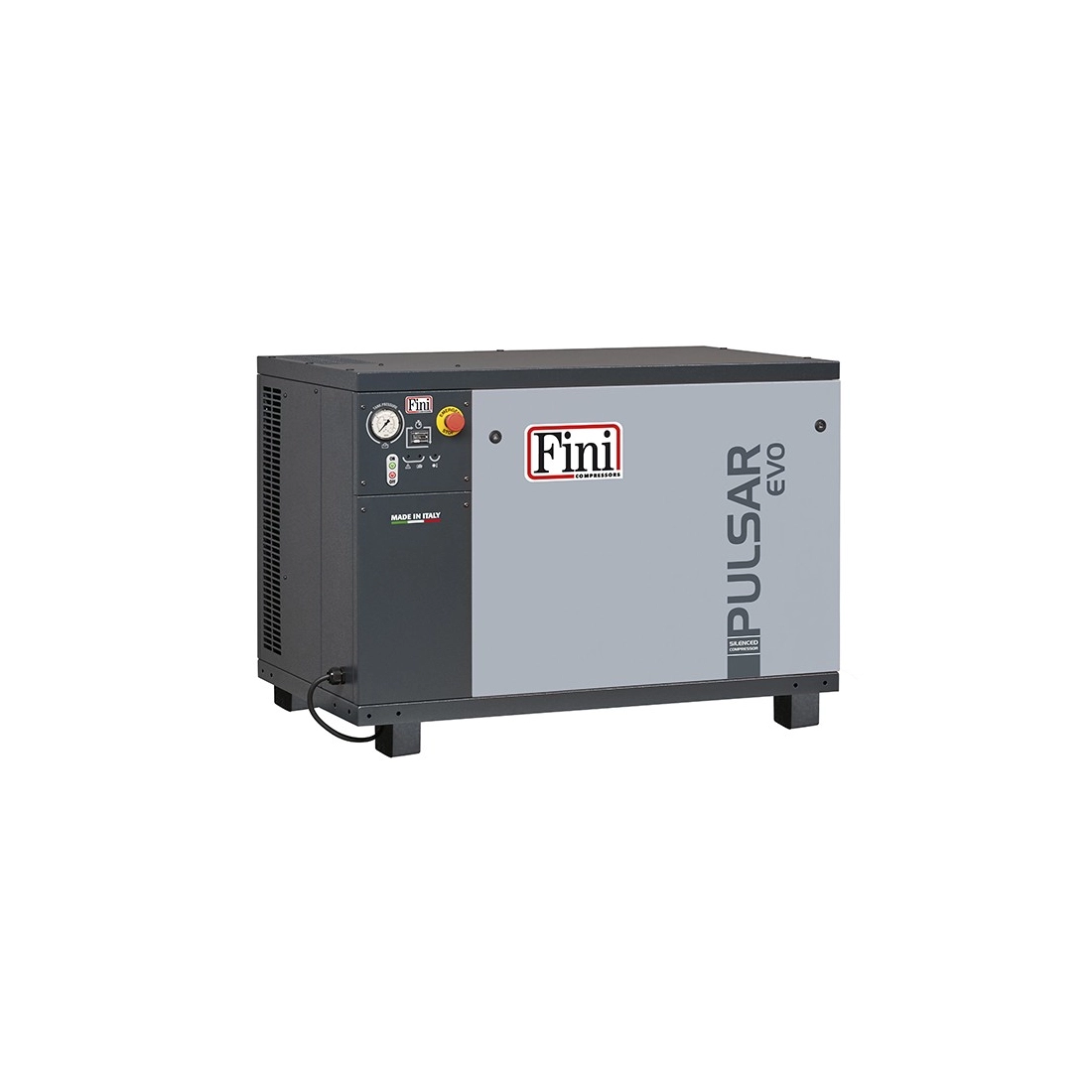

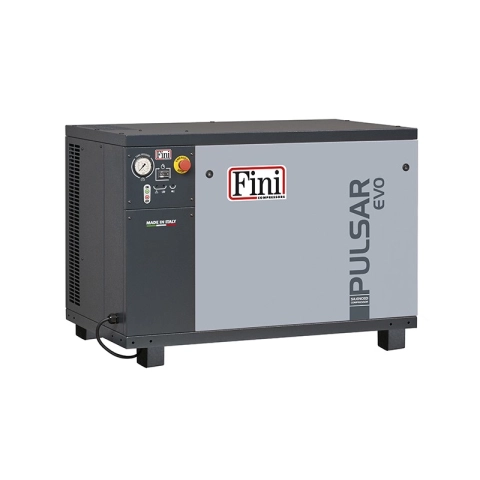

FINI PULSAR EVO BK113-4 PUMPING GROUP 4HP

FINI PULSAR EVO BK113-4 is a silenced pumping unit that can deliver a maximum pressure of 10 bar by means of a BK113 pump with a power of 3KW.

The pumping group is the heart of a piston compressor and for this reason Fini pumping groups are designed and manufactured to guarantee high performances, efficiency and reliability over time.

The duration and efficiency of the pumping unit is largely determined by the number of revolutions per minute of the head. In fact, the lower the number of revolutions, the longer the life of the compressor will be. The reduction of the number of revolutions is obtained by means of pulleys of different diameters applied to the motor and the head respectively.

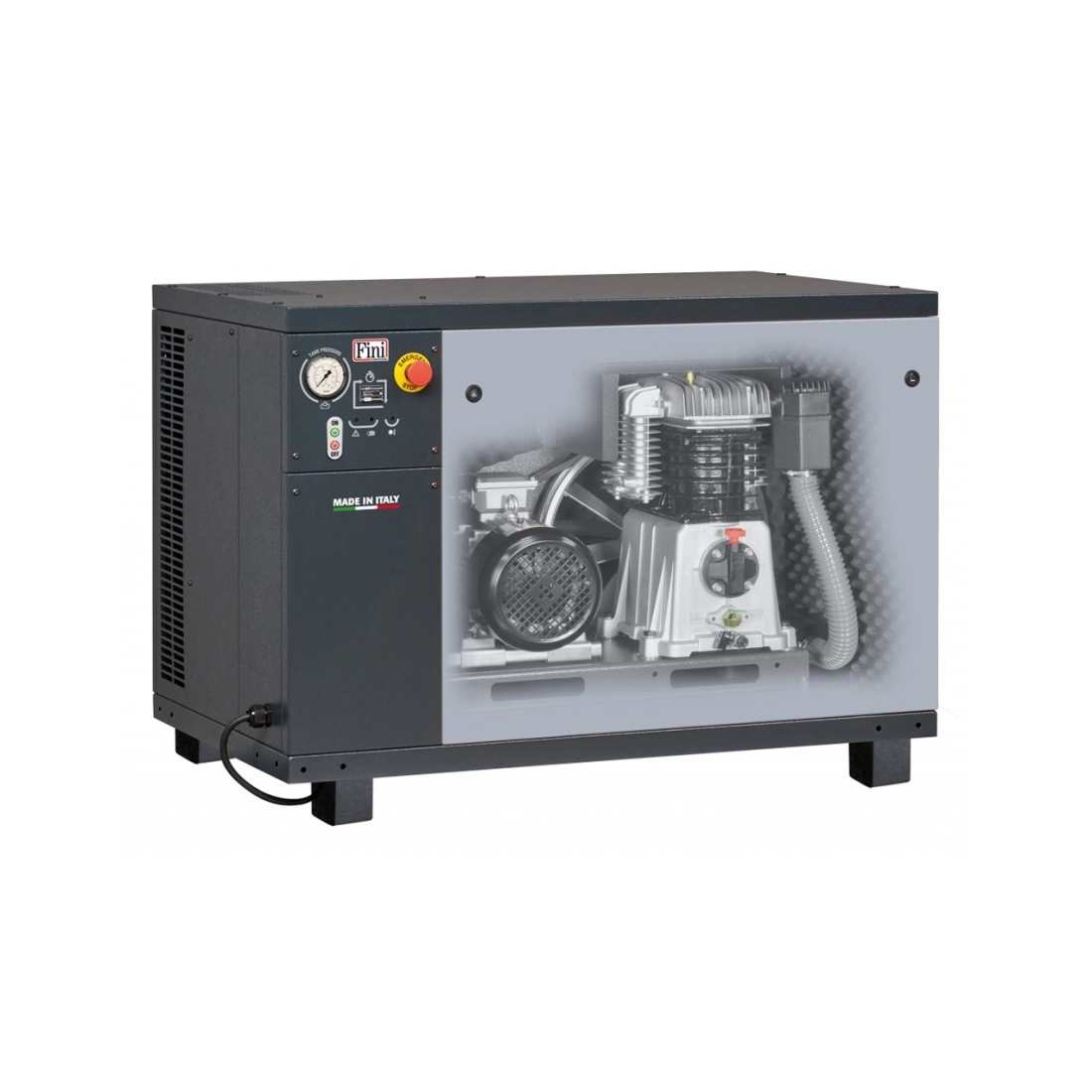

The induction motor of the FINI PULSAR EVO BK113-4 is characterized by its long life and low maintenance requirements. This motor is in fact without brushes, the main component subject to wear in electric motors. The motor of the FINI PULSAR EVO is covered with soundproof panels which reduce the noise level, allowing the use of the compressor also in difficult rooms.

The FINI PULSAR EVO BK113-4 is able to deliver a power of 4Hp - 3000W. Equipped with 2 cylinders, its maximum pressure is 10 bar, it is lubricated and its motor reaches a speed of 1480 rpm.

TECHNICAL FEATURES FINI PULSAR EVO BK113-4

Voltage: 400 V
Frequency: 50 Hz
Pump: BK113
RPM: 1480 RPM
Power: 3 KW - 4 HP
Air output: 480 Lt/min - 17 cfm
Pressure: 10 bar - 145 psi
BSP: 2'
Acoustic Pressure: 64 dB(A)
Length: 1200 mm
Width: 810 mm
Height: 1210 mm
Weight: 168 kg

If you are looking for another product then you can check out our catalog other compressors FINI or other specialized brand.

Images and technical data are not binding and may be subject to revision by the manufacturer.
