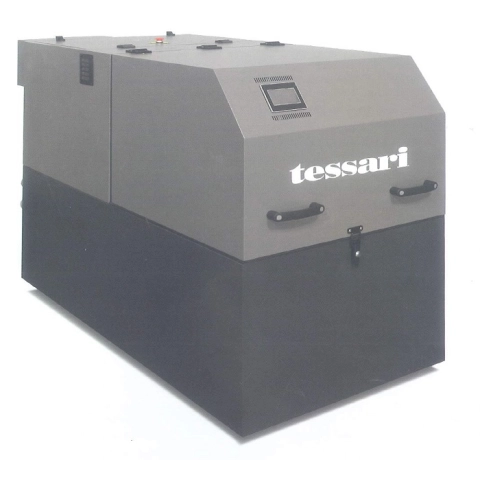

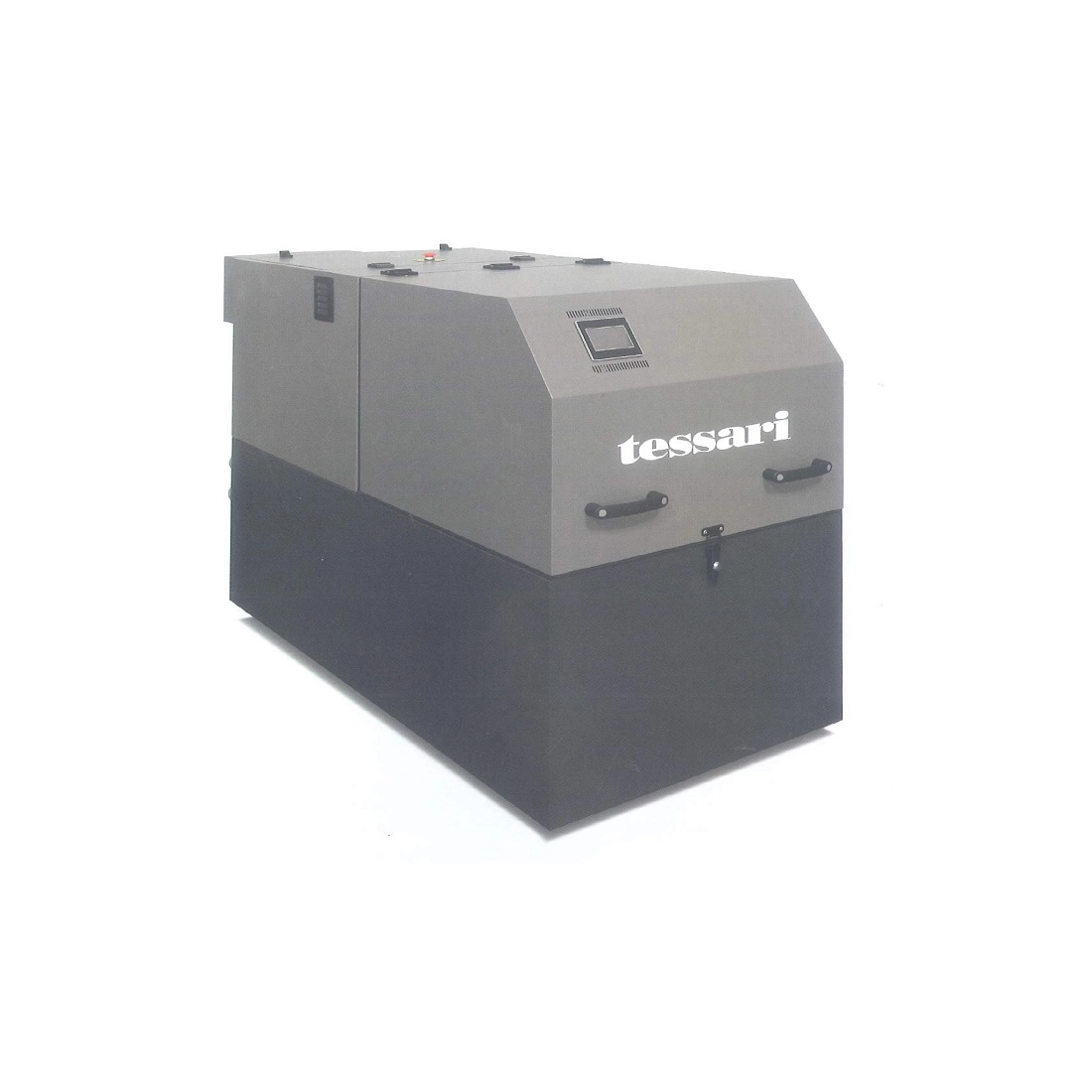

TESSARI EVO20 Natural Gas / LPG Cogenerator 20 kW Electrical Output 41.9 kW Thermal Output
      TESSARI EVO20 Natural Gas / LPG Cogenerator 20 kW Electrical Output 41.9 kW Thermal Output

      TESSARI EVO20 Natural Gas / LPG Cogenerator 20 kW Electrical Output 41.9 kW Thermal Output

      EVO20

      Electrical Output 75% power (kW): 15
      Electrical Output maximum power (kW): 20
      Thermal Output 75% power (kW): 33.9
      Thermal Output maximum power (kW): 41.9
      Engine: TOYOTA 4Y
      Displacement (cm³): 2237
      Thermal efficiency at 75% (%): 67.1
      Electrical efficiency at 75% (%): 29.8
      Overall efficiency at 75% (%): 96.9
      Sound Pressure at 1 meter dB(A): 50
      Lenght (mm): 1491
      Width (mm): 800
      Height (mm): 1266
      Dry weight (Kg): 800
      Fuel: LPG/Natural Gas

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TESSARI
      EVO20

      Data sheet

      Fuel
      LPG
      Engine
      1KS
      Engine capacity (cm³)
      953
      Number cylinders
      4
      Efficiency (%)
      96.9
      Max power (KW)
      20
      Max rated heat power
      41.9 kW
      Heat efficiency (%)
      64.7
      Acoustic power
      62 dB(A)
      Acoustic pressure
      50 dB(A) 1 mt
      Length (mm)
      1492
      Width (mm)
      800
      Height (mm)
      1265
      Dry weight (Kg)
      800
      Silenced
      Yes
      Super silenced
      Yes
      Engine manufacturer
      Yamaha

      Specific References

      Cogeneration plants are machines capable of producing heat and electricity at the same time.

      Thessari EVO20 Series generating sets with micro-cogeneration units.
      Power generators using non-polluting fuels such as LPG and NATURAL GAS.
      These generating sets are able to produce electrical and thermal energy at low cost with lower operating costs and greater energy efficiency and energy supply.


      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
