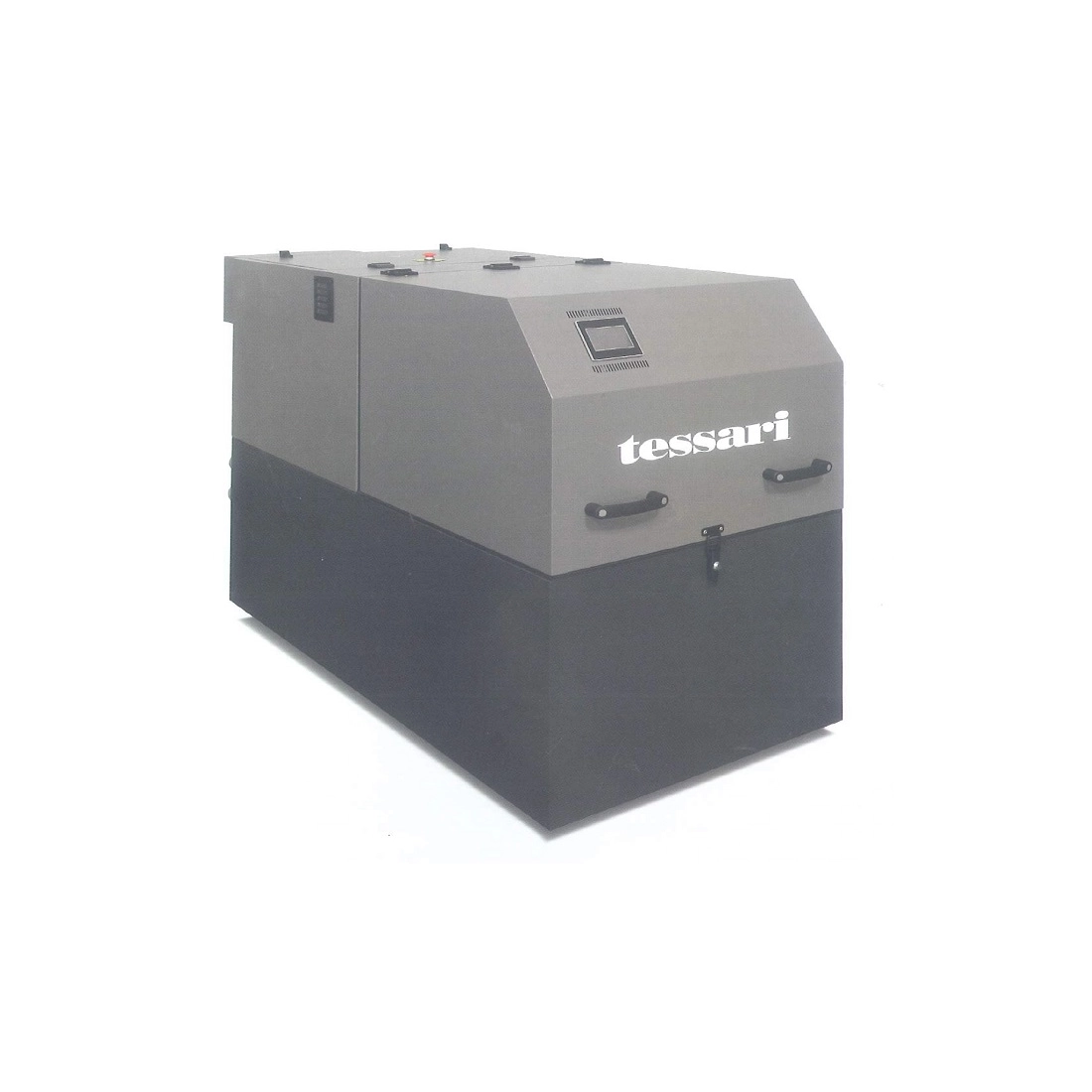

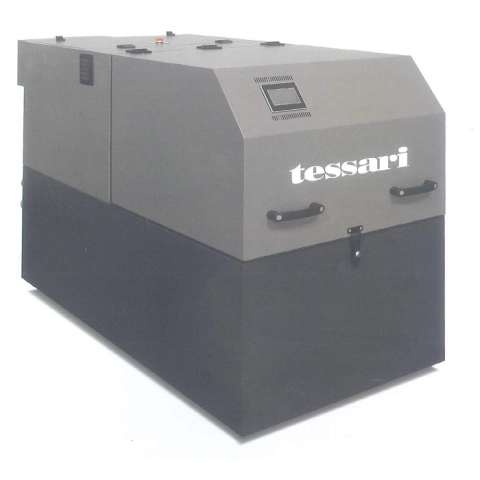

TESSARI EVO9 Natural Gas / LPG Cogenerator 9 kW Electrical Output 19.7 kW Thermal Output
      TESSARI EVO9 Natural Gas / LPG Cogenerator 9 kW Electrical Output 19.7 kW Thermal Output

      TESSARI EVO9 Natural Gas / LPG Cogenerator 9 kW Electrical Output 19.7 kW Thermal Output

      EVO9

      Electrical Output 66% power (kW): 6
      Electrical Output maximum power (kW): 9
      Thermal Output 66% power (kW): 13.9
      Thermal Output maximum power (kW): 19.7
      Engine: TOYOTA 1KS
      Displacement (cm³): 953
      Thermal efficiency at 66% (%): 65
      Electrical efficiency at 66% (%): 28.1
      Overall efficiency at 66% (%): 93.1
      Sound Pressure at 1 meter dB(A): 48
      Lenght (mm): 1200
      Width (mm): 800
      Height (mm): 1170
      Dry weight (Kg): 600
      Fuel: LPG/Natural Gas

      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TESSARI
      EVO9

      Data sheet

      Fuel
      LPG
      Engine
      1KS
      Engine capacity (cm³)
      953
      Number cylinders
      3
      Efficiency (%)
      93.2
      Max power (KW)
      9
      Max rated heat power
      19.7 kW
      Heat efficiency (%)
      64
      Acoustic power
      62 dB(A)
      Acoustic pressure
      48 dB(A) 1 mt
      Length (mm)
      1200
      Width (mm)
      800
      Height (mm)
      1170
      Dry weight (Kg)
      600
      Silenced
      Yes
      Super silenced
      Yes
      Engine manufacturer
      Yamaha

      Specific References

      Cogeneration plants are machines capable of producing heat and electricity at the same time.

      Thessari EVO9 Series generating sets with micro-cogeneration units.
      Power generators using non-polluting fuels such as LPG and NATURAL GAS.
      These generating sets are able to produce electrical and thermal energy at low cost with lower operating costs and greater energy efficiency and energy supply.


      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
