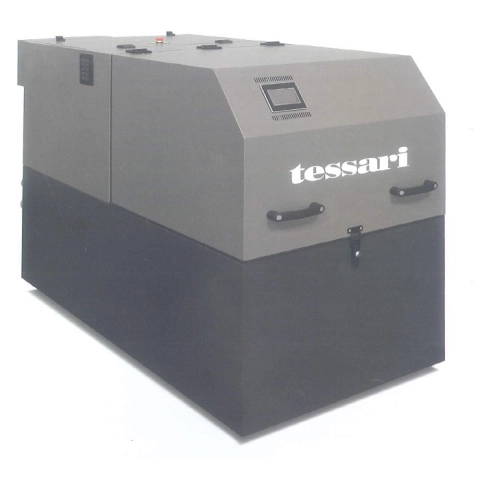

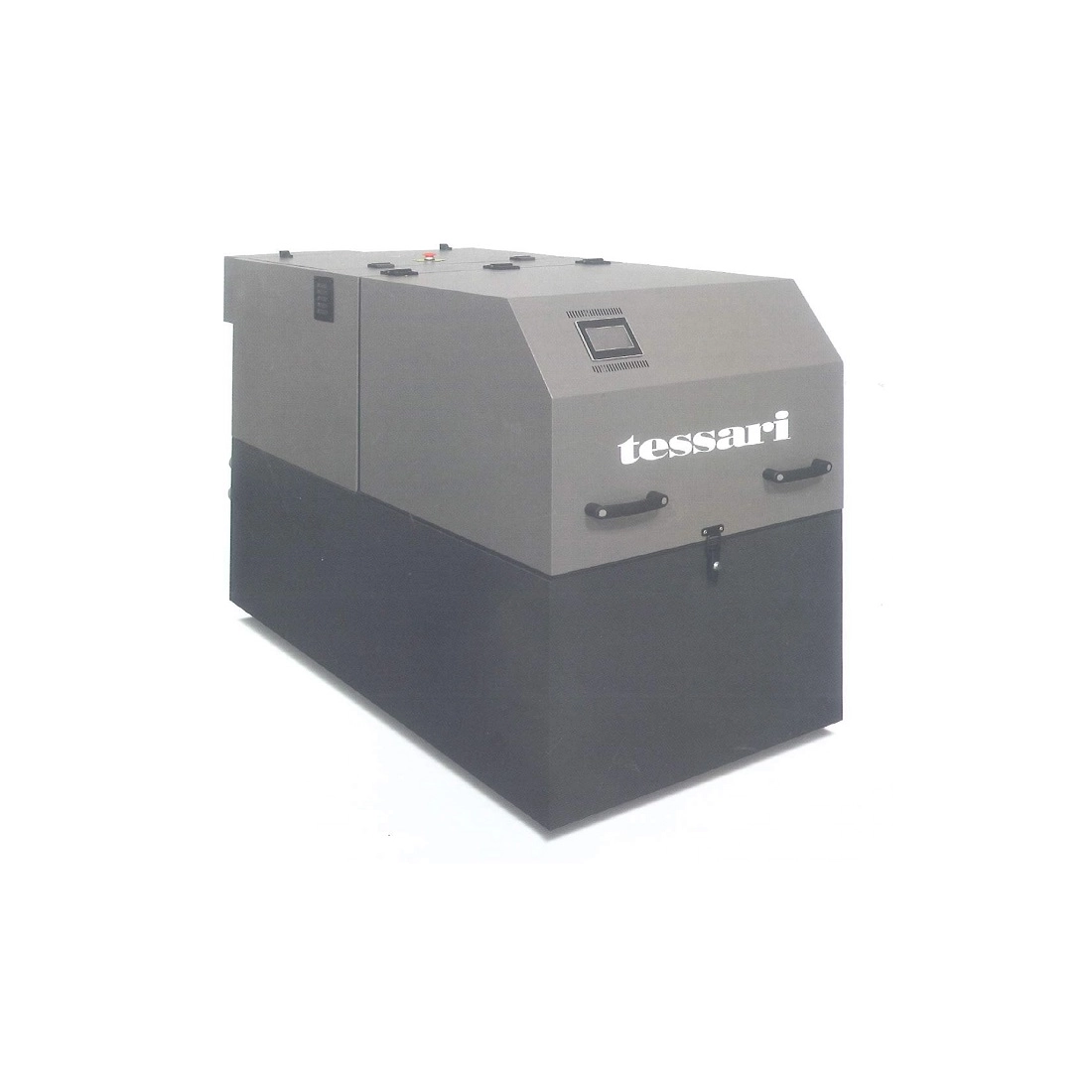

TESSARI EVO15 Natural Gas / LPG Cogenerator 15 kW Electrical Output 19.7 kW Thermal Output

EVO15
      TESSARI EVO15 Natural Gas / LPG Cogenerator 15 kW Electrical Output 19.7 kW Thermal Output
      TESSARI EVO15 Natural Gas / LPG Cogenerator 15 kW Electrical Output 19.7 kW Thermal Output

      Electrical Output 66% power (kW): 10
      Electrical Output maximum power (kW): 15
      Thermal Output 66% power (kW): 23
      Thermal Output maximum power (kW): 34
      Engine: TOYOTA 4Y
      Displacement (cm³): 2237
      Thermal efficiency at 66% (%): 67
      Electrical efficiency at 66% (%): 29.2
      Overall efficiency at 66% (%): 96.2
      Sound Pressure at 1 meter dB(A): 49
      Lenght (mm): 1491
      Width (mm): 800
      Height (mm): 1266
      Dry weight (Kg): 800
      Fuel: LPG/Natural Gas

      Ask a question
      Offer on letterhead
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      TESSARI
      EVO15

      Data sheet

      Fuel
      LPG
      Engine
      1KS
      Engine capacity (cm³)
      953
      Number cylinders
      4
      Efficiency (%)
      96.1
      Max power (KW)
      15
      Max rated heat power
      34 kW
      Heat efficiency (%)
      67.6
      Acoustic power
      62 dB(A)
      Acoustic pressure
      49 dB(A) 1 mt
      Length (mm)
      1492
      Width (mm)
      800
      Height (mm)
      1265
      Dry weight (Kg)
      800
      Silenced
      Yes
      Super silenced
      Yes
      Engine manufacturer
      Yamaha

      Specific References

      Cogeneration plants are machines capable of producing heat and electricity at the same time.

      Thessari EVO15 Series generating sets with micro-cogeneration units.
      Power generators using non-polluting fuels such as LPG and NATURAL GAS.
      These generating sets are able to produce electrical and thermal energy at low cost with lower operating costs and greater energy efficiency and energy supply.


      Non-binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
