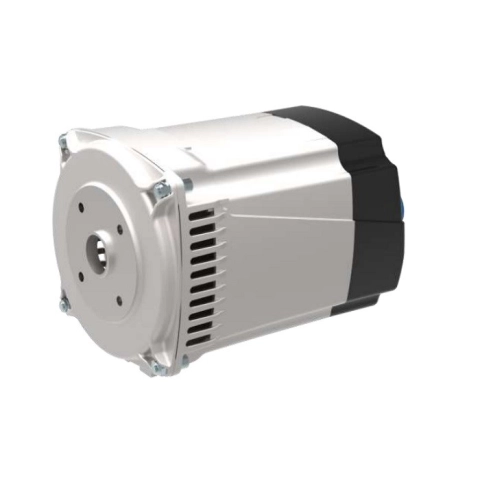

LINZ SP10S C 2.6 kVA 50 Hz Single-phase Brushless Alternator with Capacitor

LINZ SP10S C 2.6 kVA 50 Hz Single-phase Brushless Alternator with Capacitor

Name: LINZ SP10S C 2.6 kVA 50 Hz Single-phase Brushless Alternator with Capacitor
Brand: LINZ ELECTRIC
SKU: SP10S C 50 Hz
Price: 188.95 EUR
Availability: InStock

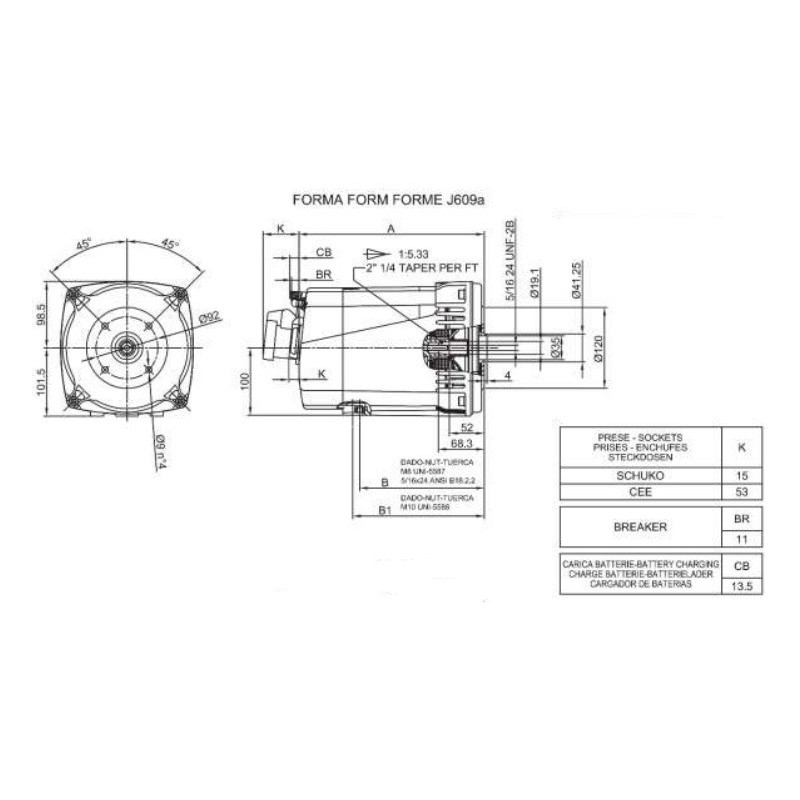

Reference SP10S C 50 Hz J609a

Rated Power at 50Hz (kVA): 2.6
Rated Power Factor: 1
Nominal Temperature (°C)/ 40
Control System: self-excited
Execution| brushless
Regulation Type: capacitor
Insulation Class: H
Protection: IP21
Maximum Over speed (rpm): 4500
Overload 110% of rated power for one hour in a cycle of 6 hours
Air Flow Requirement (m3/min) 3,80 at 50Hz
R.F.I. Suppression Standard EN55011

Payment methods:

Product: LINZ SP10S C 2.6 kVA 50 Hz Single-phase Brushless Alternator with Capacitor

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: LINZ SP10S C 2.6 kVA 50 Hz Single-phase Brushless Alternator with Capacitor

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: LINZ SP10S C 2.6 kVA 50 Hz Single-phase Brushless Alternator with Capacitor

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SP10S C 50 Hz J609a

Data sheet

Phase: Single phase
Continuous power single phase (KW): 2.6
Continuous power single phase (KVA): 2.6
Frequency (Hz): 50
Voltage (V): 230
Engine rpm (rpm): 3000
Alternator: Synchronous, brushless
Poles: 2
Single-phase power (KW): 1.7
Single-phase power (KVA): 2.6
Protection degree: IP21
Motor insulation class: H
Length (mm): 275
Width (mm): 200
Height (mm): 200
Brushes: No
Type of alternator: Constant Speed
Voltage regulator: Capacitor
Weight (Kg): 15

Specific References

Condition New

The SP series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.
