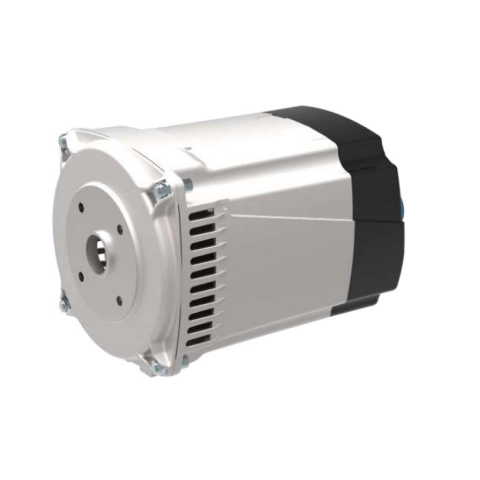

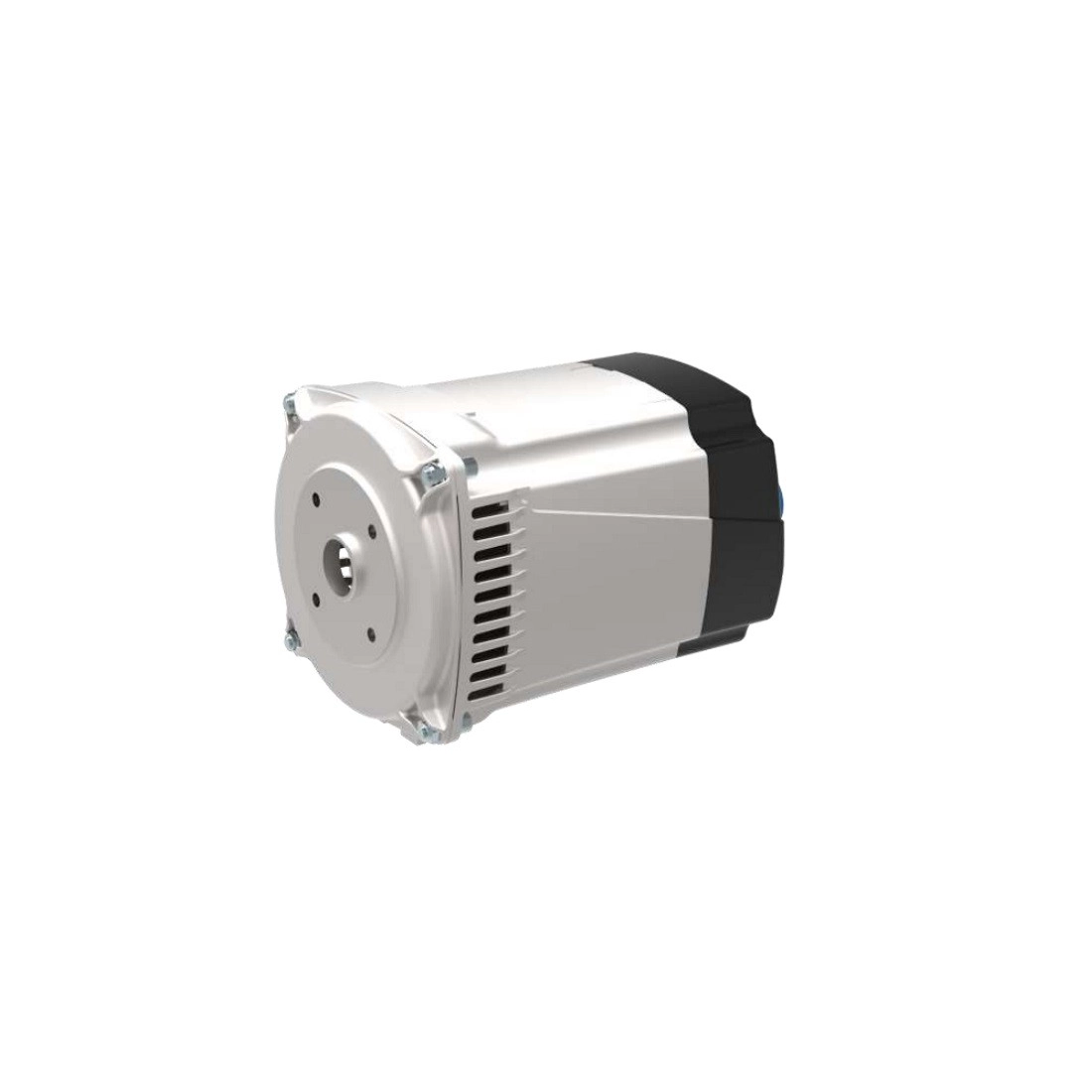

LINZ SP10S B 2.7 kVA 60 Hz Single-phase Brushless Alternator with Capacitor
SP10S B 60 Hz J609a
Rated Power at 60Hz (kVA): 2.7
Rated Power Factor: 1
Nominal Temperature (°C)/ 40
Control System: self-excited
Execution| brushless
Regulation Type: capacitor
Insulation Class: H
Protection: IP21
Maximum Over speed (rpm): 4500
Overload 110% of rated power for one hour in a cycle of 6 hours
Air Flow Requirement (m3/min) 4,80 at 60Hz
R.F.I. Suppression Standard EN55011
List price
tax incl.
tax excl.
Discounted Price
228.75 € tax incl.
187.50 € tax excl.
SP10S B 60 Hz J609a
Data sheet
- Phase
- Single phase
- Continuous power single phase (KW)
- 2.7
- Continuous power single phase (KVA)
- 2.7
- Frequency (Hz)
- 60
- Voltage (V)
- 220
- Engine rpm (rpm)
- 3600
- Alternator
- Synchronous, brushless
- Poles
- 2
- Single-phase power (KVA)
- 2.7
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 275
- Width (mm)
- 200
- Height (mm)
- 200
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- Capacitor
- Weight (Kg)
- 13.5
Specific References
New
The SP series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.
CHARACTERISTICS
Compact and easy to assemble
Possibility of vertical mounting
Rear or top accessory panel
High efficiency
Gamma: Single-phase alternators
Poles: 2
Phases: Single-phase
Adjustment: CONDENSER
