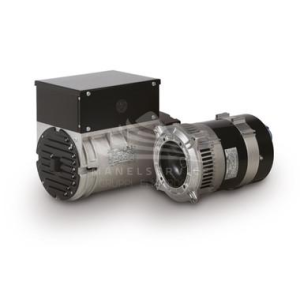

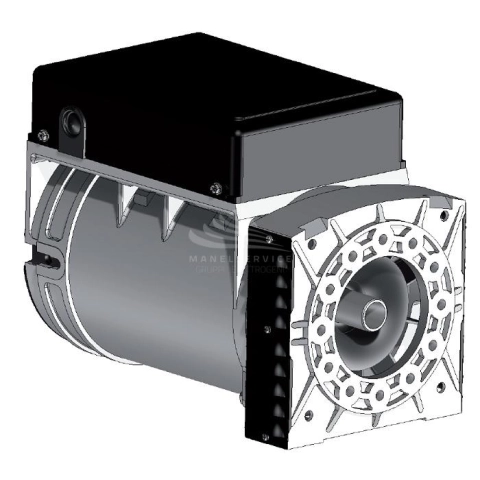

MECC ALTE ET16F-160 THREE PHASE ALTERNATOR 6.5 KVA AVR
      MECC ALTE ET16F-160 THREE PHASE ALTERNATOR 6.5 KVA AVR
      MECC ALTE ET16F-160 THREE PHASE ALTERNATOR 6.5 KVA AVR
      MECC ALTE ET16F-160 THREE PHASE ALTERNATOR 6.5 KVA AVR

      MECC ALTE ET16F-160 THREE PHASE ALTERNATOR 6.5 KVA AVR

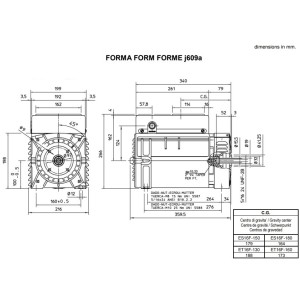

      ET16F-160 J609a c19

      Phase: Single phase / Three phase
      Maximum three phase power: 5.76 KW
      Continuous three phase power: 5.2 KW
      Maximum three phase power: 7.2 KVA
      Continuous three phase power: 6.5 KVA
      Continuous single phase power: 4.3 KW
      Continuous single phase power: 4.3 KVA
      Frequency: 50 Hz
      Voltage: 230 V / 400 V
      Protection: IP23
      Rpm speed: 3000 rpm
      Poles: 2
      Efficiency: 82.3%
      Weight: 34 Kg
      Constant speed alternator
      Brushes
      Voltage regulator: AVR

      List price
      724.68 € tax incl.
      594.00 € tax excl.
      Discounted Price
      427.56 € tax incl.
      350.46 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ET16F-160 J609a c19

      Data sheet

      Phase
      Single phase / Three phase
      Continuous power single phase (KW)
      4.3
      Continuous power single phase (KVA)
      4.3
      Maximum power three phase (KW)
      5.76
      Continuous power three phase (KW)
      5.2
      Maximum power three phase (KVA)
      7.2
      Continuous power three phase (KVA)
      6.5
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KVA)
      4.3
      Three-phase power (KVA)
      7.2
      Efficiency (%)
      82.3
      Protection degree
      IP23
      Acoustic pressure
      60 dB(A) at 7 m
      Brushes
      Yes
      PMG
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      34

      Specific References

      New

      Designed to be exceptionally versatile, these portable products are manufactured to be suitable for all applications where an easy transportable energy source is needed. These portable alternators are available with a 50 or 60 Hz frequency, all with 2 poles ranging from 1 - 18 KVA available either as single bearing or as twin bearing with a double support. In order to couple them to a prime mover it is possible to choose among a wide range of shafts, flanges and couplings. The 2 pole rotors have a damper cage and the stator windings have a shortened pitch to reduce the harmonic content. The single phase units are designed brushless and have a high operating reliability. Minimal maintenance is required as there are no collectors or sliding contacts. The three phase range is designed with brushes and a slip ring and is transformer-controlled. This enables a high pick-up capacity ideal for motor start applications.

      For more specialist applications, a high performance range of Automatic Voltage Regulator (AVR) machines is available. The ES range is single phase AVR-controlled but designed with brushes and a slip ring to allow for good voltage regulation and improved motor starting; supply loads different than power factor 1.0 such as modern electronics or pumps. The ET alternators are a three phase version of this type of machine. Both types have adjustable voltage output, a stabilizing point and under frequency protection as standard.

      In addition, it's possible to also supply a capacitor-controlled AVR, the RCM/2, which improves voltage control to 2.5% available on the machines without brushes.
      The single phase portable series is manufactured according to, and to comply with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, IEC 34-1, VDE 0530, BS 4999-5000, NF C 51-111, CAN/CSA-C22.2 No100-95. It also complies with the European Community Standards: 72/23, 98/37, 89/336. The three phase portable series is manufactured according to CEI 2-3, IEC 34-1, EN 60034-1, IEC 34-1, VDE 0530, BS 4999-5000, NF C 51-111.

      Not binding images and technical data.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      MECC ALTE INSULATED BATTERY CHARGER WINDING
          Insulated battery charger winding 12V 10A for T16F/ET16F alternators.
          24.50 €Price
          Mecc Alte - High blind terminal box for T16F/ET16F alternators.
              High blind terminal box for T16F/ET16F alternators.
              27.60 €Price
              Mecc Alte - Automatic voltage regulator RCM for T16F/ET16F alternators
                  Automatic voltage regulator RCM (loose) for T16F/ET16F alternators.
                  184.00 €Price
                  Mecc Alte - Regulator box for T16F/ET16F alternators.
                      Regulator box for T16F/ET16F alternators.
                      6.74 €Price
