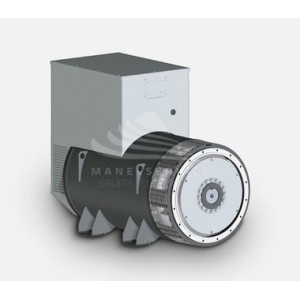

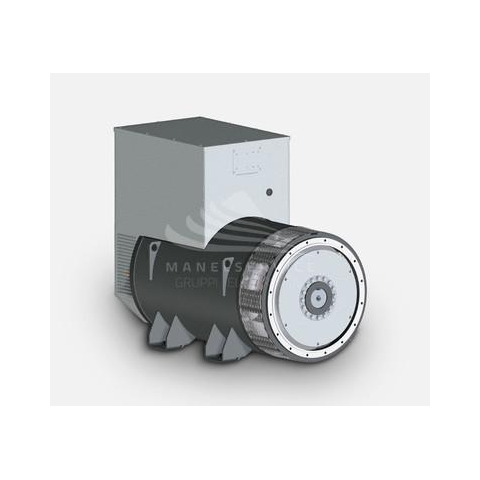

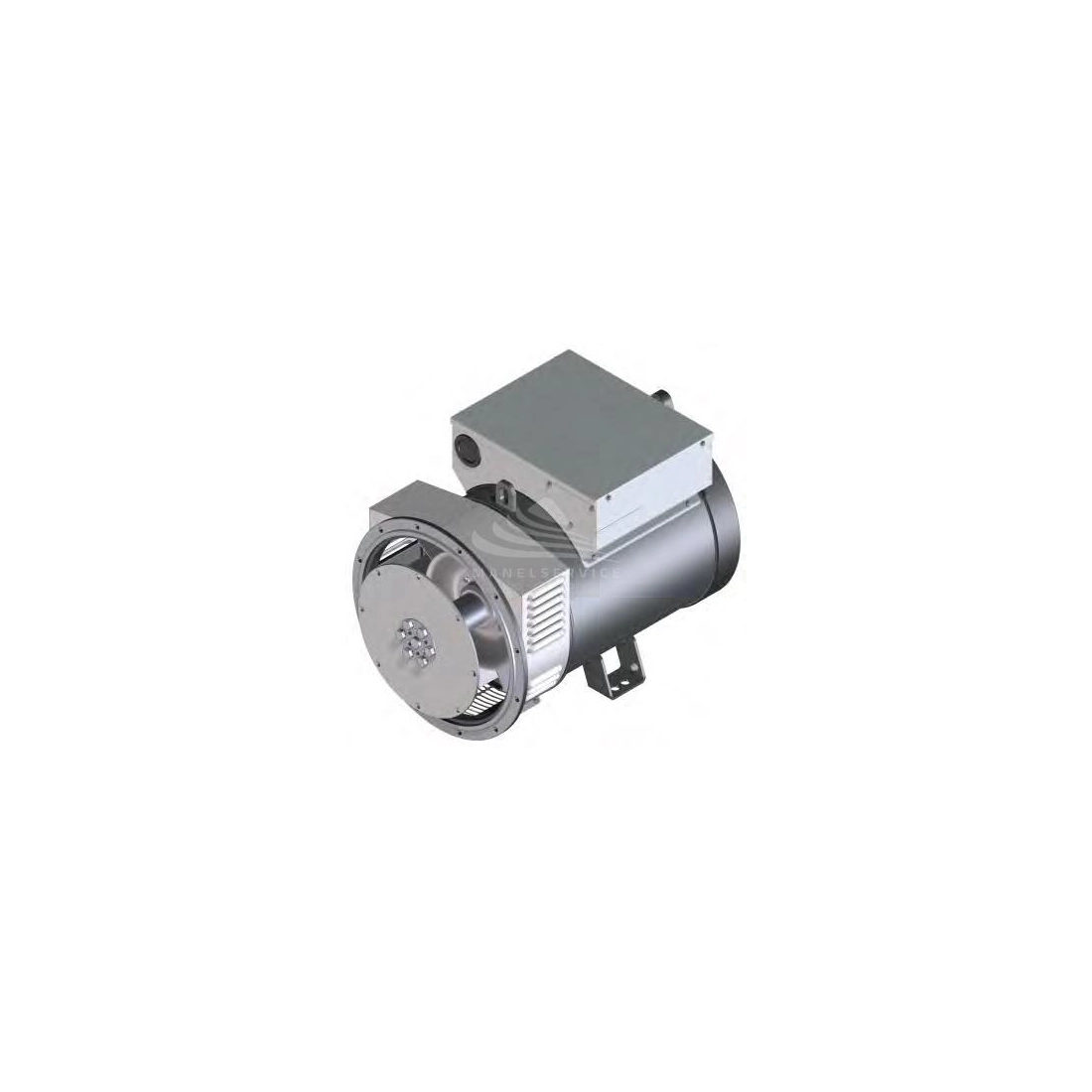

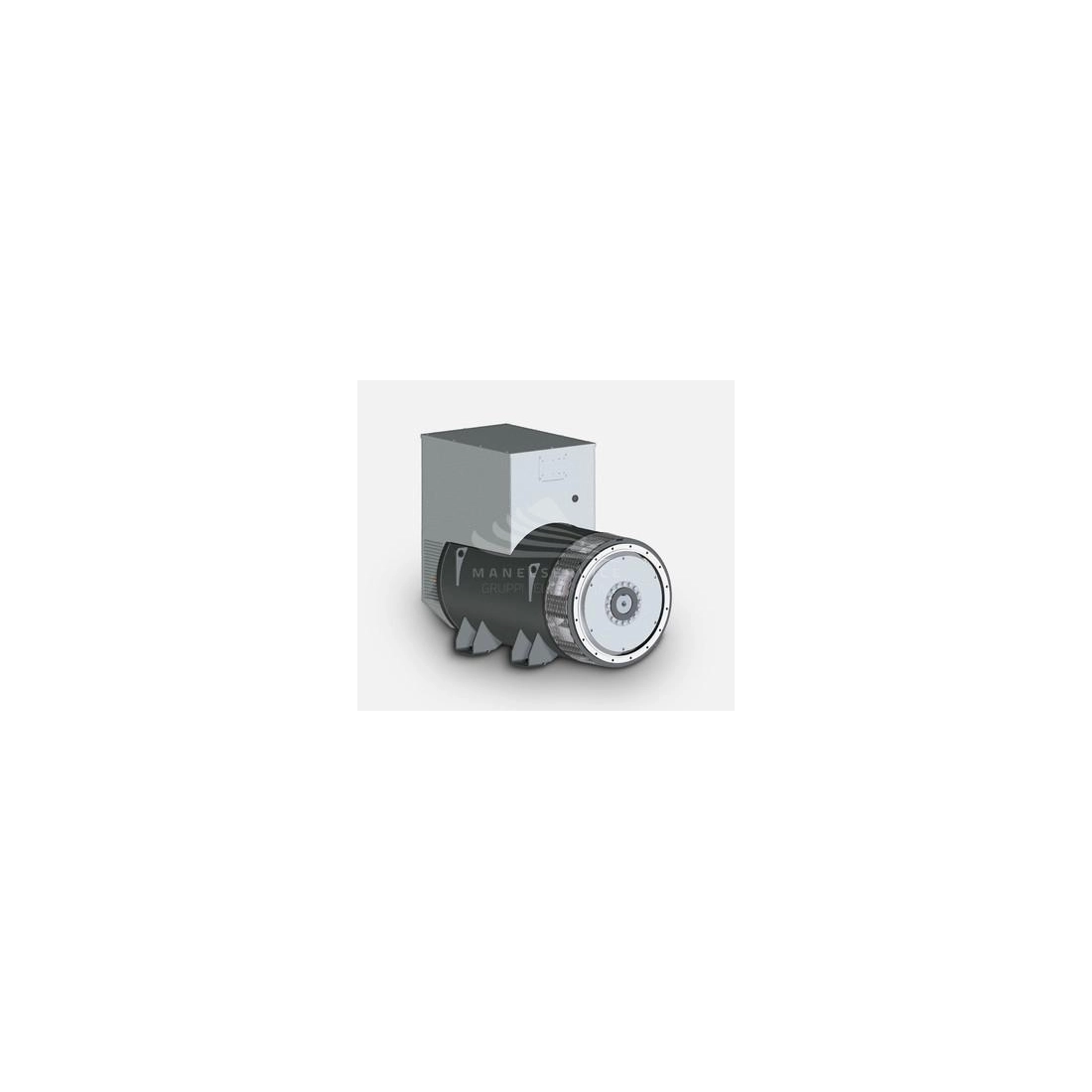

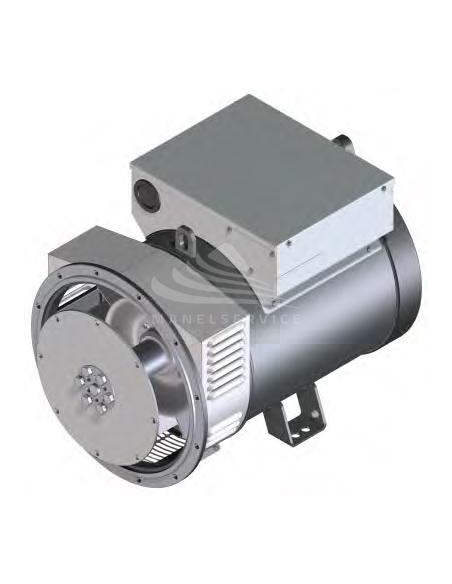

MECC ALTE ECO43-VL/4 THREE PHASE ALTERNATOR 1400 KVA AVR

MECC ALTE ECO43-4 THREE PHASE ALTERNATOR AVR
search
  • MECC ALTE ECO43-4 THREE PHASE ALTERNATOR AVR
  • MECC ALTE ECO43-4 THREE PHASE ALTERNATOR AVR
  • MECC ALTE ECO43-4 THREE PHASE ALTERNATOR AVR

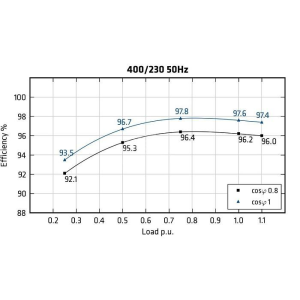

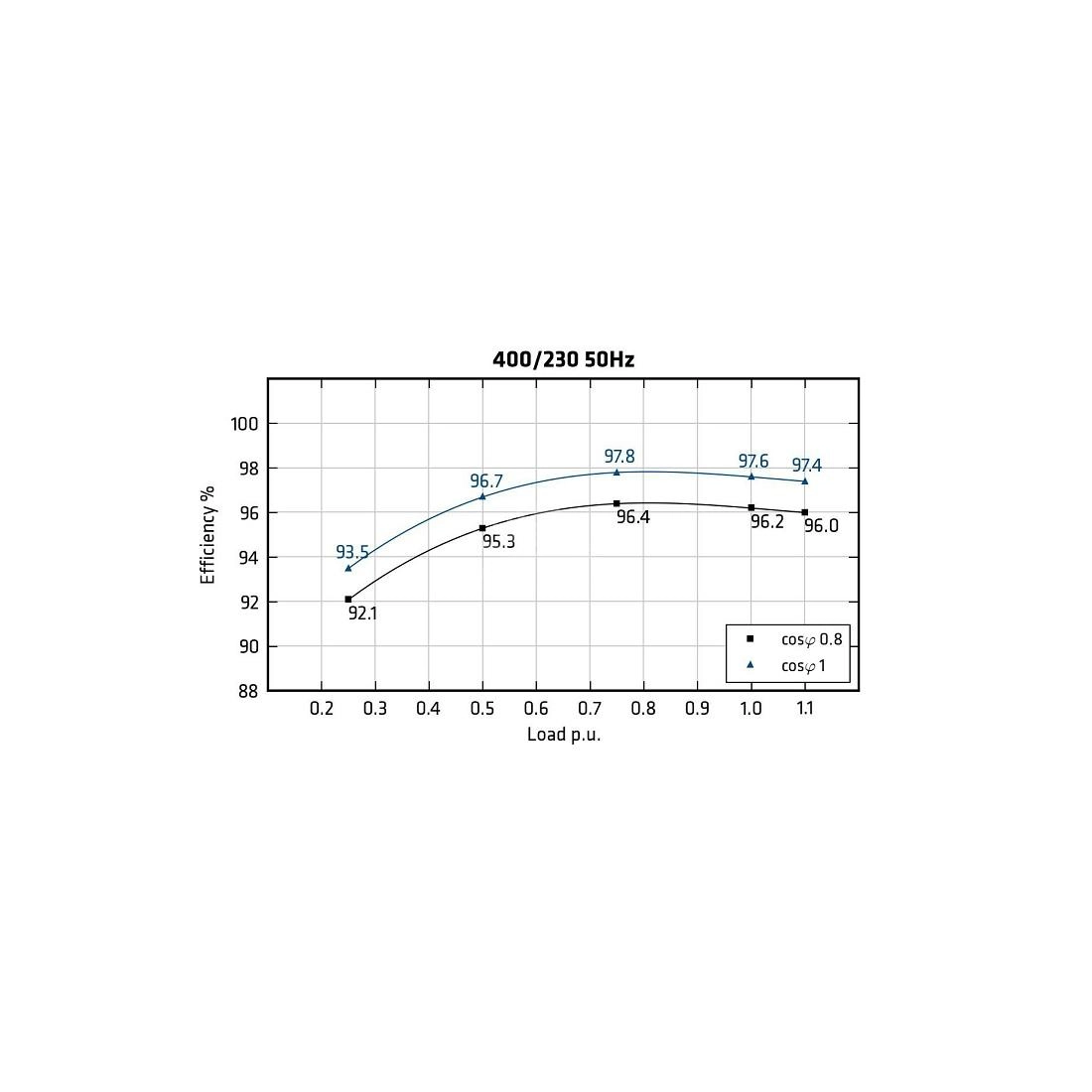

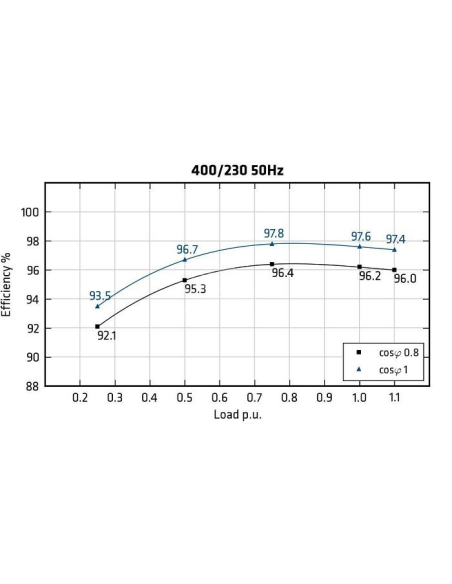

  • MECC ALTE ECO43-VL/4 - Efficiency
  • MECC ALTE ECO43-4 THREE PHASE ALTERNATOR AVR
MECC ALTE
ECO43-VL/4 SAE1 d18
New product

Phase: Three phase
Maximum three phase power: 1216 KW
Continuous three phase power: 1120 KW
Maximum three phase power: 1520 KVA
Continuous three phase power: 1400 KVA
Frequency: 50 / 60 Hz
Voltage: 400 V
Protection: IP23
Rpm speed: 1500 / 1800 rpm
Poles: 4
Efficiency: 96.2%
Weight: 2980 Kg
Constant speed alternator
Brushless
Voltage regulator: AVR

Technical features
Phase
Three phase
Maximum power three phase (KW)
1216
Continuous power three phase (KW)
1120
Maximum power three phase (KVA)
1520
Continuous power three phase (KVA)
1400
Frequency (Hz)
50 / 60
Voltage (V)
400
Engine rpm (rpm)
1500 / 1800
Poles
4
Three-phase power (KVA)
1520
Efficiency (%)
96.2
Protection degree
IP23
Acoustic pressure
84 dB(A) at 7 m
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
2980
Details

The ECO43 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator - under any possible operating condition.
A rotating inductor is fitted with a damper cage.

The versatility of Mecc Alte products and their robust design means that ECO and ECP series are formed to meet the requirements of industry and the high technological specifications of applications. They are available either as single bearing or as twin bearing with a double support. In order to couple them to a prime mover, it is possible to choose among a wide range of flanges and couplings.

All alternators consist of a fixed stator with skewed slots and a rotating inductor fitted. In addition, models above 15 KVA are fitted with a damper cage as standard. All alternator windings have a 2/3rd pitch in order to reduce harmonic content.

The generators manufactured by Mecc Alte are in compliance with the CEI 2-3 file 11111 national standard. This Italian standard corresponds to the European standard EN 60034-1 and to the international standard IEC 60034-1; it is related also to the British standard BS 4999 Part 101; it is equivalent to the German standard VDE 0530 Part 1, and it is included in the French standard NF 51.111. Mecc Alte generators meet also the requirements of international ISO 8528-3 standard (Reciprocating internal combustion engine driven alternating current generating sets – Part 3: Alternating current generators for generating sets) and the requirements of NEMA MG 1-2011 (Motors and Generators).

Not binding images and technical data.

Related Accessories
List price
44.261,60 € tax incl.
36.280,00 € tax excl.
Discounted Price
28.770,04 € tax incl.
23.582,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: MECC ALTE ECO43-VL/4 THREE PHASE ALTERNATOR 1400 KVA AVR
Offer on letterhead
Product: MECC ALTE ECO43-VL/4 THREE PHASE ALTERNATOR 1400 KVA AVR
