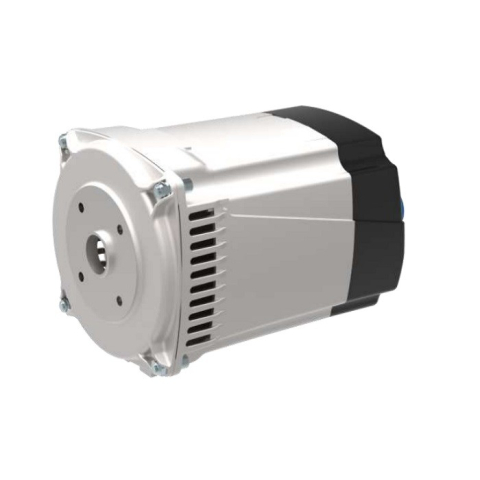

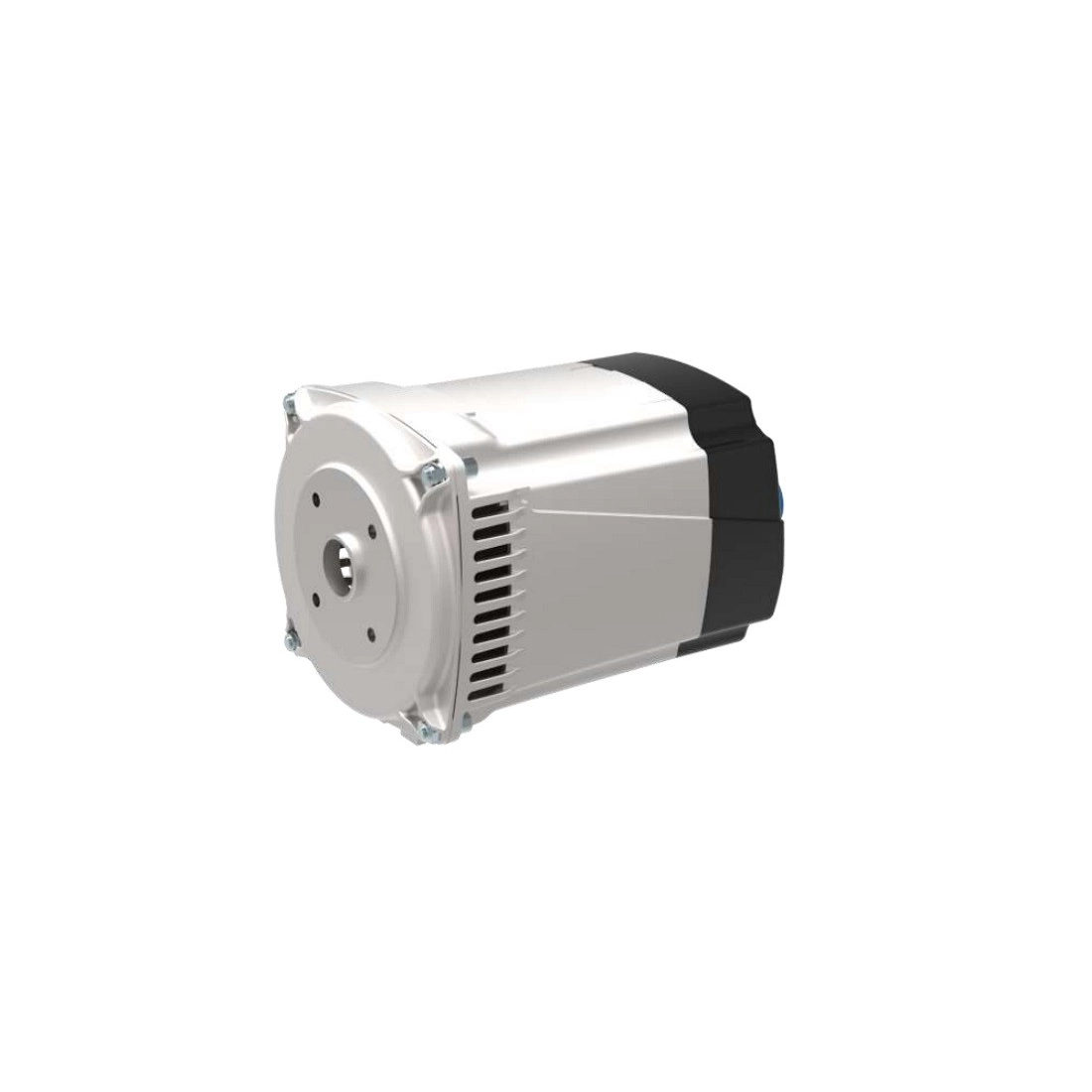

LINZ SP10S B 2.2 kVA 50 Hz Single-phase Brushless Alternator with Capacitor

LINZ SP10S B 2.2 kVA 50 Hz Single-phase Brushless Alternator with Capacitor
search
  • LINZ SP10S B 2.2 kVA 50 Hz Single-phase Brushless Alternator with Capacitor
  • LINZ SP10S B 2.2 kVA 50 Hz Single-phase Brushless Alternator with Capacitor
LINZ ELECTRIC

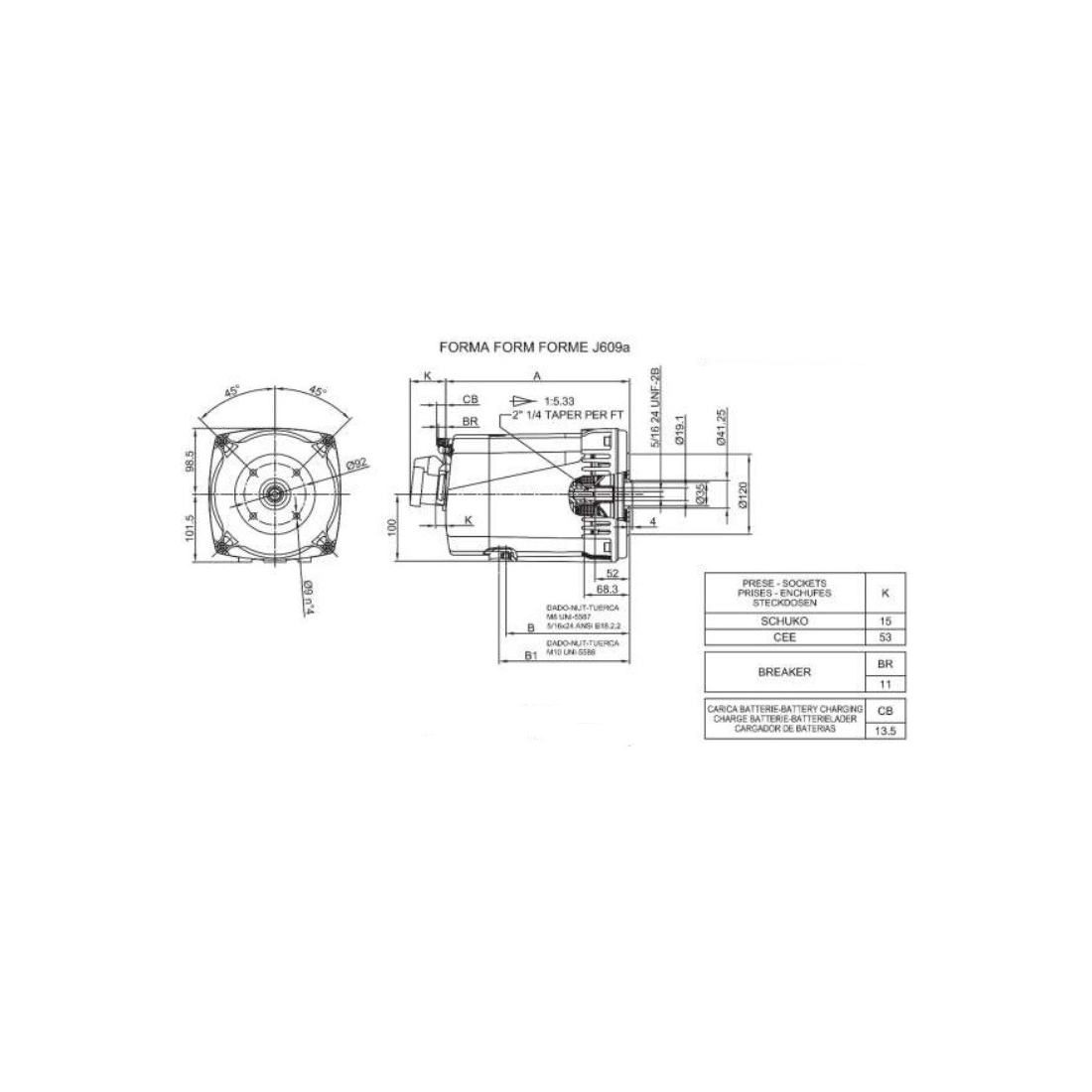

SP10S B 50 Hz J609a
New product

Rated Power at 50Hz (kVA): 2.2
Rated Power Factor: 1
Nominal Temperature (°C)/ 40
Control System: self-excited
Execution| brushless
Regulation Type: capacitor
Insulation Class: H
Protection: IP21
Maximum Over speed (rpm): 4500
Overload 110% of rated power for one hour in a cycle of 6 hours
Air Flow Requirement (m3/min) 3,80 at 50Hz
R.F.I. Suppression Standard EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
2.2
Continuous power single phase (KVA)
2.2
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
2.2
Protection degree
IP21
Motor insulation class
H
Length (mm)
275
Width (mm)
200
Height (mm)
200
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
13.5
Details

The SP series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS
Compact and easy to assemble
Possibility of vertical mounting
Rear or top accessory panel
High efficiency
Gamma: Single-phase alternators
Poles: 2
Phases: Single-phase
Adjustment: CONDENSER

Technical Sheet / Manuals
Related Accessories
List price
305,00 € tax incl.
250,00 € tax excl.
Discounted Price
228,75 € tax incl.
187,50 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: LINZ SP10S B 2.2 kVA 50 Hz Single-phase Brushless Alternator with Capacitor
Offer on letterhead
Product: LINZ SP10S B 2.2 kVA 50 Hz Single-phase Brushless Alternator with Capacitor
