SINCRO ET2 LBS ALTERNATOR 10KVA THREE-PHASE

SINCRO ET2 LBS is an alternator with a power of 10KVA, this unit has a Brushless self-exciting and self-regulating operation equipped with Compound voltage regulator.

The alternator SINCRO ET2 LBS is foreseen for the operation at frequency 50 or 60 HZ, the possibility to work on these two frequencies makes possible its application for any service voltage increasing its versatility, for the correct operation. For correct operation it is only necessary to verify that the calibrations are correct for the intended use.

SINCRO ET2 LBS is supplied with 12 terminals (7 terminals), with which it is normally possible to connect the alternator both in series star and parallel star. According to the needs it is possible to pass from one connection to another, keeping in mind that it is necessary to verify the connection of the Compound.

SINCRO ET2 LBS can be used as single-phase depending on the needs. SINCRO ET2 LBS is equipped with a compound current regulator. The regulator is suitable for operation on both three-phase and single-phase generators, allowing fast, accurate and reliable set-up.

The structure and the high know-how of the companies allow to internalize almost completely the various stages of production, for full real-time control of the entire manufacturing process

Select the alternator that meets thetechnical specifications you require, visit our dedicated section to find out how.

TECHNICAL FEATURES OF 10KVA SINCRO ET2 LBS ALTERNATOR

Phase Type: Three-phase
Number of Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Revolutions per minute (rpm): 3000
Three-phase Power (kVA): 10
Type of Alternator: Constant Speed
Voltage Regulator: Compound
Protection Class: IP23
Efficiency: 83%
With Brushes

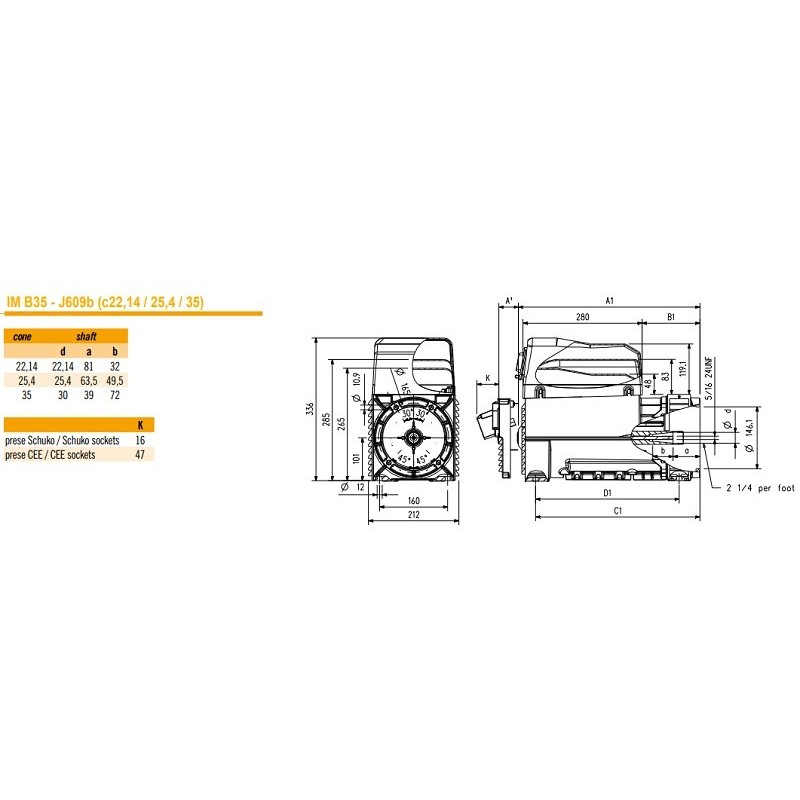

Width: 212 mm
Length: 436 mm
Height: 337 mm
Weight: 41.3 kg

Looking for a product with different characteristics? Here you can find the full range SINCRO and other specialized brands.

Images and technical data are not binding and subject to change by the manufacturer
