SINCRO GKR4 LA Single Phase Synchronous AC Alternator 16 kVA D-AVR

SINCRO SINGLE PHASE ALTERNATOR GKR4
search
  • SINCRO SINGLE PHASE ALTERNATOR GKR4
  • SINCRO SINGLE PHASE ALTERNATOR GKR4
SINCRO
GKR4 LA J609b c25.4
New product

Phase: Single Phase
Poles: 4
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 16
Constant Speed Alternator
Digital AVR
Brushes
Weight (Kg): 90
Protection: IP23

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
16
Single-phase power (KVA)
16
Efficiency (%)
83
Protection degree
IP23
Dry weight (Kg)
90
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Single phase brushes alternator - DIGITAL AVR.

- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In

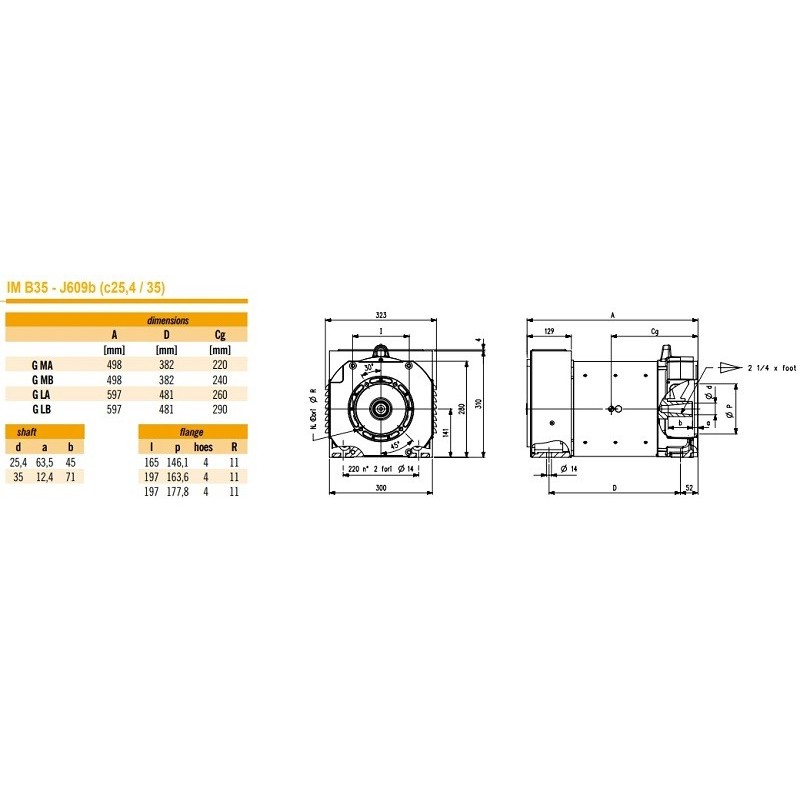

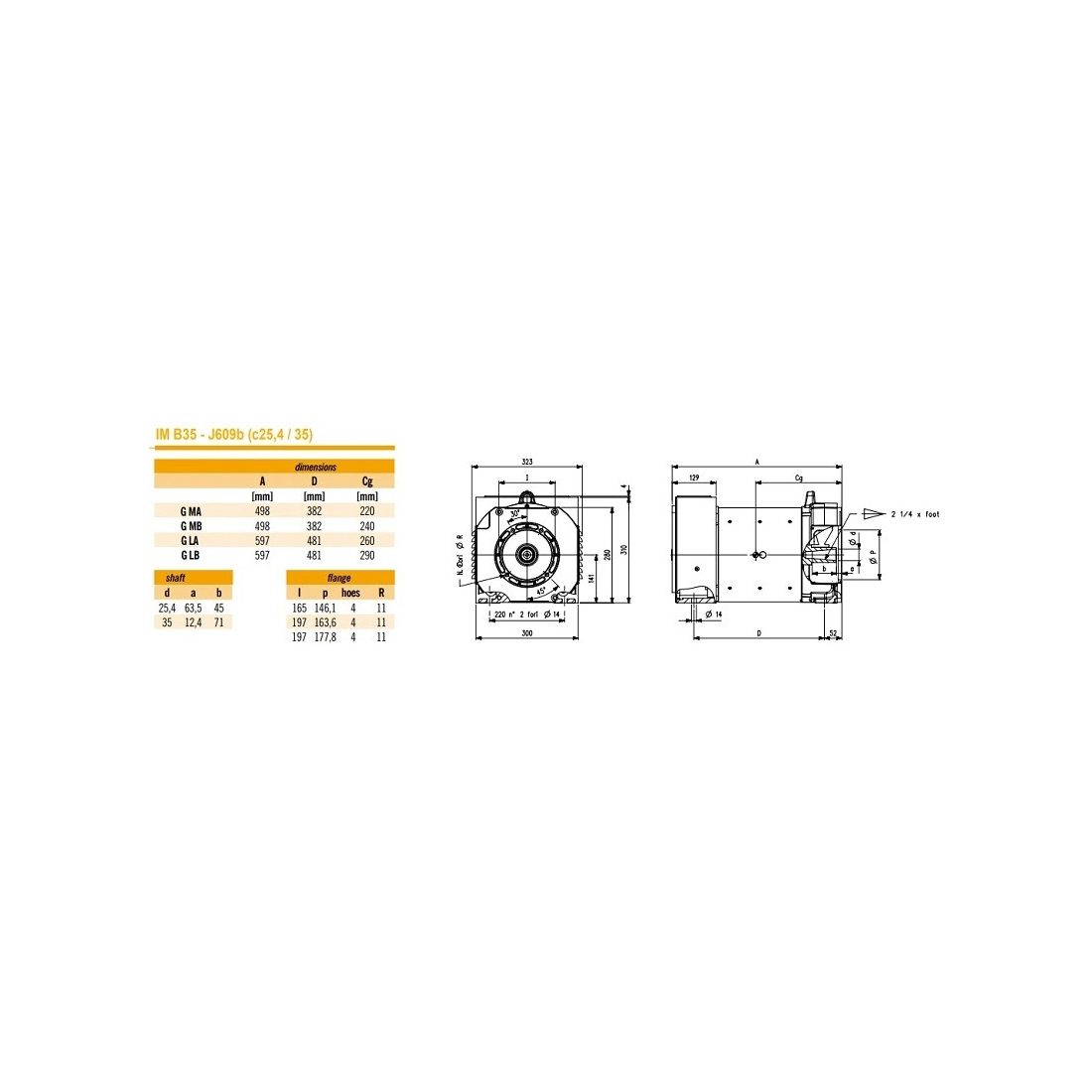

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

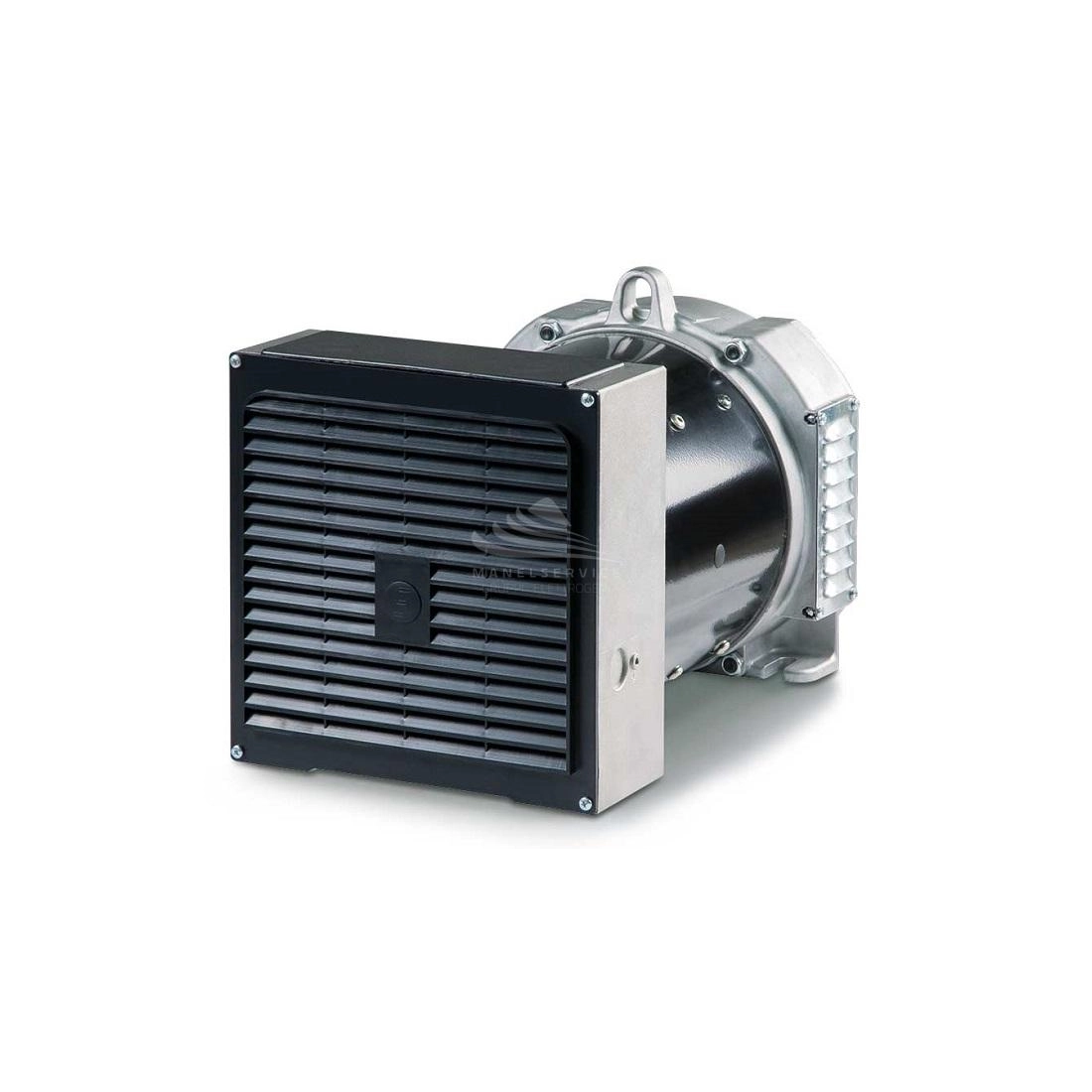

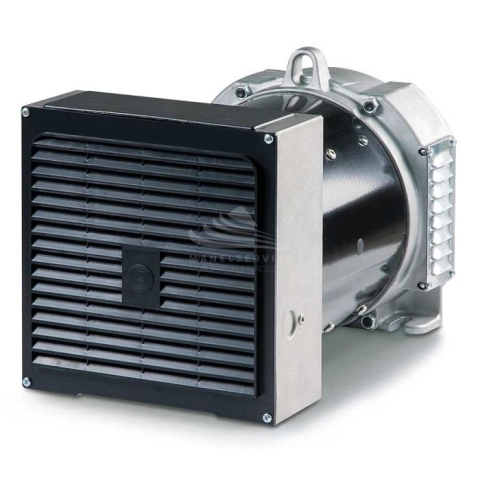

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Technical data GKR

(695.64k)
