SINCRO SK250 ML SINGLE-THREE PHASE ALTERNATOR 230KVA AVR

Name: SINCRO SK250 ML SINGLE-THREE PHASE ALTERNATOR 230KVA AVR
Brand: SINCRO
SKU: SK250 ML
Price: 7283.4 EUR
Availability: InStock

Reference SK250 ML SAE3 d11.5

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 230
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 601
Protection: IP23

List price

12,007.24 € tax incl.

9,842.00 € tax excl.

Discounted Price

7,283.40 € tax incl.

5,970.00 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SK250 ML SAE3 d11.5

Data sheet

Phase: Three phase
Frequency (Hz): 50
Voltage (V): 400
Engine rpm (rpm): 1500
Poles: 4
Three-phase power (KW): 184
Three-phase power (KVA): 230
Efficiency (%): 92.7
Protection degree: IP23
Dry weight (Kg): 601
Brushes: No
Type of alternator: Constant Speed
Voltage regulator: AVR

Specific References

Condition New

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

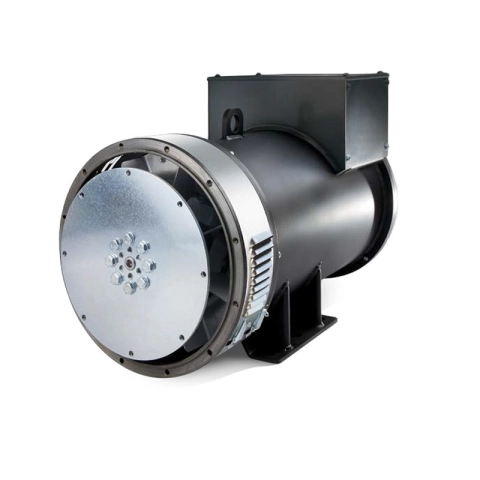

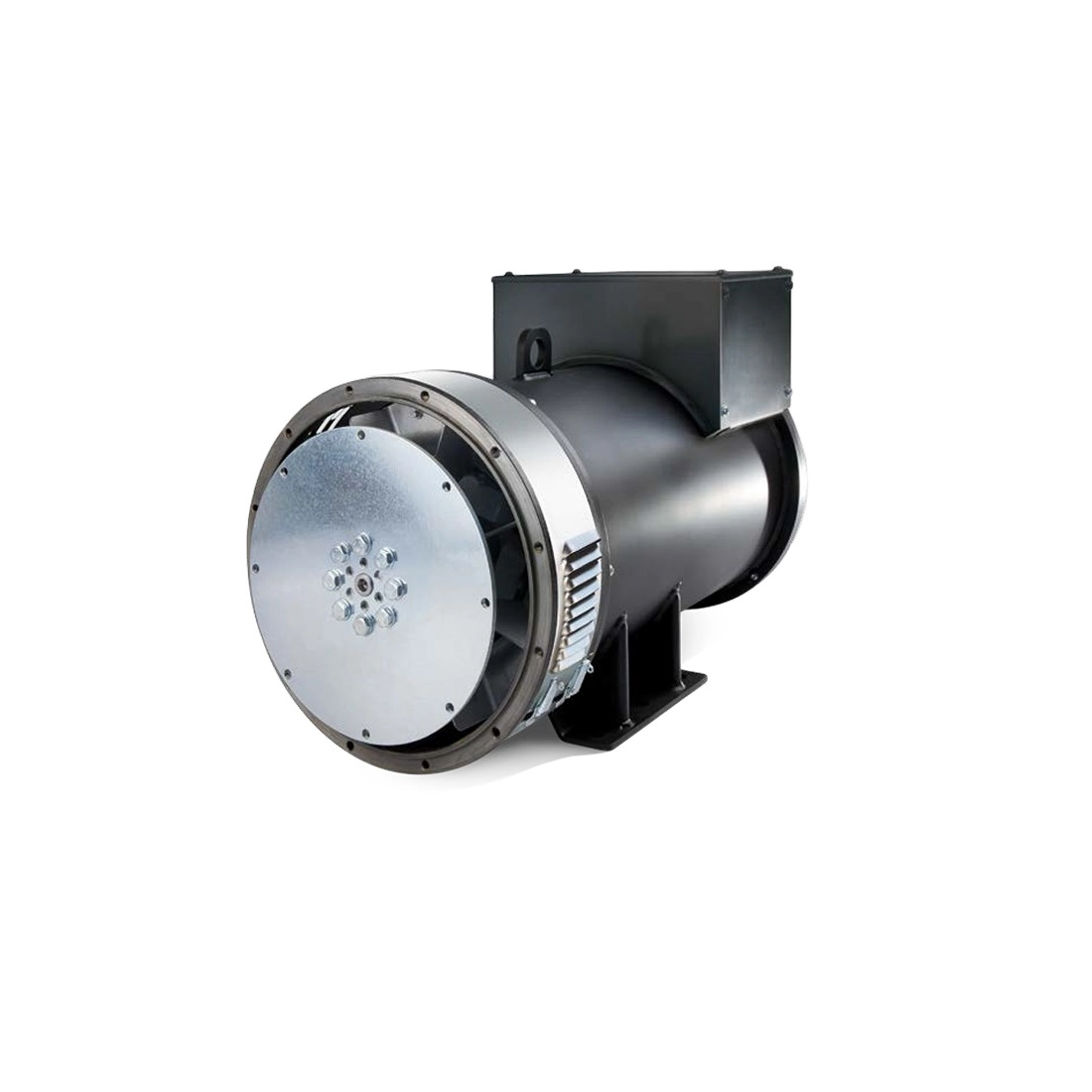

The image is purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
