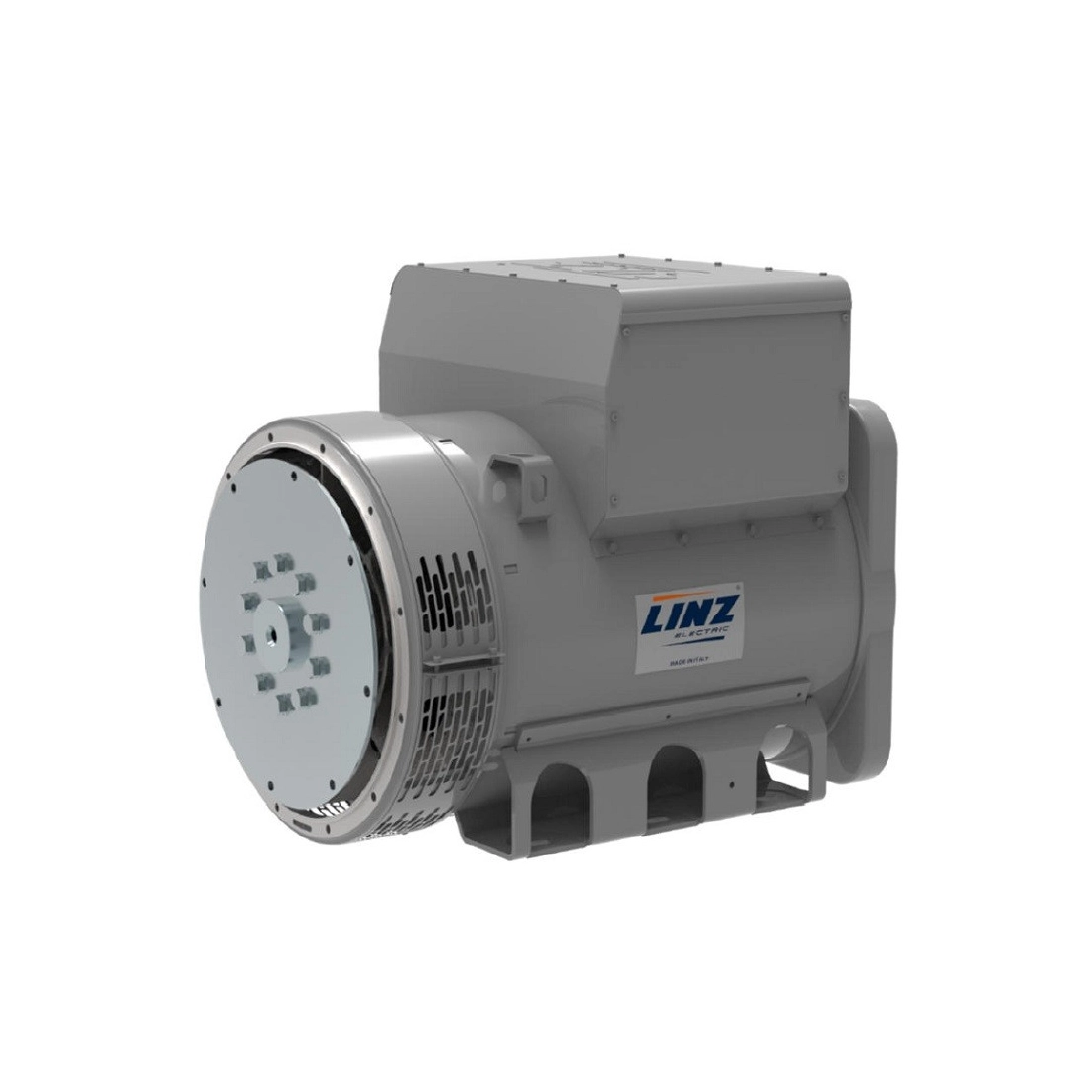

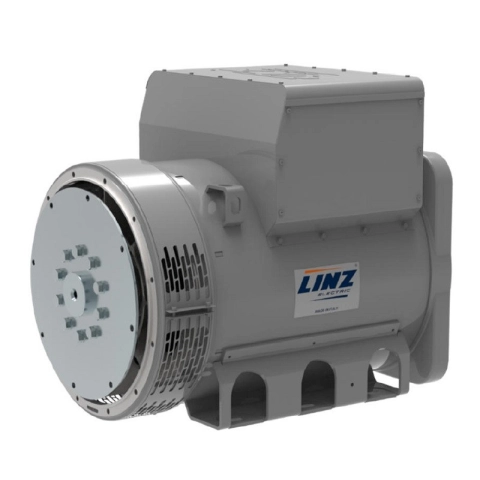

LINZ PRO28S D/4 Three-phase alternator 4 poles 250 kVA 50 Hz AVR

LINZ PRO28S D/4 Three-phase alternator 4 poles 250 kVA 50 Hz AVR
search
  • LINZ PRO28S D/4 Three-phase alternator 4 poles 250 kVA 50 Hz AVR
  • LINZ PRO28S D/4 Three-phase alternator 4 poles 250 kVA 50 Hz AVR
LINZ ELECTRIC
PRO28S D/4 50 Hz SAE3 d11.5
New product

Rated power at 50 Hz (kVA): 250
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 36.5 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
200
Continuous power three phase (KVA)
250
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
250
Protection degree
IP23
Motor insulation class
H

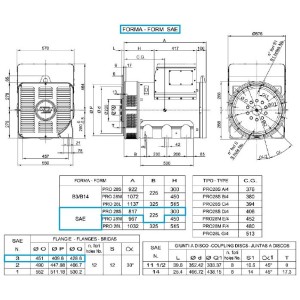

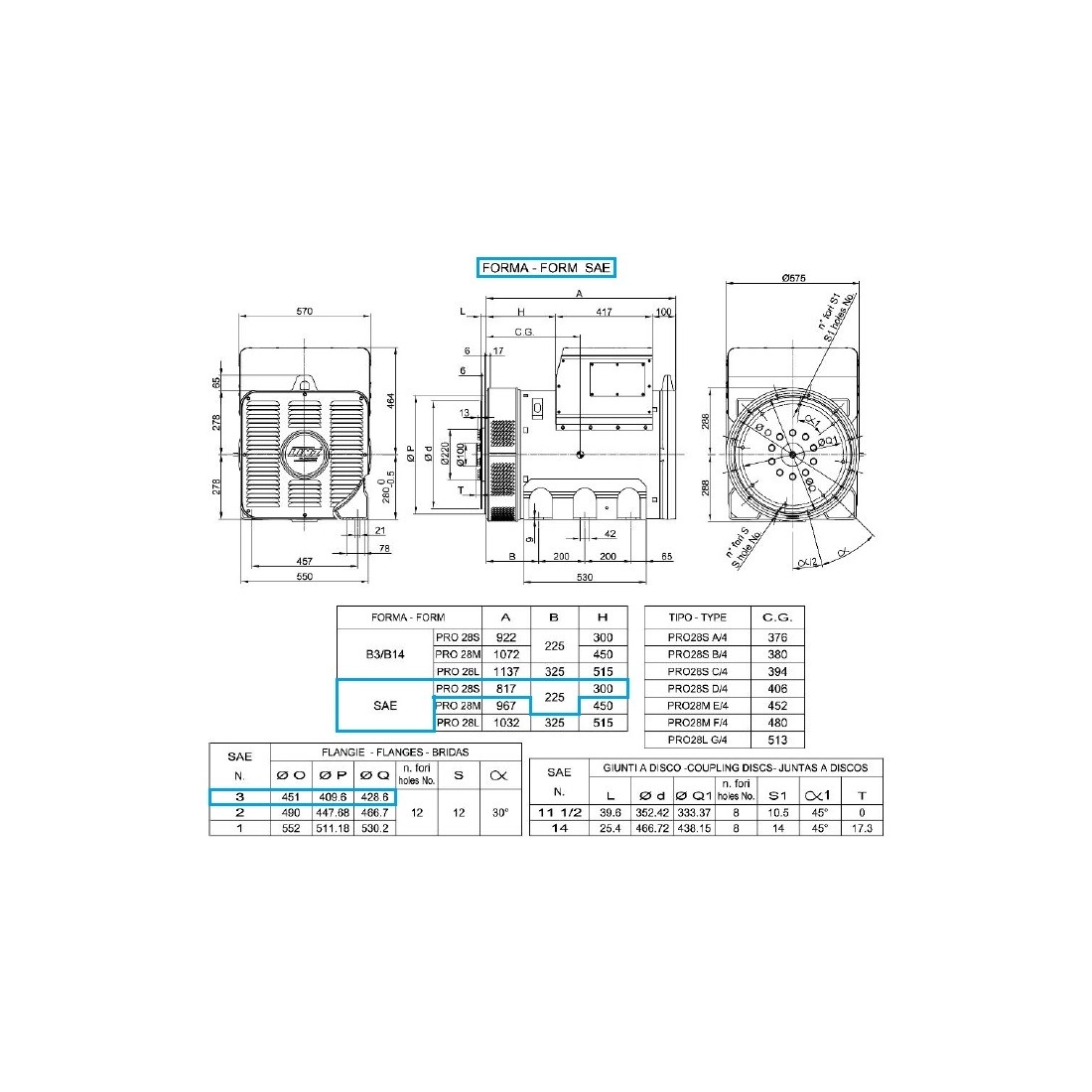

Length (mm)
817
Width (mm)
570
Height (mm)
620
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
730.5
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Technical Sheet / Manuals
icona_scheda

Technical Data PRO28S D/4

(585.86k)
Related Accessories
List price
11.797,40 € tax incl.
9.670,00 € tax excl.
Discounted Price
6.782,10 € tax incl.
5.559,10 € tax excl.
