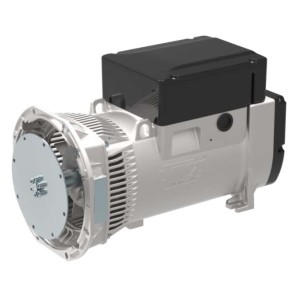

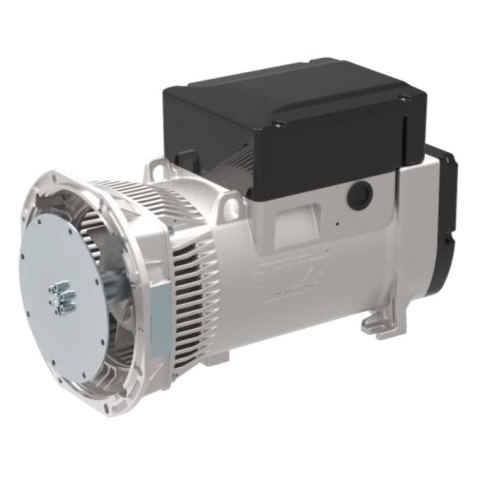

LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR
      LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR
      LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR

      LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR

      E1X13M E/4 50 Hz J609b

      Rated power at 50 Hz (kVA): 14
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushless
      Type of regulation: AVR
      Insulation class: H
      Protection: IP21
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 4 at 50 Hz
      Suppression standard R.F.F.I. EN55011

      List price
      2,034.96 € tax incl.
      1,668.00 € tax excl.
      Discounted Price
      1,627.18 € tax incl.
      1,333.75 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote

      PERSONAL DATA

      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      E1X13M E/4 50 Hz J609b

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KW)
      11.2
      Continuous power three phase (KVA)
      14
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1500
      Alternator
      Synchronous
      Poles
      4
      Three-phase power (KVA)
      14
      Protection degree
      IP21
      Motor insulation class
      H
      Length (mm)
      544
      Width (mm)
      260
      Height (mm)
      373
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      92

      Specific References

      New

      E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).

      CHARACTERISTICS

      • Compact and mechnically resistant
      • Minimum maintenance
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 4
      • Phases: Three-phase
      • Regulation: AVR
      • Application: PORTABLE, TELECOMMUNICATION

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
