FOR GENERATING SETS

Genmac Parallel Box Cable for generator model GR3000iN. Allows to use the combined power of two generators.

Genmac Kit Trolley for generators G4000, G5500, G6000E, G6000ATS

Generator power threephase: 11 KW Protection degree: IP44 Length: 98 mm Width: 200 mm Height: 254 mm Weight: 2.5 Kg

Generator power threephase: 17 KW Protection degree: IP65 Length: 140 mm Width: 298 mm Height: 260 mm Weight: 3 Kg

Generator power threephase: 28 KW Protection degree: IP65 Length: 140 mm Width: 298 mm Height: 260 mm Weight: 3.5 Kg

Generator power threephase: 55 KW Protection degree: IP65 Length: 140 mm Width: 298 mm Height: 260 mm Weight: 5 Kg

Generator power threephase: 87 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 10 Kg

Generator power singlephase: 6 KW Protection degree: IP44 Length: 98 mm Width: 200 mm Height: 254 mm Weight: 2.5 Kg

Generator power singlephase: 9 KW Protection degree: IP65 Length: 140 mm Width: 298 mm Height: 260 mm Weight: 3 Kg

Generator power singlephase: 15 KW Protection degree: IP65 Length: 140 mm Width: 298 mm Height: 260 mm Weight: 3.5 Kg

Generator power singlephase: 29 KW Protection degree: IP65 Length: 140 mm Width: 298 mm Height: 260 mm Weight: 5 Kg

Generator power singlephase: 46 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 10 Kg

Generator power threephase: 17 KW Protection degree: IP20 Length: 180 mm Width: 275 mm Height: 420 mm Weight: 6 Kg

Generator power threephase: 28 KW Protection degree: IP20 Length: 180 mm Width: 275 mm Height: 420 mm Weight: 6 Kg

Generator power singlephase: 9 KW Protection degree: IP20 Length: 180 mm Width: 275 mm Height: 420 mm Weight: 6 Kg

Generator power singlephase: 15 KW Protection degree: IP20 Length: 180 mm Width: 275 mm Height: 420 mm Weight: 6 Kg

Generator power threephase: 17 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 20 Kg

Generator power threephase: 31 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 21 Kg

Generator power threephase: 62 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 22 Kg

Generator power singlephase: 9 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 20 Kg

Generator power singlephase: 17 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 21 Kg

Generator power singlephase: 33 KW Protection degree: IP65 Length: 180 mm Width: 350 mm Height: 450 mm Weight: 22 Kg

Generator power threephase: 17 KW Protection degree: IP65 Length: 200 mm Width: 300 mm Height: 400 mm Weight: 14 Kg

Generator power three-phase: 139 KW Protection degree: IP65 Length: 300 mm Width: 600 mm Height: 800 mm Weight: 41 Kg

Genmac multipolar cable for type M10x1. Max length 25 meters.

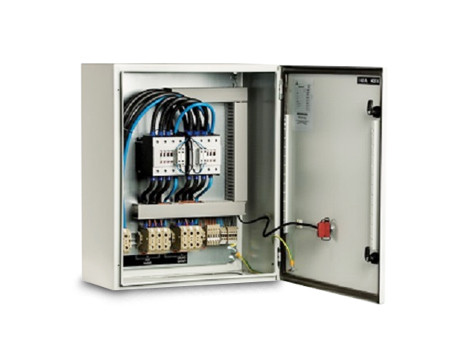

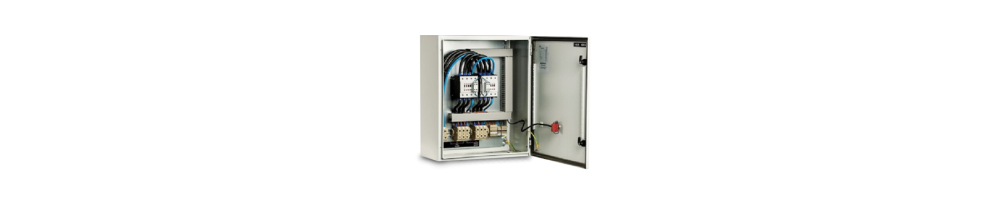

GENMAC NETWORK-GROUP SWITCHING CABINET ATS-C 4P 45A Generator power threephase: 31 KW Frequency 50/60 Hz Three-phase 380 V / 400 V 45 A Degree of protection IP65 Dimensions 500x404x196 mm Weight 17,4 Kg

GENMAC NETWORK-GROUP SWITCHING CABINET ATS-C 4P 90A Generator power threephase: 62 KW Frequency 50/60 Hz Three-phase 380 V / 400 V 90 A Degree of protection IP65 Dimensions 500x404x196 mm Weight 18,4 Kg

Generator power singlephase: 9 KW Protection degree: IP65 Length: 200 mm Width: 300 mm Height: 400 mm Weight: 14 Kg

Generator power singlephase: 17 KW Protection degree: IP65 Length: 196 mm Width: 404 mm Height: 500 mm Weight:17,4 Kg

Tank 100 Lt. for INFINITY GENMAC generators With bounded tank, central lifting hook and forklift pockets.

GENMAC QFIA-4520 FRONTAL CONTROL PANEL

GENMAC SLOW SPEED TRAILER for URBAN generators

GENMAC SLOW SPEED TRAILER for INFINITY generators

GENMAC HIGH SPEED TRAILER for INFINITY generators.

Maximum three-phase generator power: 62 KVA Maximum amperes: 90A Degree of protection: IP65 Supply voltage of AUX circuits: 230V Colour: RAL 7035 Contactors, with volumetric relay for network detection Metal case Depth: 196 mm Width: 404 mm Height: 500 mm Weight: 18.4 Kg

GENMAC HIGH SPEED TRAILER for STONE generators.
