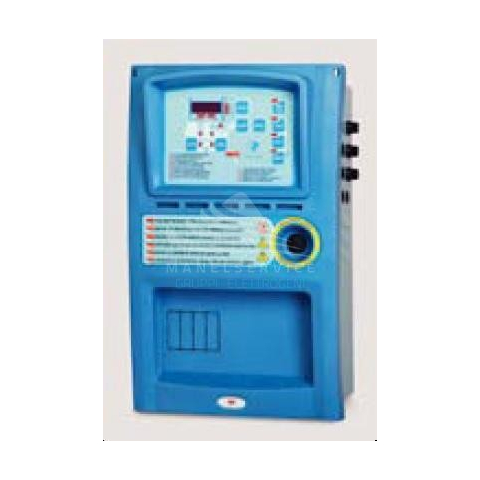

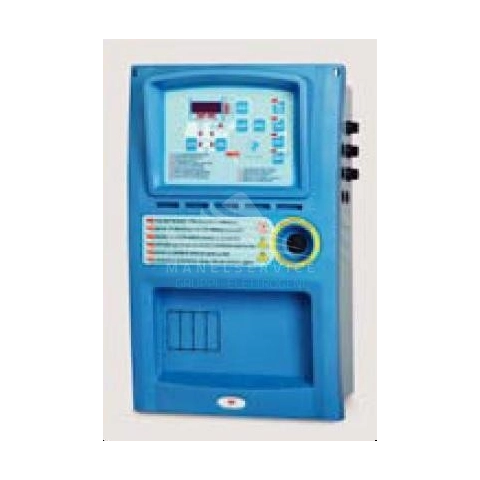

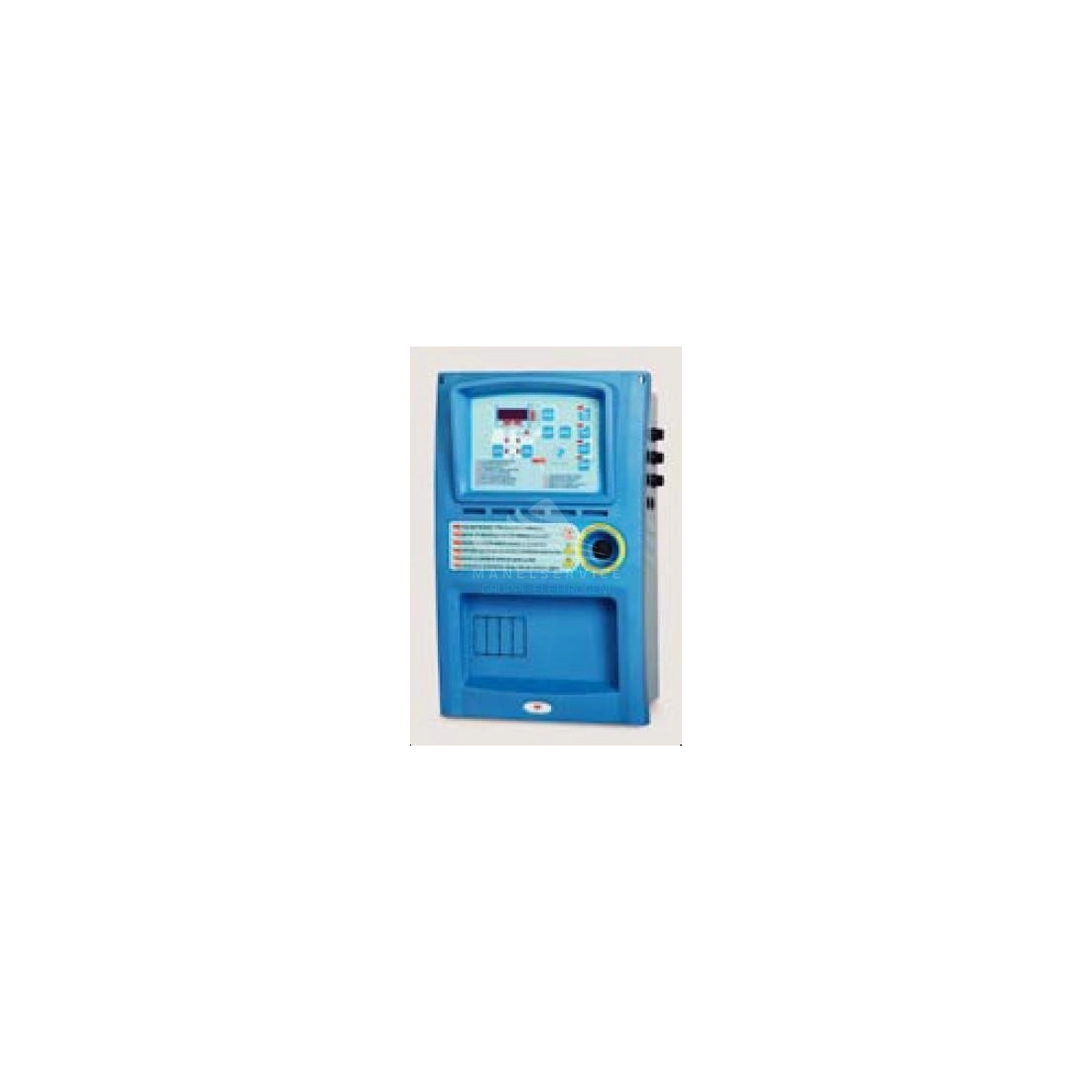

GENMAC AUTOMATIC TRANSFER SWITCH ATS-L6 4P 50Hz 3PH 380-400V 25A

Reference 24486

Generator power threephase: 17 KW
Protection degree: IP20
Length: 180 mm
Width: 275 mm
Height: 420 mm
Weight: 6 Kg

Product Details
Description

Protection degree: IP20
Length (mm): 180
Width (mm): 275
Height (mm): 420
Product type: Switching Frame
Weight (Kg): 6

Brand

STANDARD EQUIPMENT INCLUDED:
- plastic case for indoor installation
- AMF controller C-06, 1 phase sensing and reading
- genset/mains changeover switches mechanically and electriccaly interblocked
- current trasformers
- terminal board for auxiliary connections
- protection fuses
- 10-pin connector interface to the generator
- rubber fairlead for cable inlet.

Not binding images and technical data.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
