SATEPA UV Steriliser MONO UVC30A - Adaptor with Plug-in Power Supply
UVC30A
AISI 304 capacity steriliser with initial UV dose 40,000 W/cm2
Available with optional irradiance and temperature sensor
ADAPTOR 'A' version available with SHUKO socket or feed-through cable
Maximum flow rate: 1.5 m3/h - 1500 l/hr - 6.60 GPM @ 30,000 µWsec/cm2 1.2 m3/h - 1200 l/hr - 5.28 GPM @ 40,000 µWsec/cm2
Lamp: 1x30W, lifetime 9,000 hr
Frame size: 65 x 12 mm H=60mm
Degree of protection: IP 54
Absorption: 40 Watt
Power supply voltage: 230 Vac ± 10% @ 50/60 Hz
Chamber dimensions: Total H 530 mm ; Ø 60.30 mn
Working position: Vertical / horizontal
Hydraulic connection: ¾" male threaded
Maximum pressure: 10 Bar standard
Product dimensions: 450 x 60.30 mm
I/O: ¾"
Lamp: 1 x 30W
Prezzo
344.00 € tax excl.
419.68 € tax incl.
Shipping from 36.60 € to Italy buy it today.
Calculate Shipping Cost
UVC30A
Data sheet
- Frequency (Hz)
- 50 / 60
- Protection degree
- IP54
- Power cable length (m)
- 1,5 m
- Pressure (bars)
- 10
- Product dimensions (mm)
- 120 x 65 x 45
- Lamps
- 1 x 30W
- Power consumption (W)
- 40
- Capacity (Lt/h)
- 1200 - 1500
- Output voltage (VAC)
- 90 - 240
- Reactor Dimensions
- H total: 450 mm - Ø 60,30 mm
- Form
- C-shaped tube
- job position
- Vertical / Horizontal
- Power supply
- High-efficiency electronic ballast
- lamp control
- Lamp monitoring with red/green LED
- electrical connection
- SCHUKO/EU plug or feed-through cable
Specific References
SATEPA UV Steriliser MONO UVC30A - Adaptor with Plug-in Power Supply
SATEPA UV Sterilizer MONO UVC30A - Adapter with Plug Power Supply
SATEPA UV Sterilizer UVC30A - Adapter with Plug Power Supply SATEPA MONO UVC30A is the ideal solution to ensure the disinfection of water efficiently and safely in various applications. Thanks to its advanced technology and compact design, this device is perfect for use in domestic, commercial and industrial environments.
Main features SATEPA UV Sterilizer MONO UVC30A:
Proven effectiveness: It exploits the power of UV-C rays with a wavelength of 254 nm to eliminate bacteria, viruses and other microorganisms from water, ensuring deep and complete disinfection.
Low pressure mercury vapor lamp: Offers a long life of up to 9,000 hours and high effectiveness in sterilizing water.
High quality quartz sheath: Protects and guarantees optimal transmission of UV-C rays for uniform debacterial.

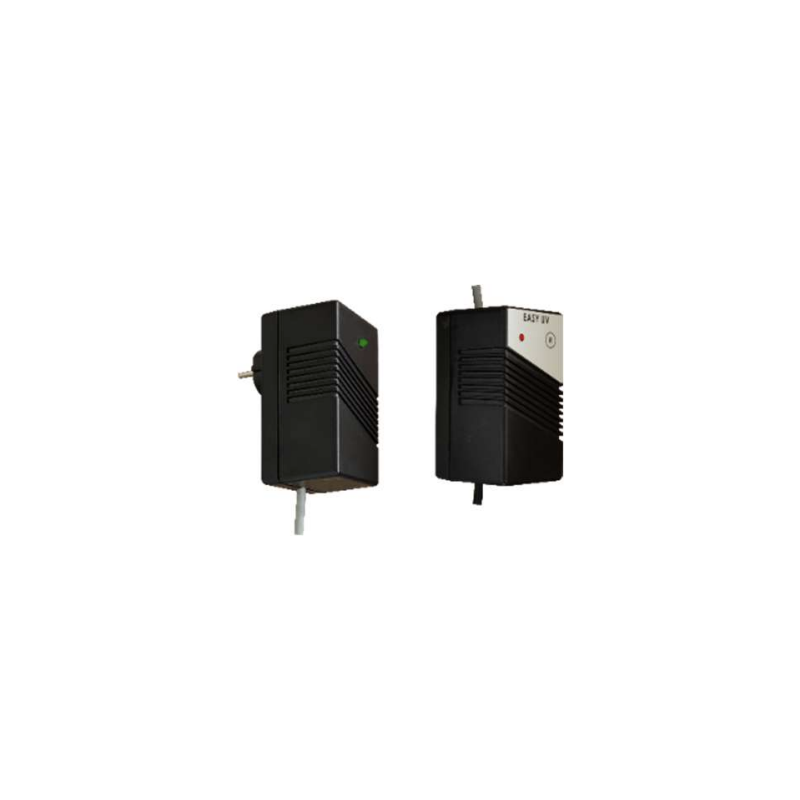

Plug-in power supply: Easy to install and use, allows you to connect the UV Sterilizer to any standard electrical outlet.
Monitoring with red/green LED: Indicates the operating status of the lamp, facilitating preventive maintenance.
SCHUKO/EU plug: Compatible with the most popular electrical sockets in Europe.
Compact and versatile design: Its small dimensions (200 x 160 x 90 mm) make it ideal for installation in confined spaces.
High adaptability: It can be installed vertically or horizontally to adapt to any system configuration.
Standard plumbing connections: ¾" male thread for easy connection to existing piping.
Maximum pressure of 10 Bar: Suitable for a wide range of applications.
Technical features SATEPA UV Sterilizer MONO UVC30A:
Maximum flow rate: 1.5 m3/Hr – 1500 l/hr - 6.60 GPM @ 30,000 µWsec/cm2 - 1.2 m3/Hr – 1200 l/hr - 5.28 GPM @ 40,000 µWsec/cm2
Lamps: 1x30W, 9,000 hours of life
Reactor dimensions: Total H: 450 mm - Ø 60.30 mm
Form factor: “C” tube
Working position: Vertical / Horizontal
Hydraulic connections: ¾” male threaded
Maximum pressure: 10 Bar standard
Material: AISI 304 (AISI 316 optional)
Dimensions: 120 x 65 x 45 mm
Power supply: High efficiency electronic
Lamp Control: Monitoring with red/green LED
Electrical connection: SCHUKO/EU plug or through cable
Lamp cable: 1.5 m included
Operating voltage: from 90 to 240 Vac
Electrical absorption: 30 Watts
IP Rating: IP54
Looking for a SATEPA UV Sterilizer MONO UVC30A with different features? Click HERE.
Images and technical data purely indicative.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
