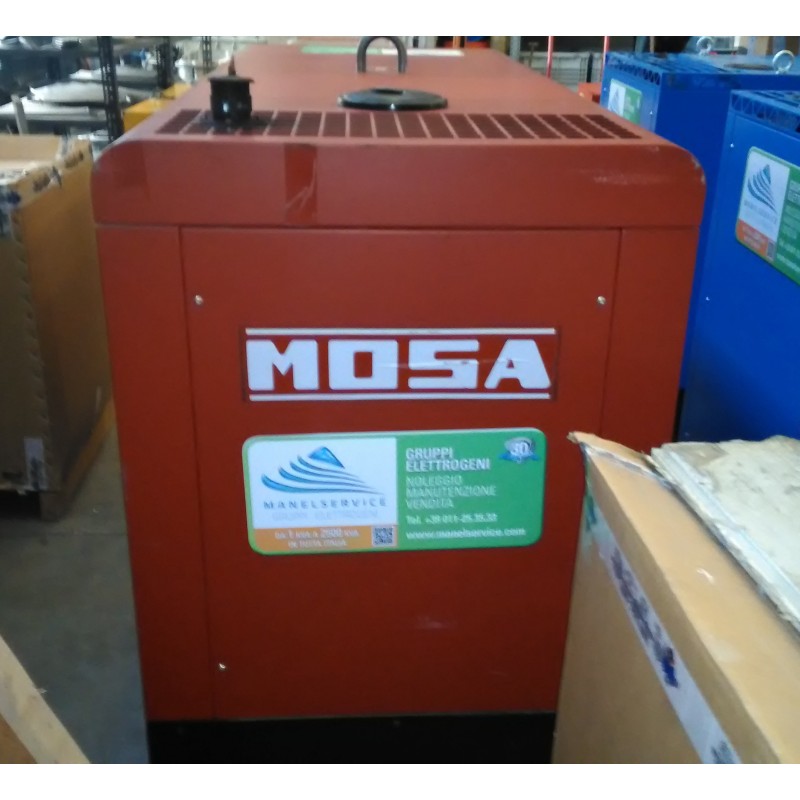

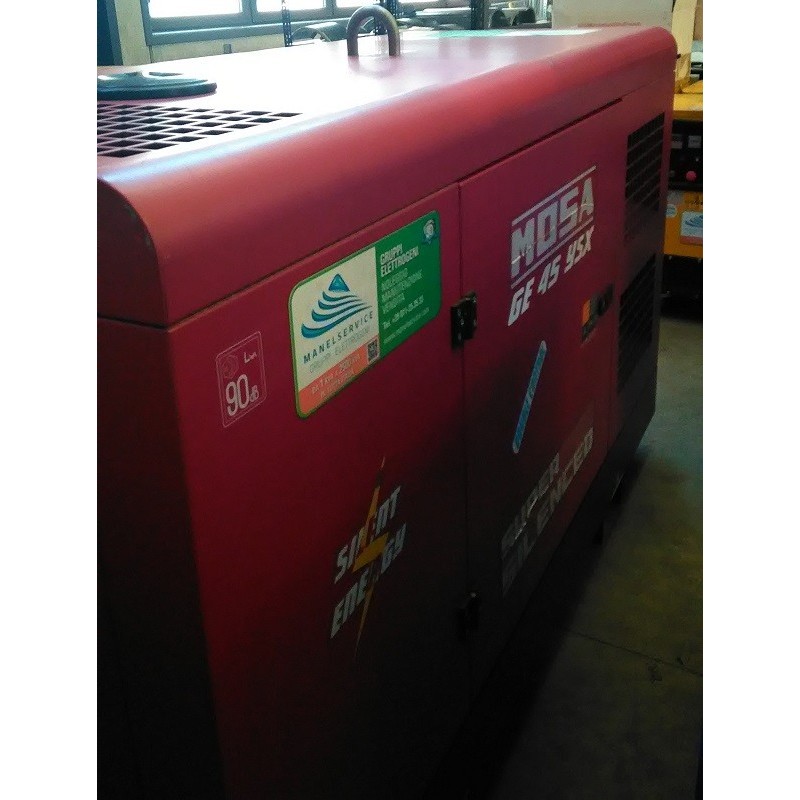

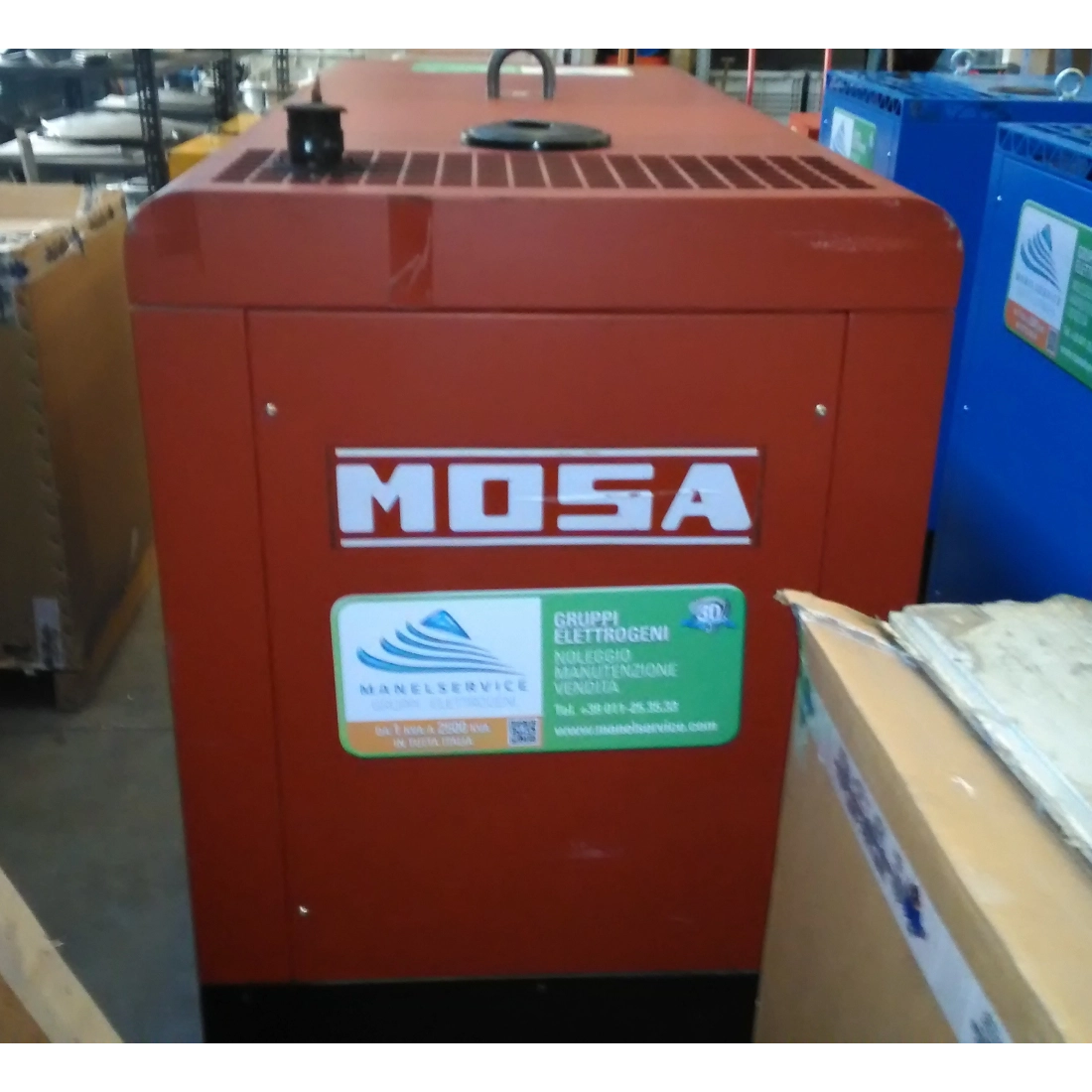

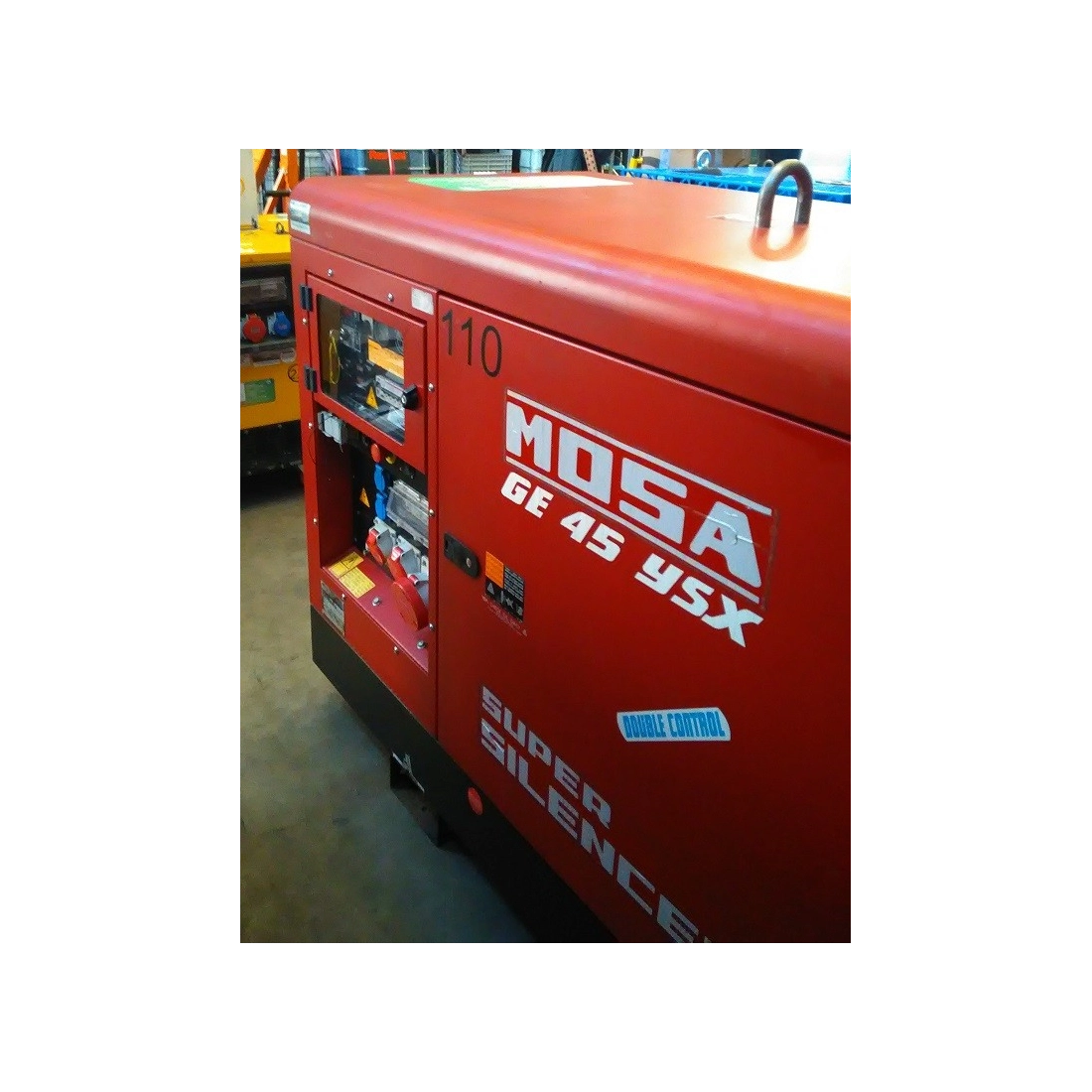

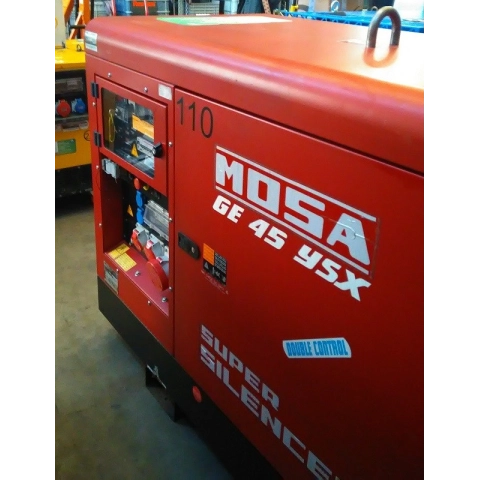

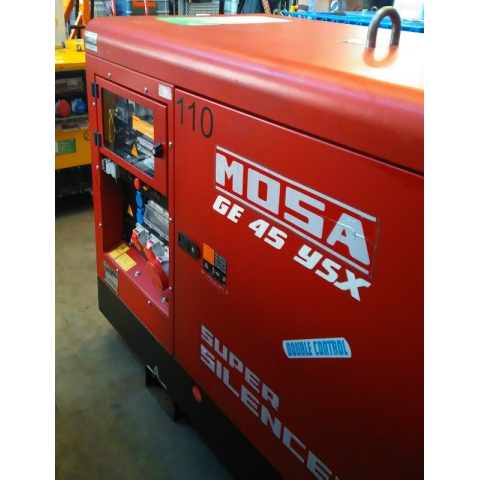

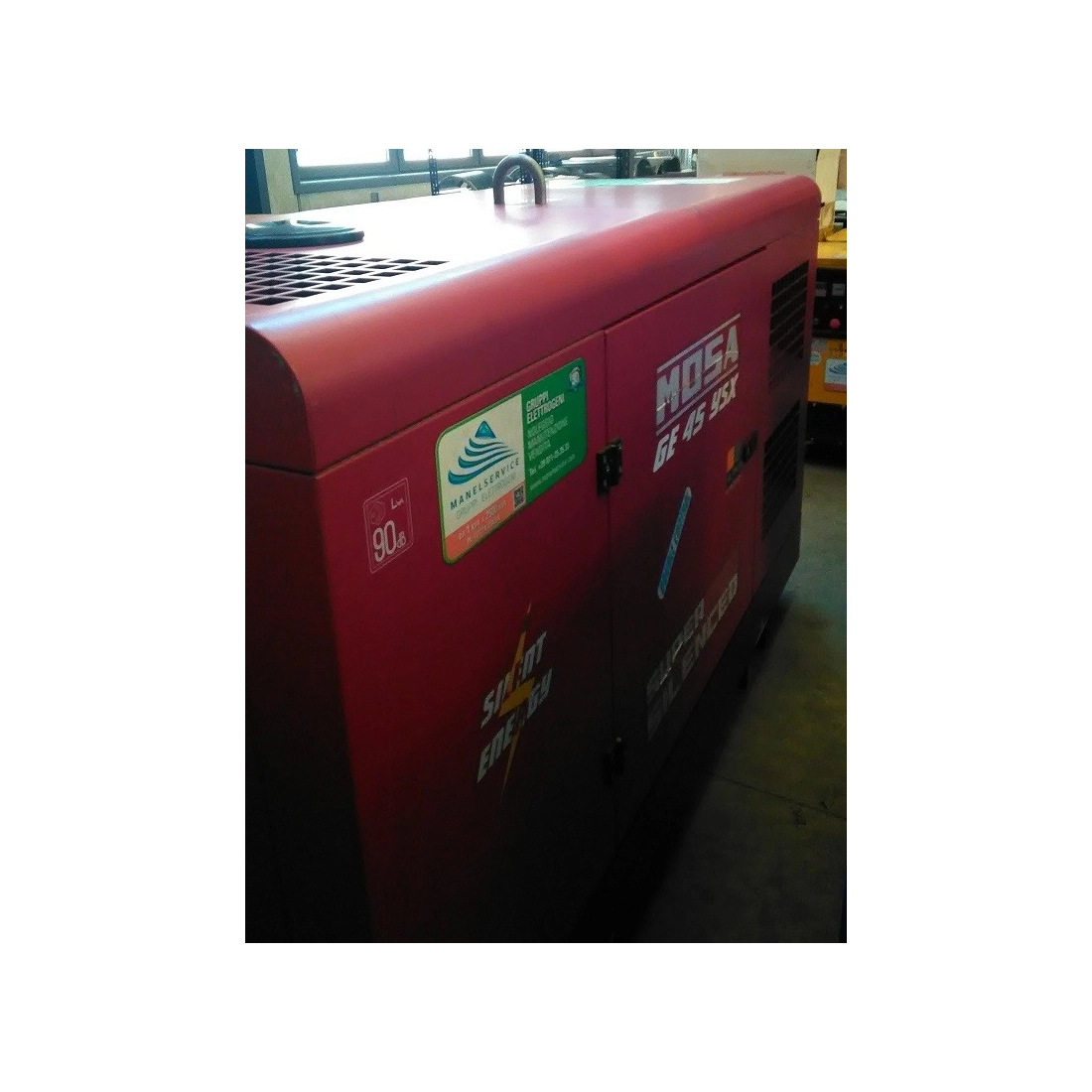

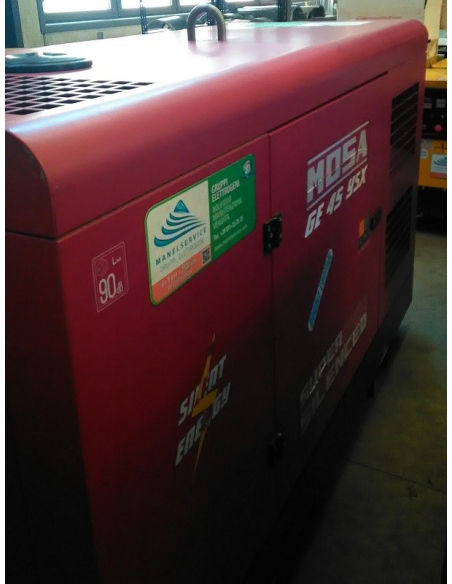

MOSA GE 45 YSX EAS AVR+COMPOUND SECOND-HAND

Reference USATO2

Potenza Consumo uso continuativo: 42 kva
Tipo carburante: Diesel
Capacità serbatoio carburante: 100 l
Autonomia: 13.5 h
Dimensioni: L 205 cm x L 90 cm x A 142 cm
Peso a secco: 1020 Kg
Potenza acustica LpA: 90 dB(A) (65 dB(A) @ 7m)
Configurazione delle prese: 1 x 400V 63A 3P+N+T CEE ,1 x 400V 32A 3P+N+T CEE ,1 x 400V 16A 3P+N+T CEE ,2 x 230V 16A 2P+T CEE o Schuko

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference USATO2

Data sheet

Phase: Single phase / Three phase
Continuous power single phase (KW): 12.4
Continuous power single phase (KVA): 15.5
Maximum power three phase (KW): 36.8
Continuous power three phase (KW): 33.6
Maximum power three phase (KVA): 46
Continuous power three phase (KVA): 42
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 63A 3P+N+T CEE - 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 2 x 230V 16A 2P+T SCHUKO
Engine: Yanmar 4TNV98T, 4 stroke turbocharged
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Water
Inyección: Direct
Alternator: Sincrono trifase, autoeccitato, autoregolato, senza spazzole
Fuel tank capacity (L): 100
Consumption (L/h): 7.4 at 75% of the load
Running time (h): 13.5 at 75% of the load
Acoustic power: 90 dB(A)
Acoustic pressure: 65 dB(A) at 7 m
Length (mm): 2050
Width (mm): 900
Height (mm): 1420
Dry weight (Kg): 1020
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: AVR+Compound
Engine manufacturer: Yanmar

Specific References

Super silenziato. Motore Diesel. Regolatore elettronico di giri. Protezione motore EP6. Alternatore sincrono trifase. Regolazione combinata AVR + Compound della tensione. Terminale d’uscita a barre di rame. Interruttore differenziale. Interruttore magnetotermico. Pulsante d’emergenza. Predisposto per uso con quadro automatico. Secondo direttive CE per rumore e sicurezza

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
