USED ​​GREEN POWER GP33SH/DW GENERATOR 33KVA

  • New
search
GREEN POWER
USEDGP33SH


Phase type: Single phase / Three phase
Continuous power Single phase: 10 KVA / 8 KW
Maximum power Single phase: 11 KVA / 8.8 KW
Continuous power Three phase: 30 KVA / 24 KW
Maximum power Three phase: 33 KVA / 26.4 KW
Power factor cos fiφ: 0.8
Voltage VAC: 230 / 400 V
Frequency (Hz): 50
Voltage regulator: AVR
Starter panel: manual
Engine: DEUTZ F4M2011
Revolutions per minute RPM: 1500
Power source: Diesel
Tank capacity: 70 l
Consumption: 5.4 l/h @ 75 % load
Autonomy: 12.96 h @ 75 % load
Sound pressure: 70 @ 7m
Length: 1750 mm
Width: 700 mm
Height: 1020 mm
Net weight: 830 Kg

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
8.8
Continuous power single phase (KW)
8
Maximum power single phase (KVA)
11
Continuous power single phase (KVA)
10
Maximum power three phase (KW)
26.4
Continuous power three phase (KW)
24
Maximum power three phase (KVA)
33
Continuous power three phase (KVA)
30
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x 400V 32A / 1 x 400V 16A / 1 x 230V 16A
Engine
DEUTZF4M2011
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Elettrico
Engine capacity (cm³)
3108
Number cylinders
4
Cylinders' position
In line
Cooling
Water
Alternator
Linz PRO18SC/4, synchronous, brushless
Poles
4
Fuel tank capacity (L)
70
Consumption (L/h)
5.4 al 75% del carico
Running time (h)
12.96 h al 75% del carico
Length (mm)
1750
Width (mm)
700
Height (mm)
1020
Dry weight (Kg)
830
Silenced
Yes
Super silenced
Yes
ATS Switch device
No
Voltage regulator
AVR
Details

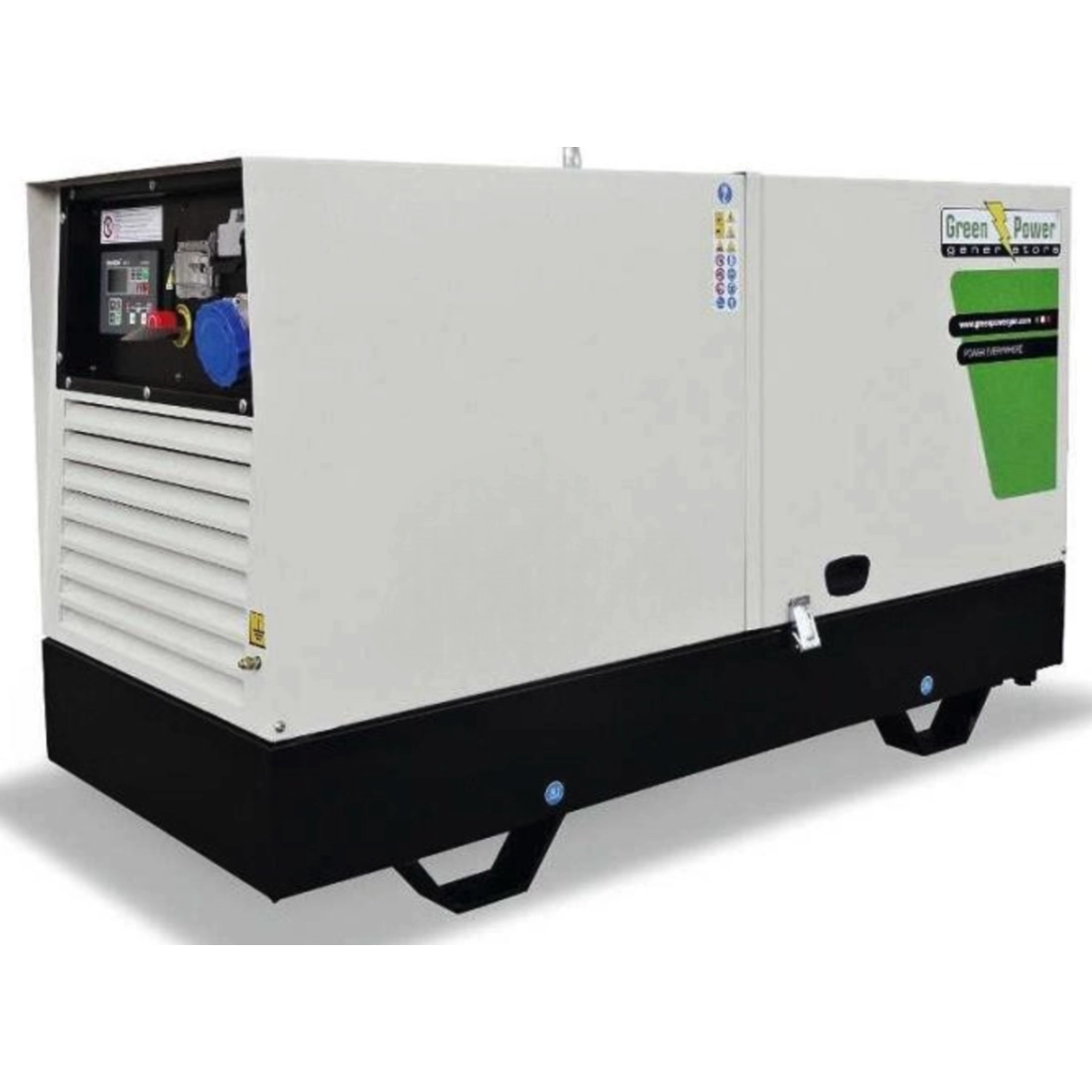

USED GREEN POWER GP33SH/DW GENERATOR SET 33KVA AVR

Used 33KVA GREEN POWER GP33SH/DW single-phase / three-phase generator set equipped with a DEUTZ F4M2011 Diesel engine capable of delivering a maximum power of 33KVA, complete with AVR voltage regulator.

The used 33KVA GREEN POWER GP33SH/DW generator set at 1500 rpm has been designed for versatile use, from construction sites to industry, from agriculture to civil protection.

Made of a sturdy electro-welded steel frame with a built-in 70 l capacity tank, DEUTZ F4M2011 engine and alternator LINZ PRO18SC/4 and control unit Lovato RGK40 cutting-edge, these components represent the elements to guarantee generators of excellent quality.

The 33KVA GREEN POWER GP33SH/DW generator used is made of a steel casing, which allows it to be used even in tropical environments.

Voltage Regulator AVR

The 33KVA GREEN POWER GP33SH/DW generator is equipped with a voltage regulator. The AVR is a device that allows to keep the output more constant and less dependent on the load. Thanks to this card, there are fewer drops or peaks of current and this makes the use of the various connected devices safer, improving their performance and duration.

TECHNICAL CHARACTERISTICS GREEN POWER GP33SH/DW Used

Phase type: Single-phase / Three-phase
Continuous Power Single-phase: 10 KVA / 8 KW
Maximum Power Single-phase: 11 KVA / 8.8 KW
Continuous Power Three-phase: 30 KVA / 24 KW
Maximum Power Three-phase: 33 KVA / 26.4 KW
Cos fiφ factor: 0.8
VAC voltage: 230 / 400 V
Frequency (Hz): 50
Voltage regulator: AVR
Starter panel: manual
Engine: DEUTZ F4M2011
Revolutions per minute RPM: 1500
Power supply: Diesel
Tank capacity: 70 l
Consumption: 5.4 l/h @ 75 % load
Autonomy: 12.96 h @ 75 % load
Sound pressure: 70 @ 7m
Length: 1750 mm
Width: 700 mm
Height: 1020 mm
Net weight: 830 Kg

Are you looking to rent a generator with different technical characteristics? HERE you can find our entire rental fleet where you can find the perfect generator for you.

Images and technical data are not binding. Please always consult the technical data sheet issued by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
