ECOFLOW DISTRIBUTION PANEL

  • New
search
NO BRAND
5002501002

Protection level: IP21
Tests and Certifications: UL Standard, FCC, PSE
Operating temperature (C ): -25℃-60℃
Main AC input: 30A max 120V, 3600W
Main DC input: 70A max
AC output: 6 position AC, 20A max each
DC output: 12 position DC fused (6 position controllable via console of the power kit and the Ecoflow Application)
Width: 211 mm
Length: 353 mm
Height: 99 mm
Weight: 2.6 kg

Technical features
Details

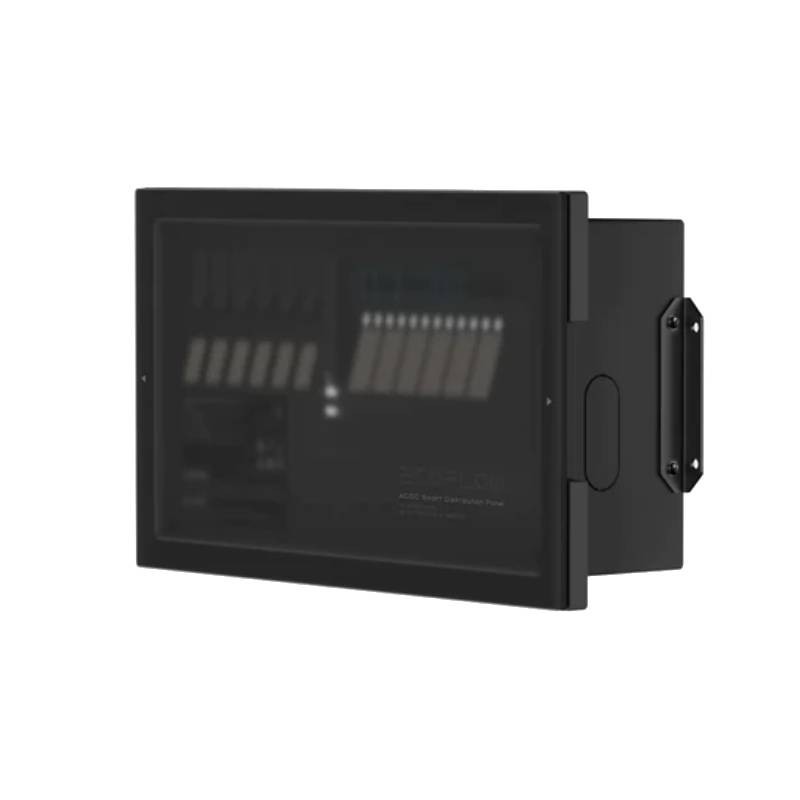

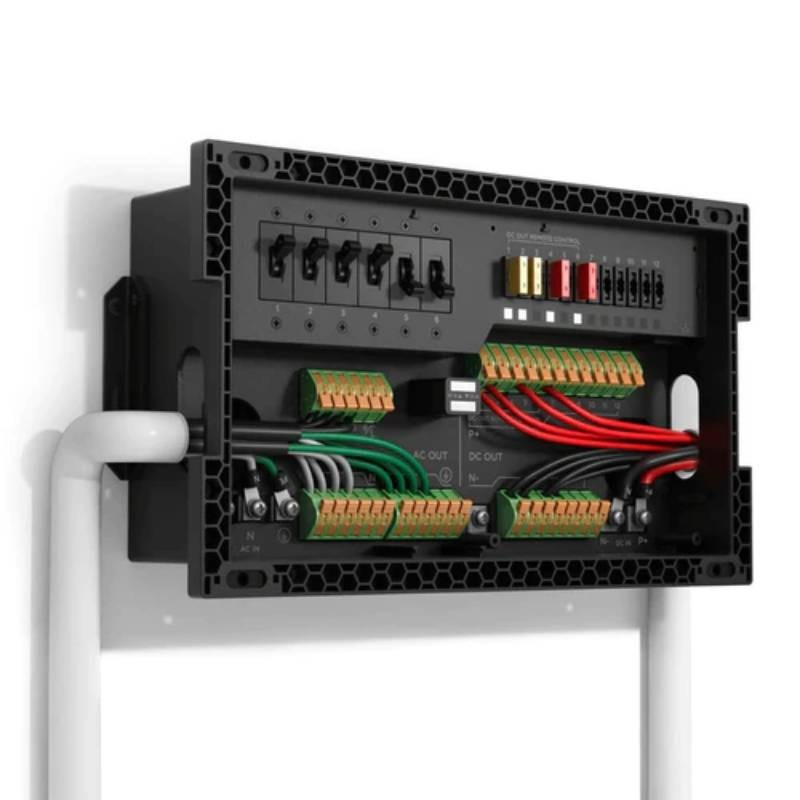

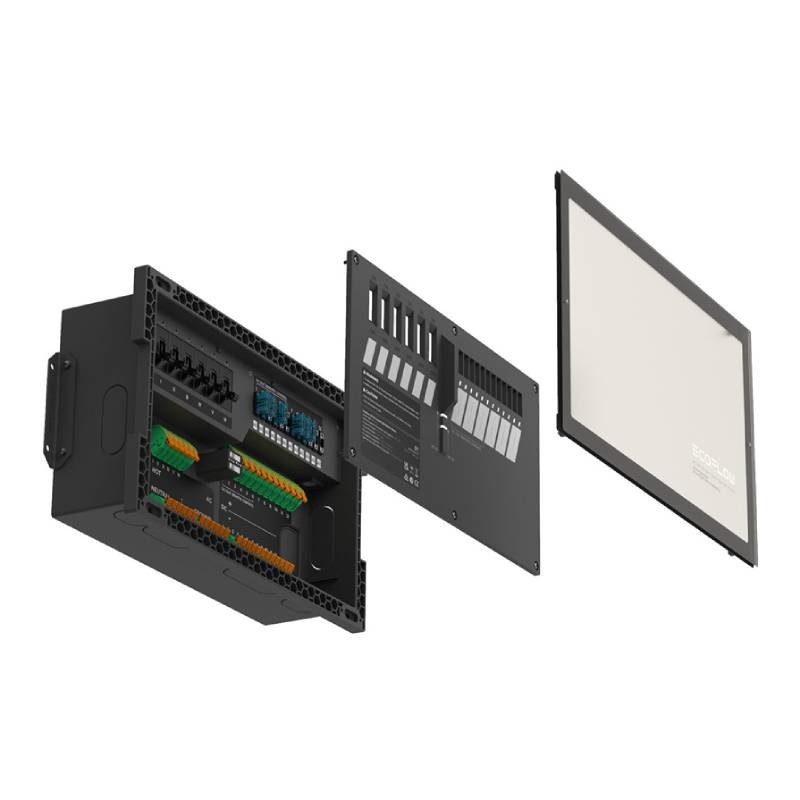

ECOFLOW DISTRIBUTION PANEL

The EcoFlow distribution panel allows you to control system power, sharing it securely with each of your devices.

Setting the power could not be easier with simple and intuitive installation. All wires included in the kits are color coded to ensure quick and easy installation.

Customize your wattage with changeable fuses. The user decides how to share the power, because 6 of the DC fuses can be customized and managed via the panel or the EcoFlow application .

TECHNICAL CHARACTERISTICS OF ECOFLOW DISTRIBUTION PANEL

Protection level: IP21
Tests and Certifications: UL Standard, FCC, PSE
Operating temperature (C ): -25℃-60℃
Main AC input: 30A max 120V, 3600W
Main DC input: 70A max
AC output: 6 position AC, 20A max each
DC output: 12 position DC fused (6 position controllable via console of the power kit and the Ecoflow Application)
Width: 211 mm
Length: 353 mm
Height: 99 mm
Weight: 2.6 kg

Discover the entire range of Ecoflow products by clicking HERE!

The images and technical characteristics are not binding and may be subject to revisions by the manufacturer.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
